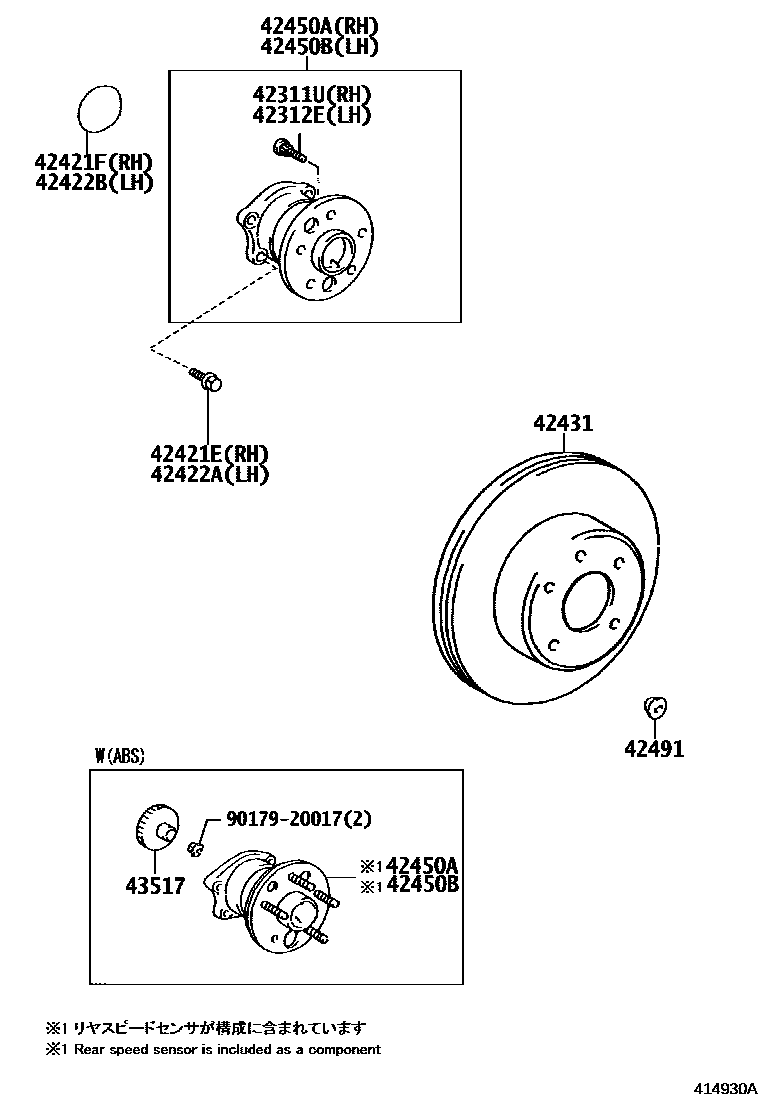

Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102
Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90089-11034 |
| 42312E | Hub bolt (for left rear axle) | 90089-11034 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-10124 |
| 42421F | O-ring (for rear axle right bearing housing) | 90301-63006 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-10124 |
| 42422B | O-ring (for rear axle left bearing housing) | 90301-63006 |
| 42431 | rear brake disc | 42431-06090 · 42431-33010 |
| 42450A | Rear axle right hub and bearing assembly | 42410-06090 · 42410-06091 · 42410-07010 · 42410-33040 · 42410-YC040 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42410-06090 · 42410-06091 · 42410-07010 · 42410-33040 · 42410-YC040 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-06010 |
| 43517 | Rear anti-skid control rotor | 43517-12021 |
