Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

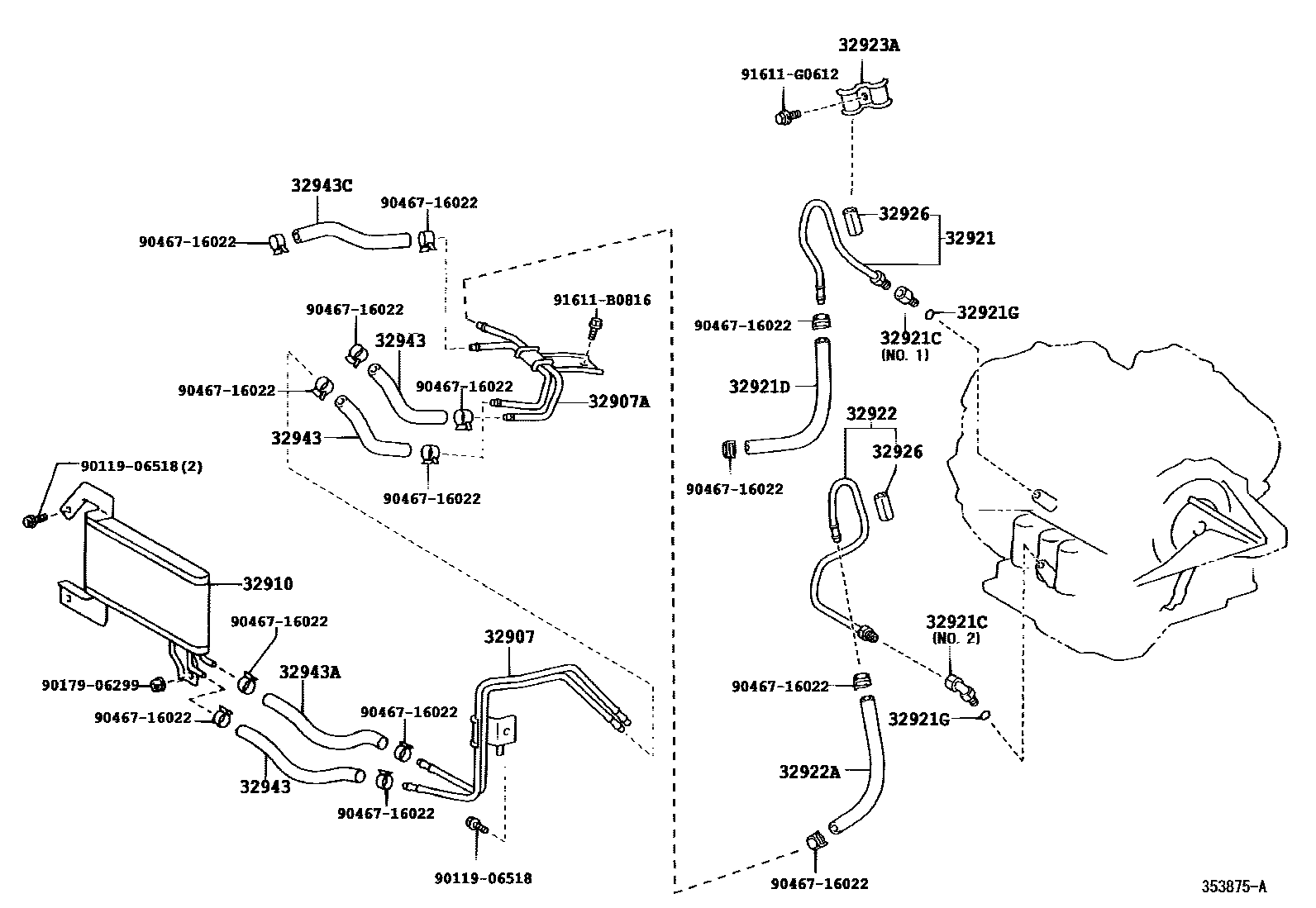

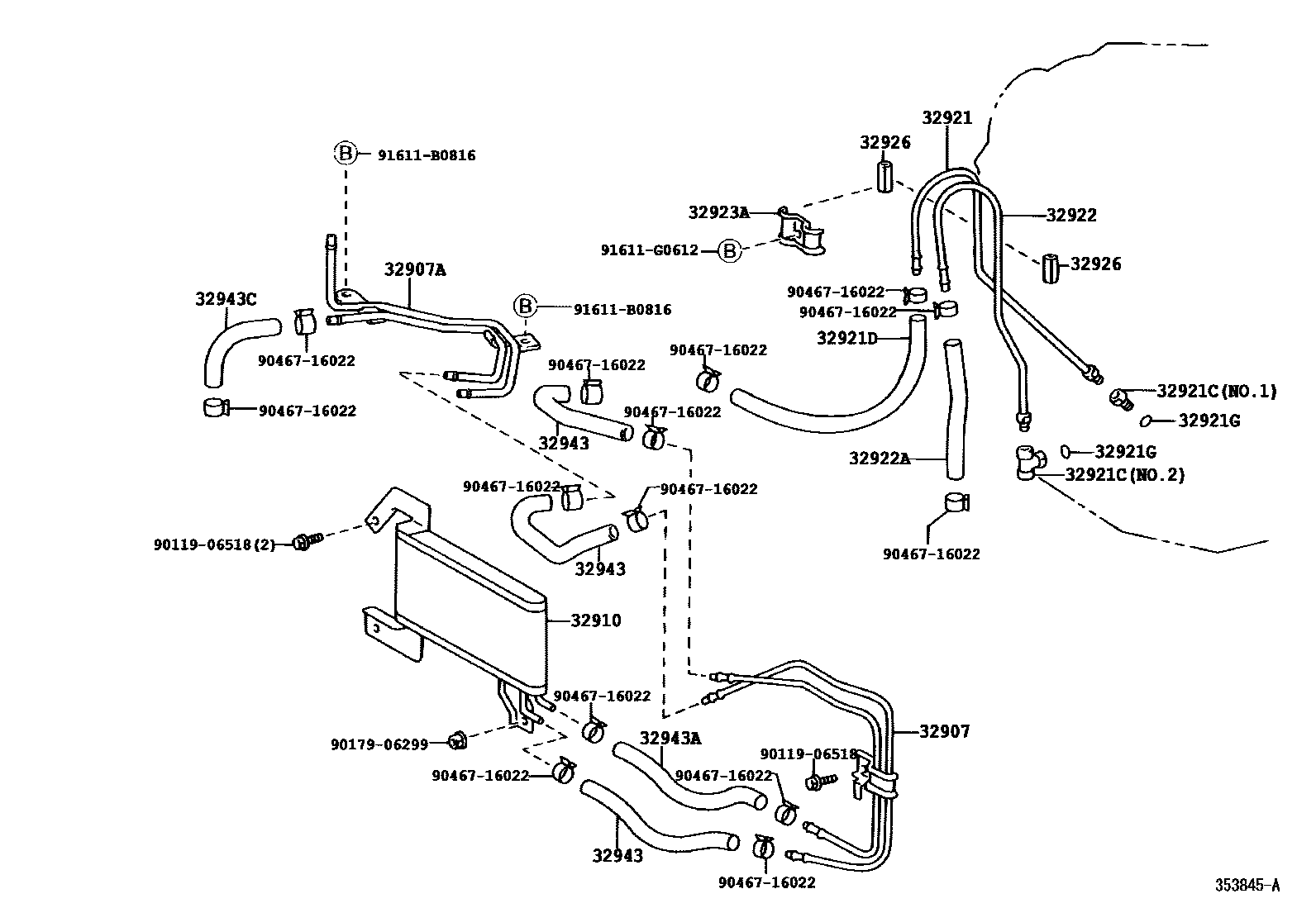

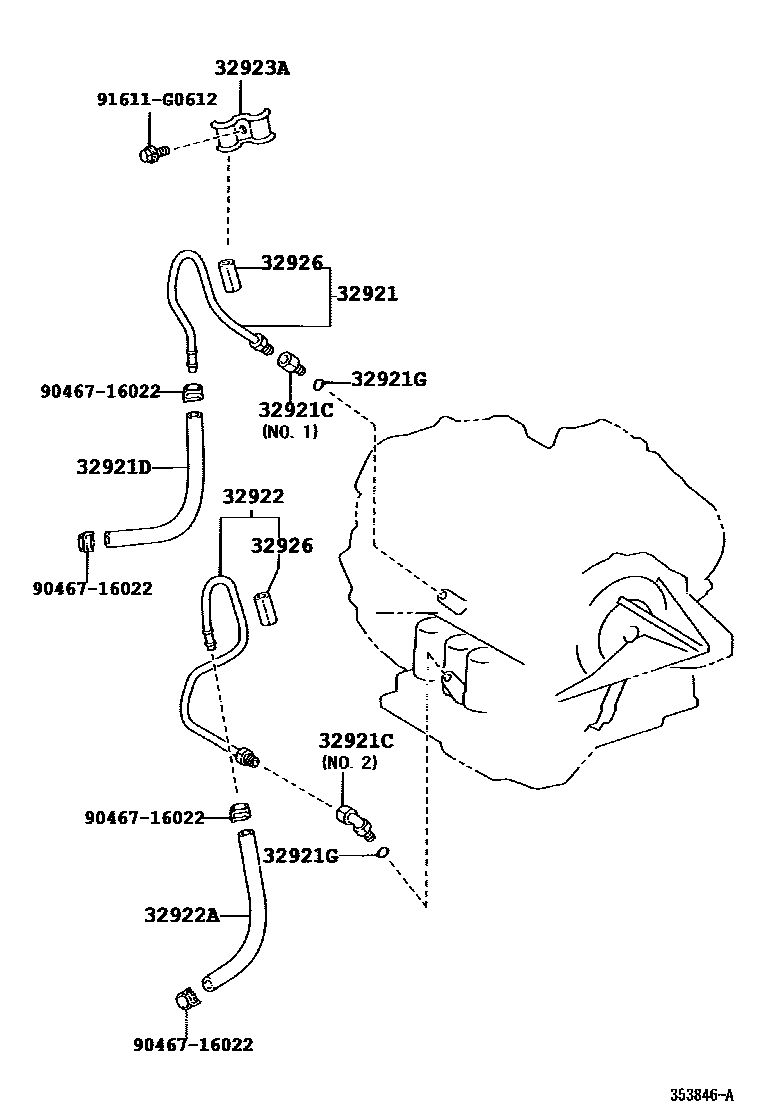

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907 | No. 2 transmission oil cooler oil outlet pipe sub-assembly | 32907-YC010 |
| 32907A | Transmission oil cooler pipe | 32907-YC030 · 32907-YC040 |
| 32910 | Oil cooler assembly | 32910-06010 · 32910-06020 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-YC020 · 32921-YC030 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-32050 · 90404-16031 · 90407-16010 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-YC010 · 90089-44023 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-YC020 · 32922-YC030 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90089-44033 · 90089-44034 · 90089-44035 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-12074 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-06020 |
| 32943 | No. 1 transmission oil cooler hose | 90089-44025 |
| 32943A | No. 2 transmission oil cooler hose | 90089-44031 |
| 32943C | No. 3 transmission oil cooler hose | 90089-44032 · 90089-44036 |
