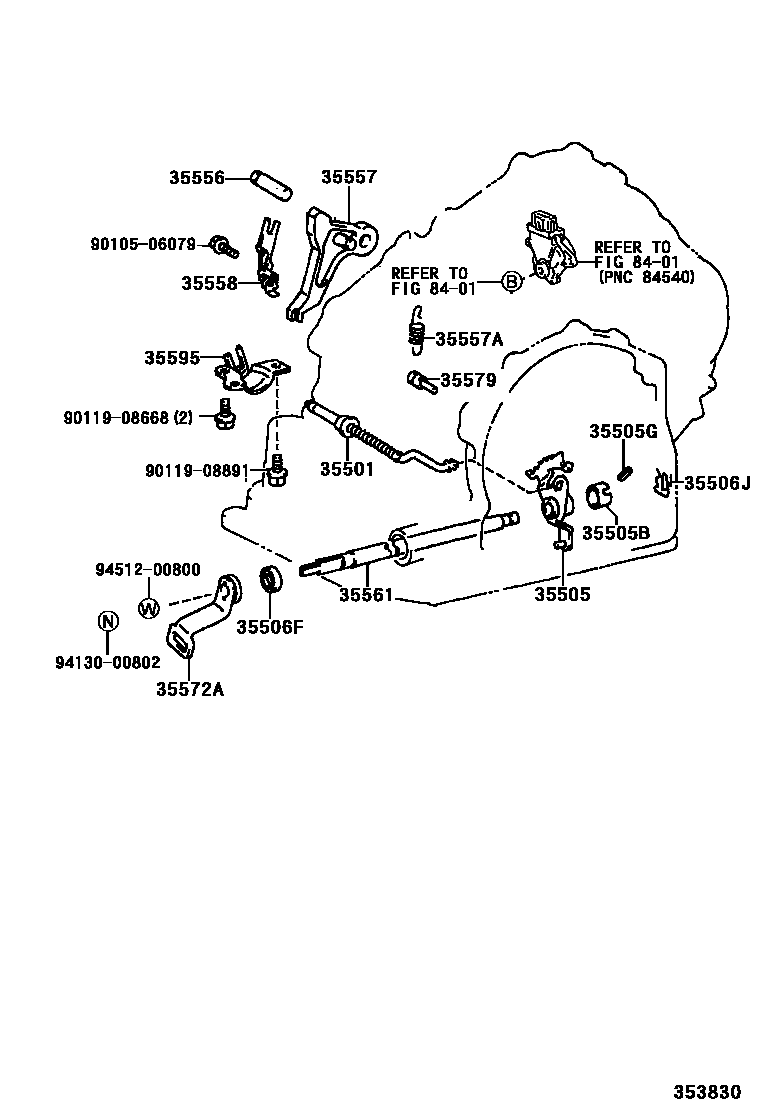

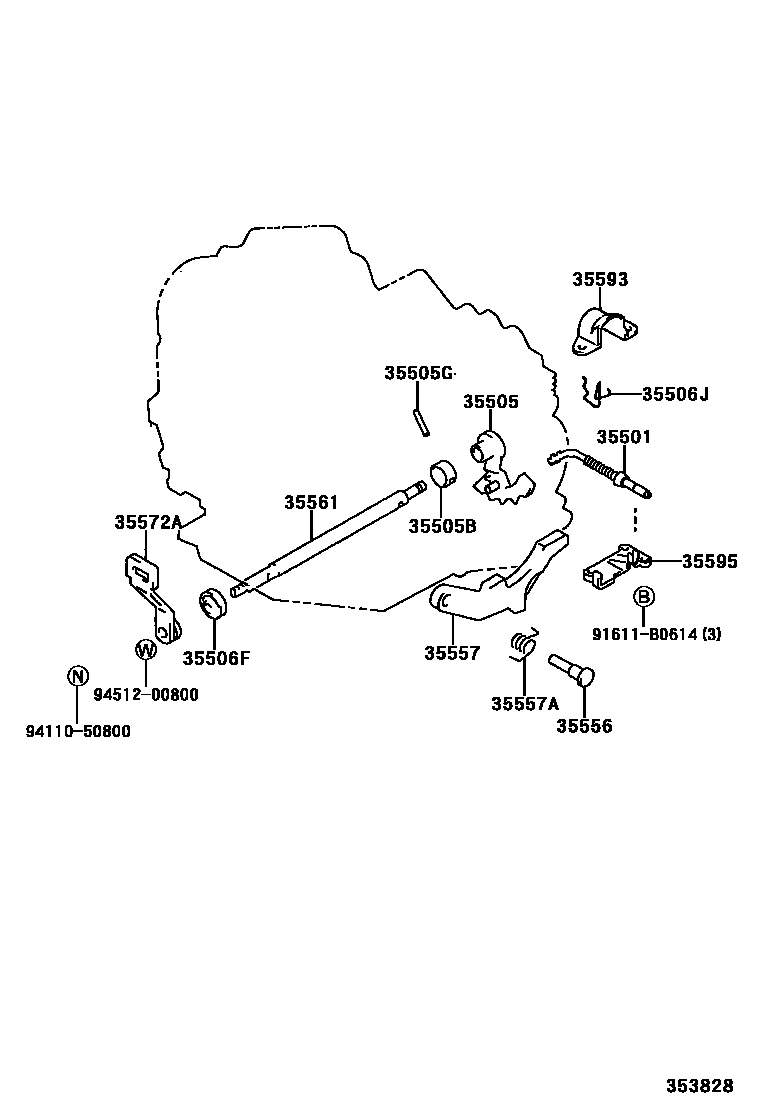

Toyota CAMRY 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota CAMRY EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35501 | Parking lock lever sub-assembly | 35501-21010 · 35501-33010 |
| 35505 | Manual valve stem sub-assembly | 35505-21010 · 35505-32040 |
| 35505B | Spacer (for manual valve stem) | 90560-20006 |
| 35505G | Slotted spring pin (for manual valve stem) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35506J | Stop spring (for manual valve stem shaft) | 90524-09001 |

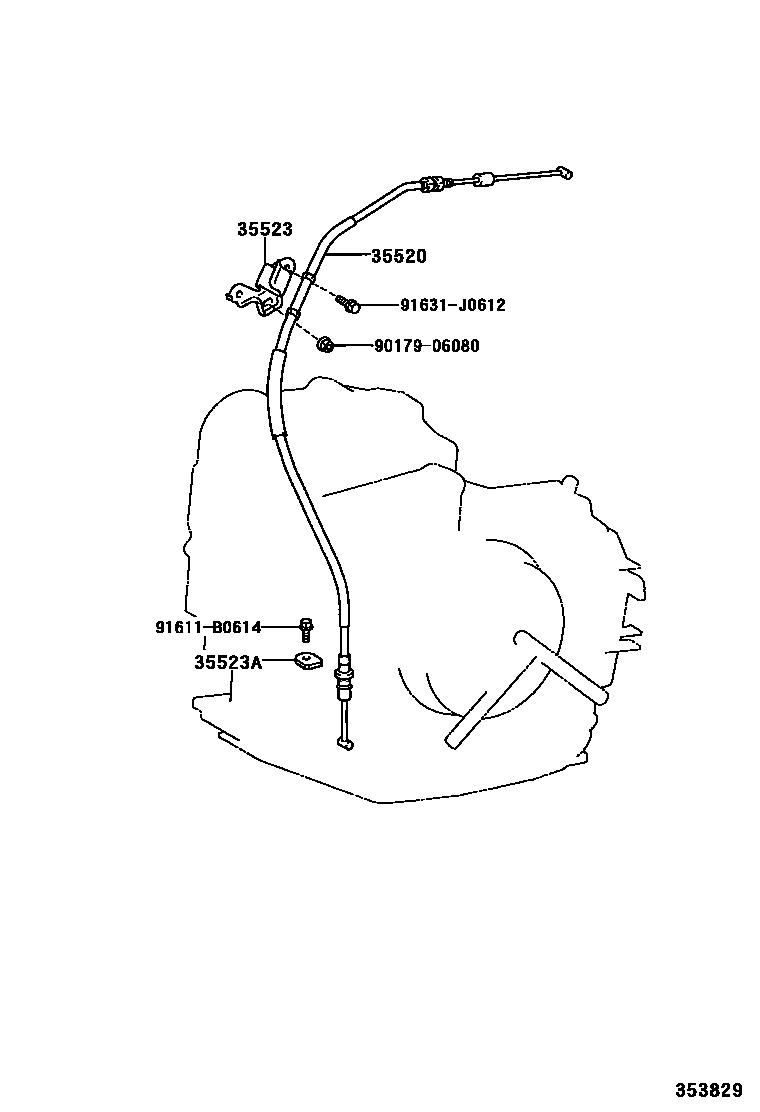

| 35520 | Throttle valve cable assembly | 35520-33060 |
| 35523 | Throttle valve cable clamp | 35523-YC030 |
| 35523A | No. 1 throttle valve cable clamp | 35523-32010 |
| 35556 | Parking lock pawl shaft | 35556-32020 · 35556-32030 |
| 35557 | Parking pawl | 35557-33010 · 35590-32010 |
| 35557A | Torsion spring (for parking pawl) | 90506-18077 · 90949-03043 |
| 35558 | Claw shaft clamp | 35558-32010 |
| 35561 | Manual valve stem shaft | 35561-21010 · 35561-33010 |
| 35572A | transmission control lever | 35572-33010 · 35572-48010 |
| 35579 | Parking lock pawl pin | 35594-21010 |
| 35593 | Cam guide bushing | 35593-33010 |
| 35595 | Parking lock pawl bracket | 35595-21010 · 35595-33010 |
