Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

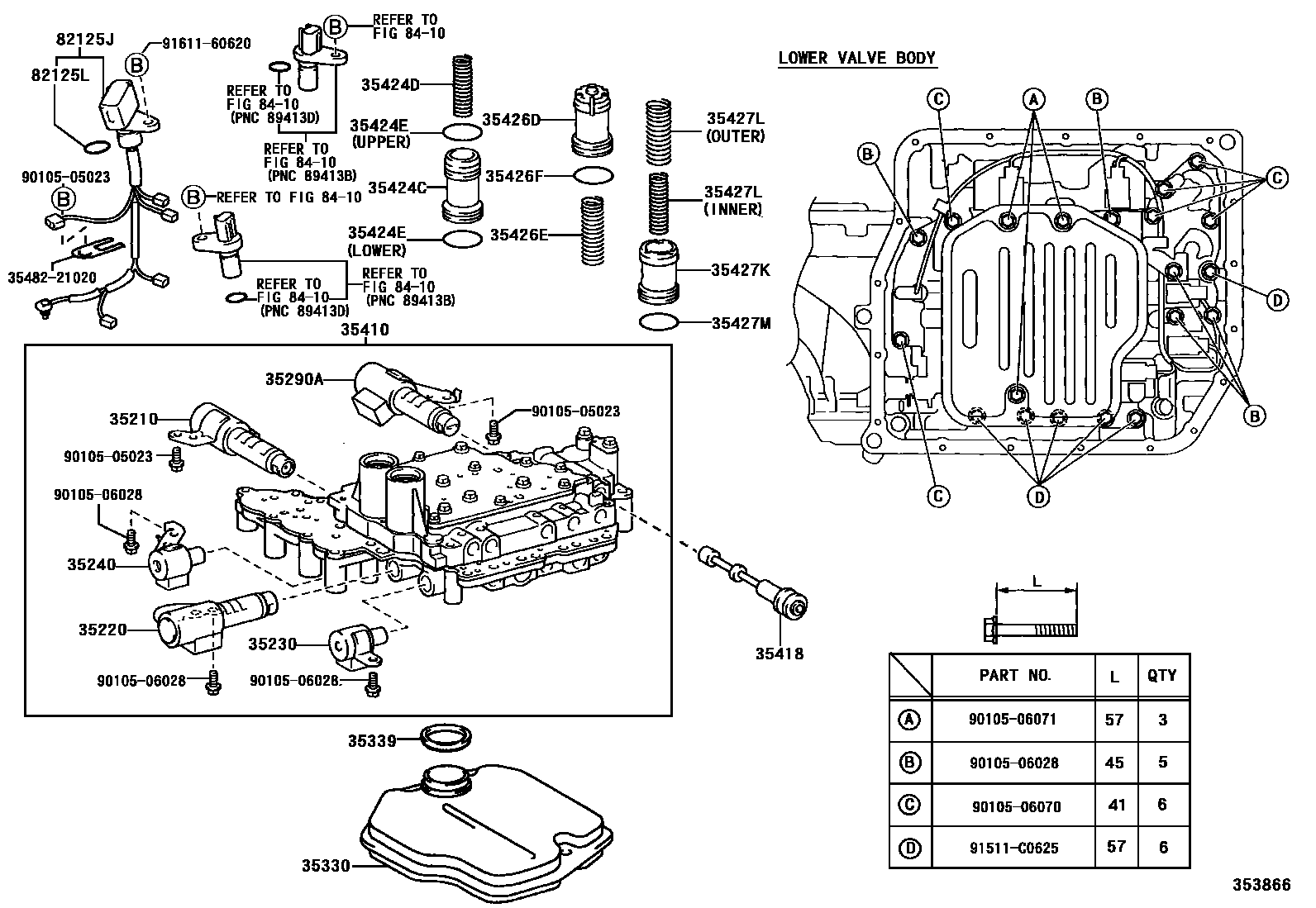

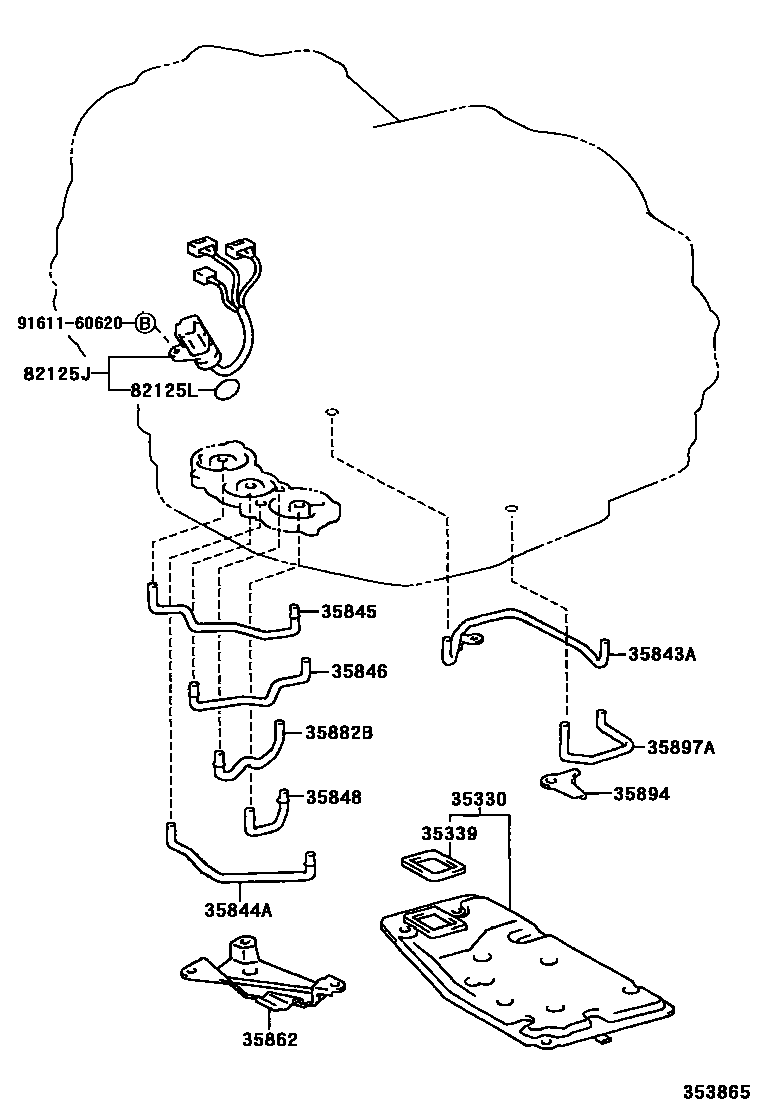

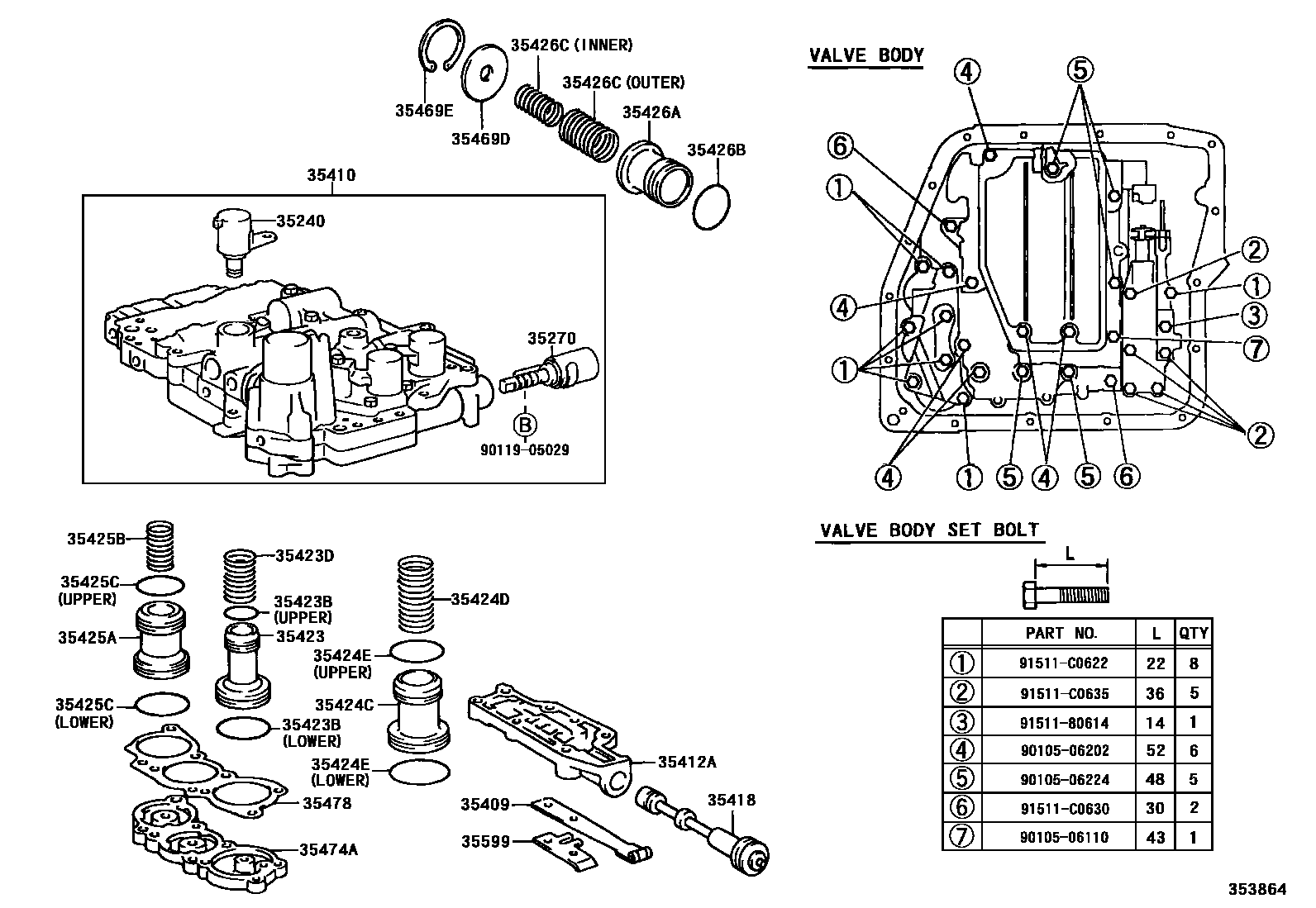

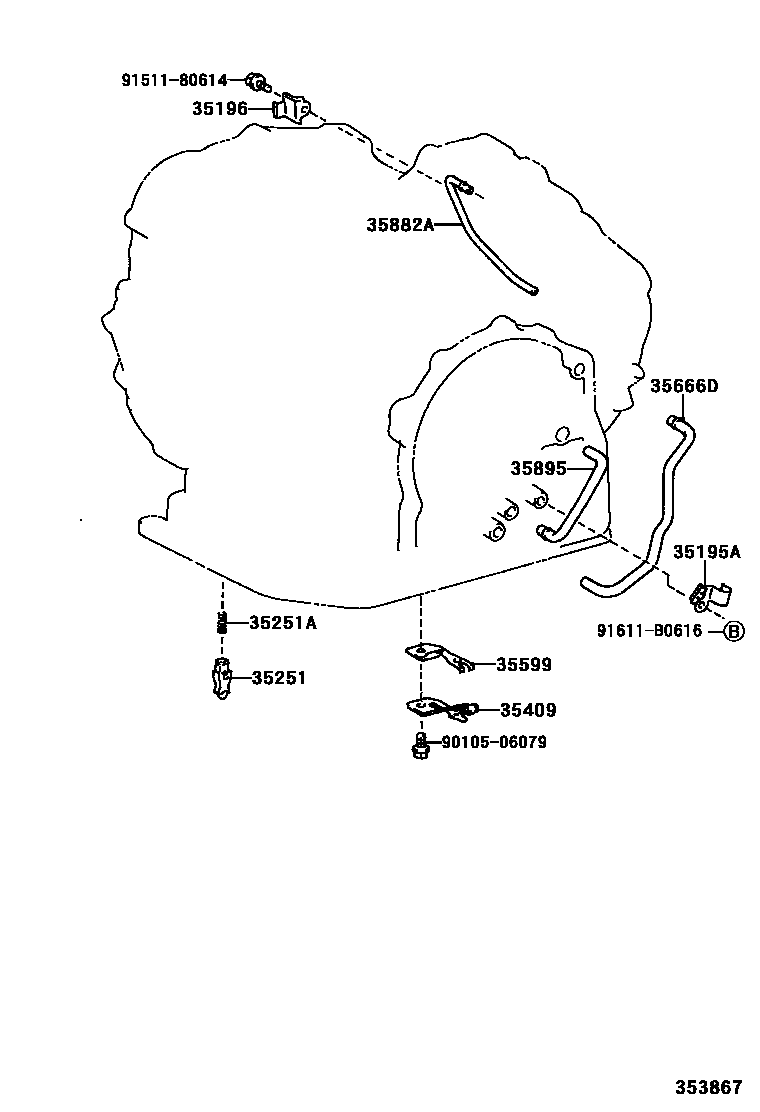

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 4 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-21010 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-21010 |
| 35210 | No. 1 clutch control solenoid valve assembly | 35210-21010 |
| 35220 | No. 2 clutch control solenoid valve assembly | 35220-21010 |
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-21010 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-21010 · 35240-33010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35270 | Shift control solenoid valve assembly | 35270-33011 |
| 35290A | Pipe pressure control solenoid valve assembly | 35290-21010 |
| 35330 | Valve body oil filter assembly | 35330-06010 · 35330-33030 |
| 35339 | Oil filter gasket | 35339-33010 · 90301-32010 |
| 35409 | Manual lock spring sub-assembly | 35409-21010 · 35409-32030 |
| 35410 | Transmission valve body assembly | 35410-41010 · 35410-48011 |
| 35412A | Manual valve body | 35412-32020 |
| 35418 | Manual valve | 35418-21011 · 35418-32010 |
| 35423 | B-2 Accumulator Piston | 35403-33030 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-21006 · 90301-30005 |
| 35423D | Compression spring (for B-2 accumulator piston) | 90501-23139 |
| 35424C | C-1 Accumulator Piston | 35424-21010 · 35424-33010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-22039 · 90501-27024 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-27008 · 90301-30005 · 90301-30007 · 90301-36006 |
| 35425A | C-2 Accumulator Piston | 35405-33021 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-21035 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-26010 · 90301-34007 |
| 35426A | C-0 Accumulator Piston | 35426-32020 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-30005 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-26036 · 90501-29019 |
| 35426D | C-3 Accumulator Piston | 35406-21010 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90905-01035 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-30007 |
| 35427K | B-3 Accumulator Piston | 35427-21010 |
| 35427L | Compression spring (for B-3 accumulator piston) | 90501-22038 · 90501-25053 |
| 35427M | O-ring (for B-3 accumulator piston) | 90301-28008 |
| 35469D | Spacer (for C-0 accumulator piston) | 35469-33010 |
| 35469E | Snap ring (for C-0 accumulator piston spacer) | 96151-03700 |
| 35474A | Accumulator cover | 35474-33011 |
| 35478 | Accumulator cover gasket | 35478-33010 |
| 35599 | Manual locking spring cover | 35599-21010 · 35599-32020 |
| 35666D | Brake oil supply pipe | 35666-32010 |
| 35843A | Transfer case lubricating oil supply pipe | 35843-33010 |
| 35844A | No. 1 accumulator back pressure pipe | 35844-33020 |
| 35845 | Rear clutch accumulator tube | 35845-33010 |
| 35846 | brake accumulator pipe | 35846-33010 |
| 35848 | Forward clutch accumulator tube | 35848-33010 |
| 35862 | Accumulator fuel supply pipe bracket | 35862-33020 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-32020 |
| 35882B | Rear servo oil supply pipe | 35882-33010 |
| 35894 | Accumulator tube bracket | 35894-33010 |
| 35895 | Front clutch oil supply pipe | 35895-21010 |
| 35897A | No. 1 first and reverse brake pipe | 35897-33010 |
| 82125J | Transmission wiring harness | 82125-28180 · 82125-33010 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 |
