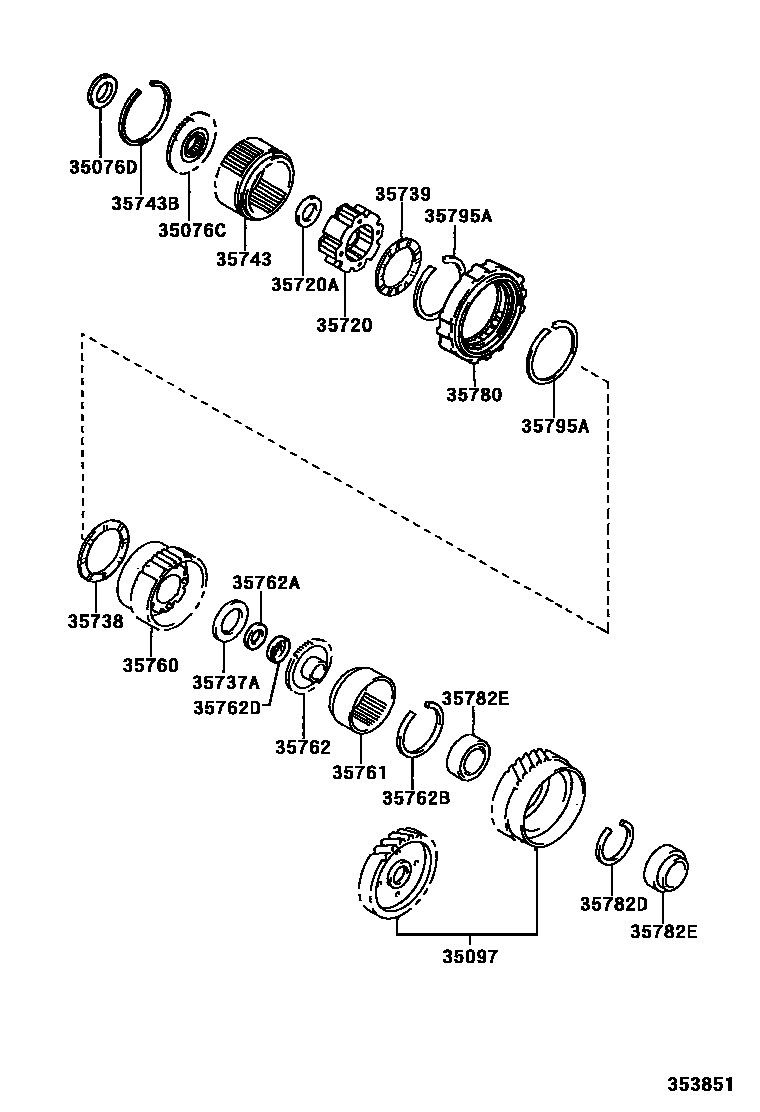

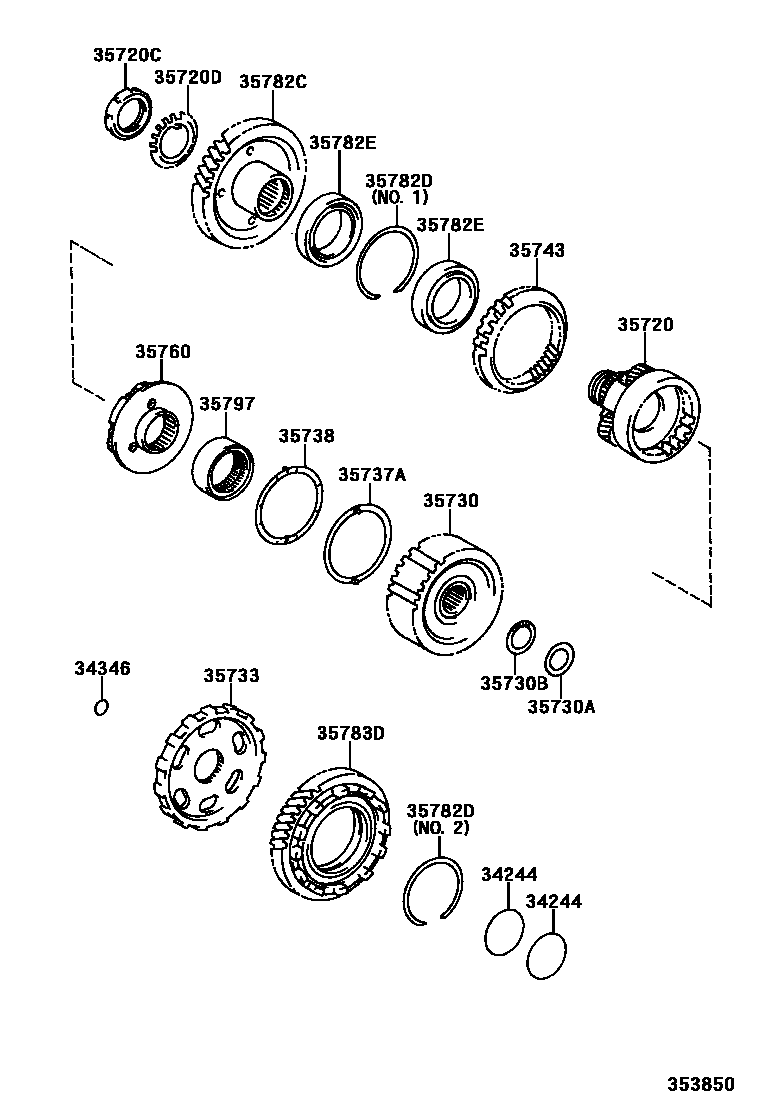

Toyota CAMRY 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota CAMRY EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34244 | Low gear clutch drum oil protection ring | 34244-21010 |
| 34346 | Low speed gear output shaft oil protector ring | 34346-21011 |
| 35076C | Front planetary ring gear flange sub-assembly | 35076-33011 |
| 35076D | Thrust needle roller bearing (for front planetary gear flange) | 90374-31003 |
| 35097 | Automatic transmission axle countershaft gear assembly | 35097-33010 |
| 35720 | Front planetary gear assembly | 35720-33010 · 35720-44010 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-30015 |
| 35720C | Nut (for front planetary gear) | 90179-46001 |
| 35720D | Washer (for front planetary gear) | 90209-46001 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-21010 |
| 35730A | Thrust bearing race (for rear planetary gear train sun gear) | 35789-21010 |
| 35730B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-33003 |
| 35733 | Parking lock gear | 35733-32030 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-21010 · 35738-33010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35737-21010 · 35738-33020 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-33010 |
| 35743 | Front planetary ring gear | 35743-21010 · 35743-33020 |
| 35743B | Hole snap ring (for front planetary ring gear) | 90520-90002 |
| 35760 | Rear planetary gear assembly | 35760-33020 · 35760-33030 |
| 35761 | Rear planetary ring gear | 35761-32020 |
| 35762 | Rear planetary gear flange | 35762-33010 |
| 35762A | Thrust needle roller bearing (for rear planetary gear flange) | 90374-22006 |
| 35762B | Hole snap ring (for rear planetary ring gear flange) | 90520-82002 |
| 35762D | Thrust bearing race (for rear planetary gear flange) | 35789-33020 |
| 35780 | No. 2 one-way clutch assembly | 35780-33010 |
| 35782C | countershaft driving gear | 35782-32031 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90520-84001 · 90520-89004 · 90521-67001 |
| 35782E | Bearings (for countershaft drive gear) | 90366-40077 · 90366-60009 · 90369-59001 |
| 35783D | countershaft driven gear | 35783-32031 · 35783-33040 |
| 35795A | Hole snap ring (for one-way clutch outer race) | 90520-99017 |
| 35797 | One-way clutch inner race | 35797-21010 |
