Toyota CAMRY 中央支架和行星太阳齿轮(ATM) — Figure 3508

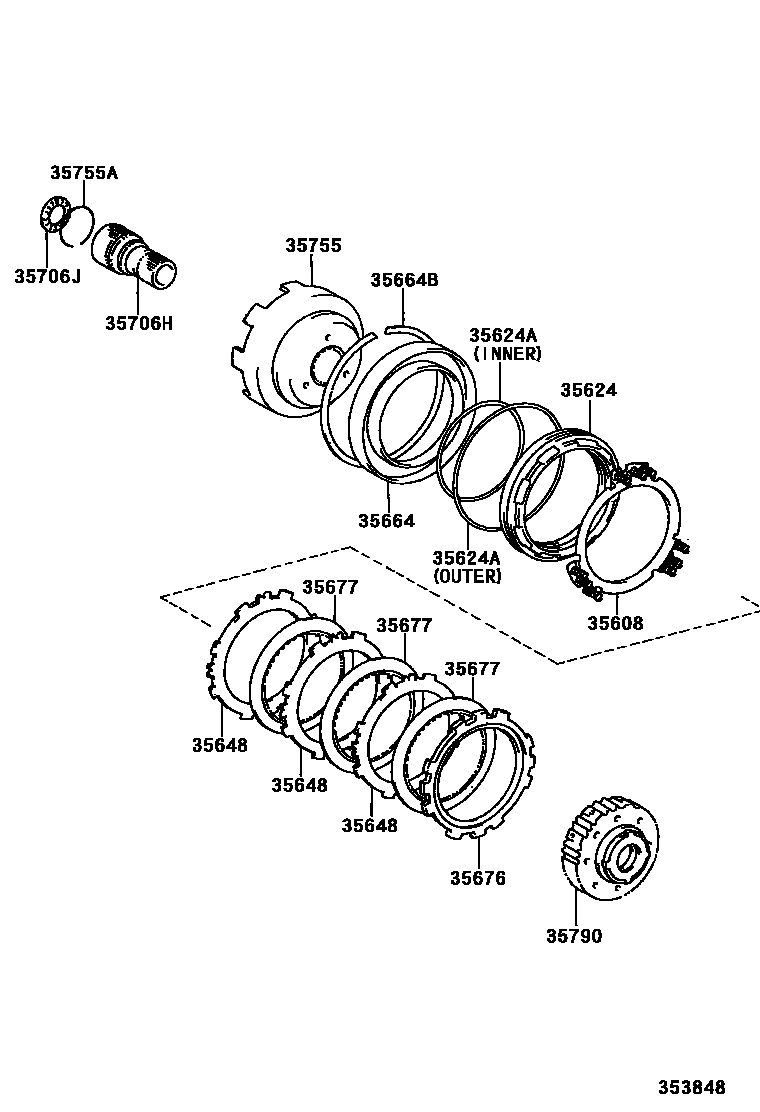

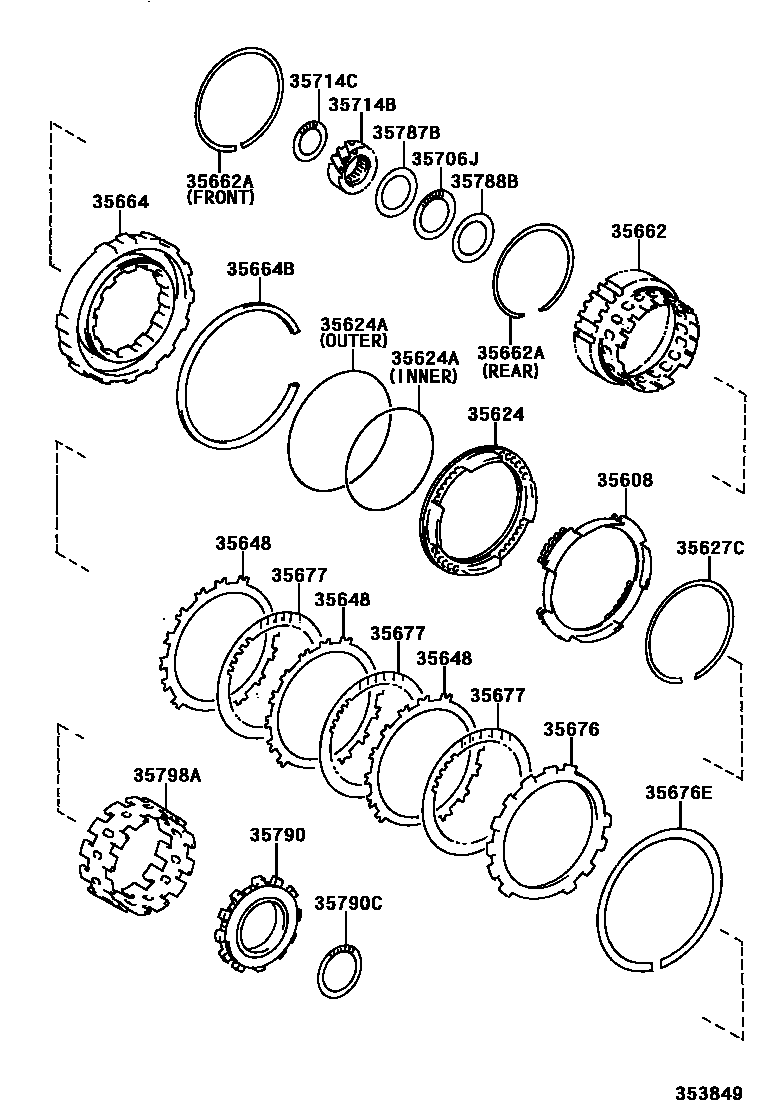

Toyota CAMRY EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35608 | Second gear brake piston return spring sub-assembly | 35608-21010 · 35608-33010 |
| 35624 | Second gear brake piston | 35624-33010 · 35624-33030 |
| 35624A | O-ring (for second gear brake piston) | 90301-99021 · 90301-99023 · 90301-99093 · 90301-99095 |
| 35627C | Shaft snap ring (for second gear brake piston return spring seat) | 90520-99036 |
| 35648 | Clutch disc (for second gear brake) | 35648-33010 · 35691-21010 |
| 35662 | brake hub | 35662-21010 |
| 35662A | Snap ring (for brake hub) | 90520-99024 · 90520-99033 |
| 35664 | Second gear brake cylinder | 35664-32010 · 35664-33010 |
| 35664B | Hole snap ring (for second gear brake cylinder) | 90520-99027 · 90521-99013 |
| 35676 | Brake flange (for second gear brake) | 35676-21010 · 35676-21020 · 35676-21070 · 35676-21080 · 35676-21090 · 35676-21100 · 35676-21110 · 35676-21120 · 35676-21130 · 35676-33010 |
| 35676E | Hole snap ring (for second gear brake) | 90520-99026 |
| 35677 | Clutch disc (for second gear brake) | 35677-33050 · 35681-21010 |
| 35706H | Planetary gear train sun gear sub-assembly | 35706-33012 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-30014 · 90374-38002 |
| 35714B | Input shaft sun gear | 35714-21010 |
| 35714C | Thrust needle roller bearing (for input shaft sun gear) | 90374-34006 |
| 35755 | sun gear input drum | 35755-33010 |
| 35755A | Shaft snap ring (for sun gear input drum) | 90520-36017 |
| 35787B | No. 2 thrust bearing race | 35787-21010 |
| 35788B | No. 3 thrust bearing race | 35788-21010 |
| 35790 | One-way clutch assembly | 35790-33010 · 35790-33020 |
| 35790C | Thrust needle roller bearing | 90374-53001 |
| 35798A | One-way clutch outer sleeve | 35798-21011 |
