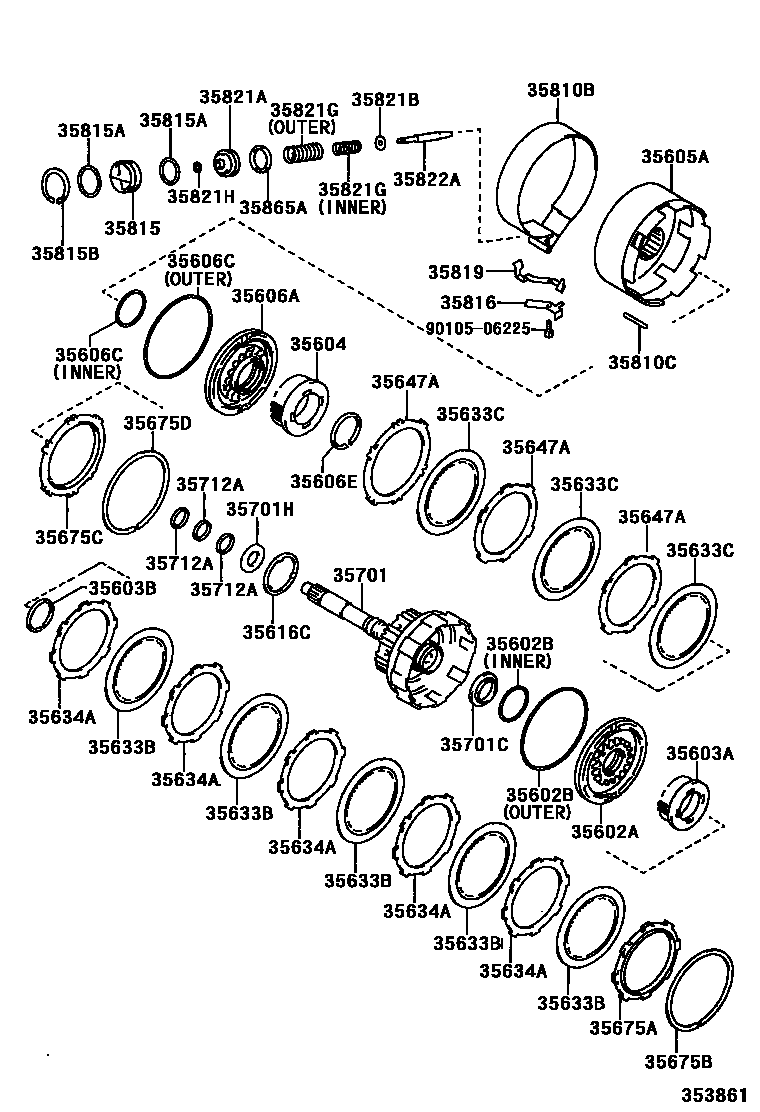

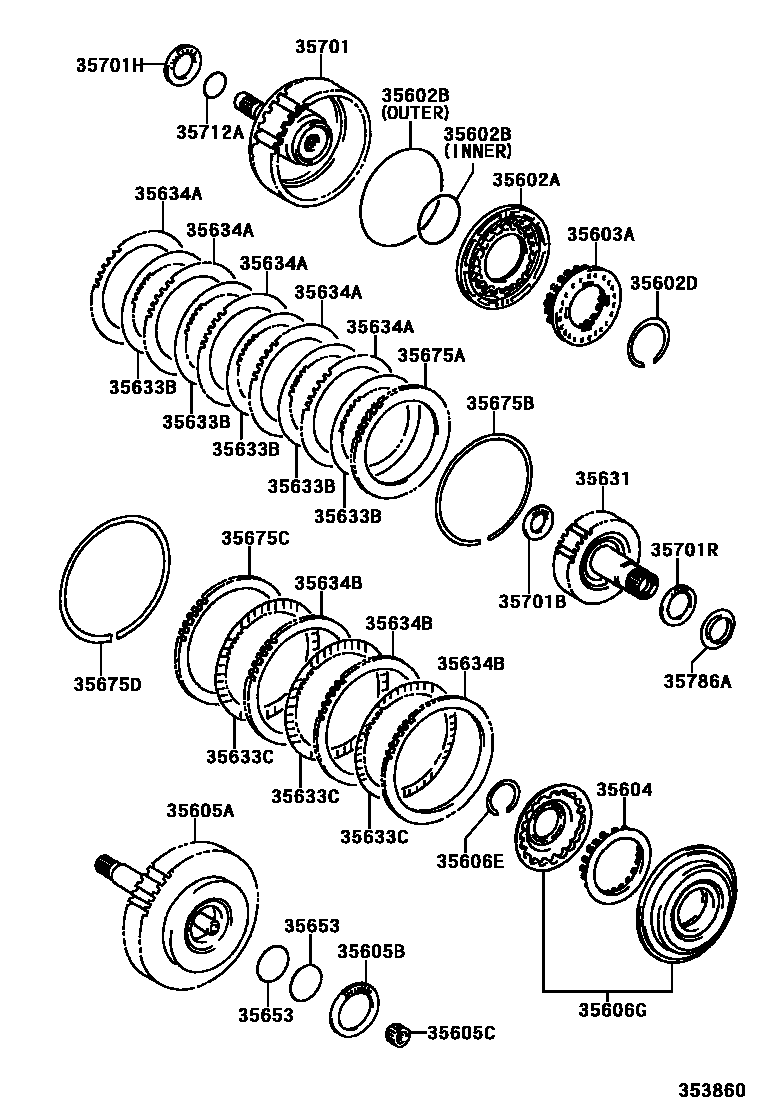

Toyota CAMRY 制动带和多片式离合器(ATM) — Figure 3507
Toyota CAMRY EPC diagram 3507, 制动带和多片式离合器(ATM), with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35602A | Forward gear clutch piston sub-assembly | 35602-21010 · 35602-33030 |
| 35602B | O-ring (for forward clutch piston) | 90301-59004 · 90301-64008 · 90301-99016 · 90301-99104 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90520-54004 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-21010 · 35603-33010 |
| 35603B | Shaft snap ring (for forward clutch piston) | 90520-54002 |
| 35604 | Direct clutch return spring sub-assembly | 35604-21010 · 35604-33010 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-33021 · 35605-48010 |
| 35605B | Thrust needle roller bearing | 90374-53001 · 90374-53002 |
| 35605C | Needle roller bearings | 90364-18010 |
| 35606A | Direct clutch piston sub-assembly | 35606-32031 |
| 35606C | O-ring (for direct clutch piston) | 90301-59004 · 90301-99016 |
| 35606E | Shaft snap ring (for direct clutch piston return spring) | 90520-38019 · 90520-54002 |
| 35606G | Direct clutch piston assembly | 35606-21010 |
| 35616C | Clutch drum thrust washer (for direct gear clutch drum) | 35616-32030 |
| 35631 | Clutch hub (for multi-plate clutches) | 35061-33010 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35633-21010 · 35633-33100 |
| 35633C | Clutch disc (for direct gear multi-plate clutch) | 35633-41010 · 35667-21010 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-21010 · 35634-33060 · 35634-33071 |
| 35634B | Clutch plate (for direct gear multi-plate clutch) | 35647-21010 |
| 35647A | Clutch plate (for direct gear multi-plate clutch) | 35647-33020 |
| 35653 | Rear clutch outer oil ring | 35653-21010 |
| 35675A | forward clutch flange | 35635-21010 · 35635-21020 · 35635-21030 · 35635-21040 · 35635-21050 · 35635-21060 · 35635-21070 · 35675-33010 · 35675-33020 · 35675-33050 |
| 35675B | Hole snap ring (for forward clutch flange) | 90520-99025 · 90521-99001 |
| 35675C | Direct clutch flange | 35675-21010 · 35675-21020 · 35675-21030 · 35675-21040 · 35675-21050 · 35675-21060 · 35675-21070 · 35675-21080 · 35675-33030 · 35675-33040 · 35675-33060 |
| 35675D | Hole snap ring (for direct clutch flange) | 90520-99028 · 90521-99032 |
| 35701 | Input shaft sub-assembly | 35701-33050 · 35701-44010 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-23002 |
| 35701C | Rear thrust bearing race (for input shaft) | 35789-33010 |
| 35701H | Thrust needle roller bearing (for input shaft) | 90374-27003 · 90374-27004 · 90374-34005 |
| 35701R | Thrust needle roller bearing | 90374-37005 |
| 35712A | Input shaft oil ring | 35712-21010 · 35712-32010 |
| 35786A | No. 1 thrust bearing race | 35786-21010 |
| 35810B | Second gear coasting brake band assembly | 35810-33010 |
| 35810C | Pin (for second gear coast brake band) | 90250-07001 |
| 35815 | Second gear coast brake cover | 35815-33010 |
| 35815A | O-ring (for second gear coast brake cover) | 90301-43005 |
| 35815B | Hole snap ring (for second gear coast brake cover) | 90521-55004 |
| 35816 | Brake belt guide plate cover | 35816-32010 |
| 35819 | Second gear coasting brake with guide plate | 35819-33010 |
| 35821A | Second gear coast brake piston | 35821-33010 |
| 35821B | Flat washer (for second gear coast brake piston) | 90201-06014 |
| 35821G | Compression spring (for second gear coast brake piston) | 90501-25047 · 90501-29046 |
| 35821H | E-ring (for second gear coast brake piston) | 96160-00500 |
| 35822A | Second gear coast brake piston rod | 35822-32030 · 35822-32040 |
| 35865A | Second gear coasting brake piston oil protection ring | 35865-33010 |
