Toyota CAMRY 超速档齿轮(ATM) — Figure 3506

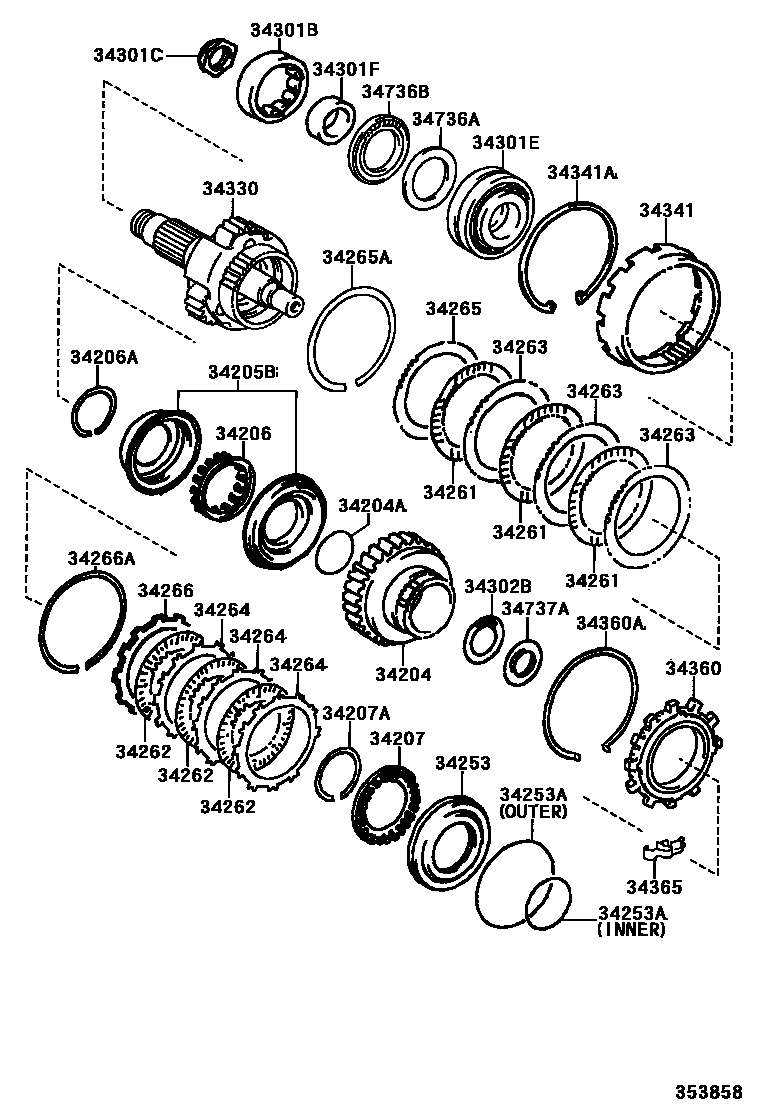

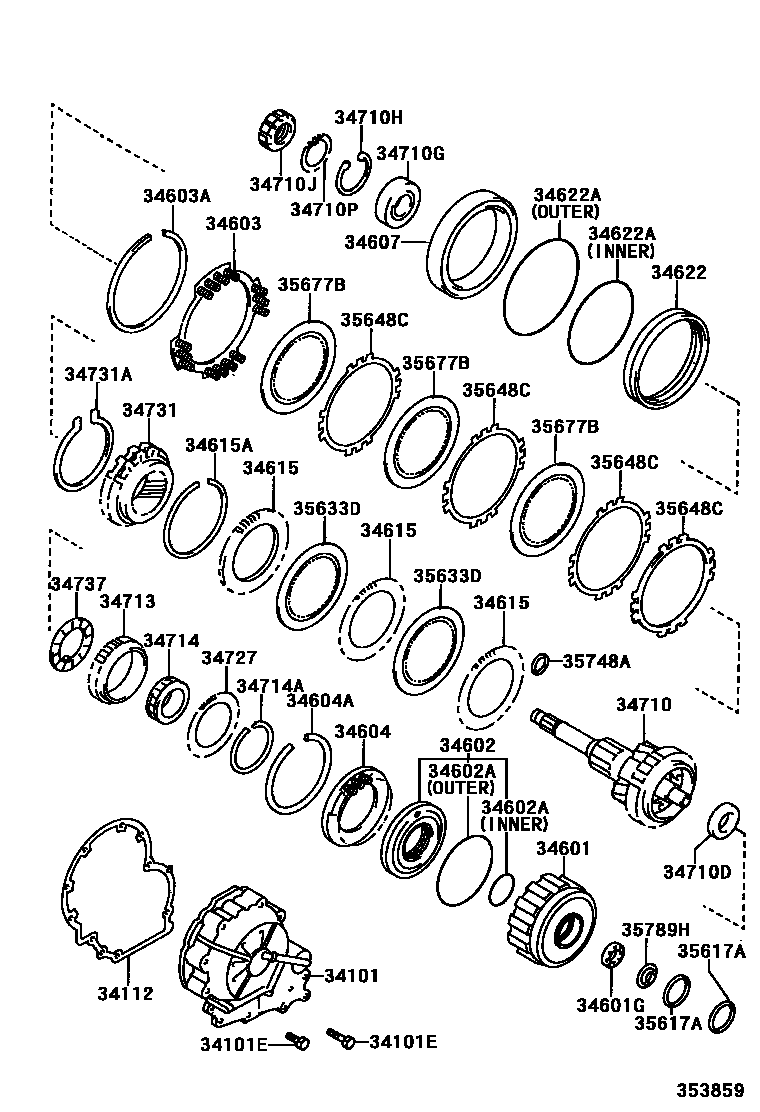

Toyota CAMRY EPC diagram 3506, 超速档齿轮(ATM), with 2 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34101 | Overspeed gear housing sub-assembly | 34101-33071 |
| 34101E | Bolts (for securing overdrive housing and transaxle housing) | 90105-08056 · 90105-08103 · 90105-08167 |
| 34112 | Overdrive housing gasket | 34112-33021 |
| 34204 | Low speed clutch drum sub-assembly | 34204-32010 |
| 34204A | O-ring (for low-speed clutch drum) | 90301-44004 |
| 34205B | Low range clutch piston assembly | 34205-32010 |
| 34206 | Low speed clutch return spring sub-assembly | 34206-32010 |
| 34206A | Shaft snap ring (for low speed return spring) | 90520-46011 |
| 34207 | Low speed brake return spring sub-assembly | 34207-21010 |
| 34207A | Snap ring (for low gear brake return spring) | 90520-59004 |
| 34253 | Low gear brake piston | 34253-21010 |
| 34253A | O-ring (for low-speed brake piston) | 90301-62007 · 90301-99094 |
| 34261 | No. 1 low speed clutch disc | 34261-32010 |
| 34262 | No. 2 low speed clutch disc | 34262-32010 |
| 34263 | No. 1 low speed clutch plate | 34263-32010 |
| 34264 | No. 2 low speed clutch plate | 34264-32010 |
| 34265 | No. 1 low speed clutch flange | 34265-32010 · 34265-32020 · 34265-32030 · 34265-32040 · 34265-32050 · 34265-33030 · 34265-33040 · 34265-33050 · 34265-33060 |
| 34265A | Hole snap ring (for No. 1 low-speed clutch flange) | 90520-99041 |
| 34266 | No. 2 low speed clutch flange | 34266-32010 · 34266-32020 · 34266-32030 · 34266-32040 · 34266-32050 |
| 34266A | Hole snap ring (for No. 2 low-speed clutch flange) | 90520-99041 |
| 34301B | No. 1 roller bearing (for low speed gear) | 90365-48001 · 90365-50003 |
| 34301C | Nut (for low speed input shaft) | 90179-32002 |
| 34301E | Roller tapered bearings (for low speed gears) | 90369-43013 |
| 34301F | Roller bearing inner race | 34733-32010 · 34733-32011 |
| 34302B | Needle roller bearings (for low-speed planetary gear train sun gear) | 90374-37007 |
| 34330 | Low speed planetary gear assembly | 34330-32010 · 34330-33030 |
| 34341 | Low speed planetary ring gear | 34341-32011 |
| 34341A | Hole snap ring (for low speed planetary ring gear) | 90521-99121 |
| 34360 | Low speed gear one-way clutch assembly | 34360-32011 |
| 34360A | Shaft snap ring (for low gear one-way clutch) | 90520-99040 |
| 34365 | Outer race retainer | 34365-32011 |
| 34601 | Overspeed direct gear clutch drum sub-assembly | 34601-33010 |
| 34601G | Thrust needle roller bearing (for overspeed direct clutch) | 90374-28013 |
| 34602 | Overspeed direct gear clutch piston sub-assembly | 34602-33010 |
| 34602A | O-ring (for overspeed direct clutch piston) | 90301-57188 · 90301-99016 |
| 34603 | Overdrive brake return spring sub-assembly | 34603-33050 |
| 34603A | Hole snap ring (for overdrive brake return spring) | 90521-99050 |
| 34604 | Overdrive clutch return spring sub-assembly | 34604-32010 |
| 34604A | Hole snap ring (for overdrive clutch return spring) | 90521-99060 |
| 34607 | Overdrive brake drum sub-assembly | 34607-32010 |
| 34615 | Overdrive clutch flange | 34615-33010 · 34615-33020 · 34615-33030 |
| 34615A | Hole snap ring (for overdrive clutch flange) | 90521-99058 |
| 34622 | overdrive brake piston | 34622-33050 |
| 34622A | O-ring (for overdrive brake piston) | 90301-99043 · 90301-99044 |
| 34710 | Overdrive planetary gear assembly | 34710-33011 |
| 34710D | Thrust needle roller bearing (for overdrive planetary gear) | 90374-39003 |
| 34710G | Radial ball bearings (for overdrive planetary gears) | 90363-40053 |
| 34710H | Hole snap ring (for overdrive planetary gear bearings) | 90521-78003 |
| 34710J | Nut (for overdrive planetary gear) | 90179-40005 |
| 34710P | Washer (for overdrive planetary gear) | 90209-40001 |
| 34713 | One-way clutch outer race (for overdrive) | 34713-32010 |
| 34714 | One-way clutch (for overdrive) | 34714-32021 |
| 34714A | Hole snap ring (for one-way clutch) | 90521-93002 |
| 34727 | Block (for overdrive) | 34727-32020 |
| 34731 | Overdrive planetary ring gear | 34731-33010 |
| 34731A | Hole snap ring (for overdrive planetary ring gear) | 90521-99059 |
| 34736A | No. 2 thrust bearing low speed gear race | 34736-32010 · 34736-32020 |
| 34736B | Thrust needle roller bearing | 90374-53004 |
| 34737 | No. 3 overdrive planetary gear thrust washer | 34737-33010 |
| 34737A | No. 3 thrust bearing low speed gear race | 34737-21010 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-16010 |
| 35633D | Clutch disc (for overdrive direct clutch) | 35633-33030 |
| 35648C | Clutch disc (for overdrive brake) | 35648-33030 |
| 35677B | Clutch disc (for overdrive brake) | 35677-33030 |
| 35748A | Countershaft oil protector ring (for overdrive gear) | 35748-32010 |
| 35789H | Thrust bearing race (for overdrive housing) | 35789-20020 |
