Toyota CAMRY 换档拨叉和换档杆轴(MTM) — Figure 3307

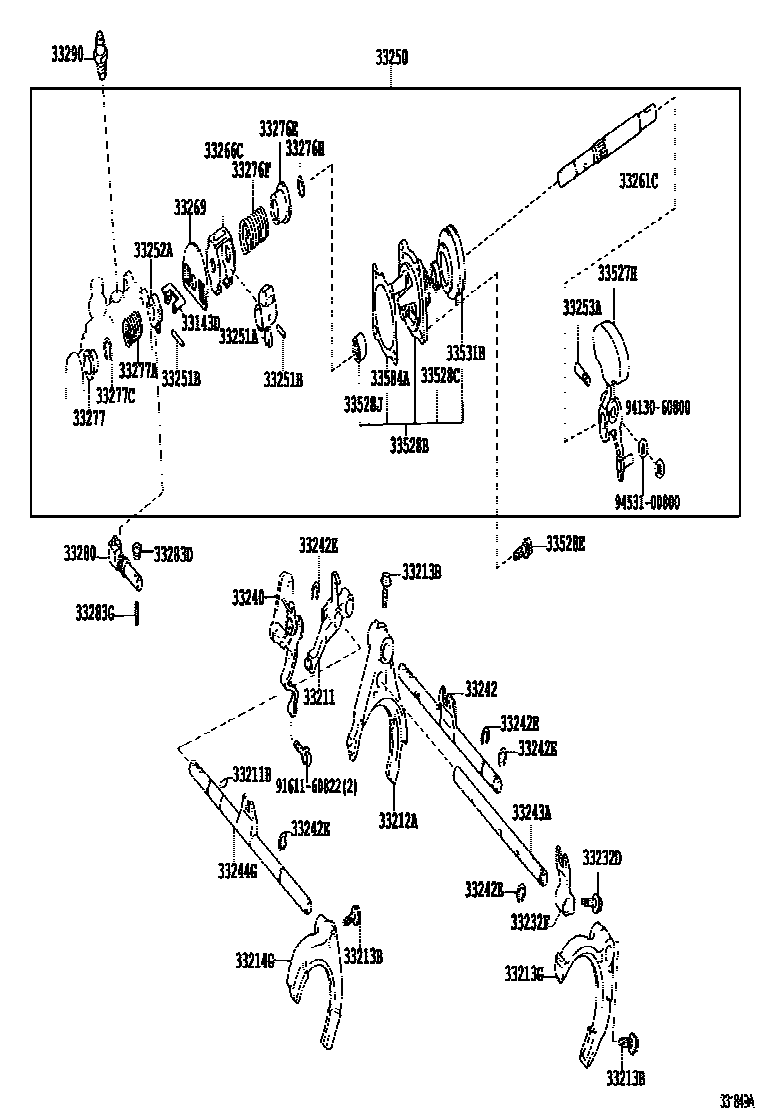

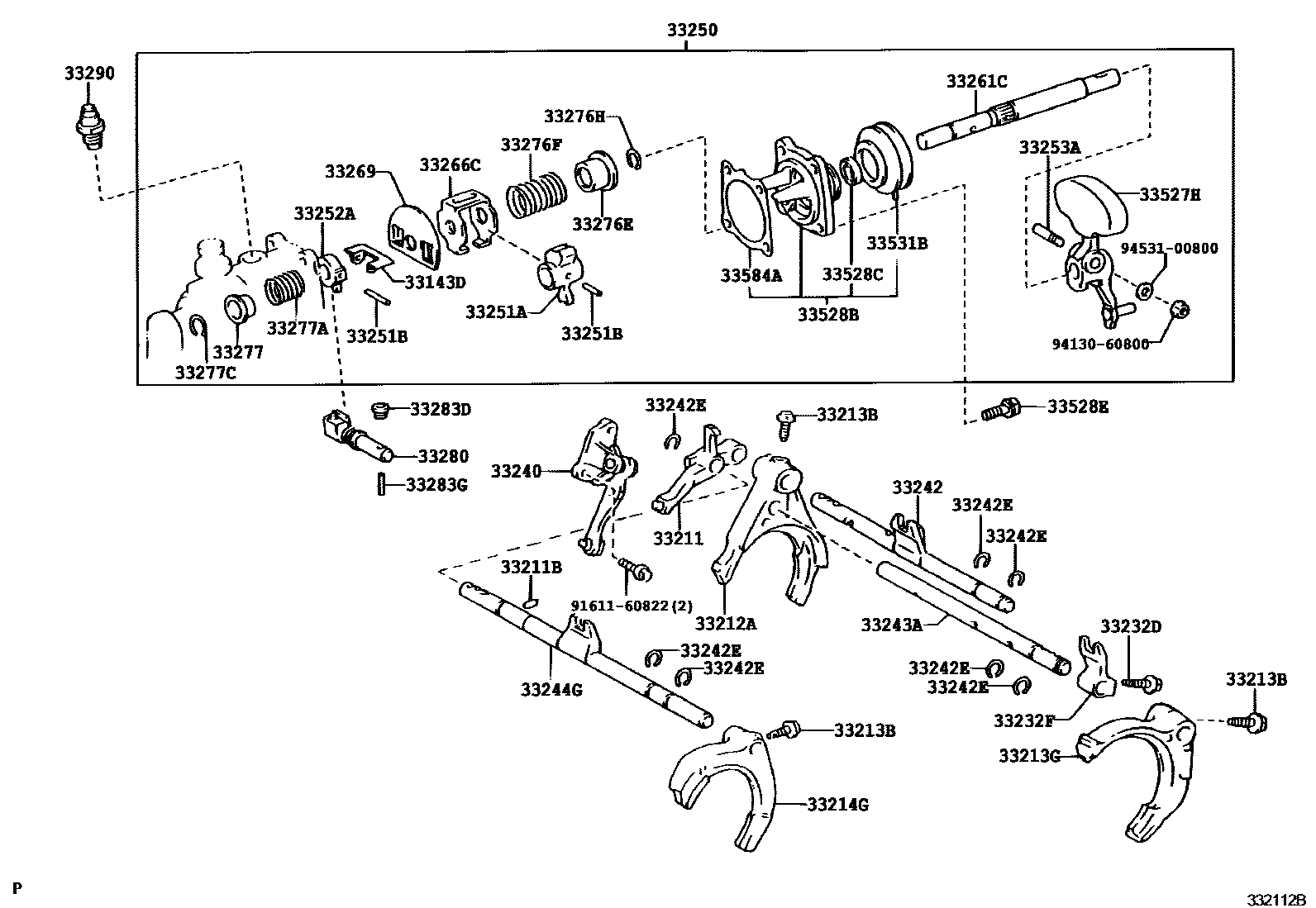

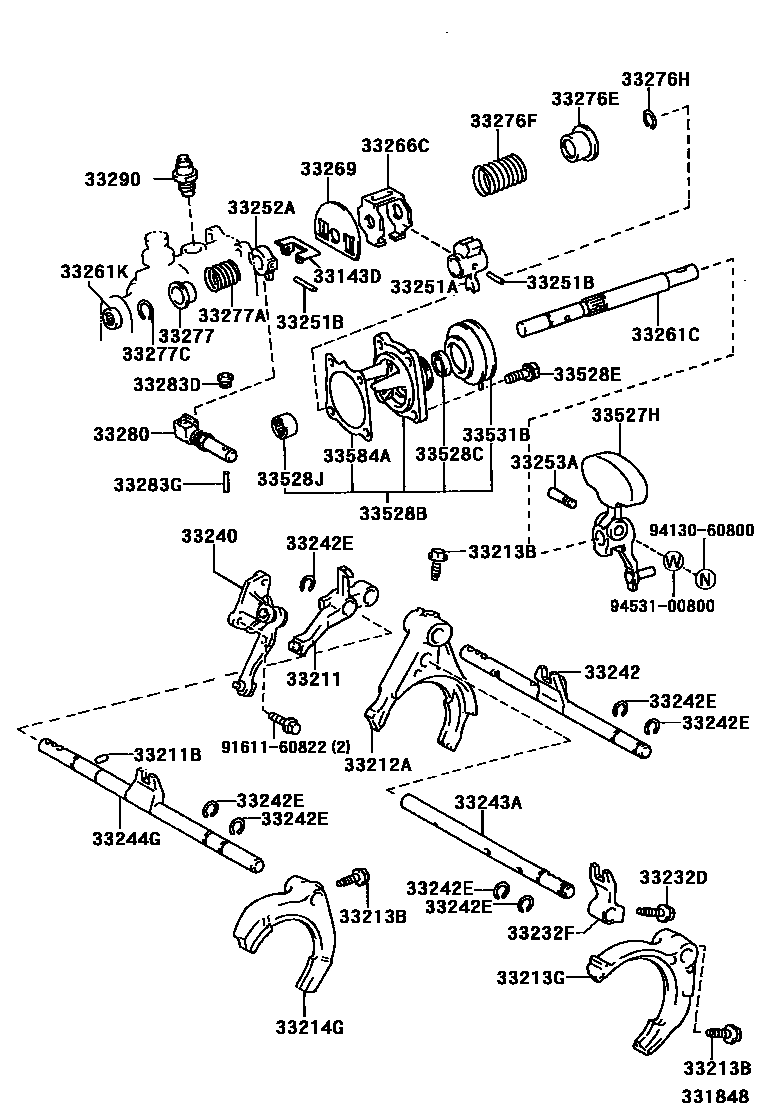

Toyota CAMRY EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143D | Transmission oil baffle | 33143-12020 · 33143-20050 |
| 33211 | Reverse Shift Fork | 33211-20020 |
| 33211B | Roller (for reverse shift fork) | 90361-08005 |
| 33212A | No. 1 shift fork | 33212-12030 · 33212-33010 |
| 33213B | Bolt (for securing shift fork) | 90105-07002 |
| 33213G | No. 2 shift fork | 33213-20043 · 33220-28020 |
| 33214G | No. 3 shift fork | 33214-12020 · 33214-20031 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-07002 |
| 33232F | No. 1 transmission guide block | 33232-12030 · 33232-33010 |
| 33240 | Reverse shift arm bracket assembly | 33240-12021 · 33240-28010 |
| 33242 | No. 1 shift fork shaft | 33242-28030 · 33242-33010 · 33242-33011 · 33242-42010 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-13002 |
| 33243A | No. 2 shift fork shaft | 33243-28040 · 33243-33011 · 33243-33012 |
| 33244G | No. 3 shift fork shaft | 33244-28030 · 33244-33010 · 33244-33011 · 33244-42010 |
| 33250 | Shift lever shaft assembly | 33250-28050 · 33250-28051 · 33250-28052 · 33250-28053 |
| 33251A | Internal shift lever No. 1 | 33251-20090 · 33251-28040 · 33251-42010 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05007 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-20020 · 33252-20050 · 33252-20051 |
| 33253A | Shift lever lock pin (for outer shift lever) | 33281-16020 |
| 33261C | shift lever shaft | 33261-20130 · 33261-28040 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90384-15002 |
| 33266C | shift interlock plate | 33266-28010 · 33266-28011 |
| 33269 | Shift interlock plate cover | 33269-12010 |
| 33276E | No. 1 gear selector spring seat | 33276-20020 · 33276-20030 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-14196 · 90501-16134 · 90501-16182 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-17010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-14175 · 90501-17028 |
| 33277C | Shaft snap ring (for No. 2 gear selector spring seat) | 90520-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-20041 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-33020 · 33290-42010 |
| 33527H | shift lever | 33527-28130 |
| 33528B | control shaft cover | 33506-20320 · 33506-28210 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 |
| 33528J | Bimetallic bushing (for control shaft cover) | 90384-18017 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12020 |
| 33584A | Shift lever stopper gasket | 33584-20020 |
