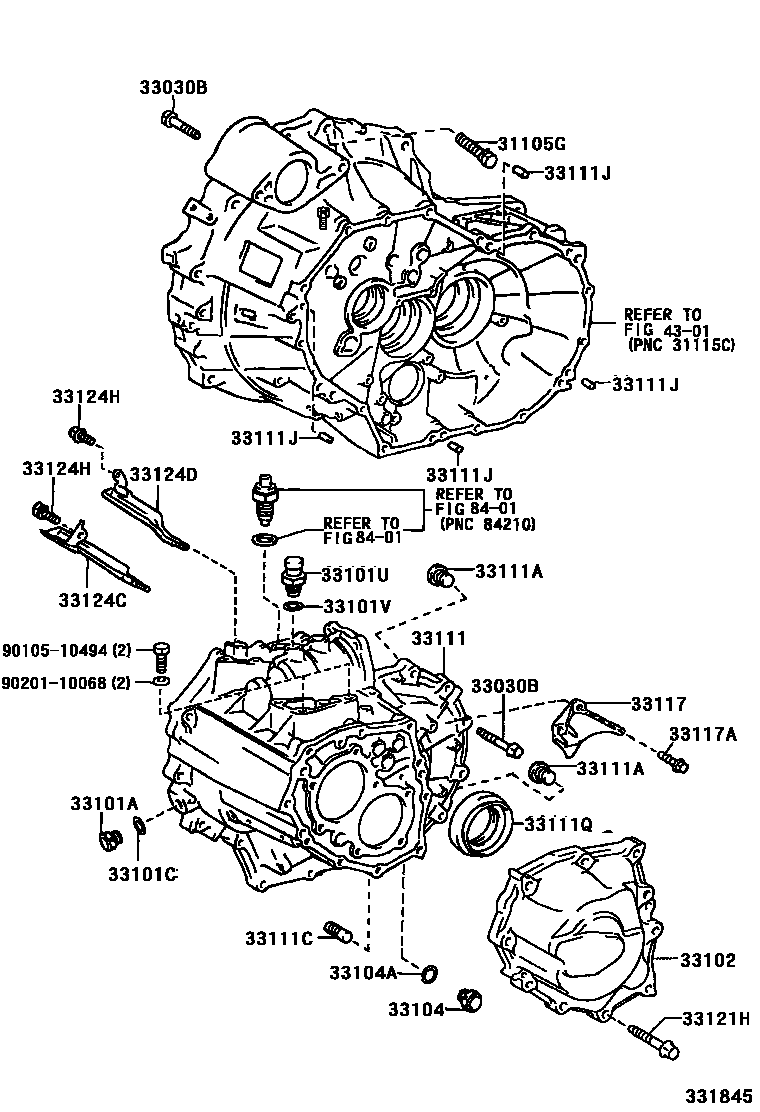

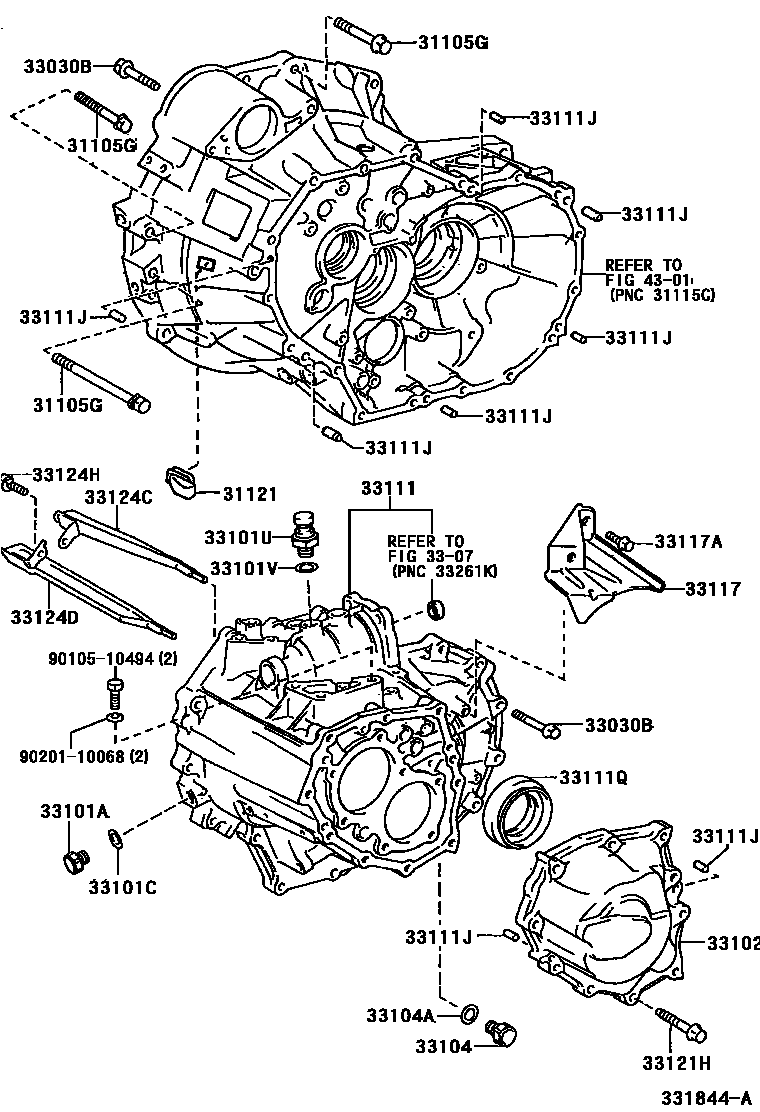

Toyota CAMRY 离合器壳和变速器壳(MTM) — Figure 3302
Toyota CAMRY EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-12147 · 90119-12252 · 91512-61060 · 91512-61065 · 91619-61260 · 91619-61265 · 92412-H1055 |
| 31121 | No. 1 clutch housing cover | 31121-20010 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08126 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33101U | Breather plug (for manual transmission) | 90930-03148 |
| 33101V | Gasket (for manual transmission breather plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-33010 · 33102-33011 · 33102-33012 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-20053 · 33101-20090 · 33101-28041 · 33101-33020 |
| 33111A | Manual transmission plug | 90341-12004 |
| 33111C | Screw plug (for gearbox) | 90340-10005 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 · 90250-12005 |
| 33111Q | Oil seal (for gearbox) | 90311-50024 · 90311-50027 · 90311-50035 |
| 33117 | manual transmission protector | 33107-12030 · 33117-20020 |
| 33117A | Bolts (for manual transmission guard) | 91641-H0820 |
| 33121H | Bolt with washer (for gearbox cover) | 90105-08273 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-20020 · 33124-28050 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-20030 · 33124-28060 |
| 33124H | Bolt (for oil collection pipe) | 90119-08830 |
