Toyota CAMRY 离合器踏板和挠性软管 — Figure 3102

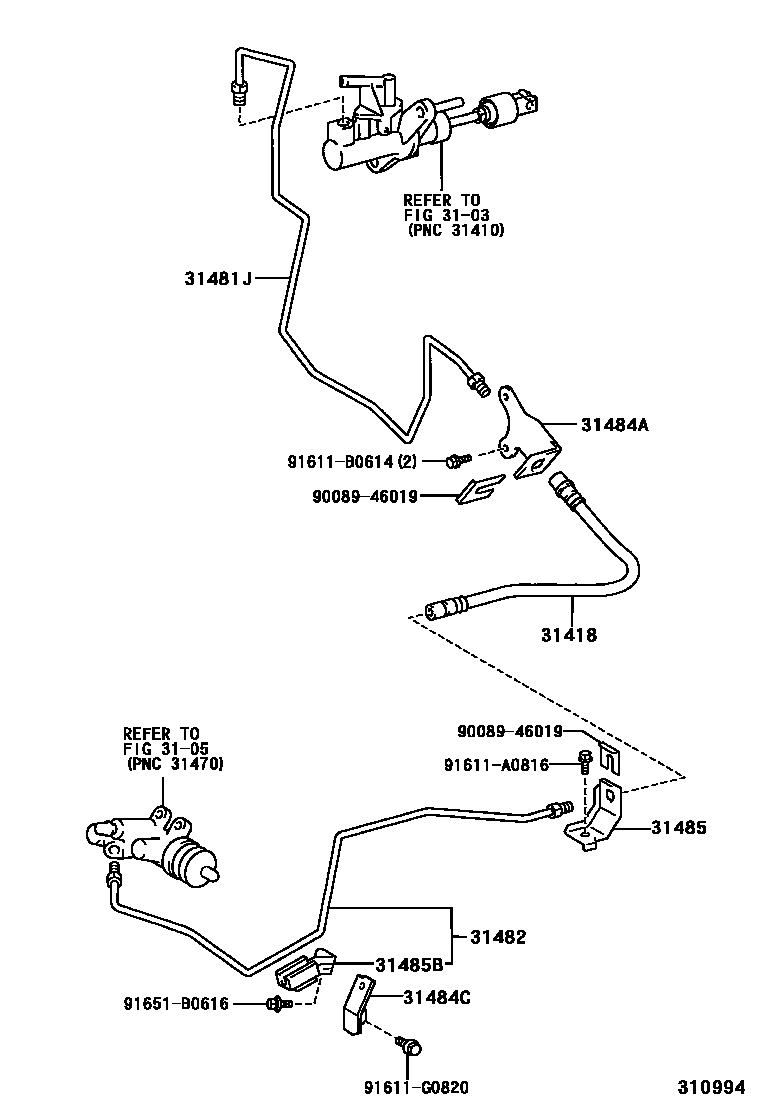

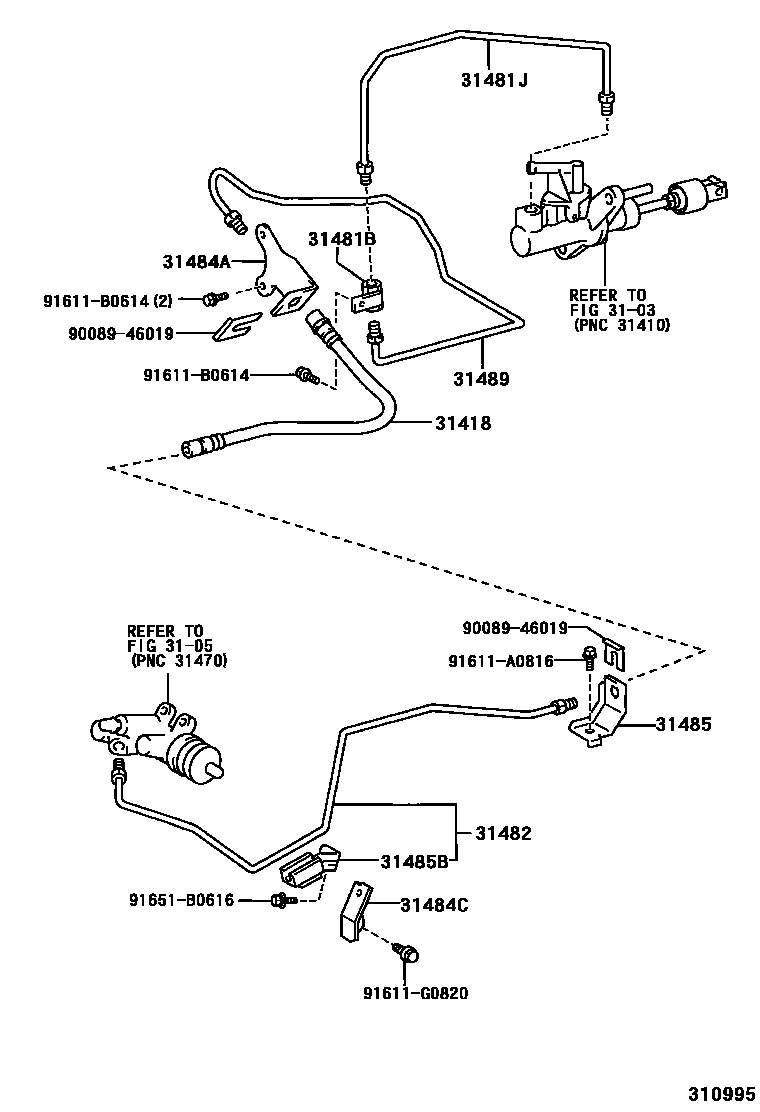

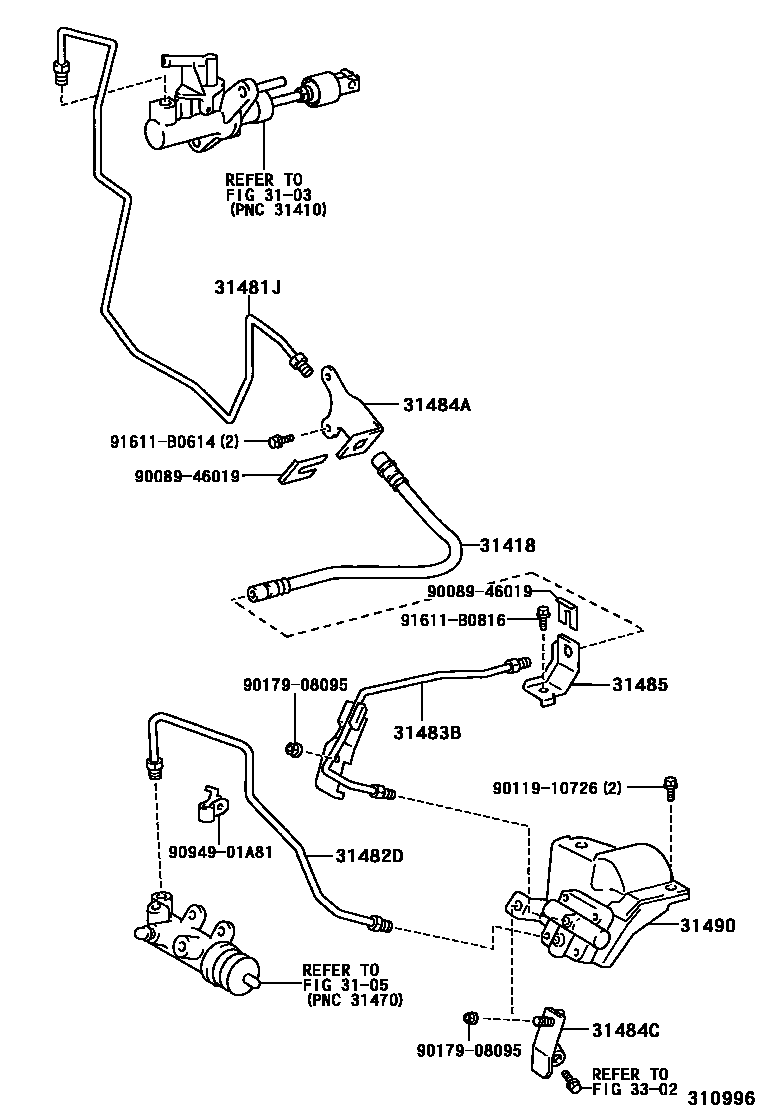

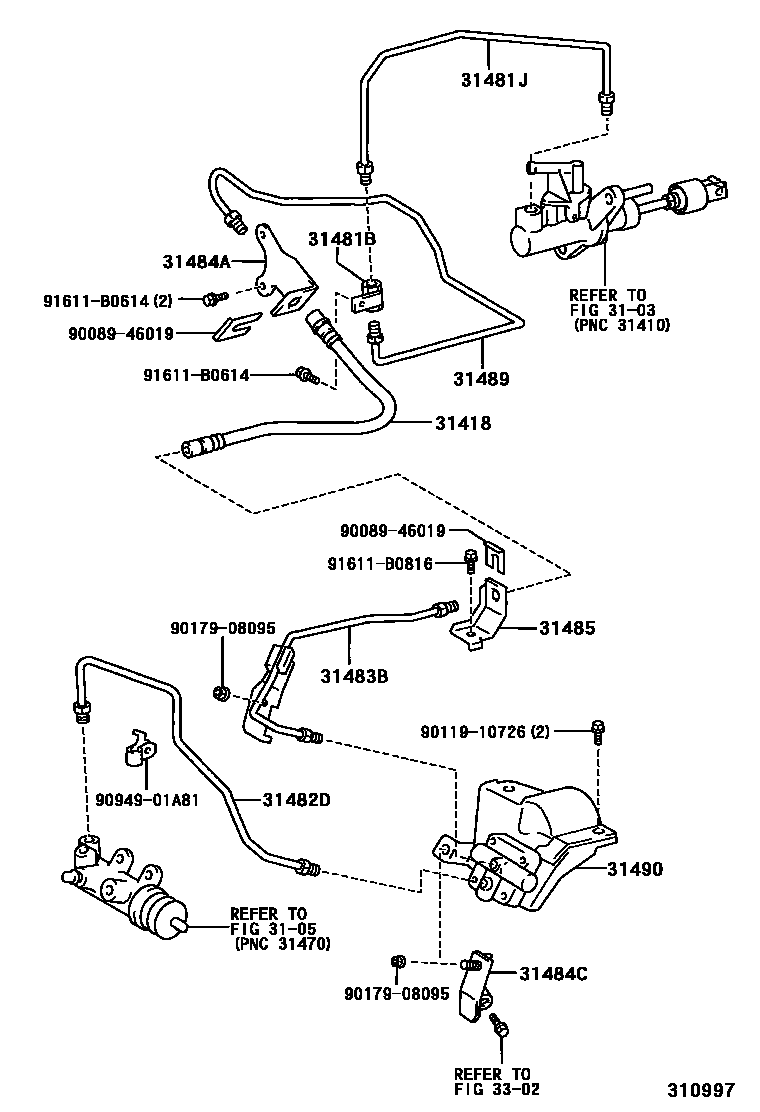

Toyota CAMRY EPC diagram 3102, 离合器踏板和挠性软管, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31380-06010 · 31380-06020 · 31380-06030 · 31380-06040 · 31380-06050 · 31380-06060 · 31380-06070 · 31380-06080 · 31380-06090 |
| 31301A | Spring (for clutch pedal) | 90905-07033 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90089-38004 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31301R | Compression spring (for flip spring seat) | 90949-03110 · 90949-03118 |
| 31321 | clutch pedal pad | 31321-52010 · 31321-53010 |
| 31324 | clutch pedal shaft | 90109-10167 |
| 31353 | Clutch pedal spring retainer | 31353-35010 |
| 31358 | center spring cover | 31358-42010 |
| 31395 | pedal spring hook | 31395-33010 · 31395-33020 |
| 31418 | clutch hose | 90080-94171 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08143 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481B | Pipe fitting (for clutch pipe) | 90412-10144 |
| 31481J | Pipe from clutch master cylinder to dual pipe | 31481-YC050 · 31481-YC060 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-YC030 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-06070 · 31482-06071 |
| 31483B | Accumulator to flexible hose pipe | 31483-YC020 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-33010 |
| 31484C | No. 1 clutch tube bracket | 31484-20320 · 31484-33021 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-33040 |
| 31485B | Pipe clamp bracket | 47386-33040 |
| 31489 | Pipe connector to flexible hose pipe | 31489-YC010 |
| 31490 | Clutch pressure accumulator assembly | 31490-33021 |
