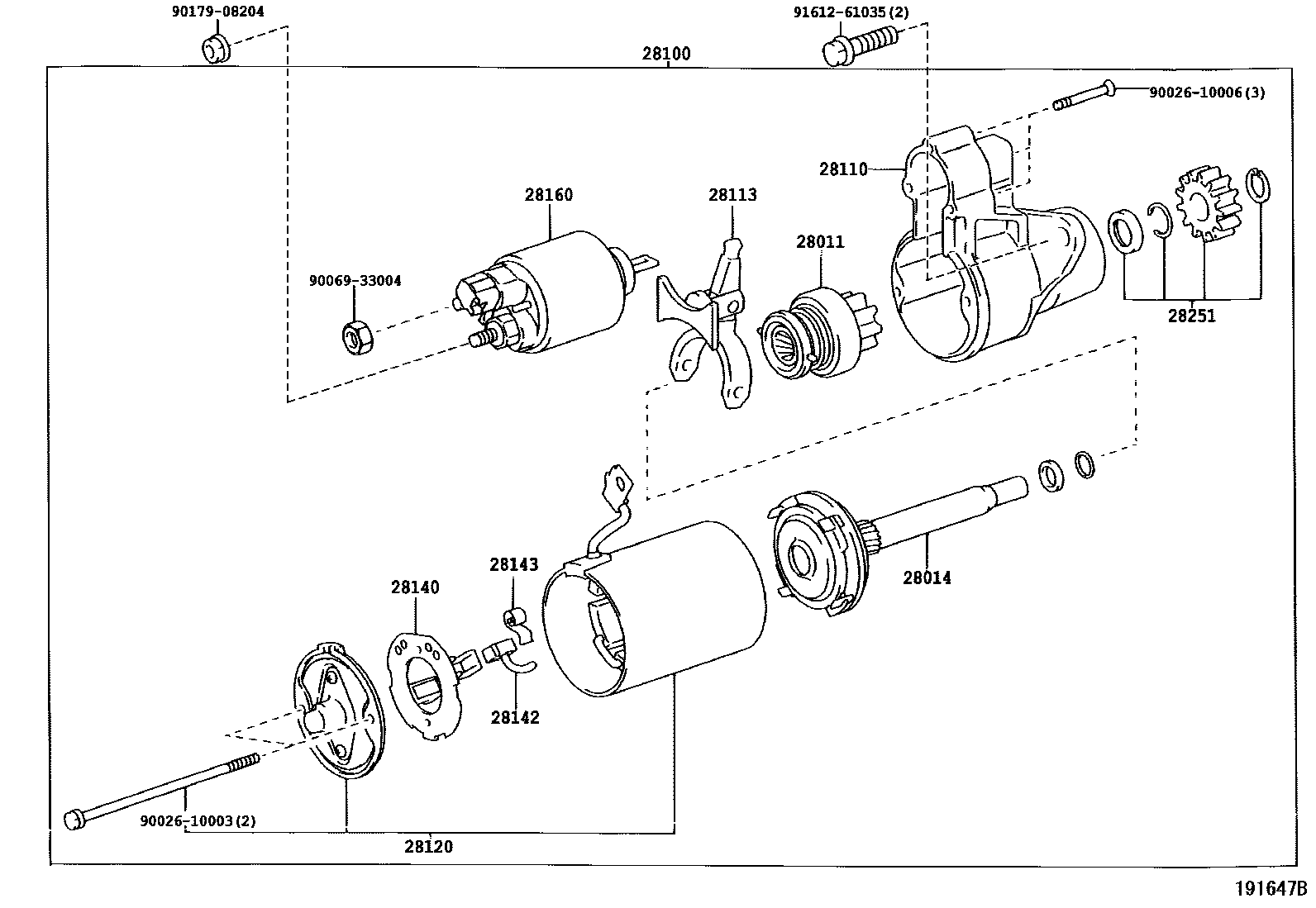

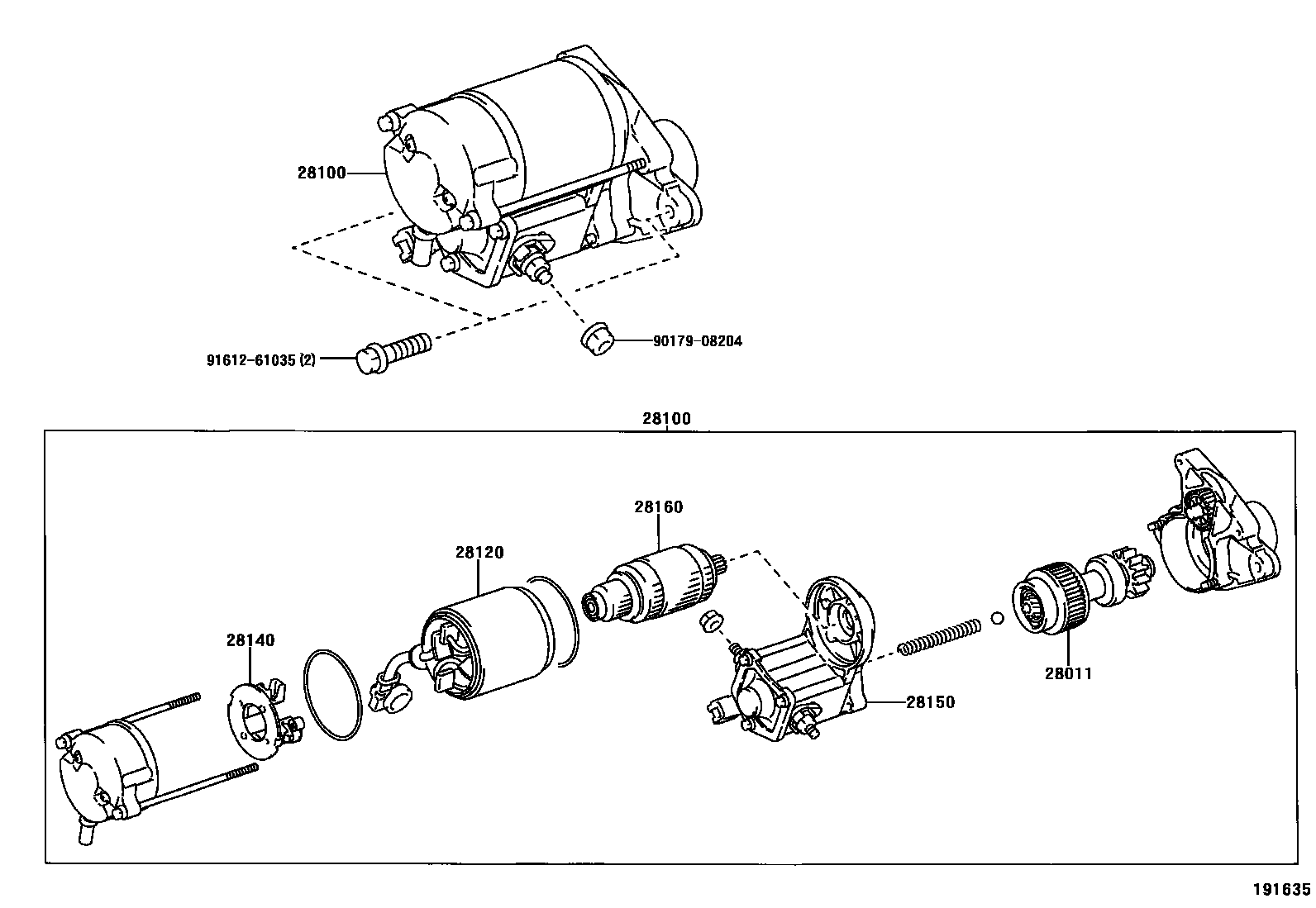

Toyota CAMRY 起动机 — Figure 1904
Toyota CAMRY EPC diagram 1904, 起动机, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-74070 · 28011-8Y002 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-8Y003 |
| 28100 | Starter assembly | 28100-74260 · 28100-YD010 |
| 28110 | Starter drive end housing assembly | 28110-8Y003 |
| 28113 | starter pinion drive rod | 28113-8Y004 |
| 28120 | Starter yoke assembly | 28120-66040 · 28120-8Y004 |
| 28140 | Starter brush holder assembly | 28140-74070 · 28140-8Y002 |
| 28142 | starter brush | 28142-8Y002 |
| 28143 | starter brush spring | 28143-8Y002 |
| 28150 | Starter electromagnetic switch assembly | 28150-74270 |
| 28160 | Starter armature assembly | 28160-74070 · 28160-YD010 |
| 28251 | Starter drive pinion | 28251-8Y002 |
