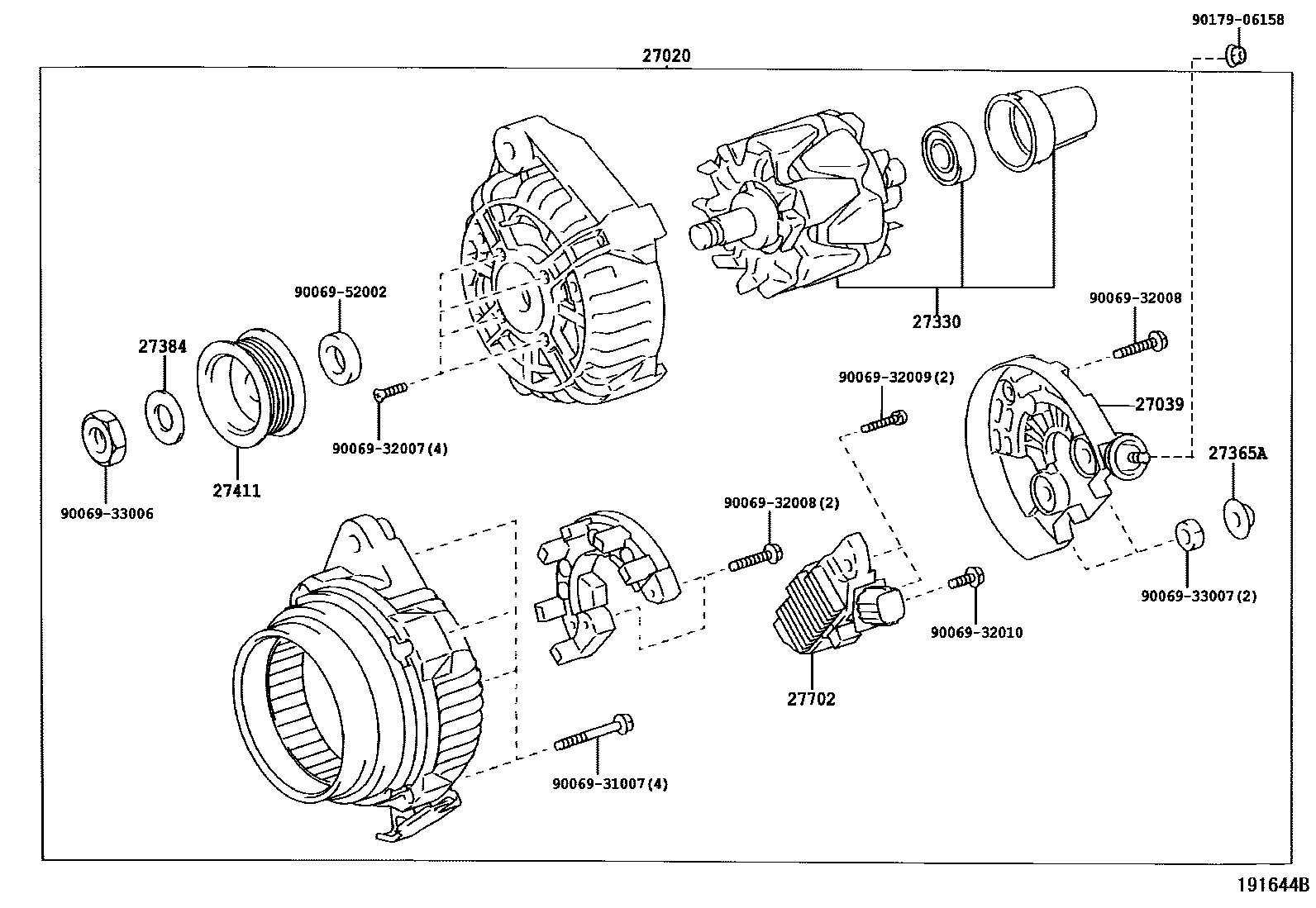

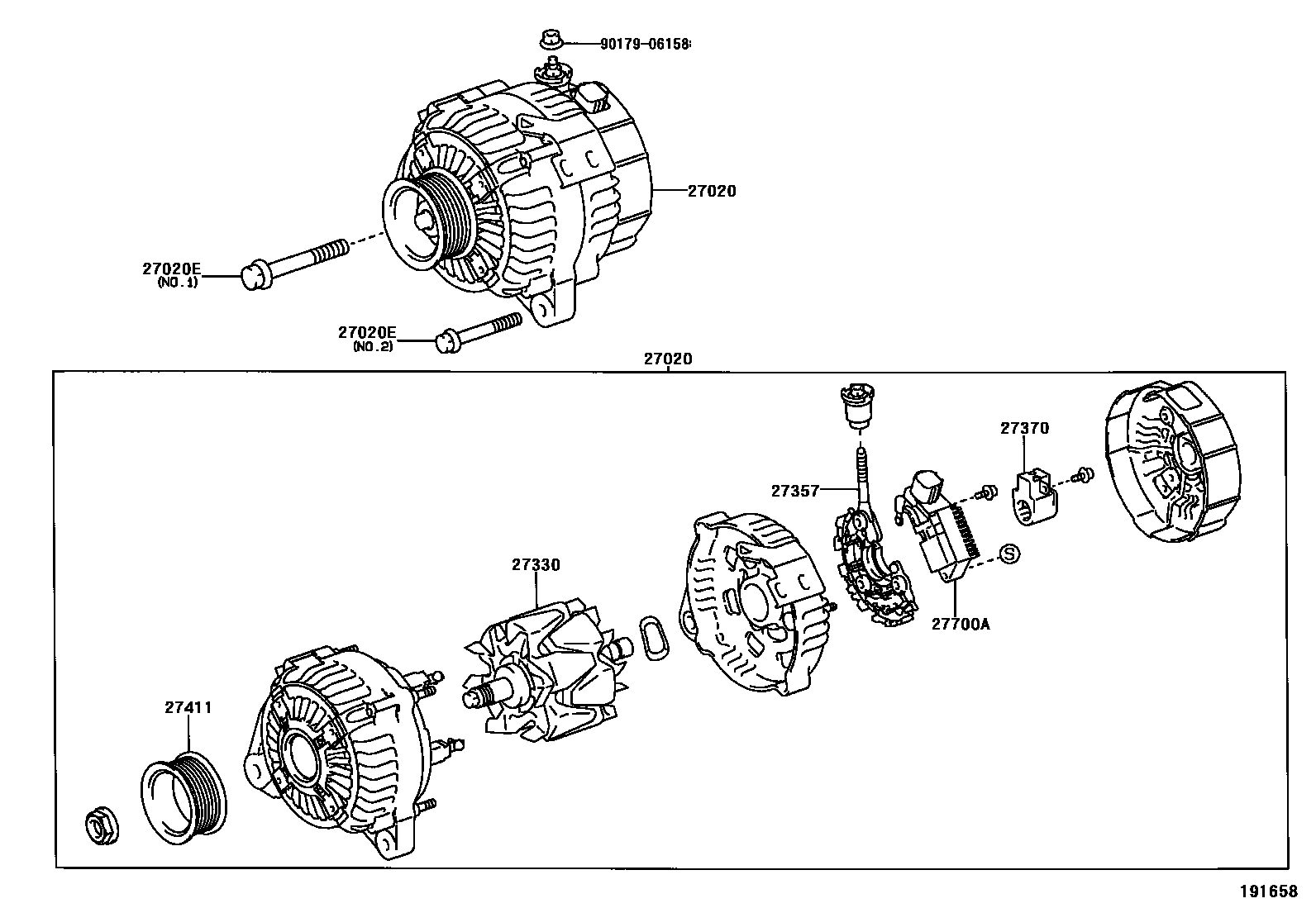

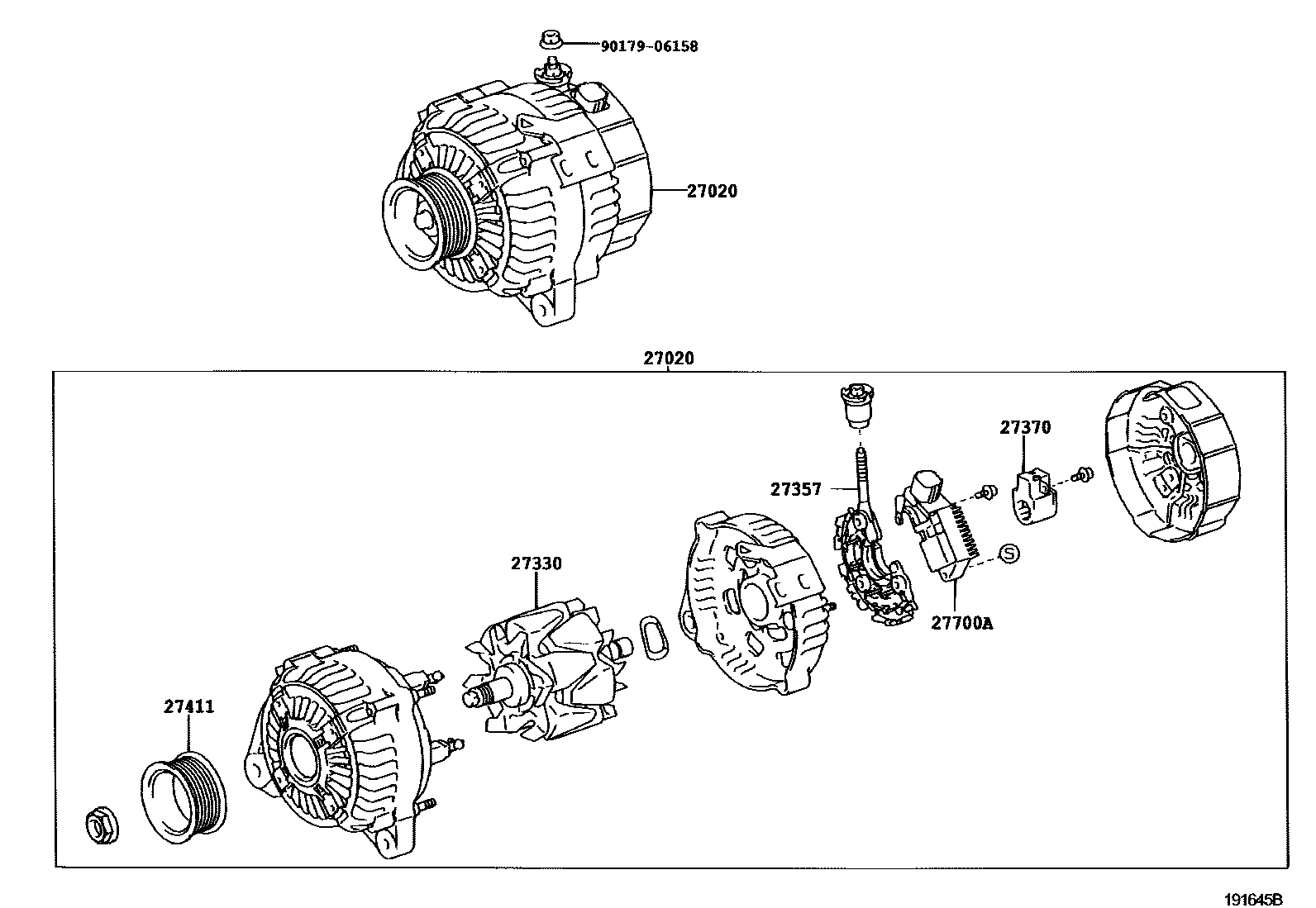

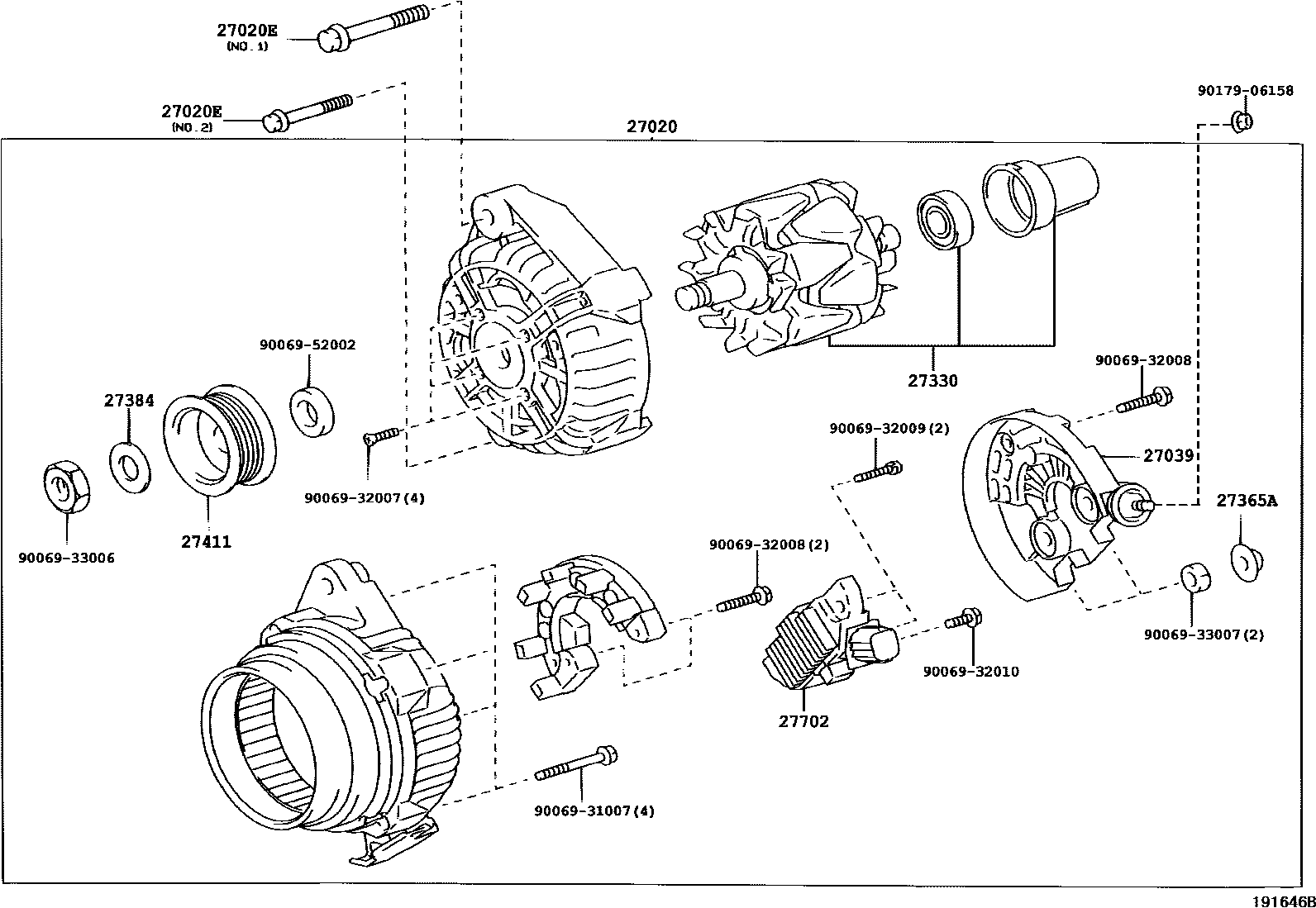

Toyota CAMRY Alternator — Figure 1903
Toyota CAMRY EPC diagram 1903, Alternator, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0H080 · 27060-20260 · 27060-28180 · 27060-28200 · 27060-YF010 |
| 27020E | Bolts (for generator) | 91511-J0840 · 91512-81085 |
| 27039 | Alternator Rear End Cover | 27039-YF010 |
| 27330 | Alternator Rotor Assembly | 27330-74550 · 27330-8Y005 · 27330-YF010 |
| 27357 | Generator rectifier frame | 27357-22050 |
| 27365A | Rectifier board | 27365-YF010 |
| 27370 | Alternator Brush Holder Assembly | 27370-75060 |
| 27384 | Washer | 27384-YF010 |
| 27411 | Alternator Pulley | 27411-28090 · 27411-46080 · 27411-8Y002 · 27411-YF010 |
| 27700A | Generator voltage regulator assembly | 27700-20050 · 27700-28050 |
| 27702 | Generator (with brush) voltage regulator sub-assembly | 27702-8Y001 · 27702-8Y002 |
