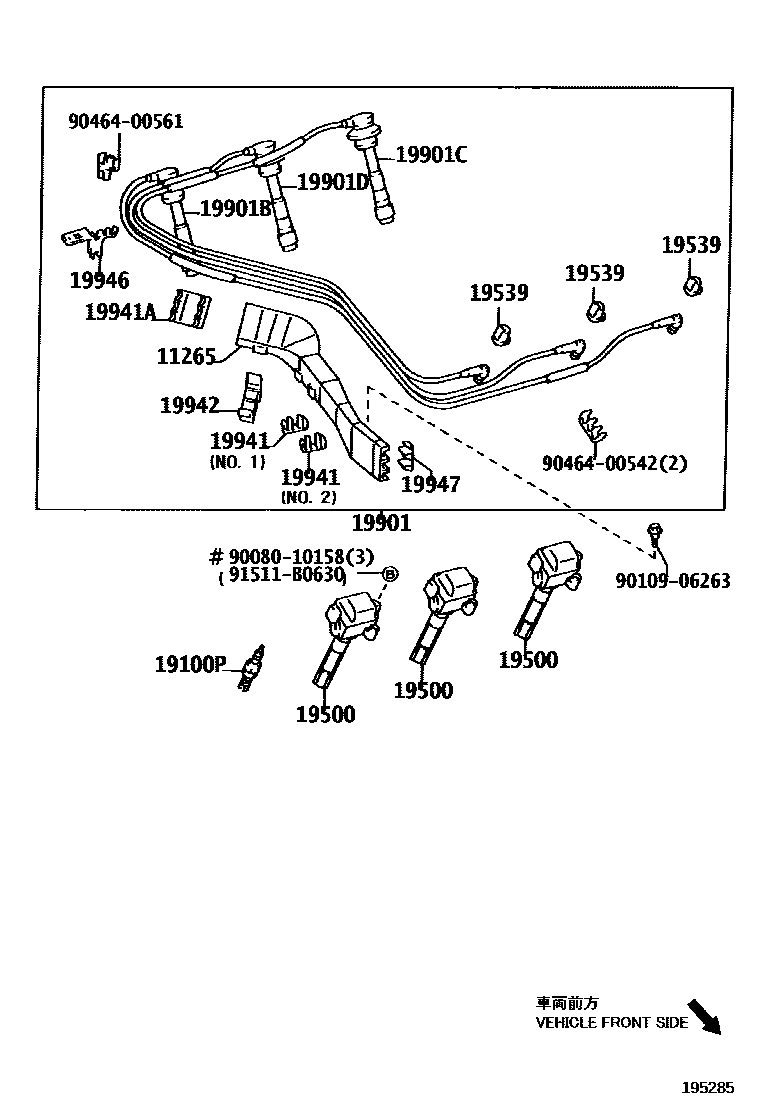

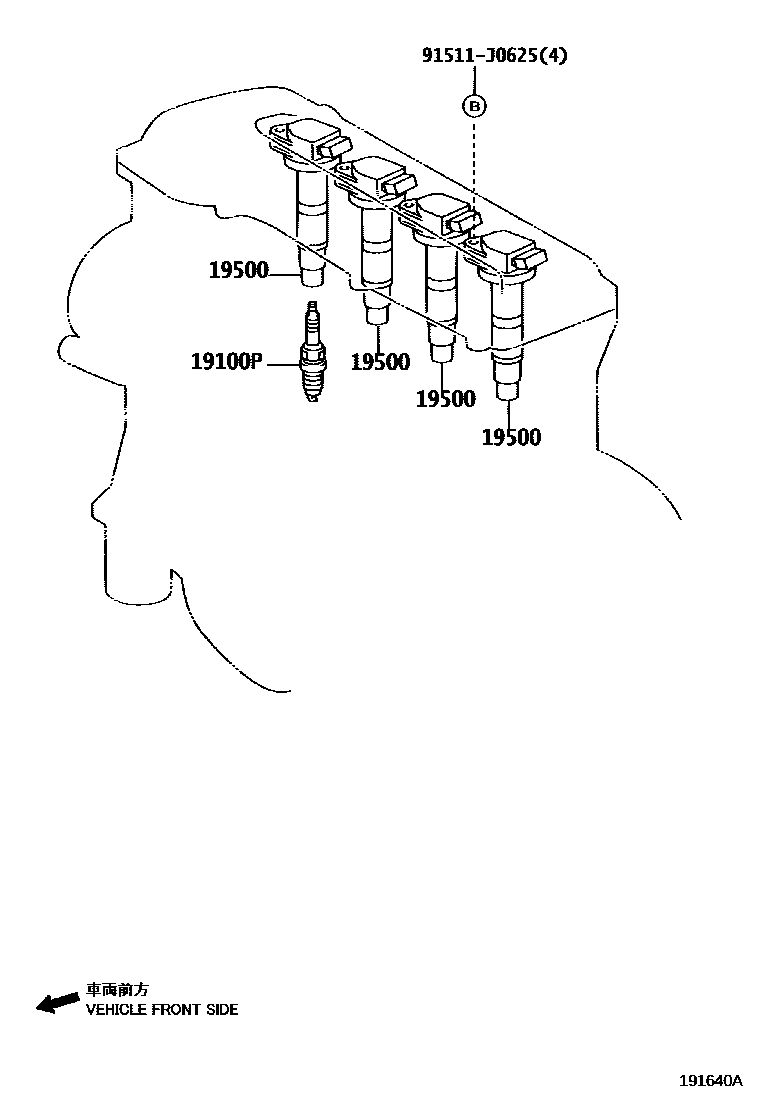

Toyota CAMRY 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-20020 |
| 19100P | spark plug | 90080-91116 · 90919-01184 · 90919-01194 · 90919-01195 · 90919-01237 |
| 19500 | Ignition coil assembly | 90080-19012 · 90919-02215 · 90919-02243 · 90919-02244 · 90919-02248 |
| 19539 | No. 4 damping wire fixing piece | 19539-11040 |
| 19901 | Coil and spark plug assembly with damper wire | 19037-20011 |
| 19901B | No. 1 spark plug damper wire | 90919-15308 |
| 19901C | No. 2 spark plug damper wire | 90919-15309 |
| 19901D | No. 3 spark plug damper wire | 90919-15310 |
| 19941 | No. 1 damping wire clip | 19941-20010 · 19941-20020 |
| 19941A | Clamp (for damping wire) | 19941-65040 |
| 19942 | No. 2 damping wire clip | 19942-20010 |
| 19946 | No. 3 impedance wire clip | 19946-20010 |
| 19947 | No. 4 impedance wire clip | 19947-20010 |
