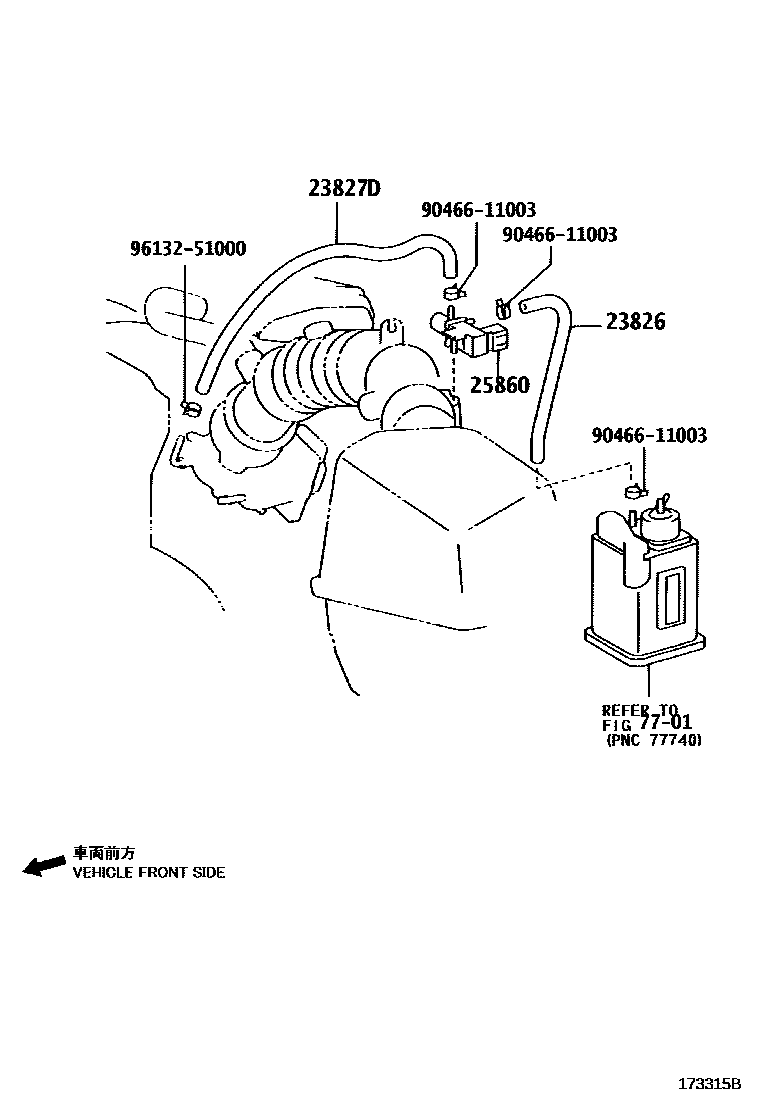

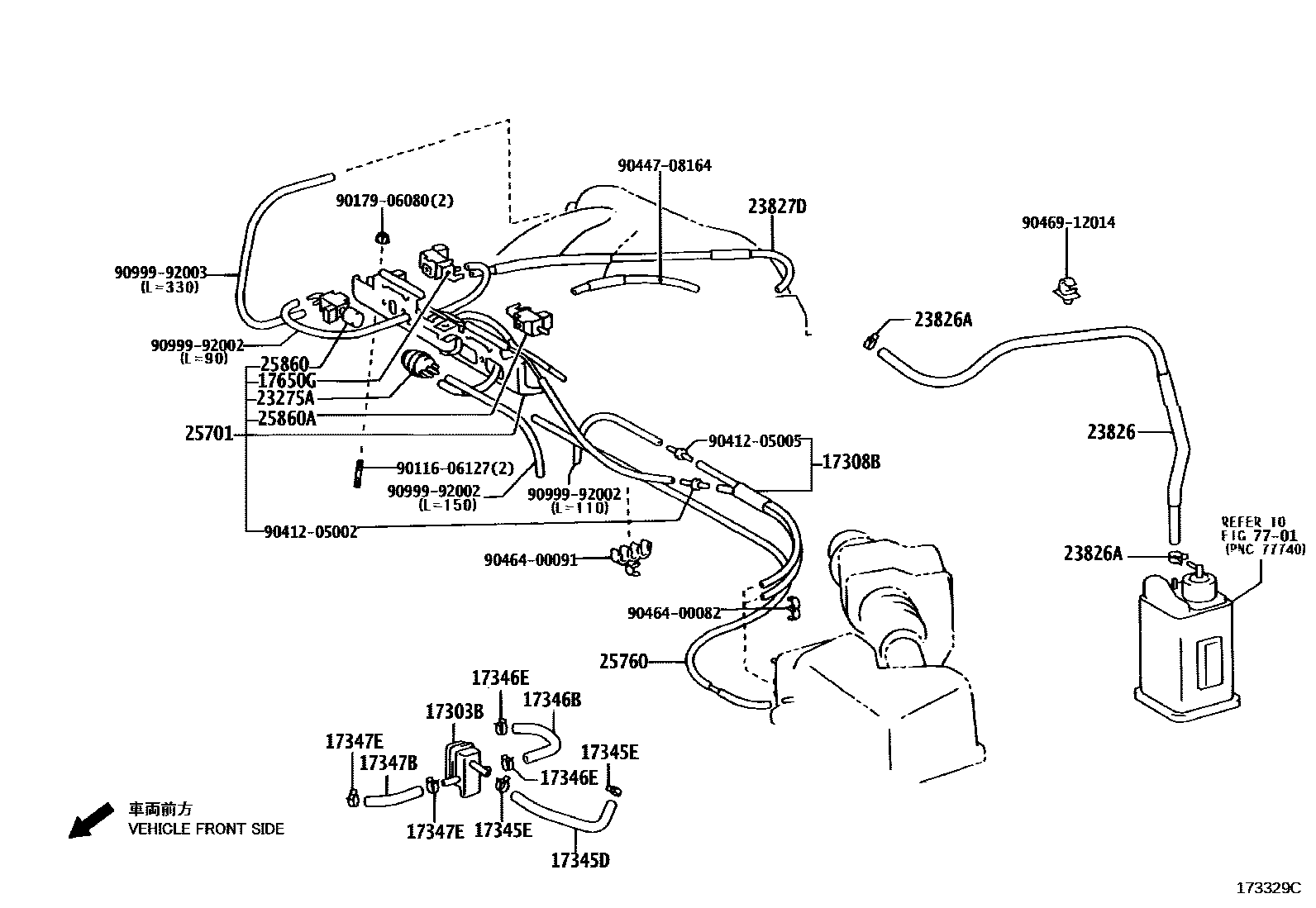

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-0A010 · 17303-20010 |
| 17308B | Vacuum hose sub-assembly | 17308-0A030 |
| 17345D | No. 5 air hose | 17345-0A020 · 17345-20010 |
| 17345E | Clip or clip (for size 5 air hose) | 96133-41500 |
| 17346B | No. 6 air hose | 17346-0A010 · 17346-20010 |
| 17346E | Clamp (for No. 6 air hose) | 96132-51300 |
| 17347B | No. 7 air hose | 17347-0A010 · 17347-20010 |
| 17347E | Clamp (for No. 7 air hose) | 96132-51300 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12241 |
| 23275A | vacuum control valve | 90925-03193 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0A070 · 23826-0H120 · 23826-0H230 · 23826-20050 · 23826-28110 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 |
| 23827D | No. 2 fuel vapor supply hose | 23827-0H070 · 23827-0H080 · 23827-20070 · 23827-28160 |
| 25701 | Emission control valve assembly | 25701-20210 |
| 25760 | Vacuum transfer hose assembly | 25760-20030 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-28050 · 25860-28080 · 25860-62010 |
| 25860A | No. 1 vacuum switch valve | 90910-12174 |
