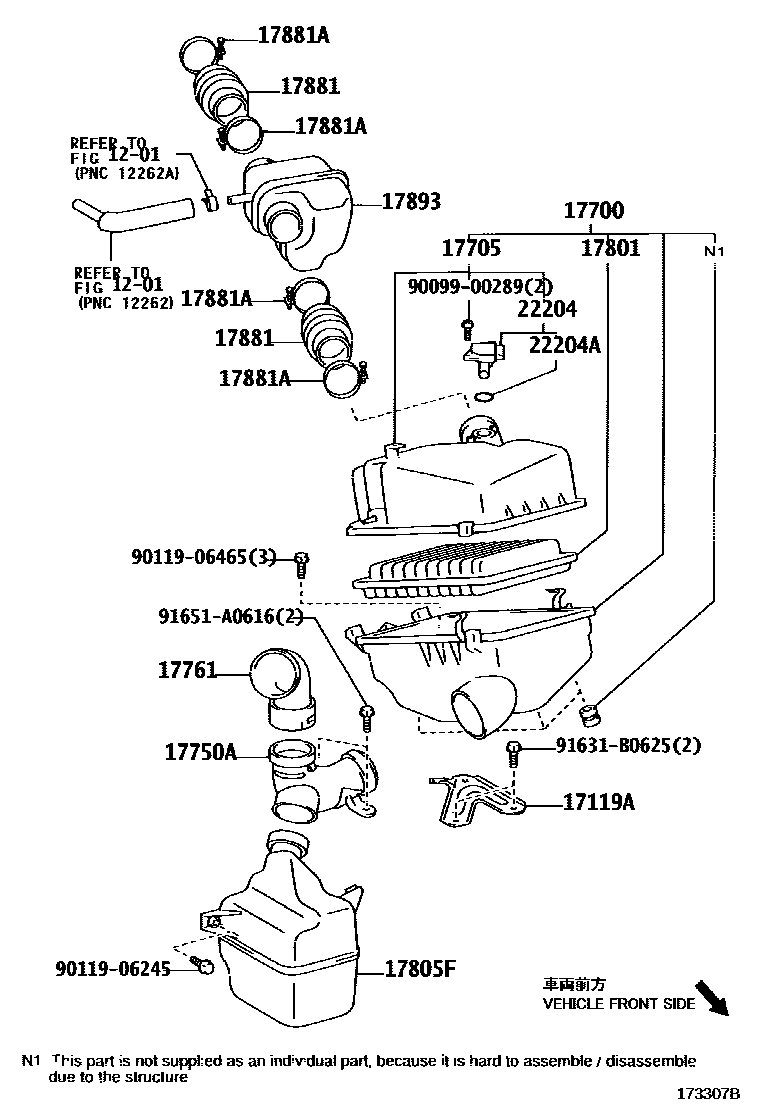

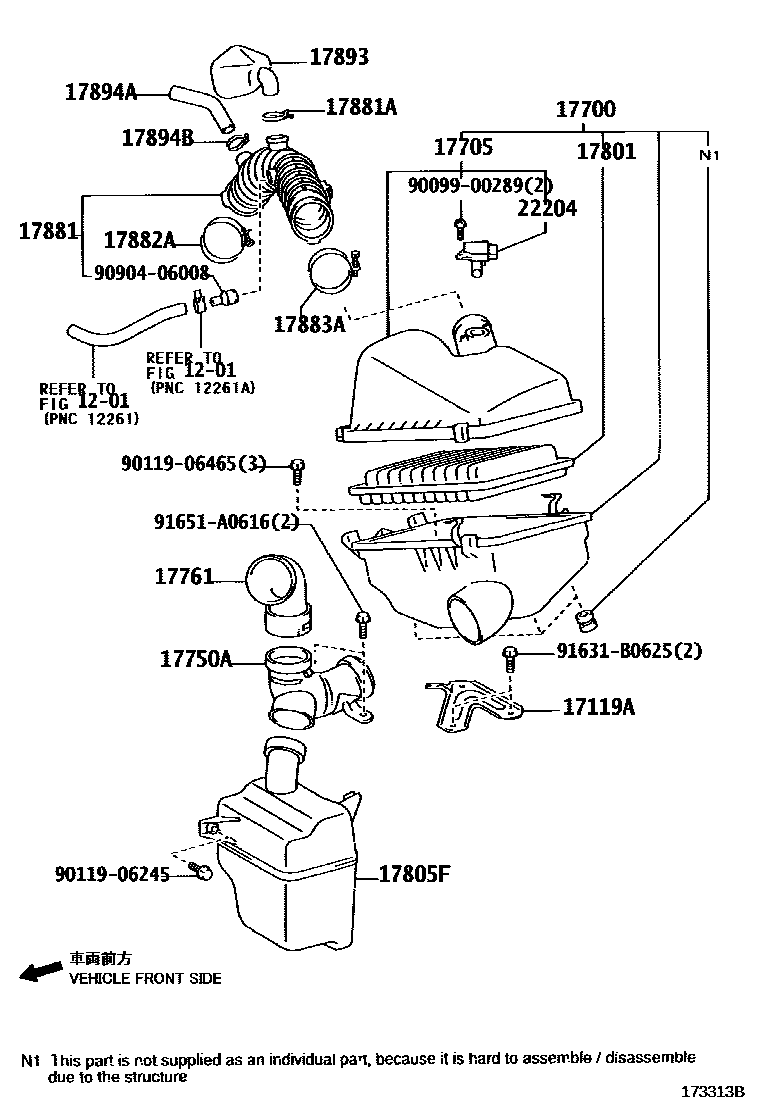

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0H020 |
| 17700 | air filter assembly | 17700-0A200 · 17700-0H060 |
| 17705 | Air filter cover sub-assembly | 17705-0A160 · 17705-0H060 |
| 17750A | Air filter air inlet assembly | 17750-0A090 · 17750-0H040 |
| 17761 | air filter air inlet cover | 17761-0A020 · 17761-0H010 |
| 17801 | Air filter element sub-assembly | 17801-0H020 · 17801-20040 |
| 17805F | Intake resonator sub-assembly | 17805-0A060 · 17805-0H030 |
| 17881 | No. 1 air cleaner hose | 17881-20090 · 17881-28160 · 17881-28280 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10450 · 96111-10830 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 96111-10750 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 96111-10830 · 96111-10850 |
| 17893 | Intake resonator | 17893-20031 · 17893-28010 |
| 17894A | No. 2 intake resonator | 17894-28060 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10450 |
| 22204 | Intake air flow meter assembly | 22204-21010 · 22204-22010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
