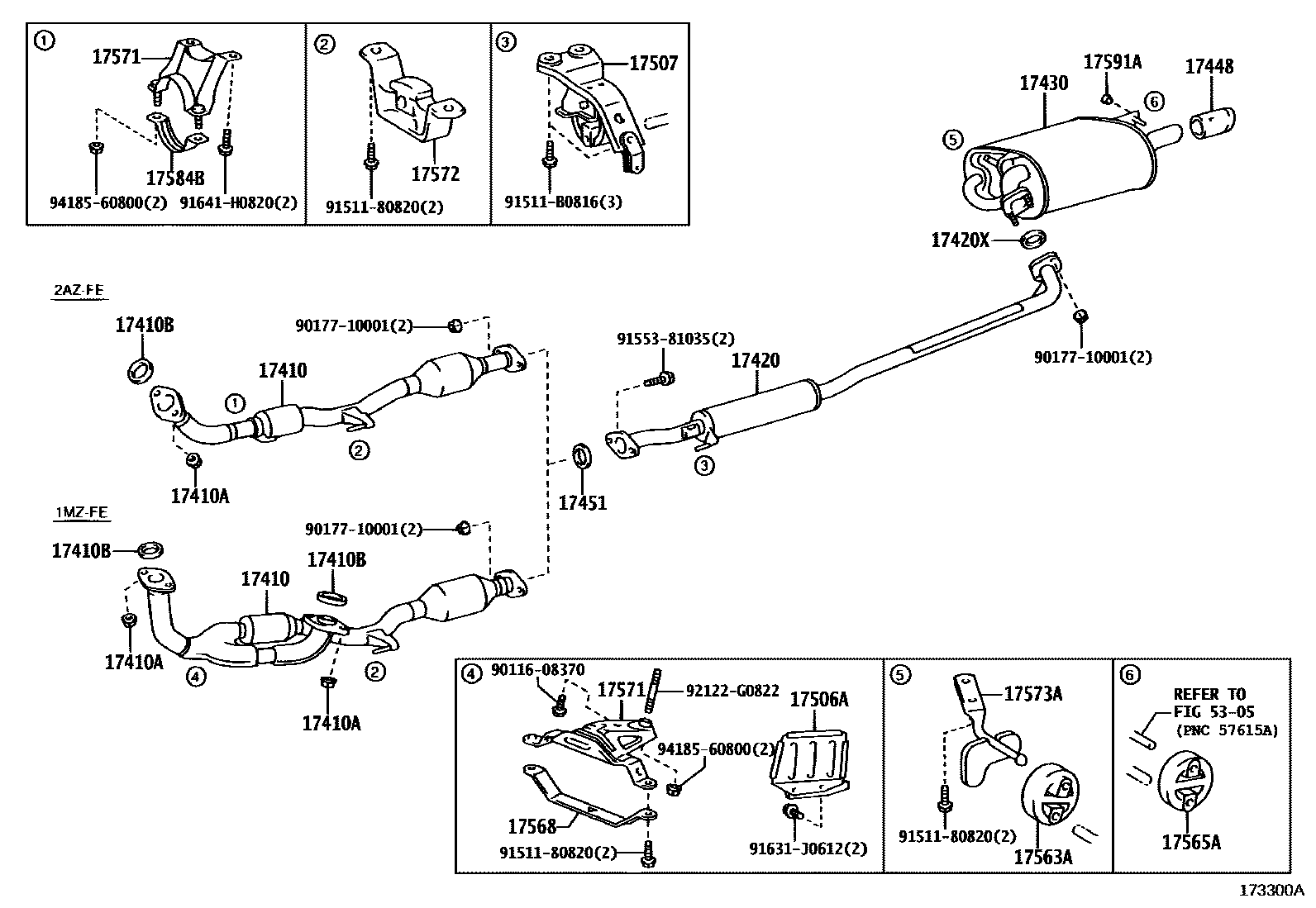

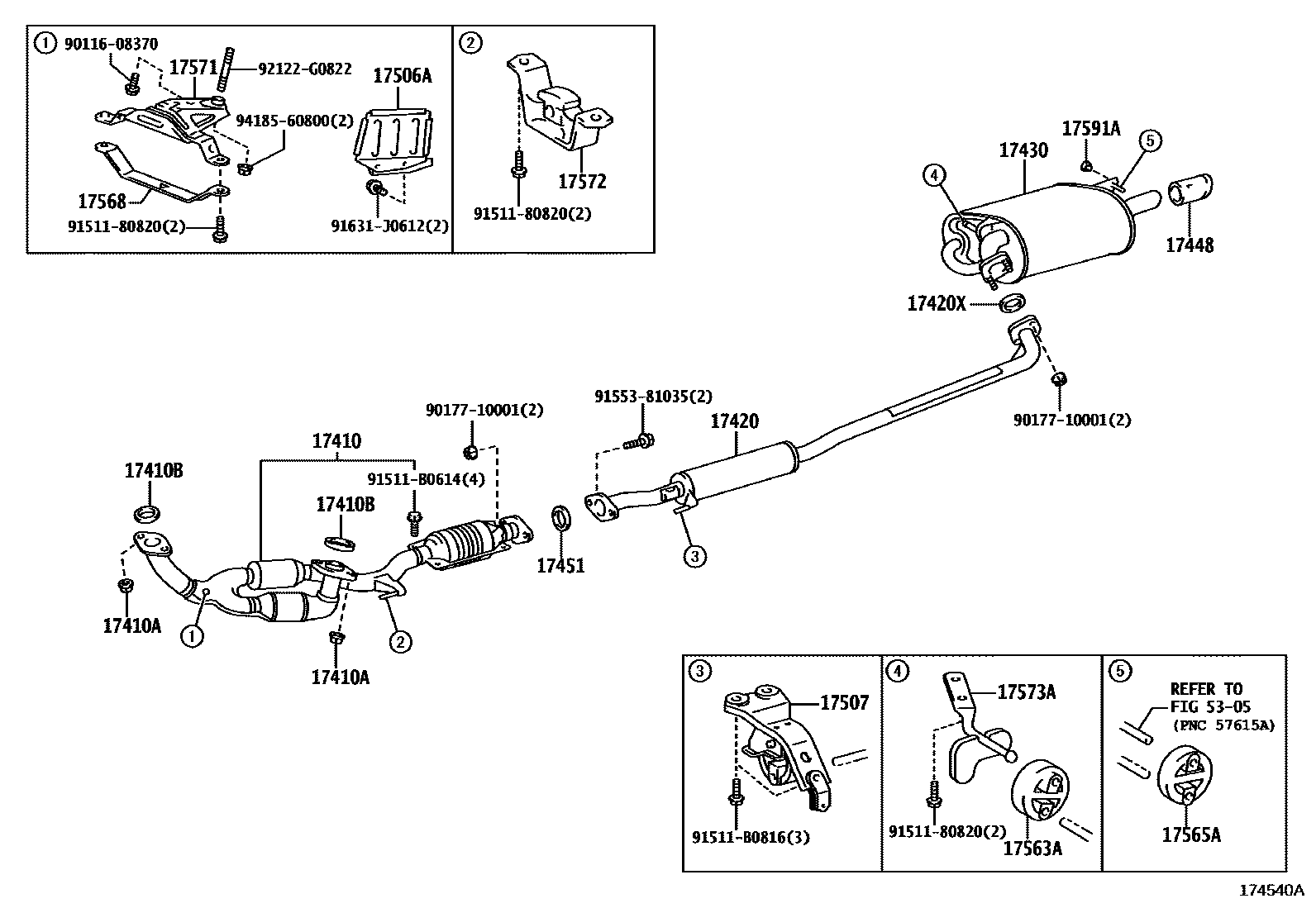

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0A380 · 17410-0H110 · 17410-0H260 · 17410-20500 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 · 90917-06090 |
| 17420 | Central exhaust pipe assembly | 17420-0A230 · 17420-0A231 · 17420-0A310 · 17420-0H090 · 17420-0H091 |
| 17420X | Center exhaust pipe liner | 90917-06073 |
| 17430 | Exhaust tailpipe assembly | 17430-0A143 · 17430-0A144 · 17430-0A230 · 17430-0A240 · 17430-0A250 · 17430-0A251 · 17430-0H070 · 17430-0H071 · 17430-0H080 · 17430-0H081 · 17430-0H090 · 17430-0H091 |
| 17448 | Exhaust pipe tail throat | 17408-74080 |
| 17451 | Exhaust pipe gasket | 90917-06054 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-0A060 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-20040 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-03100 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-03120 |
| 17568 | Exhaust pipe bracket stay | 17568-0A120 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0A070 · 17571-28080 |
| 17572 | No. 1 exhaust pipe bracket | 17572-20040 |
| 17573A | No. 3 exhaust pipe bracket | 17573-74211 |
| 17584B | No. 1 exhaust pipe bracket | 17584-28020 |
| 17591A | Exhaust pipe bracket block | 17591-20010 |
