Toyota CAMRY Manifold — Figure 1701

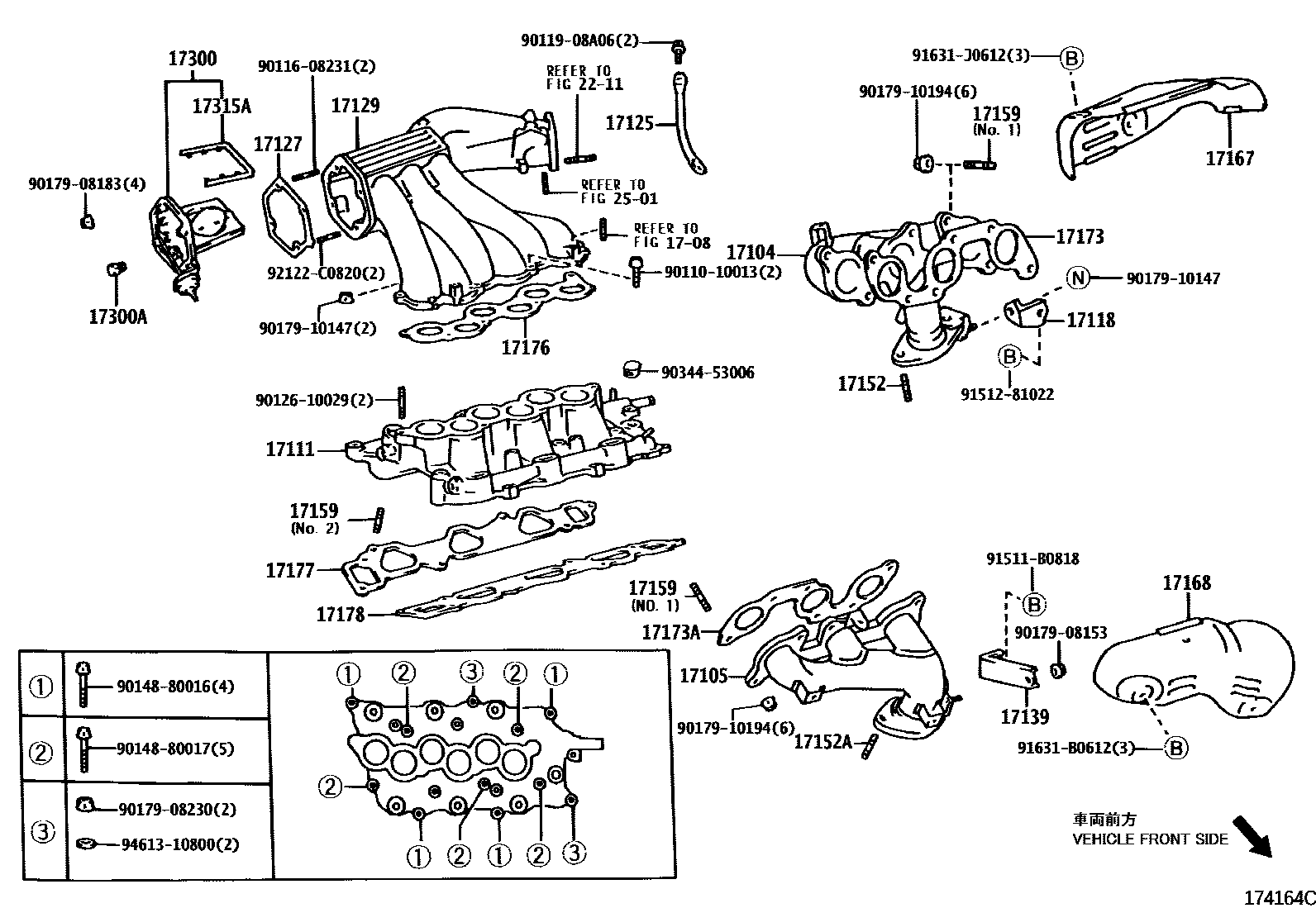

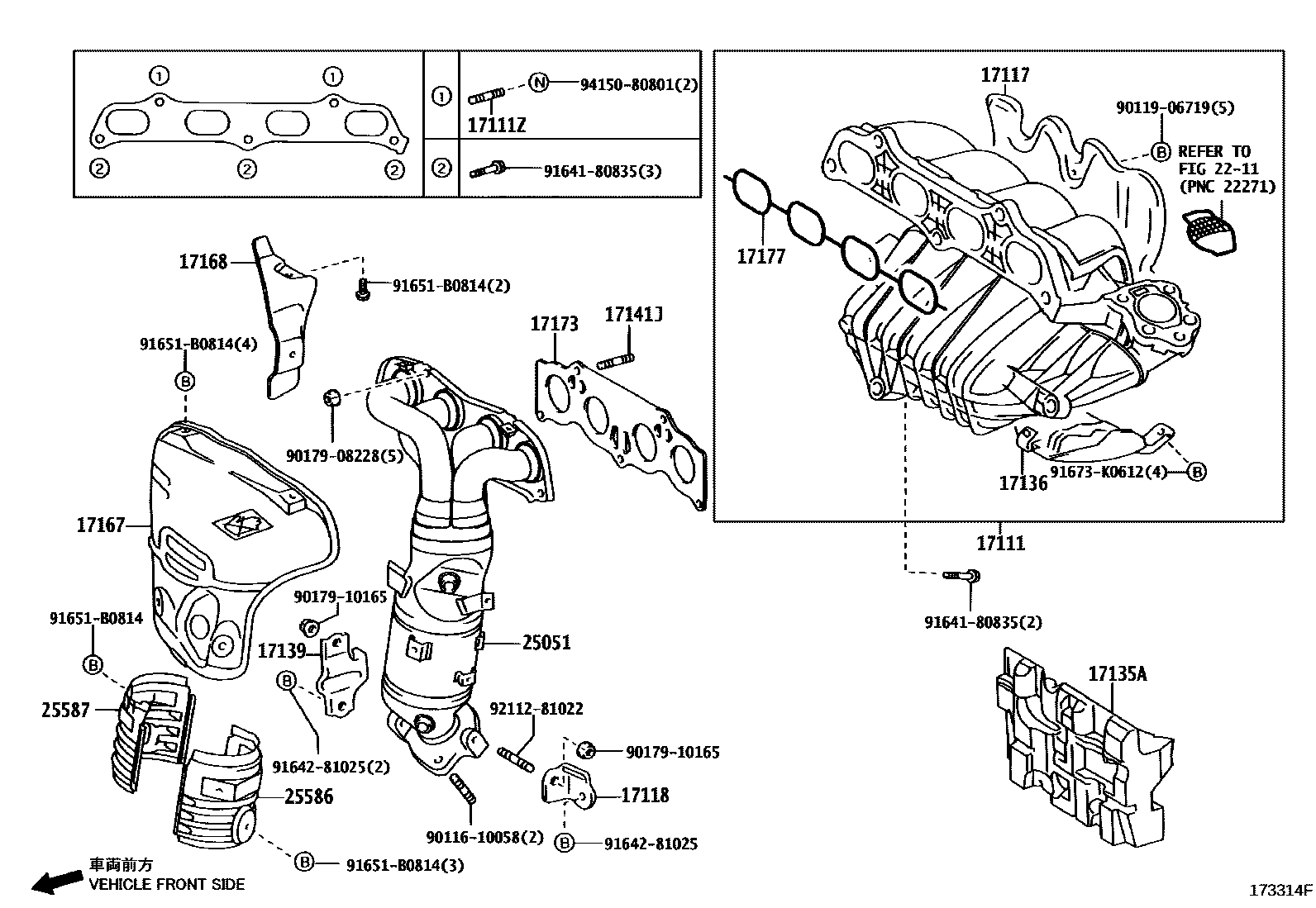

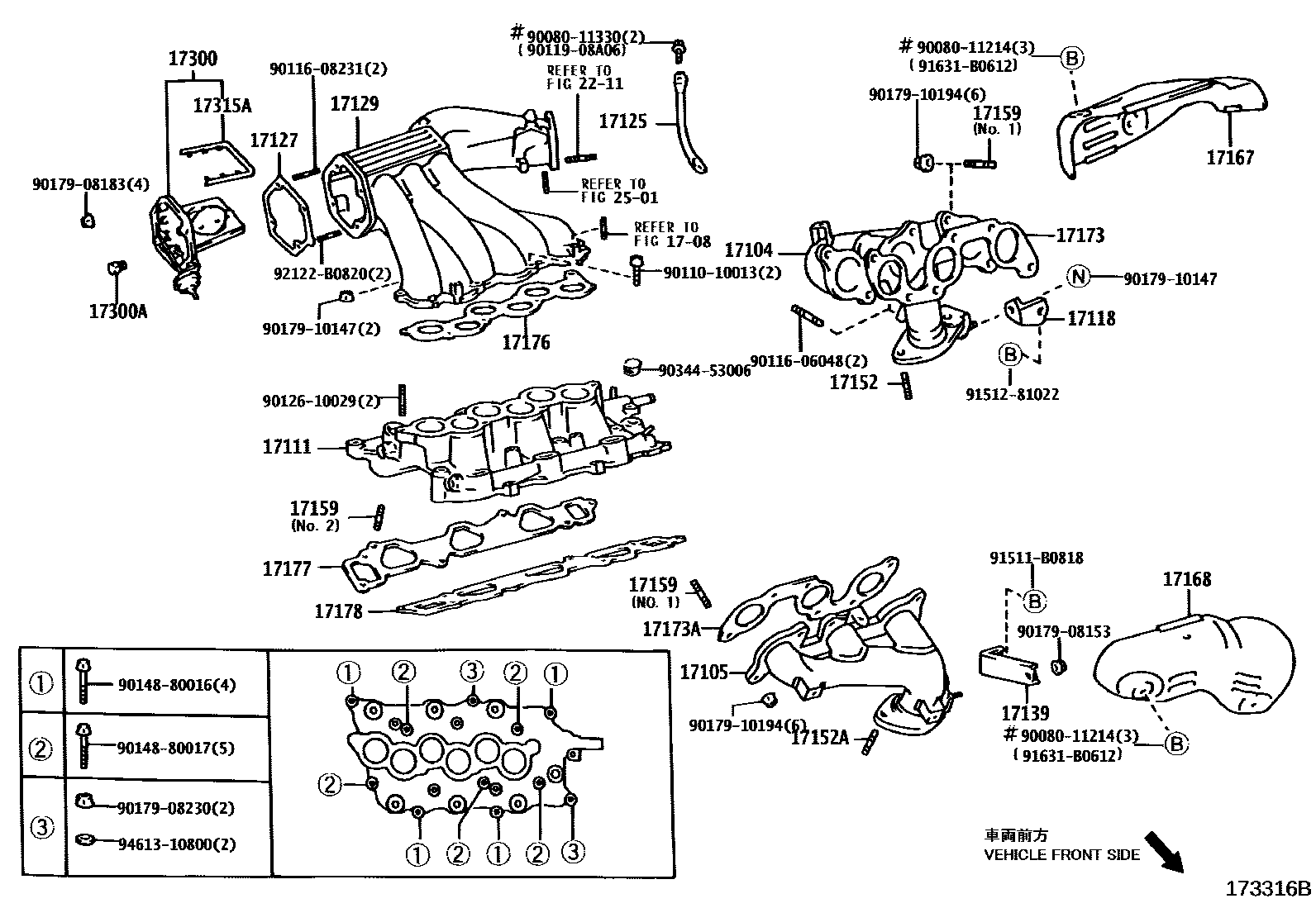

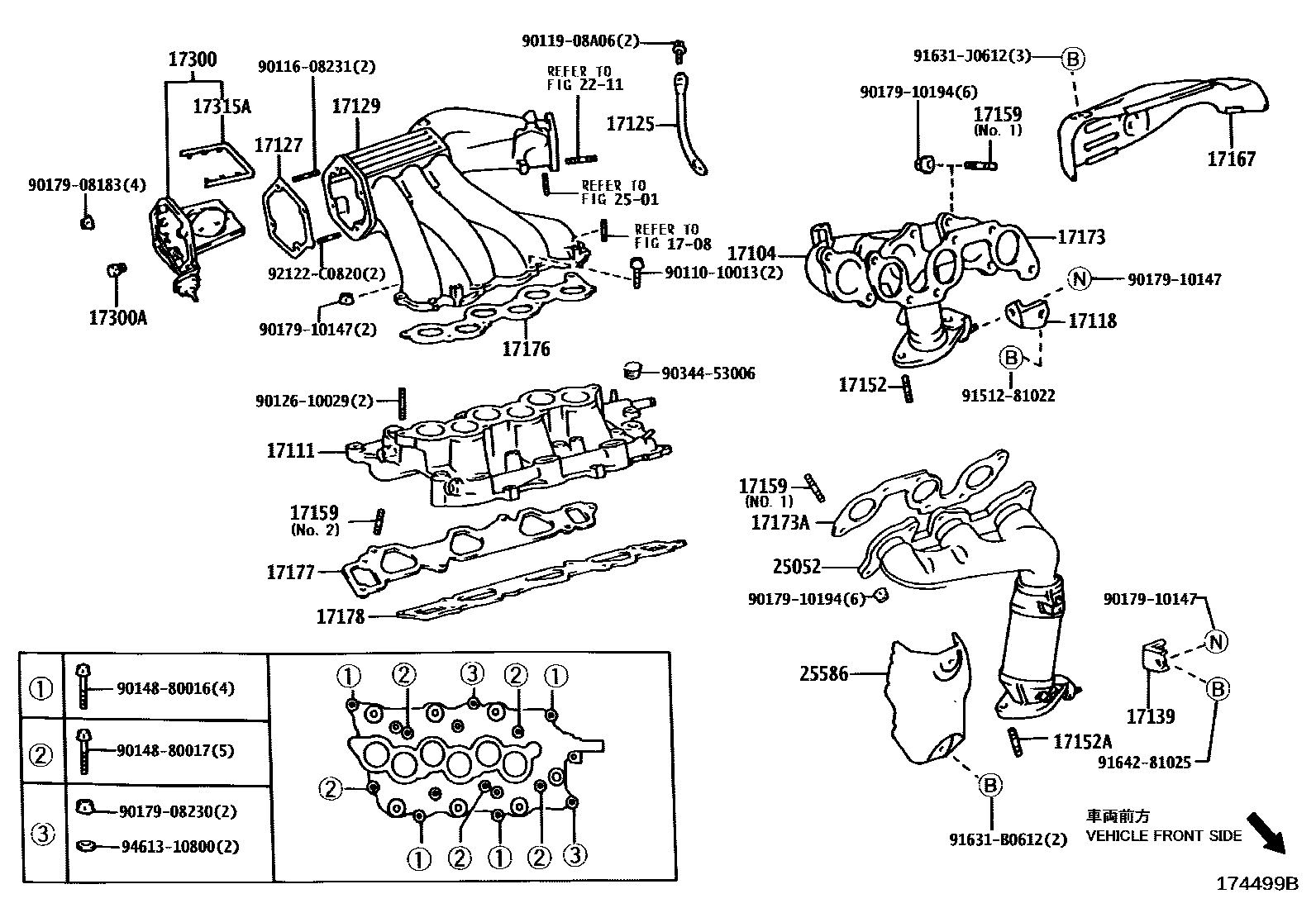

Toyota CAMRY EPC diagram 1701, Manifold, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17104 | Right exhaust manifold sub-assembly | 17104-20010 · 17141-20050 |
| 17105 | Left exhaust manifold sub-assembly | 17142-20050 |
| 17111 | Intake Manifold | 17101-0A010 · 17101-20010 · 17120-0H020 · 17120-0H030 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 |
| 17117 | Intake pipe insulation pad | 17117-0H020 · 17117-28020 |
| 17118 | Manifold stays | 17118-0H010 · 17118-20020 · 17118-28060 |
| 17125 | No. 1 pressure tank stay | 17125-0A010 · 17125-20010 |
| 17127 | Pressure tank cover gasket | 17127-0A010 · 17127-62030 |
| 17129 | Intake pressure tank | 17109-0A050 · 17109-20090 |
| 17135A | Intake manifold No. 1 heat shield | 17135-28010 · 17135-YD010 |
| 17136 | Intake manifold No. 2 heat shield | 17136-0H010 · 17136-28020 |
| 17139 | No. 2 manifold stay | 17139-0H011 · 17139-20010 · 17139-20020 · 17139-28040 |
| 17141J | Studs (for right exhaust manifold) | 90126-08037 |
| 17152 | Studs (for manifold to exhaust) | 90116-10149 |
| 17152A | Studs (for manifold to exhaust) | 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08013 · 90126-10030 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0H030 · 17167-20050 · 17167-28040 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0H030 · 17168-20050 · 17168-28010 · 17168-28011 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0A010 · 17173-0H010 · 17173-20010 · 17173-28010 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-0A010 · 17173-20010 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62030 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-20020 · 17177-28010 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-20020 |
| 17300 | Intake control valve assembly | 17300-20020 |
| 17300A | Headed tapered thread plug (for air control valves) | 90345-51006 |
| 17315A | Intake control valve gasket | 17315-62020 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0H030 · 25051-0H120 · 25051-28111 |
| 25052 | No. 2 exhaust manifold three-way catalytic converter sub-assembly | 25052-20091 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0H030 · 25586-20010 · 25586-28030 · 25586-28031 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-0H030 · 25587-28040 · 25587-28041 |
