Toyota CAMRY V-Belt — Figure 1605

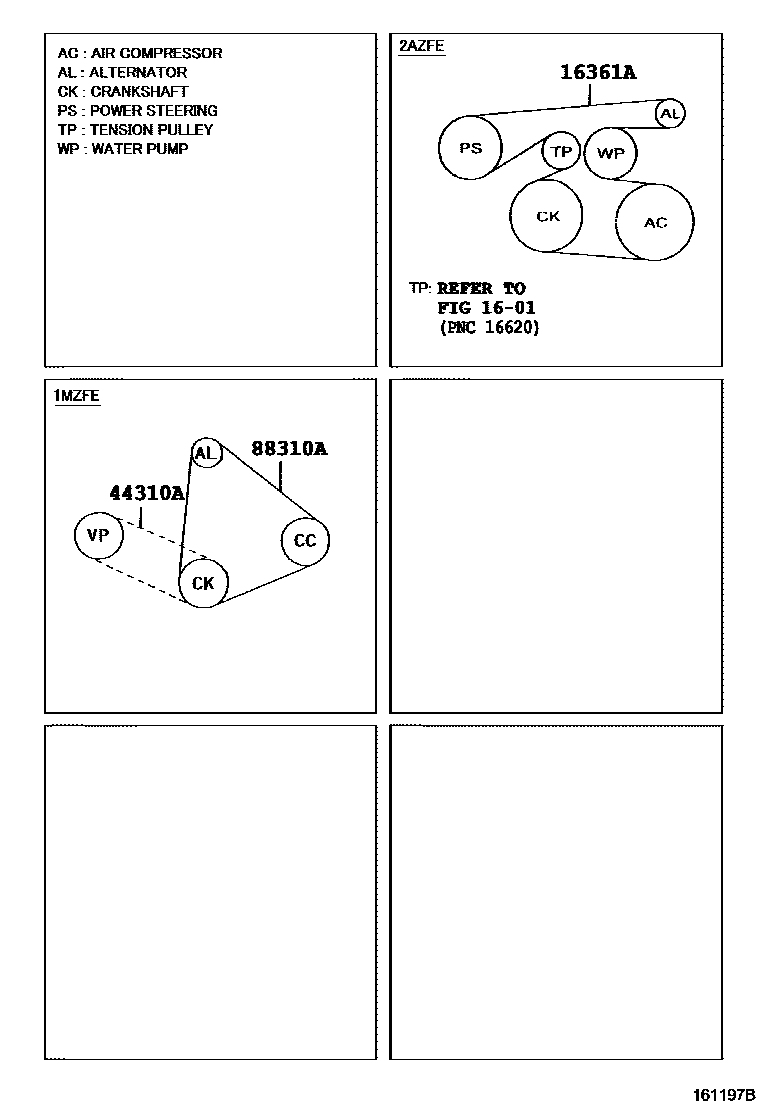

Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90080-91214 · 90916-02491 · 90916-02502 · 90916-02596 · 90916-02598 |
| 44310A | V-belt (for vane pump) | 90080-91228 · 90916-02580 · 99364-90880 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90089-91007 |
