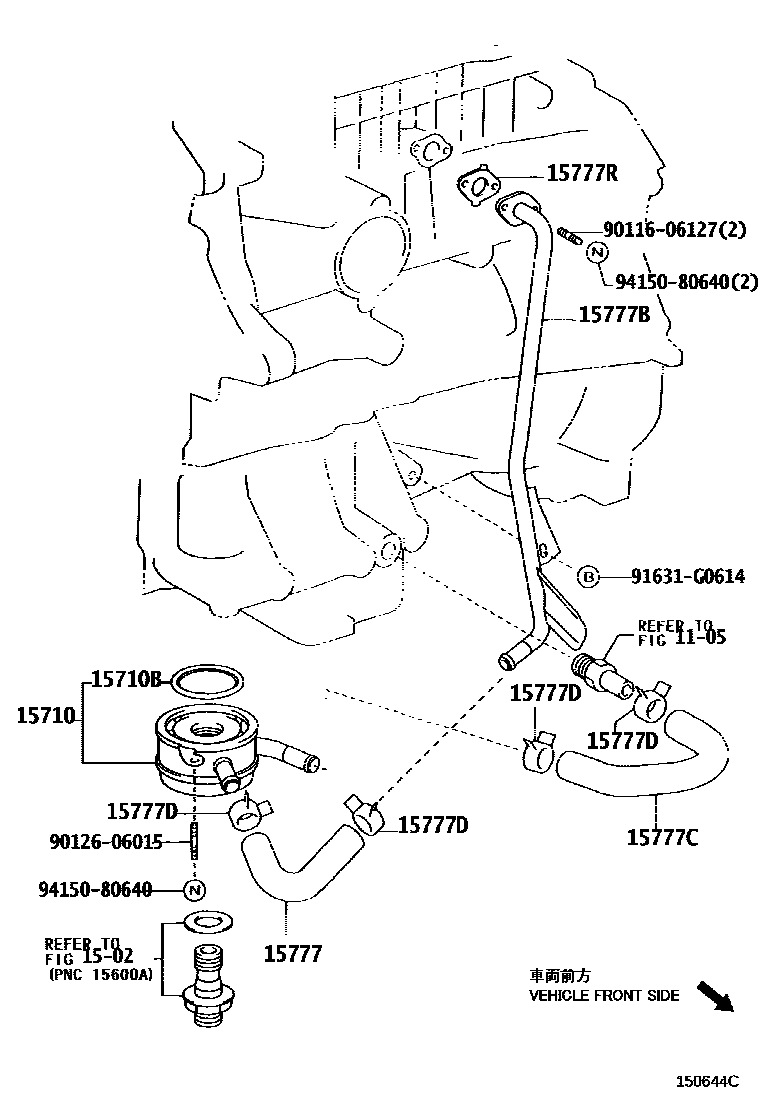

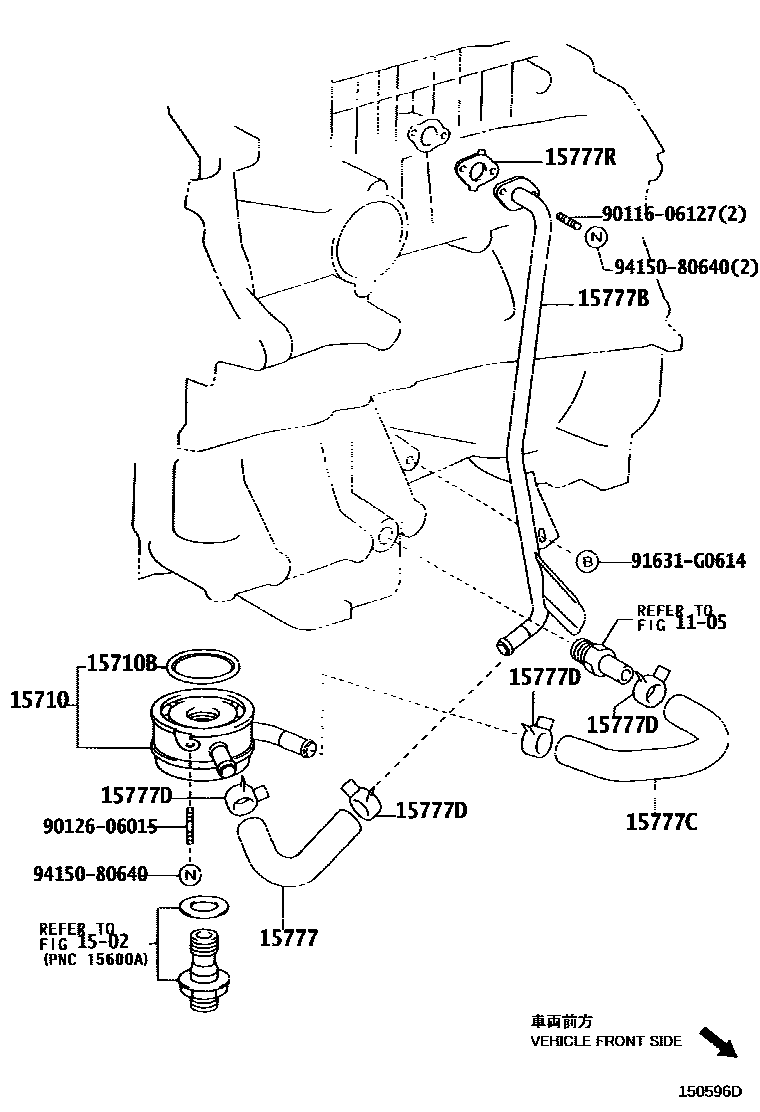

Toyota CAMRY Engine Oil Cooler — Figure 1503
Toyota CAMRY EPC diagram 1503, Engine Oil Cooler, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15710 | Oil cooler assembly | 15710-28020 |
| 15710B | O-ring (for transmission oil cooler) | 90301-52006 |
| 15777 | oil cooler hose | 16267-0H010 · 16267-28080 |
| 15777B | oil cooler pipe | 16279-0H010 · 16279-28010 |
| 15777C | oil cooler hose | 16281-0H010 · 16281-28010 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 96134-41900 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 16258-0H030 · 16258-28020 · 16258-28021 · 16258-28040 |
