Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 3 images and 2 PNC and OE references.

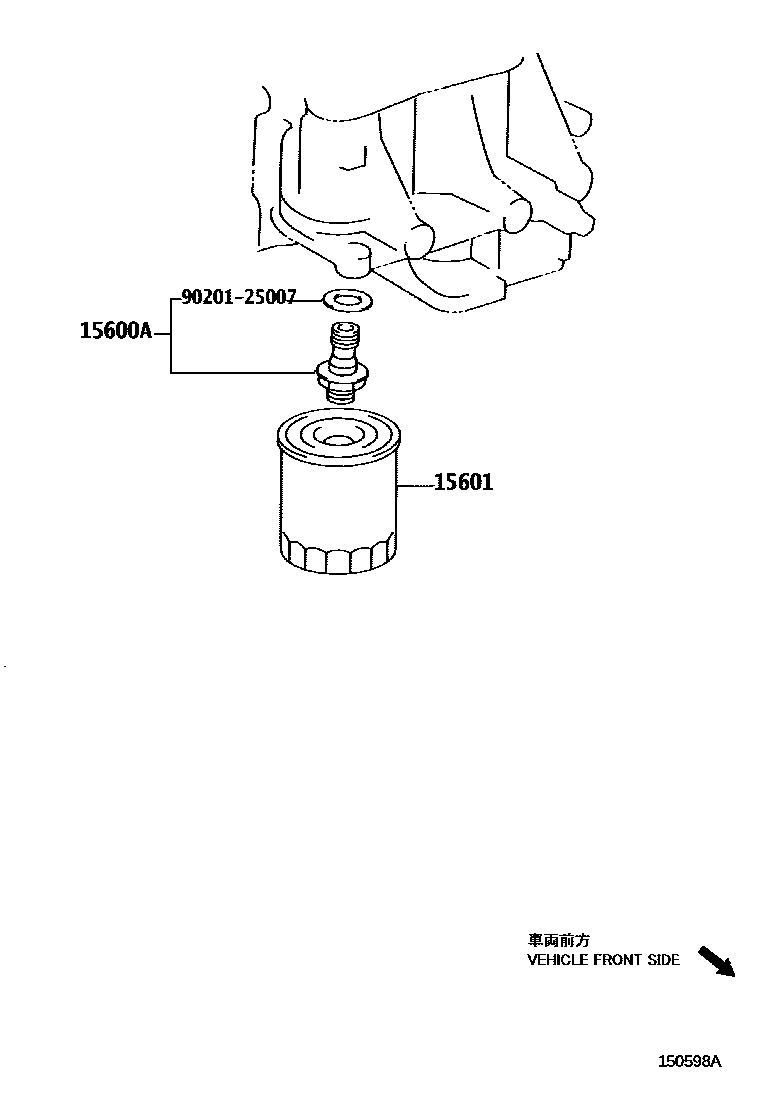

Toyota CAMRY Oil Filter EPC diagram — 150598A
Oil Filter — 150598A (200208 – 999999)

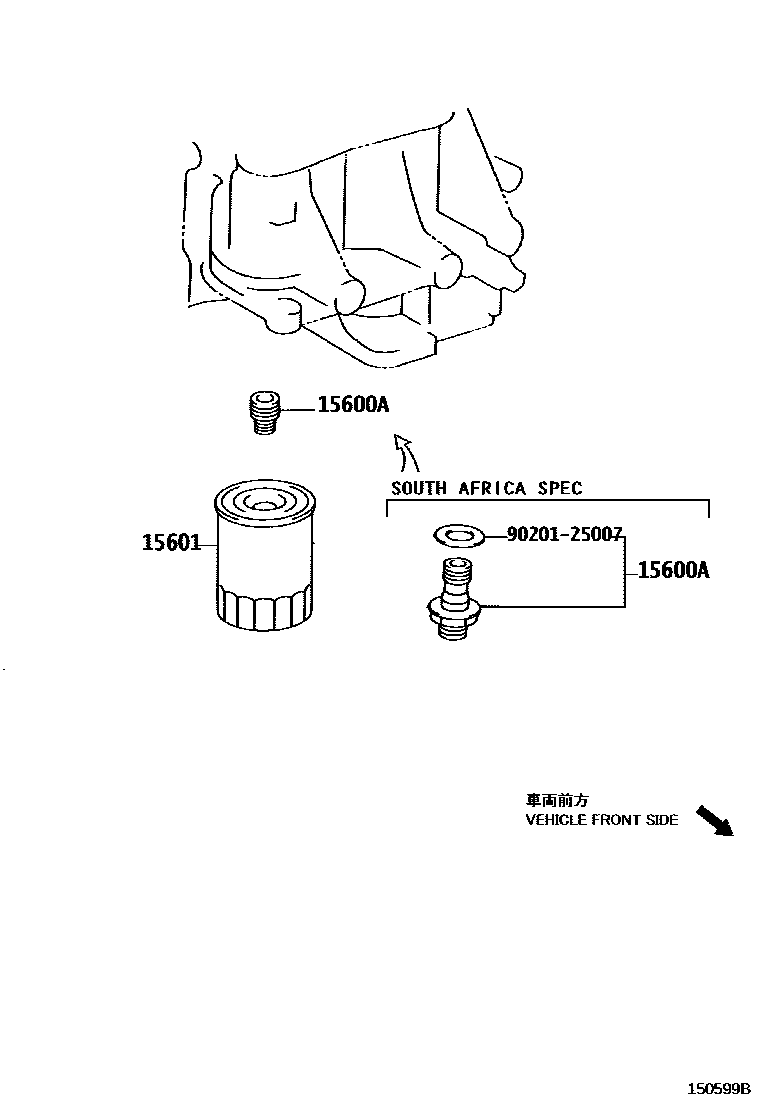

Toyota CAMRY Oil Filter EPC diagram — 150599B
Oil Filter — 150599B (200208 – 999999)
Toyota CAMRY Oil Filter EPC diagram — 152939
Oil Filter — 152939 (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)15695-28010 · 90904-04006
15601Oil filter sub-assembly90915-10004 · 90915-20003 · 90915-TA002
