Toyota CAMRY Engine Oil Pump — Figure 1501

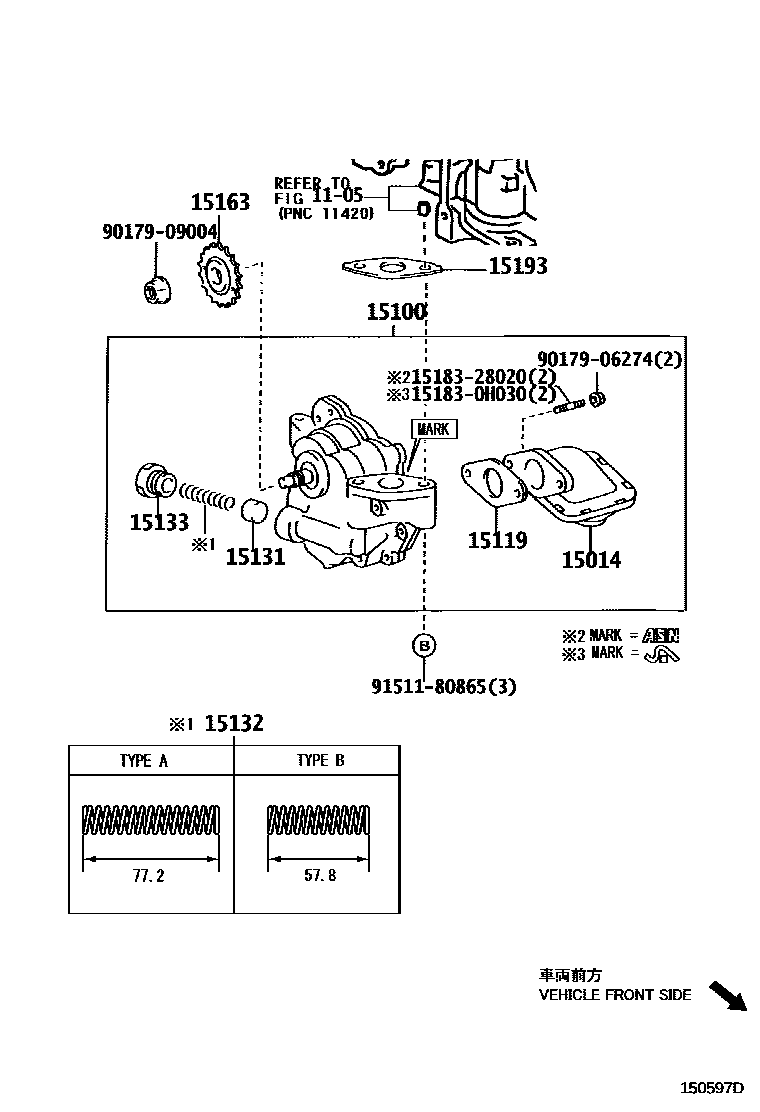

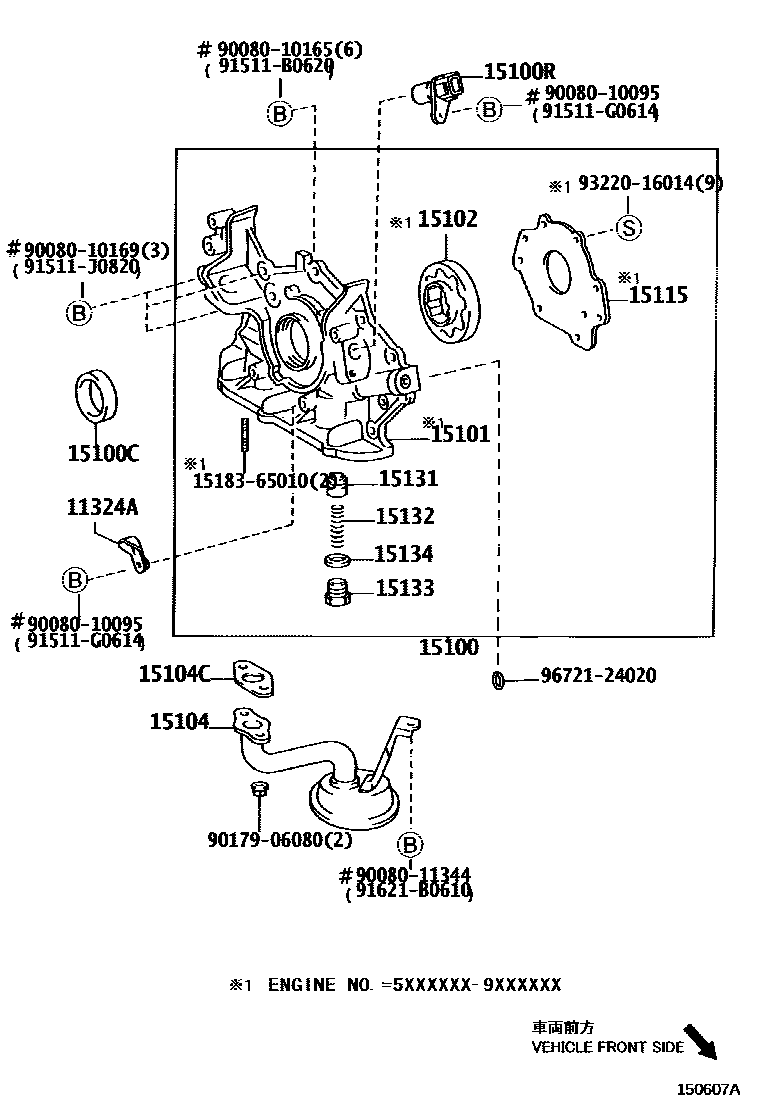

Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11324A | timing belt pulley | 11324-20010 |
| 15014 | Oil pump filter assembly | 15014-0H030 · 15014-28020 |
| 15100 | Oil pump assembly | 15100-0A010 · 15100-0H030 · 15100-20020 · 15100-28020 |
| 15100C | Seals (for oil pump) | 90080-31034 · 90311-40022 |
| 15100R | crankshaft position sensor | 90080-19009 · 90919-05012 |
| 15101 | Oil pump body sub-assembly | 15101-0A010 |
| 15102 | Oil pump rotor assembly | 15103-0A010 |
| 15104 | Oil filter sub-assembly | 15104-0A010 · 15104-20020 |
| 15104C | Gasket (for oil filter) | 15147-0A010 · 15147-20010 |
| 15115 | oil pump cover | 15115-0A010 |
| 15119 | Oil pump cover gasket | 15119-28020 |
| 15131 | Oil pump pressure reducing valve | 15131-42021 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-0A010 · 15132-0H030 · 15132-20020 · 15132-28020 · 15132-46020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-28020 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67010 |
| 15163 | Oil pump drive shaft gear | 15163-0H040 · 15163-28010 |
| 15193 | oil pump gasket | 15193-28010 |
