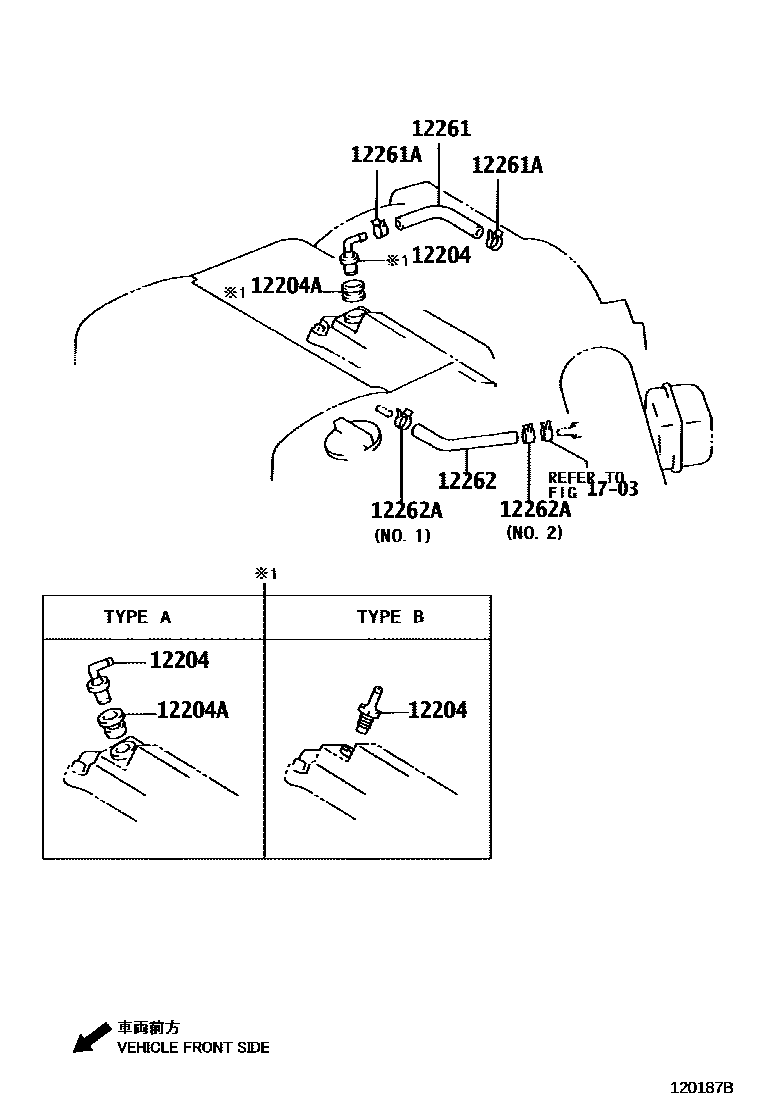

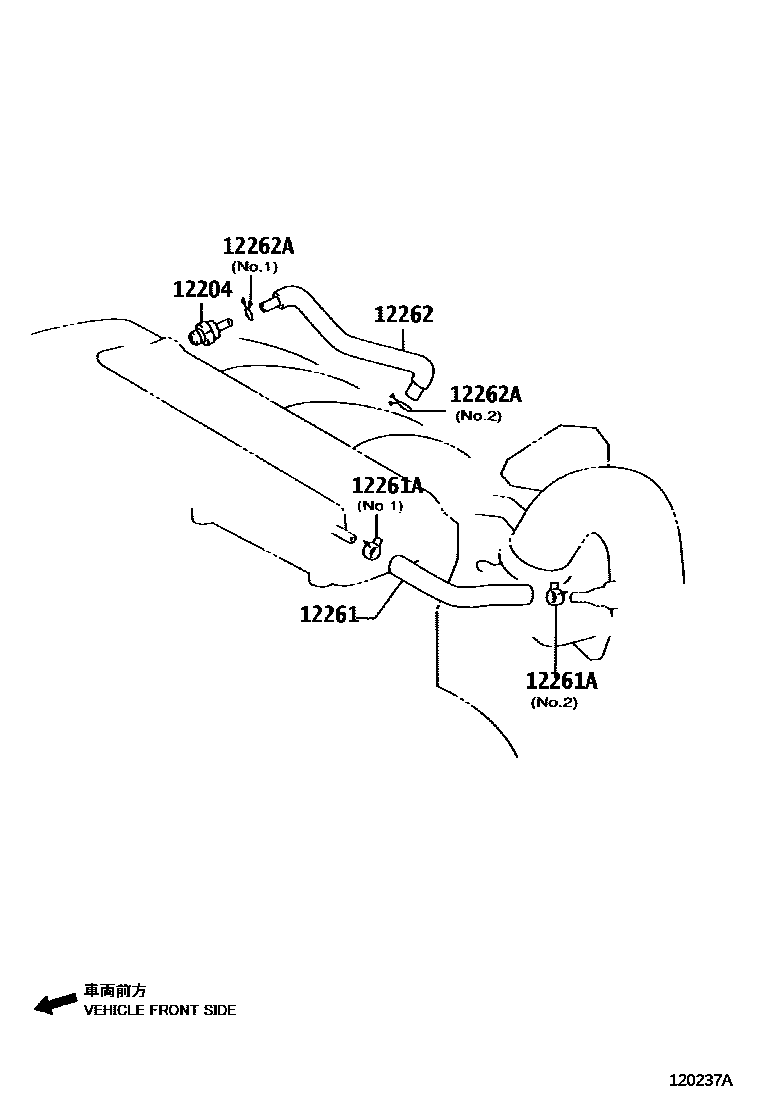

Toyota CAMRY Ventilation Hose — Figure 1201
Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-20020 · 12204-20040 · 12204-20060 · 12204-28020 |
| 12204A | Gasket (for ventilation system) | 90480-18001 |
| 12261 | Ventilation Hose | 12261-20011 · 12261-20090 · 12261-20091 · 12261-28140 |
| 12261A | Clip or clip (for vent hose) | 90467-14017 · 90467-19003 · 96134-41900 |
| 12262 | Ventilation hose No. 2 | 12262-0H030 · 12262-20020 · 12262-28021 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 · 90467-16035 · 96134-41900 · 96134-51700 |
