Toyota CAMRY Engine Mounting — Figure 1107

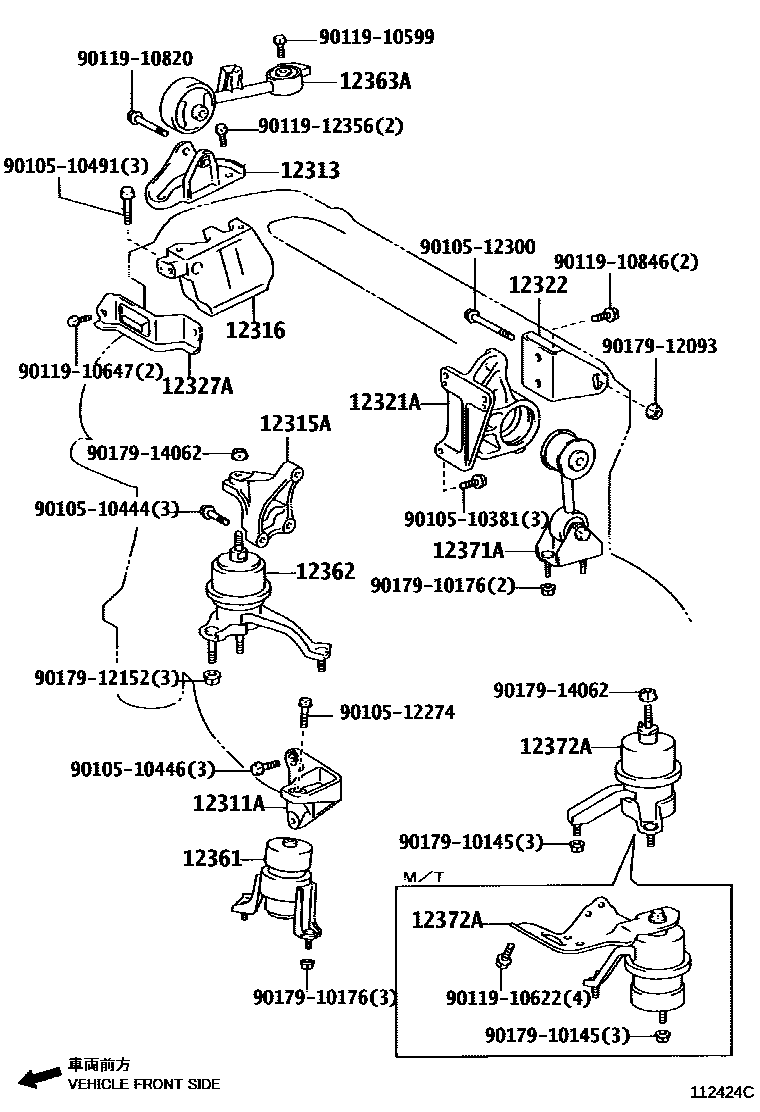

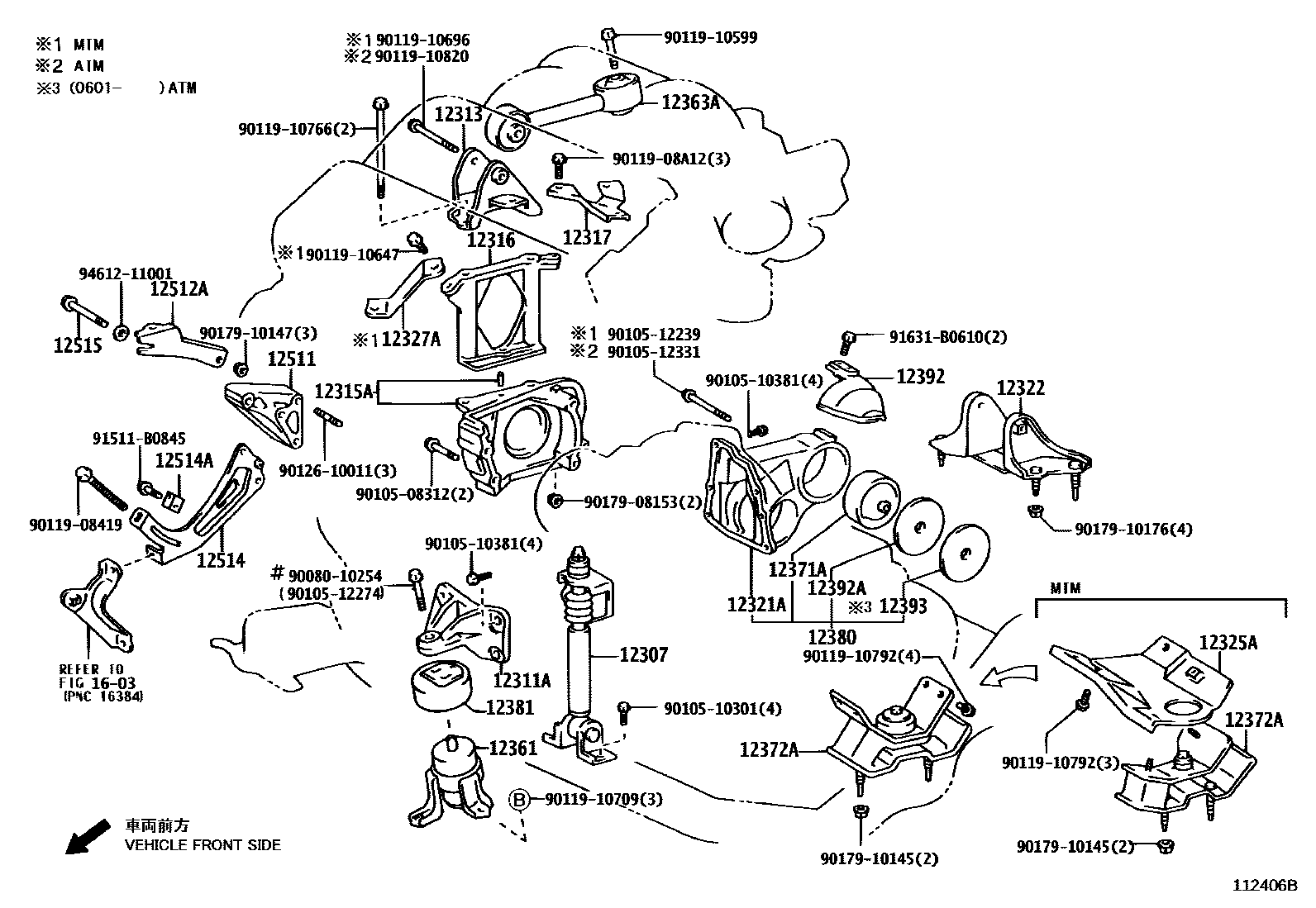

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12307 | Engine mount damper sub-assembly | 12307-20021 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0A020 · 12311-0A030 · 12311-0H060 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0A010 · 12313-0A020 · 12313-0H030 · 12313-20020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0A010 · 12315-0H040 · 12315-20020 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-28060 · 12316-28061 · 12316-62020 |
| 12317 | Engine right mounting bracket | 12317-20010 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0A040 · 12321-0H020 · 12321-20030 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-0A020 · 12322-0A030 · 12322-0H010 · 12322-20080 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-62030 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0H040 · 12327-20020 |
| 12361 | Engine front mounting vibration isolation pad | 12361-0A020 · 12361-0H060 · 12361-20090 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-28110 |
| 12363A | Engine movement control lever | 12363-0A020 · 12363-0A030 · 12363-0H040 · 12363-0H041 · 12363-20020 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0A030 · 12371-0H020 · 12371-62050 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-28080 · 12372-0A030 · 12372-0H060 · 12372-62070 |
| 12380 | Engine rear mount vibration isolation pad assembly | 12380-0A060 · 12380-0A090 · 12380-20020 |
| 12381 | engine mount stabilizer bar | 12381-20010 |
| 12392 | Engine left front mounting heat insulation pad | 12392-62010 · 12392-62030 |
| 12392A | Engine rear mounting heat insulation pad | 12392-20030 · 12392-20070 · 12392-62010 · 12392-62030 |
| 12393 | Engine front mounting heat insulation pad | 12392-0A030 |
| 12511 | No. 1 generator bracket | 12511-20020 |
| 12512A | No. 2 generator bracket | 12512-20010 · 12512-20020 |
| 12514 | Generator belt adjustment lever | 12514-0A010 · 12514-20010 |
| 12514A | Fan belt adjustment slider | 16385-20010 |
| 12515 | Generator through bolts | 12515-20010 |
