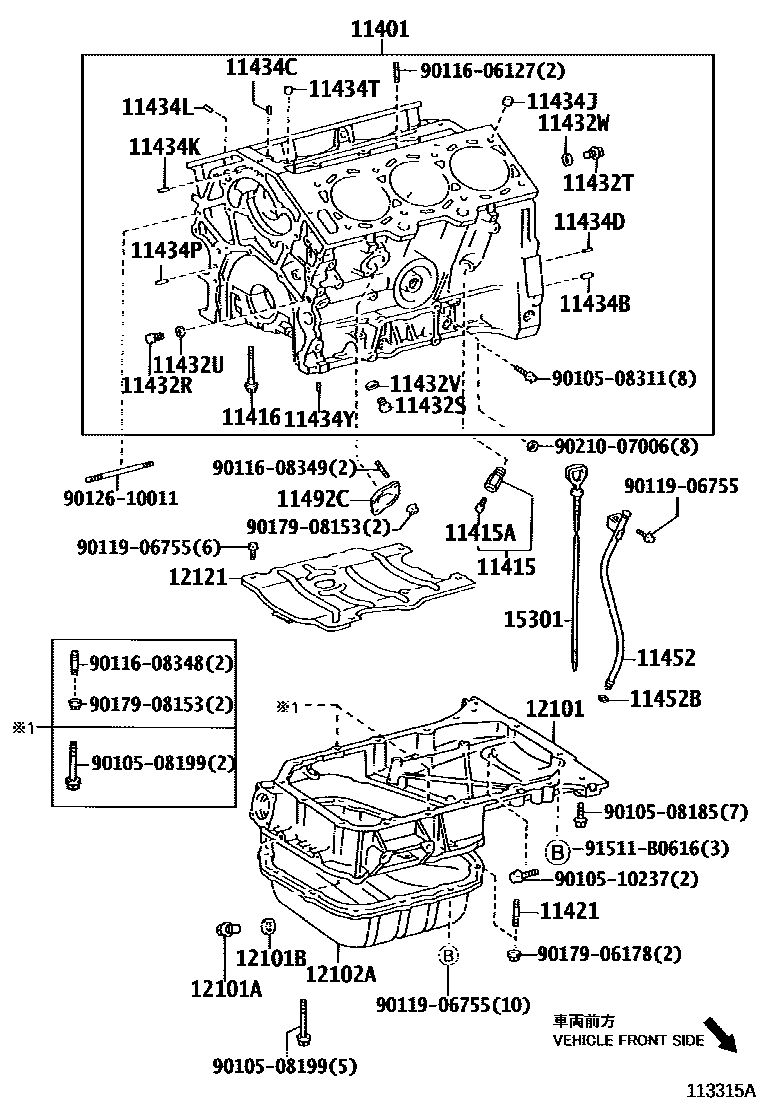

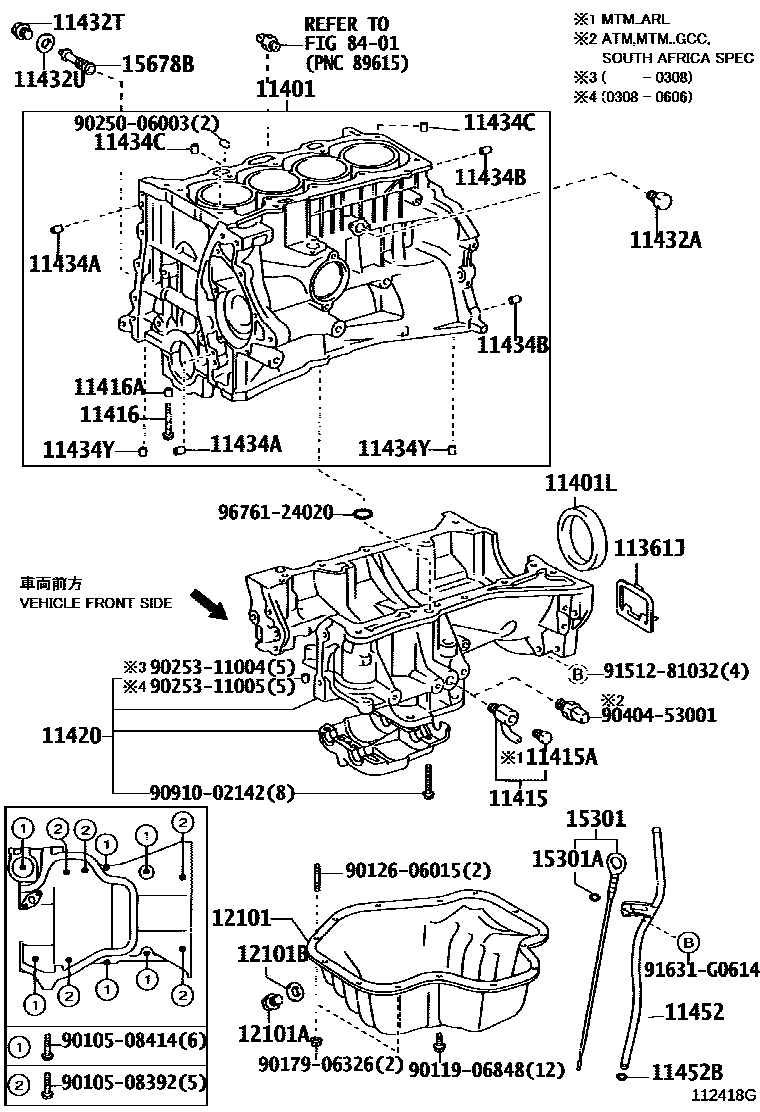

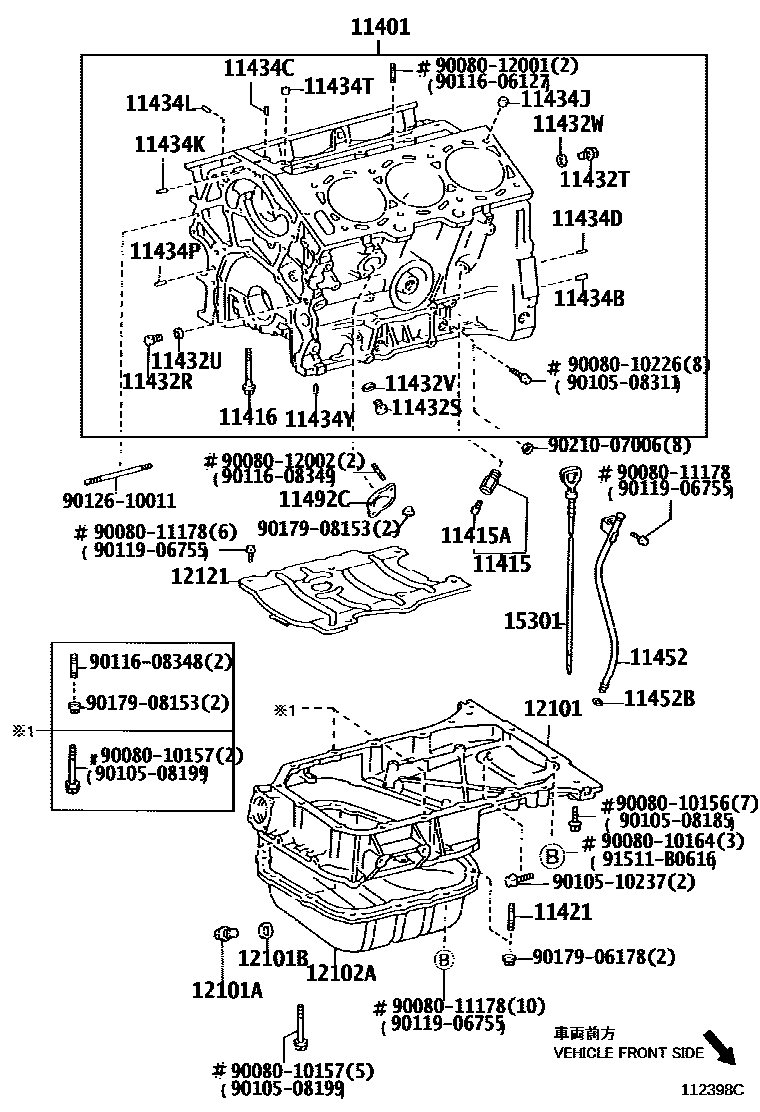

Toyota CAMRY Cylinder Block — Figure 1105
Toyota CAMRY EPC diagram 1105, Cylinder Block, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0H010 · 11361-28010 |
| 11401 | Cylinder block sub-assembly | 11401-09102 · 11401-29516 · 11410-09060 · 11410-09170 · 11410-09210 · 11410-29105 · 11410-29185 · 11410-29325 |
| 11401L | SEAL, ENGINE REAR OIL | 90080-31082 · 90311-89003 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09095 · 90910-09120 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02114 · 90910-02124 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 |
| 11420 | Reinforce crankcase assembly | 11420-0H020 · 11420-28011 · 11420-28031 |
| 11421 | Stud bolts (for oil pan) | 90080-11538 · 90116-06098 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-16013 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-16013 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-14013 · 90341-20013 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-14009 · 90430-14011 · 90430-16009 |
| 11432V | No. 2 straight thread plug gasket (for cylinder block) | 90430-16009 |
| 11432W | No. 3 straight thread plug gasket (for cylinder block) | 90430-20004 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08074 · 90250-08120 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90253-14003 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-04097 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-16001 |
| 11434K | Direct sales (for water pumps) | 90250-04097 |
| 11434L | Direct sales (for engine mounts) | 90250-04097 |
| 11434P | Direct sales (for oil pump components) | 90250-04097 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90253-11021 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 · 90250-08074 |
| 11452 | Engine oil level gauge guide | 11452-0A020 · 11452-0H030 · 11452-20020 · 11452-28020 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 11492C | coolant sealing plate | 11492-20010 |
| 12101 | Oil pan sub-assembly | 12101-0H040 · 12101-28030 · 12111-0A030 · 12111-20032 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0A010 · 12102-20010 |
| 12121 | No. 1 oil pan baffle | 12121-0A011 · 12121-20021 |
| 15301 | Engine oil level scoring assembly | 15301-0H030 · 15301-20021 · 15301-28020 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678B | Oil control valve filter | 15678-28010 |
