Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 12 images and 2 PNC and OE references.

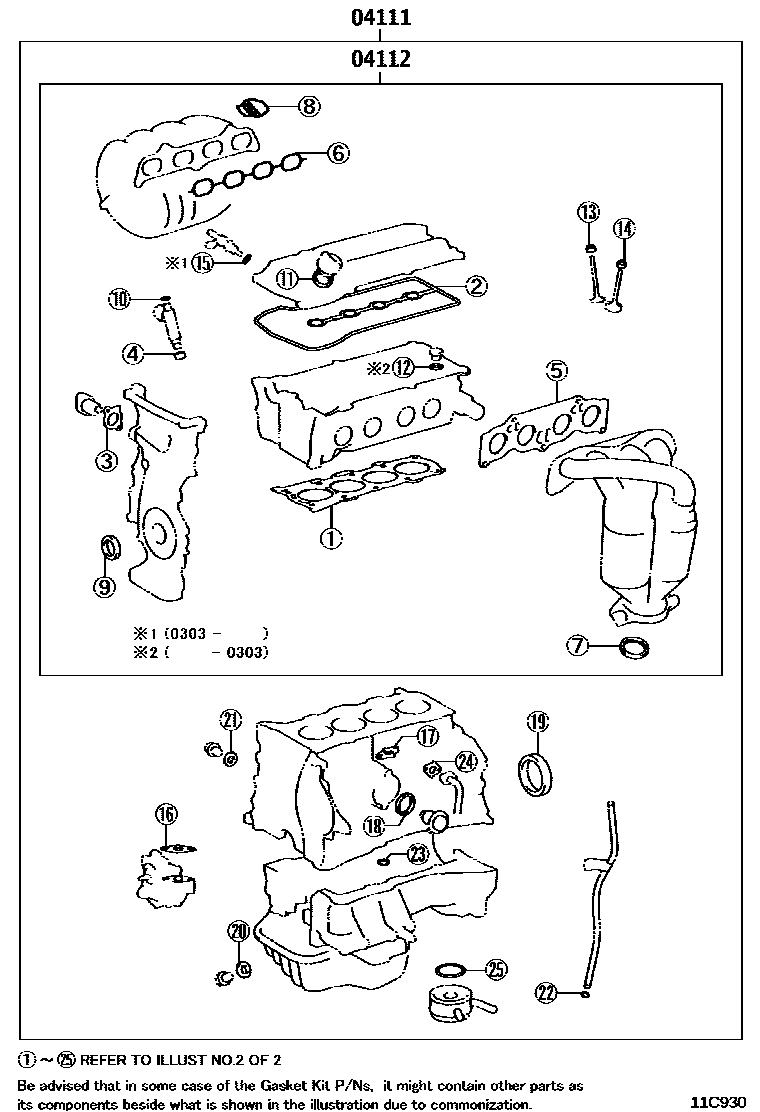

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C930
Engine Overhaul Gasket Kit — 11C930 (200208 – 200312)

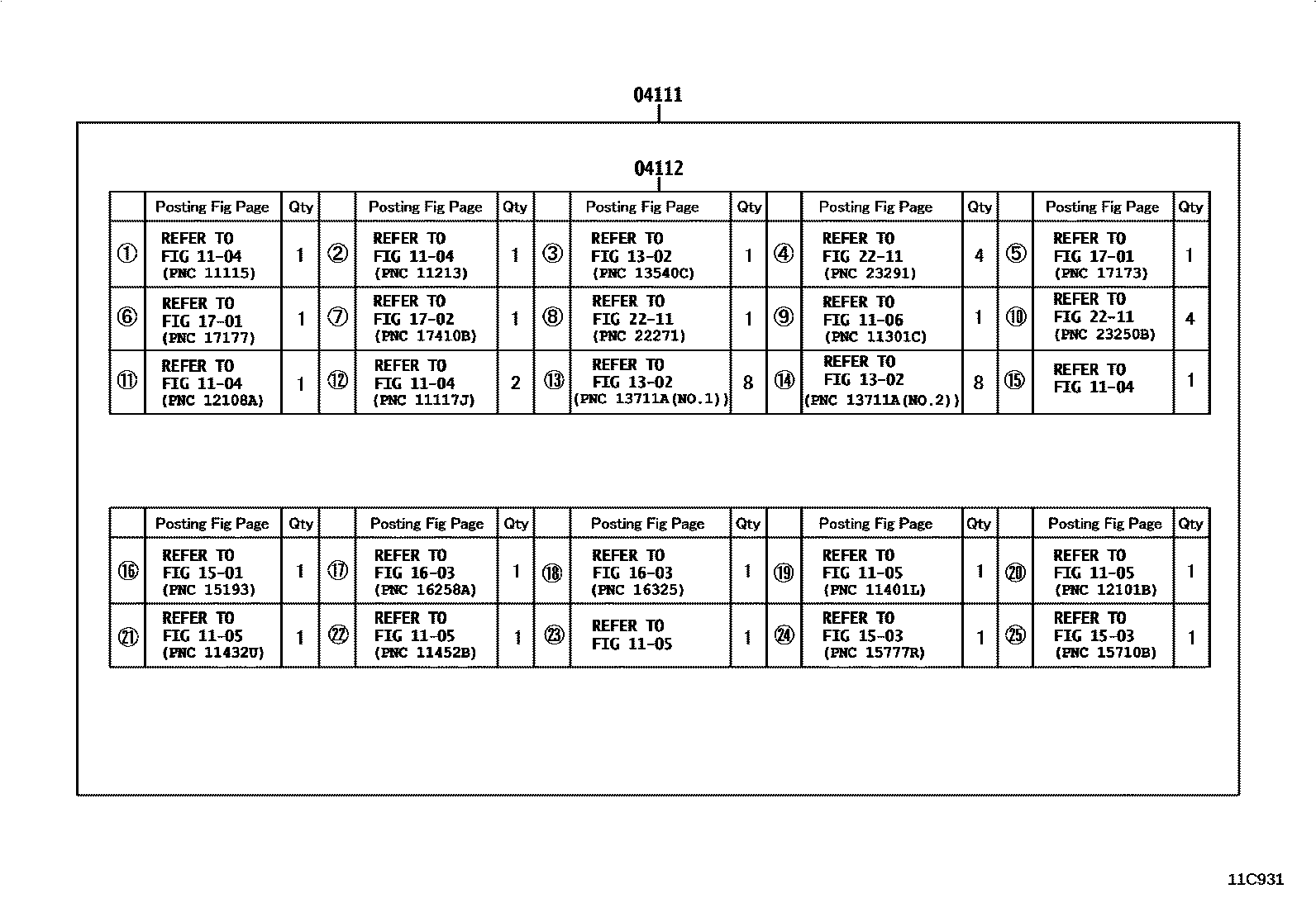

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C931
Engine Overhaul Gasket Kit — 11C931 (200208 – 200312)

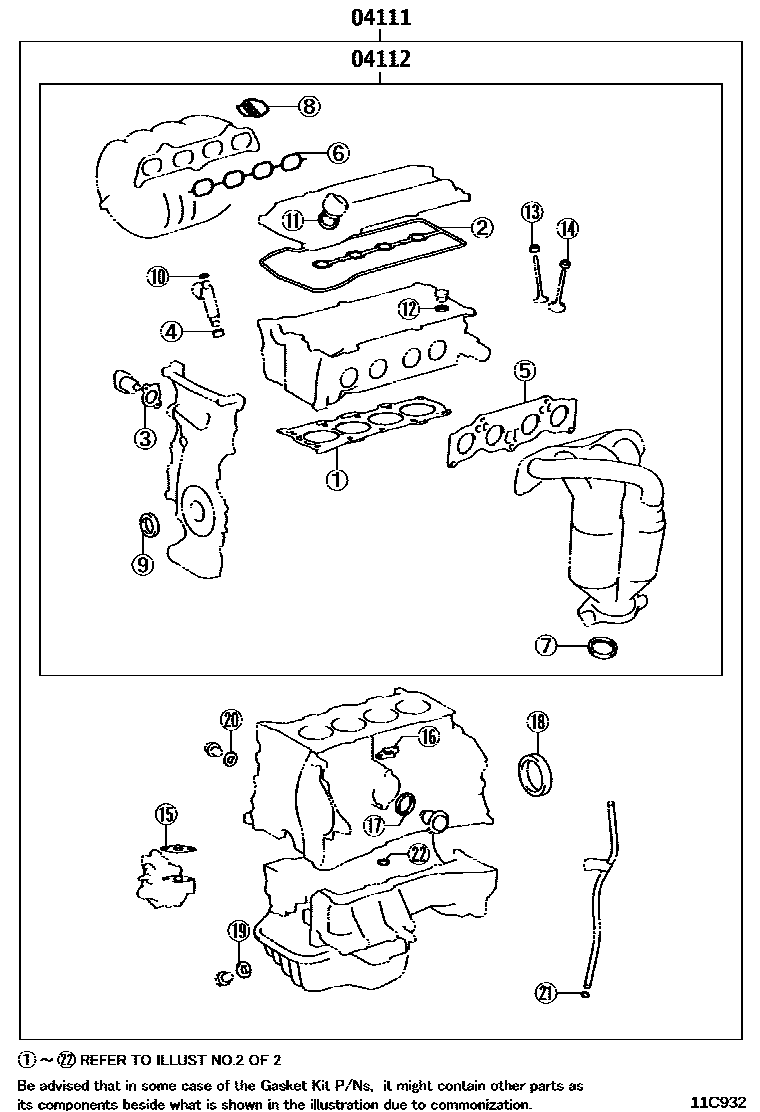

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C932
Engine Overhaul Gasket Kit — 11C932 (200312 – 200408)

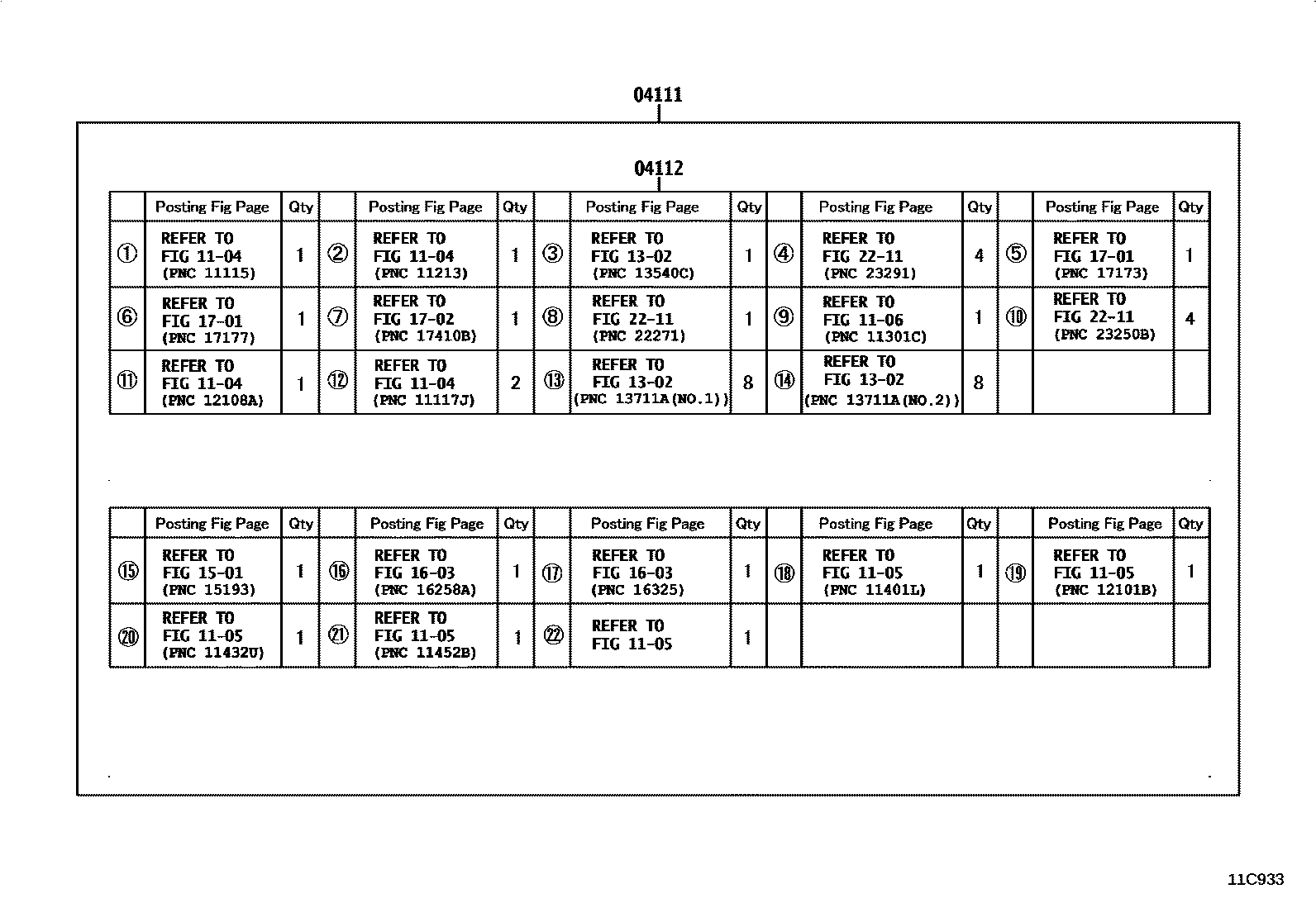

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C933
Engine Overhaul Gasket Kit — 11C933 (200312 – 200408)

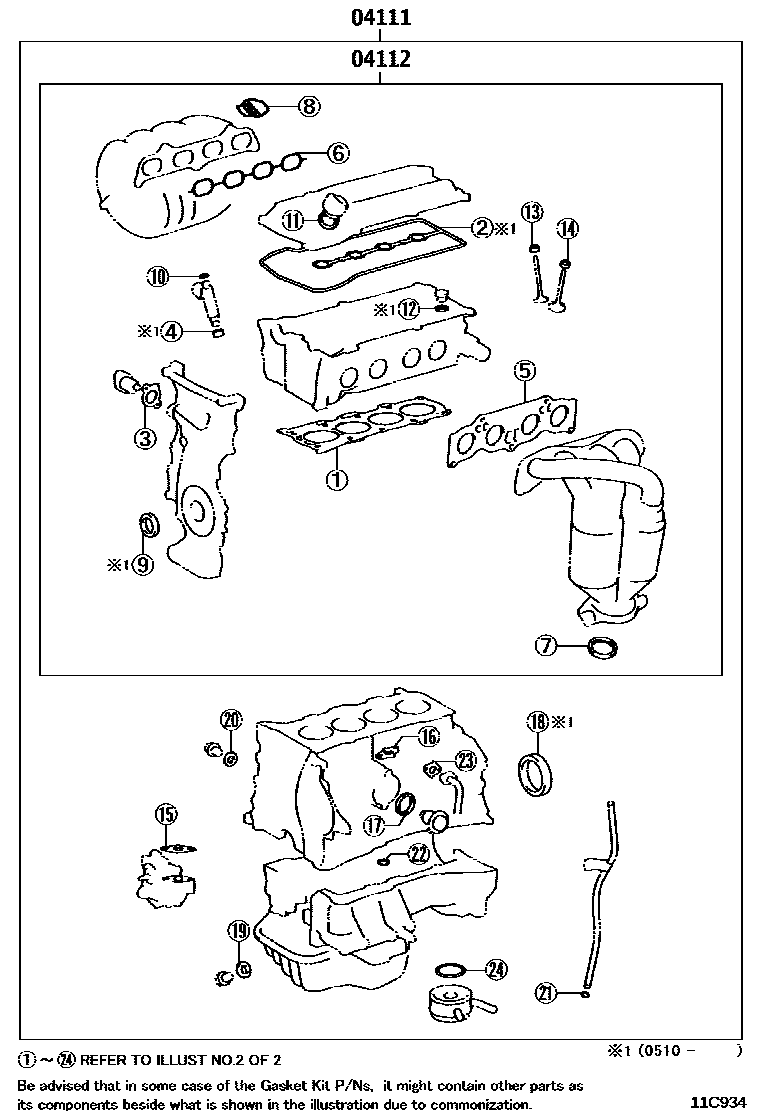

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C934
Engine Overhaul Gasket Kit — 11C934 (200408 – 200606)

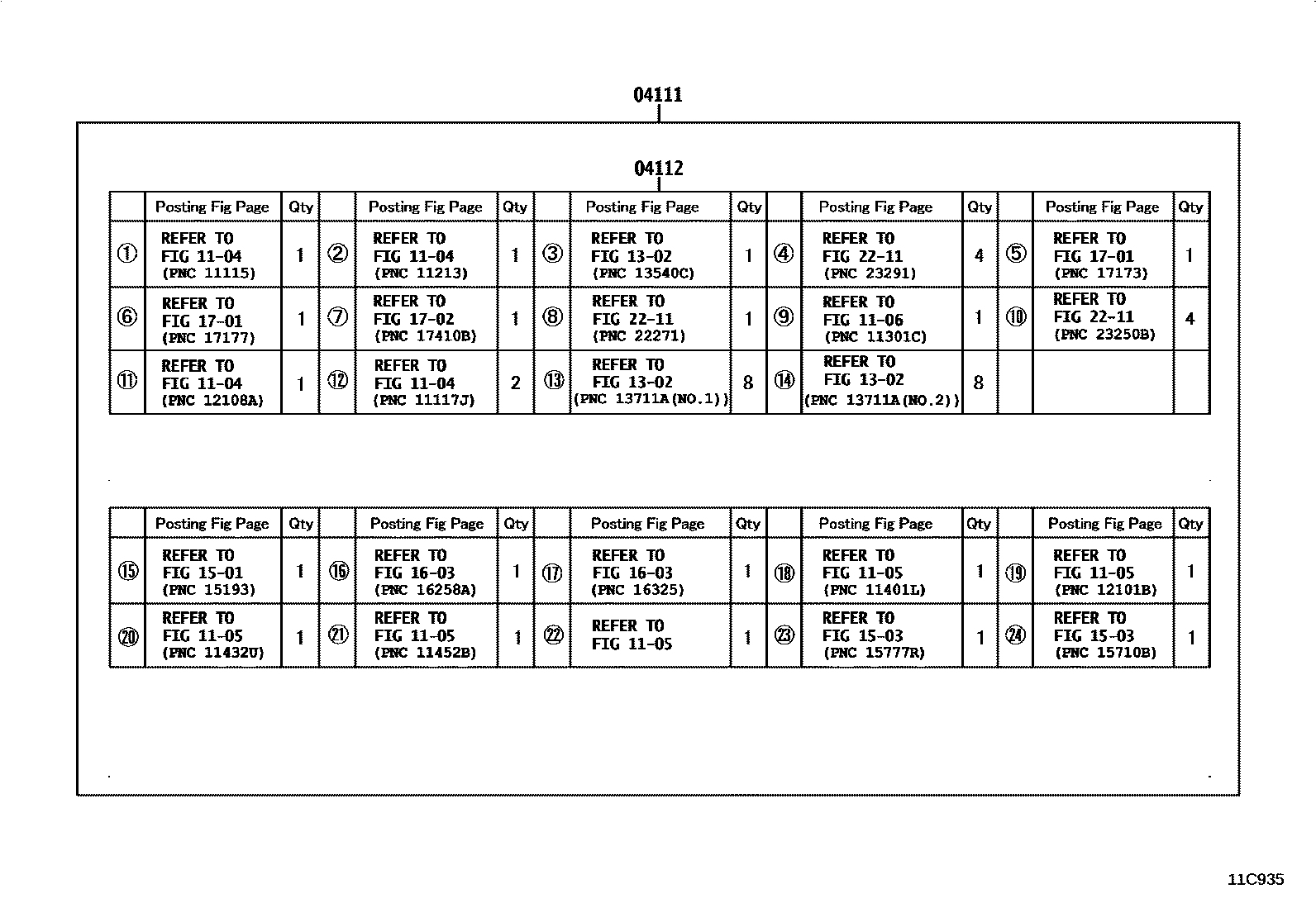

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C935
Engine Overhaul Gasket Kit — 11C935 (200408 – 200606)

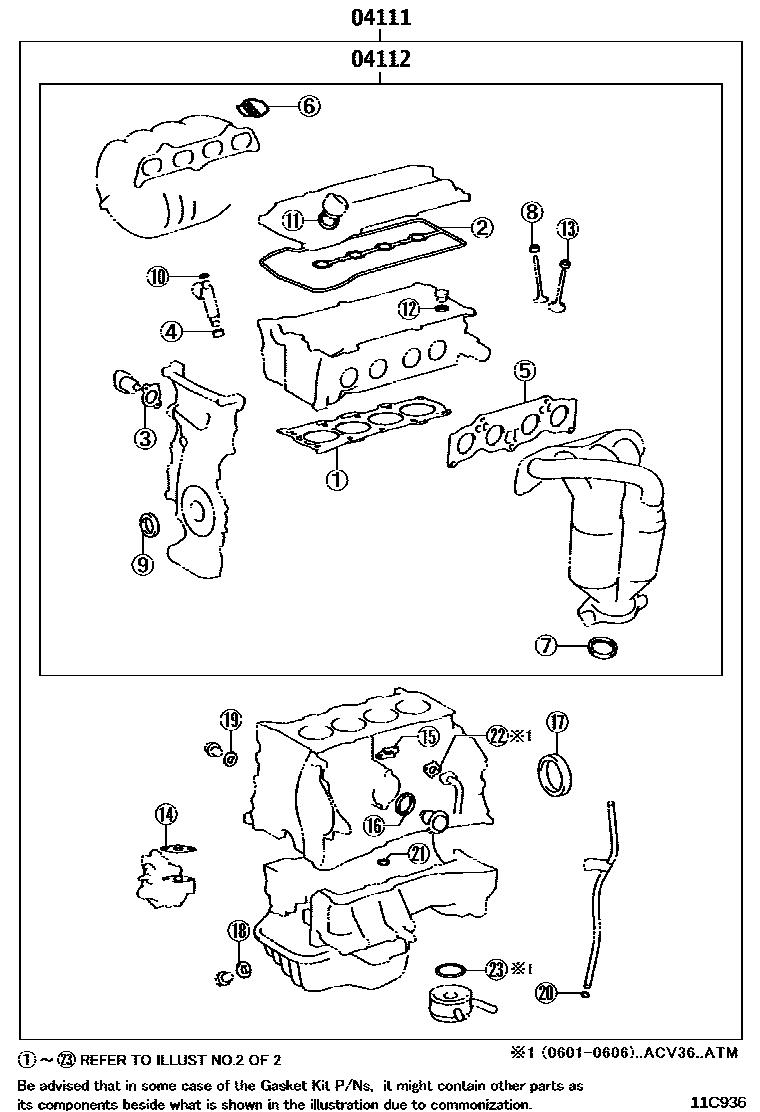

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C936
Engine Overhaul Gasket Kit — 11C936 (200510 – 200606)

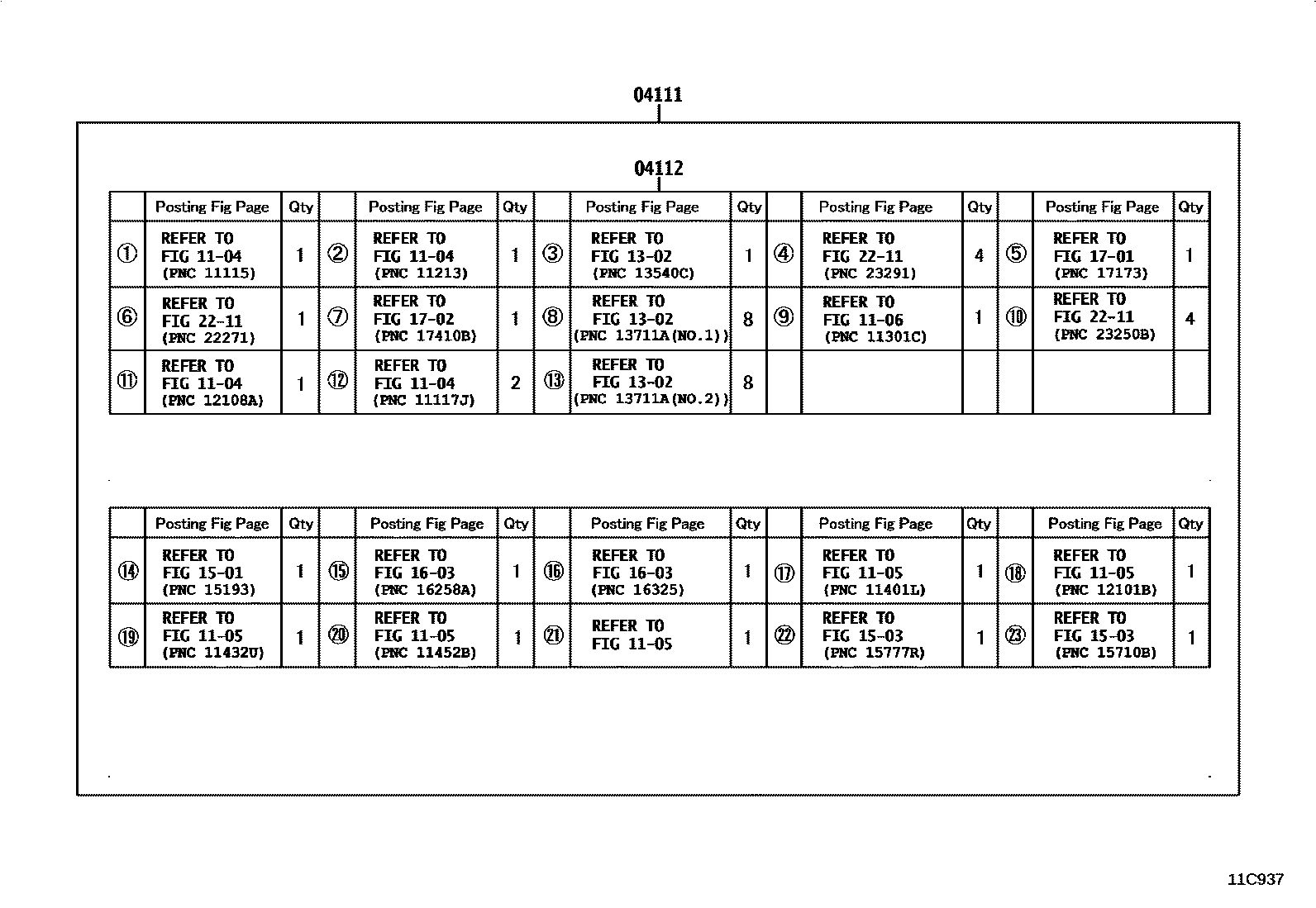

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C937
Engine Overhaul Gasket Kit — 11C937 (200510 – 200606)

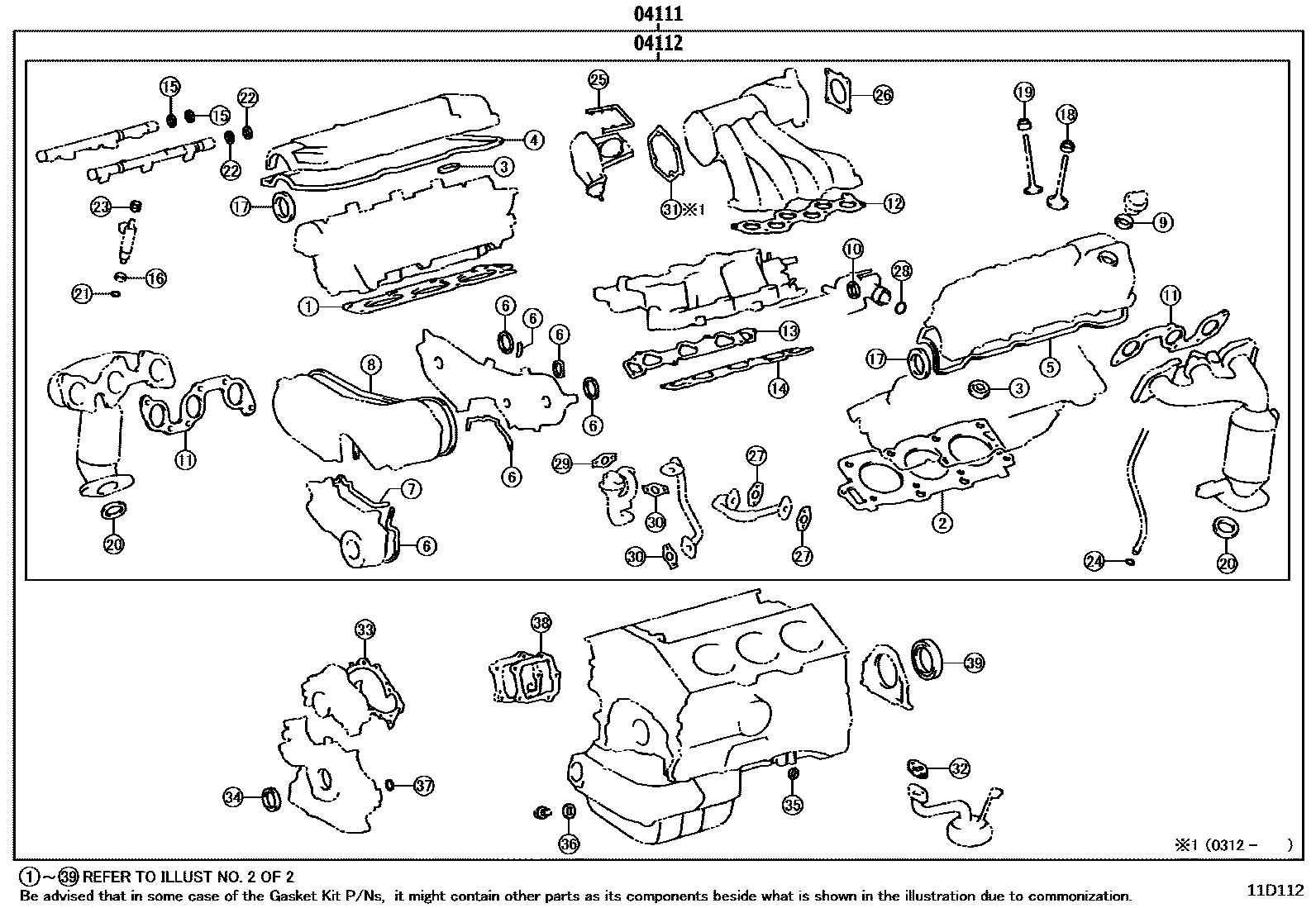

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D112
Engine Overhaul Gasket Kit — 11D112 (200208 – 200408)

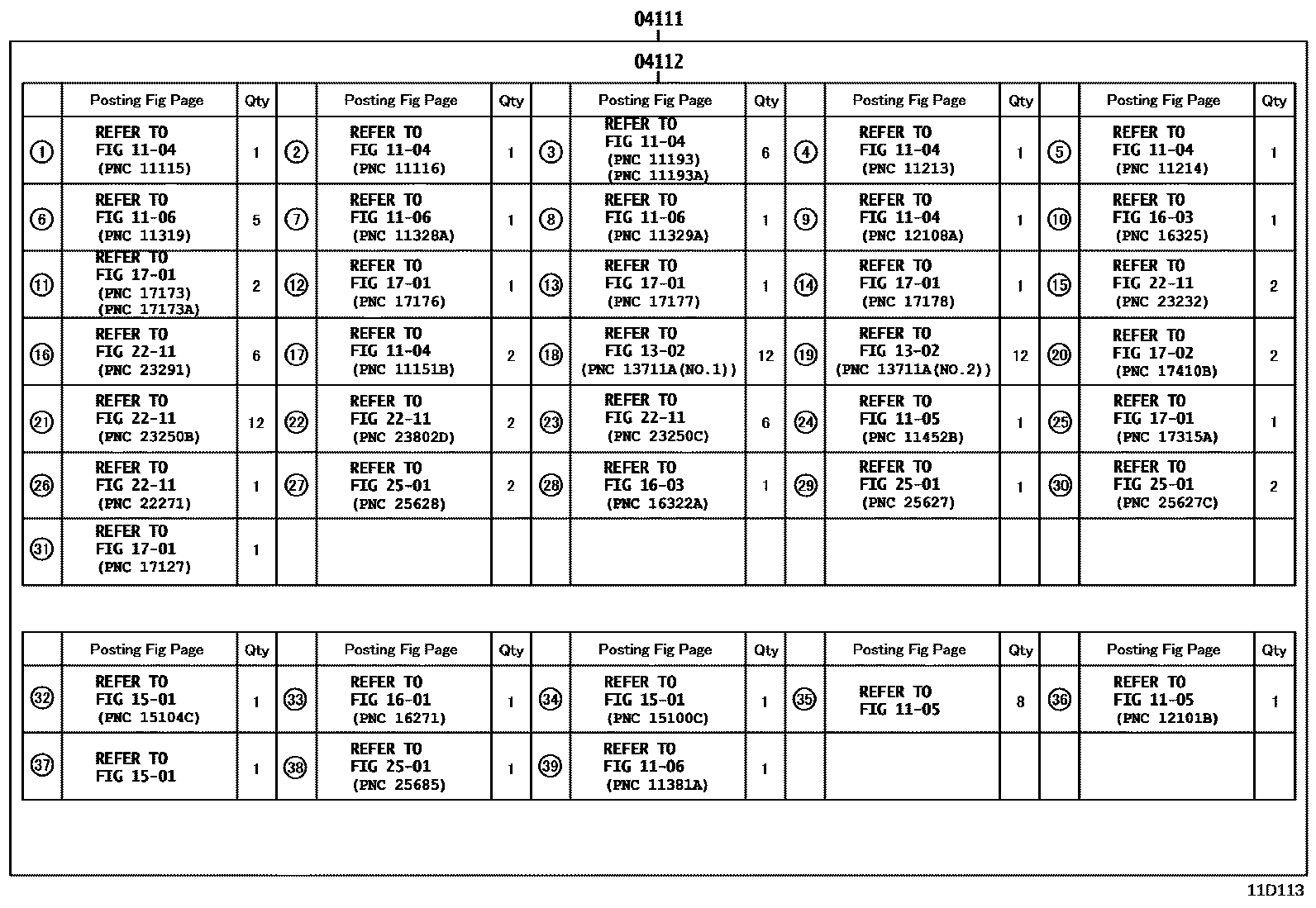

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D113
Engine Overhaul Gasket Kit — 11D113 (200208 – 200408)

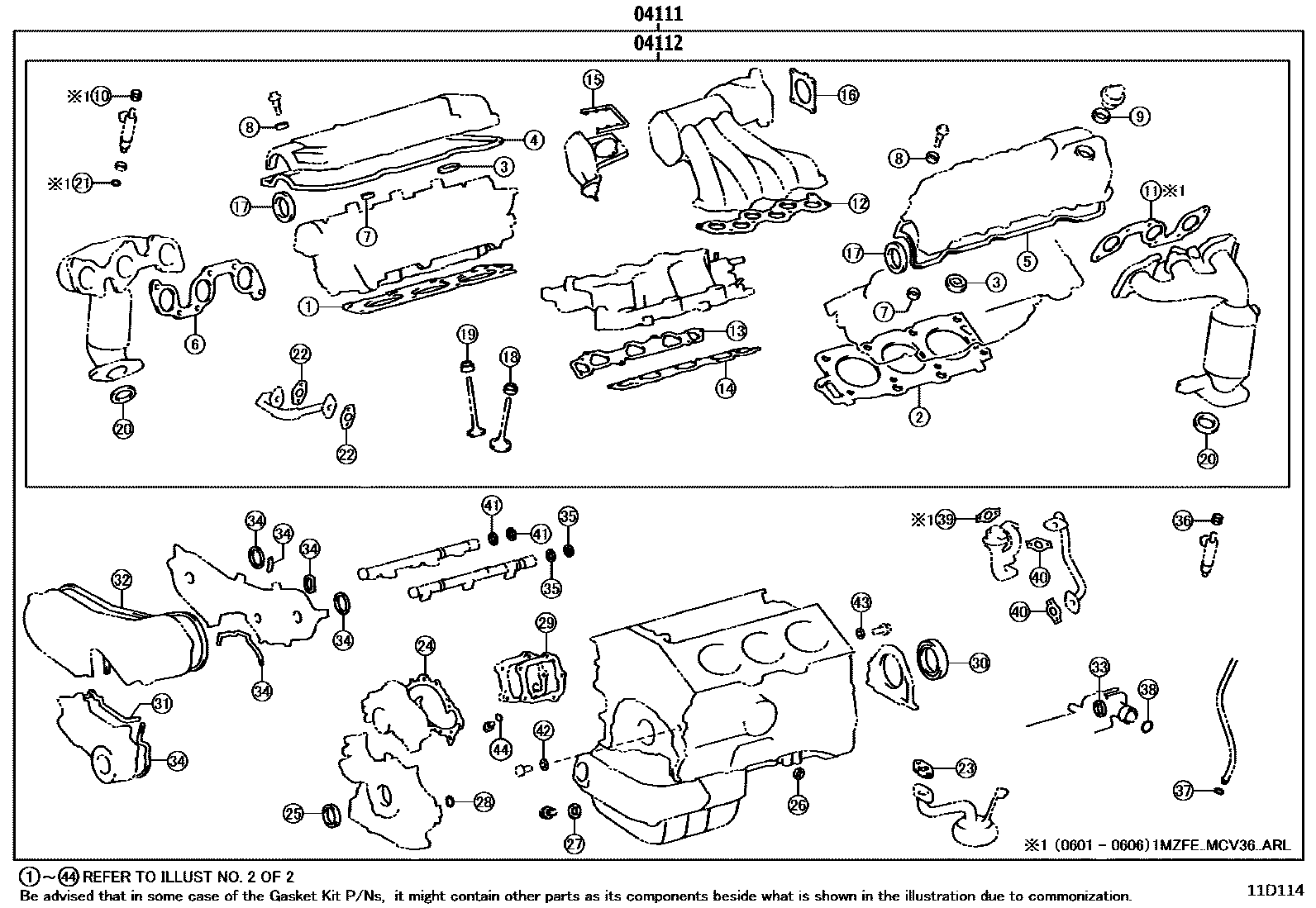

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D114
Engine Overhaul Gasket Kit — 11D114 (200408 – 200606)

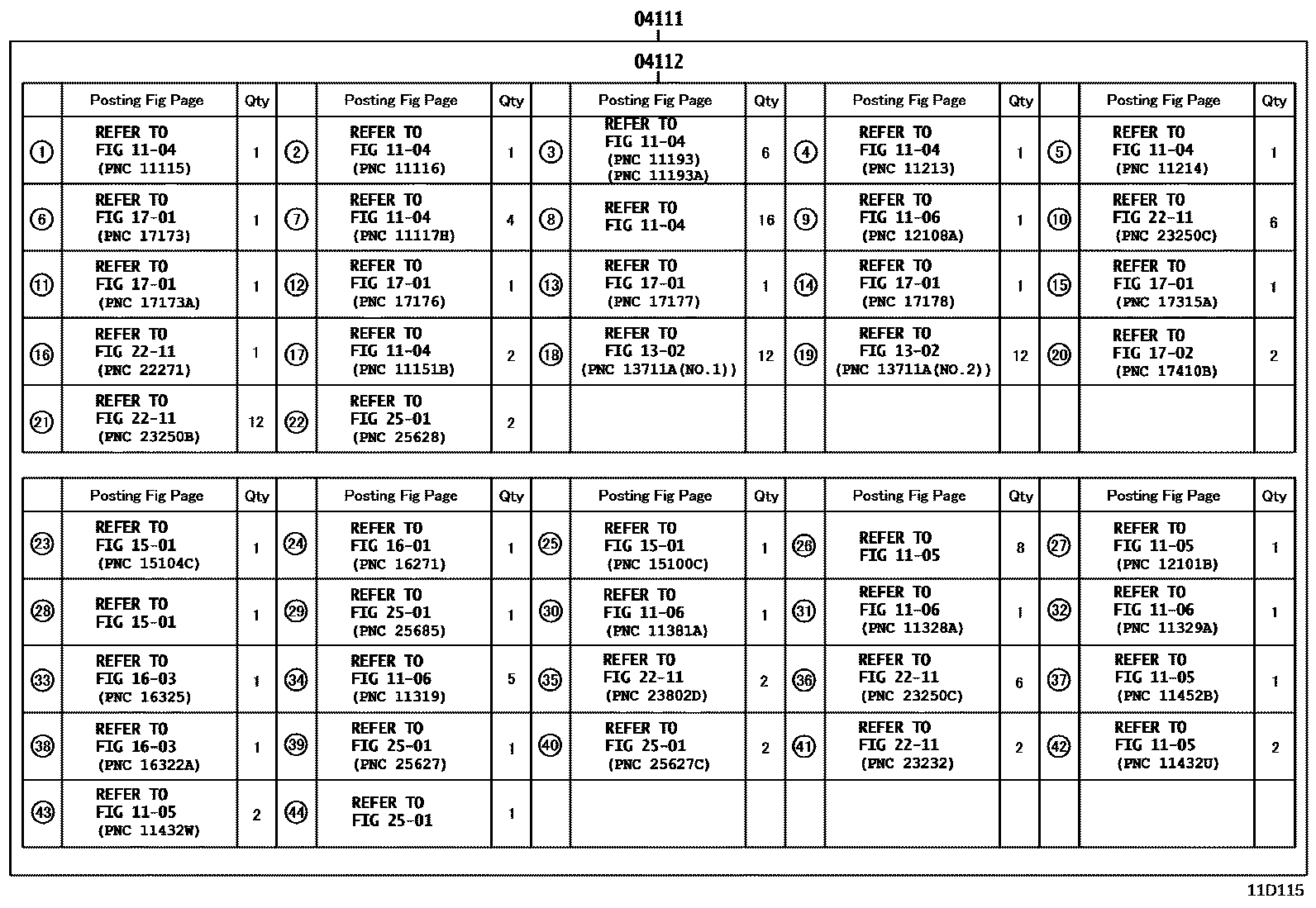

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D115
Engine Overhaul Gasket Kit — 11D115 (200408 – 200606)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0A050 · 04111-0A051 · 04111-0H050 · 04111-0H051 · 04111-0H052 · 04111-0H190 · 04111-20150 · 04111-20151 · 04111-20292 · 04111-20340 · 04111-20580 · 04111-28200 · 04111-28300 · 04111-28301 · 04111-28302 · 04111-28312 · 04111-28313 · 04111-28850
04112Engine valve grinding pad assembly04112-0A050 · 04112-0A051 · 04112-0H050 · 04112-0H051 · 04112-0H052 · 04112-0H190 · 04112-20140 · 04112-20141 · 04112-20281 · 04112-20320 · 04112-20500 · 04112-28200 · 04112-28300 · 04112-28301 · 04112-28302 · 04112-28700 · 04112-28701
