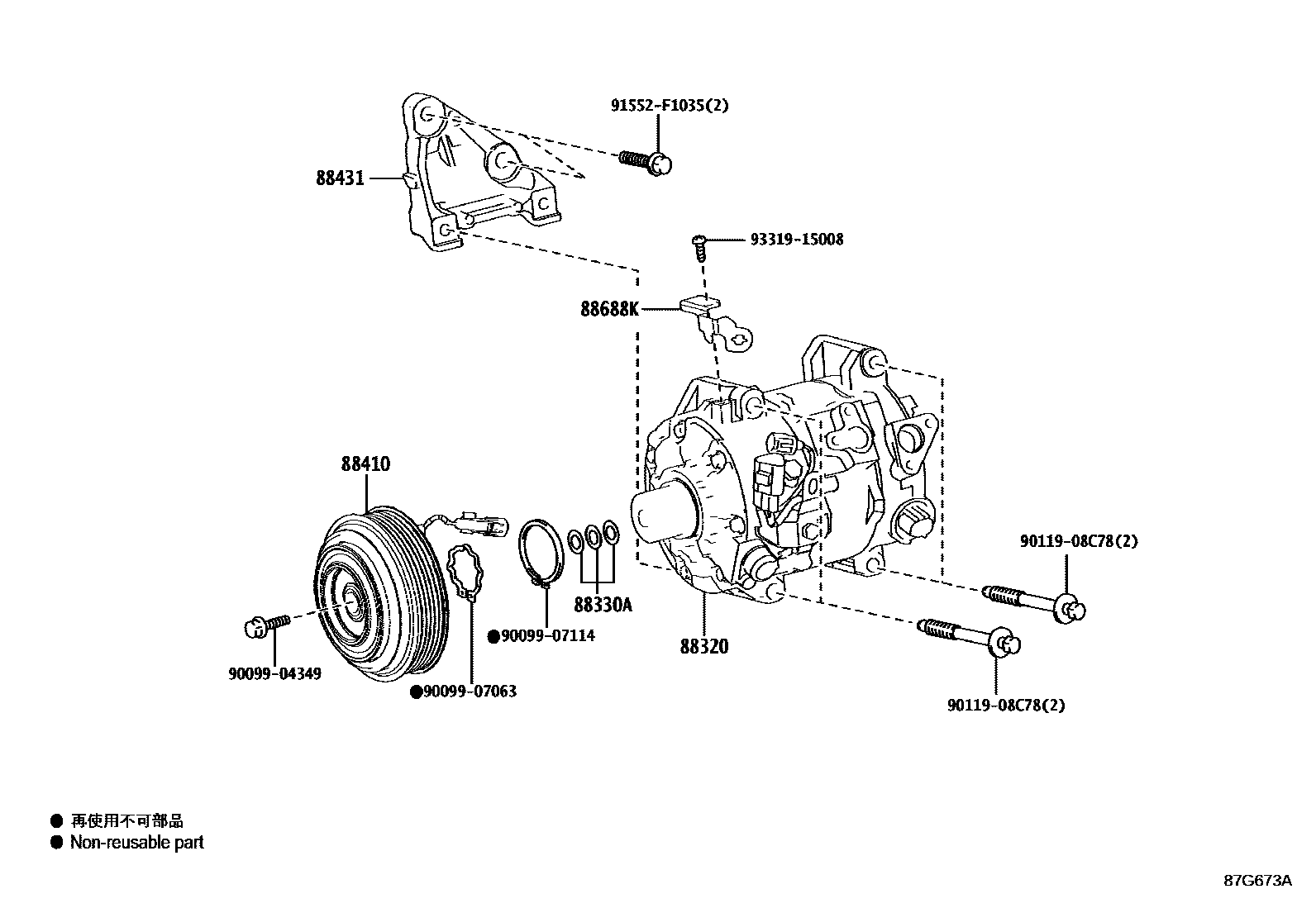

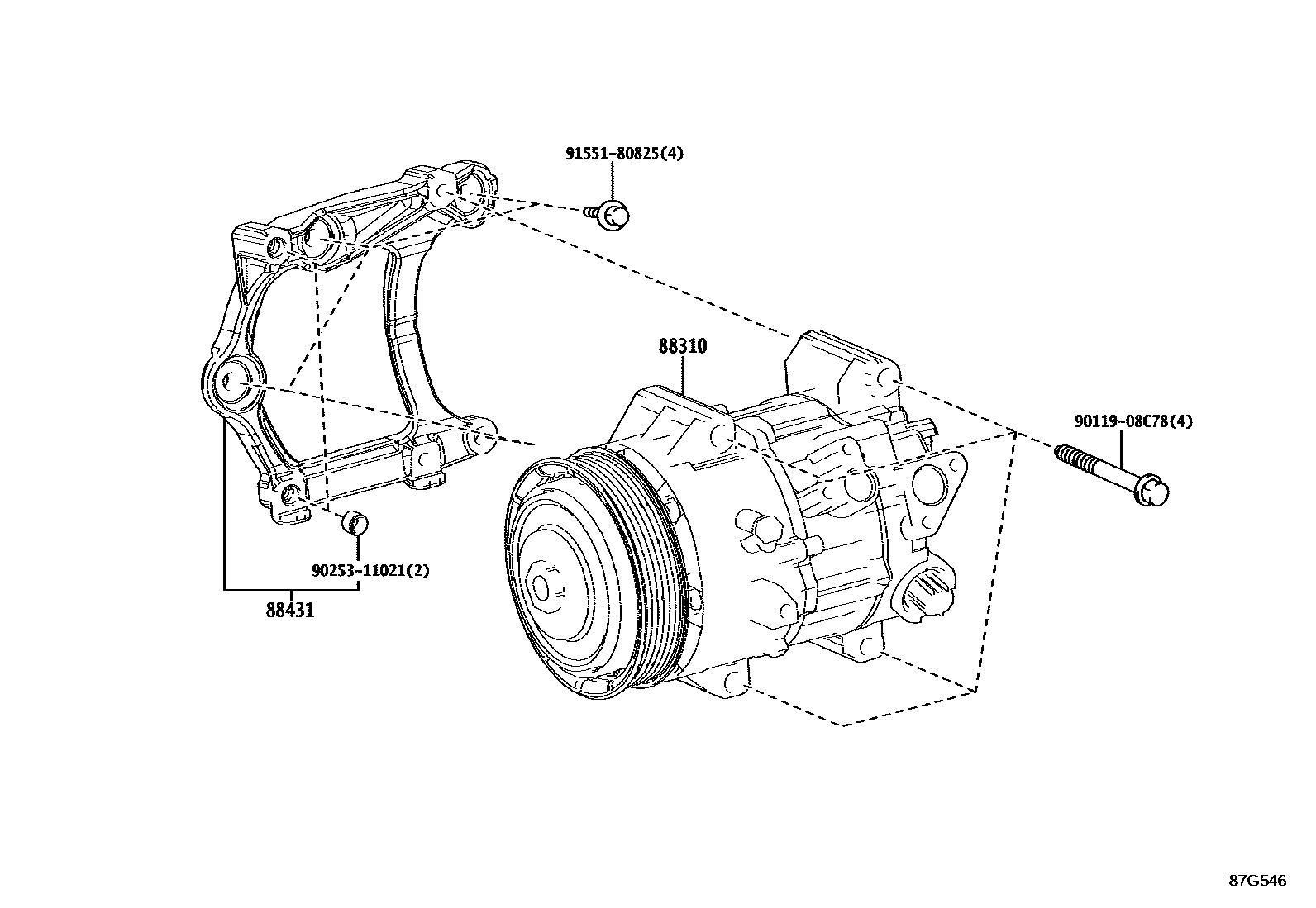

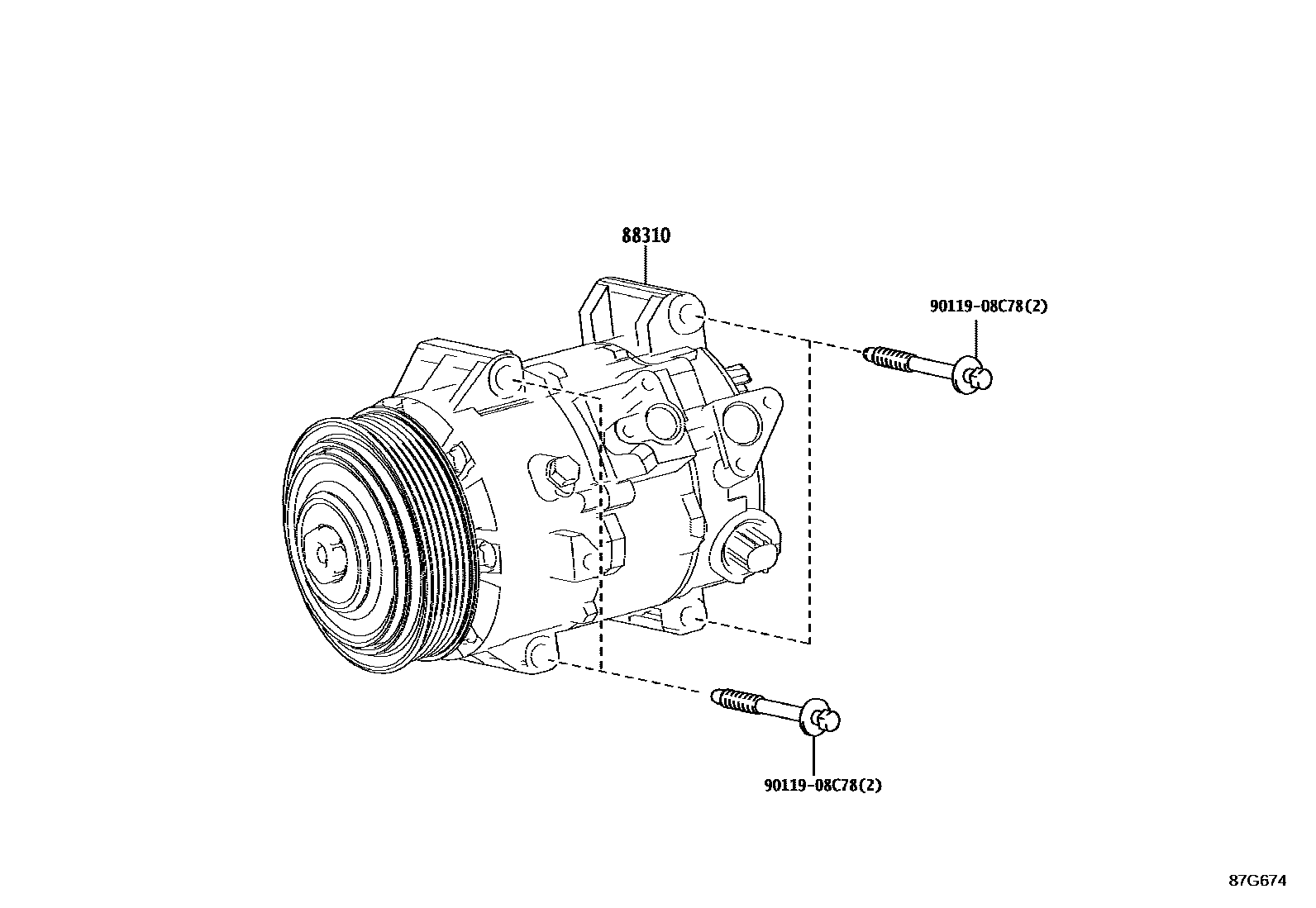

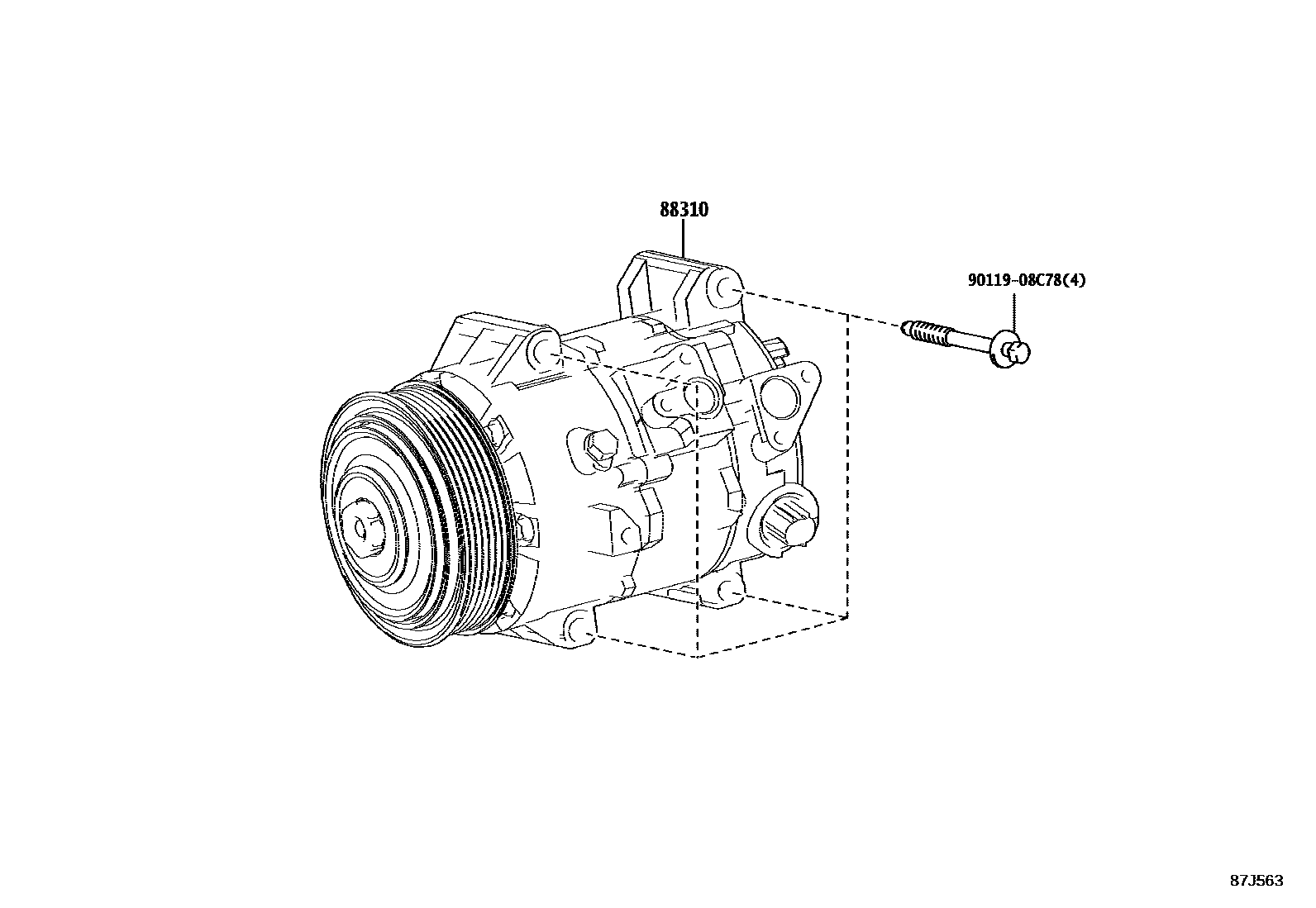

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 6 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-33320 · 88310-33350 · 88310-33420 · 88310-33430 · 88310-33440 · 88310-42560 |
| 88320 | Cooler Compressor Assembly | 88320-48320 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88370 | Compressor assembly with motor | 88370-33040 · 88370-33050 · 88370-33051 |
| 88410 | Magnetic Clutch Assembly | 88410-0N010 |
| 88431 | Compressor No. 1 mounting bracket | 12502-36010 · 88431-48050 |
| 88688K | Cooler compressor bracket | 88688-33570 |
