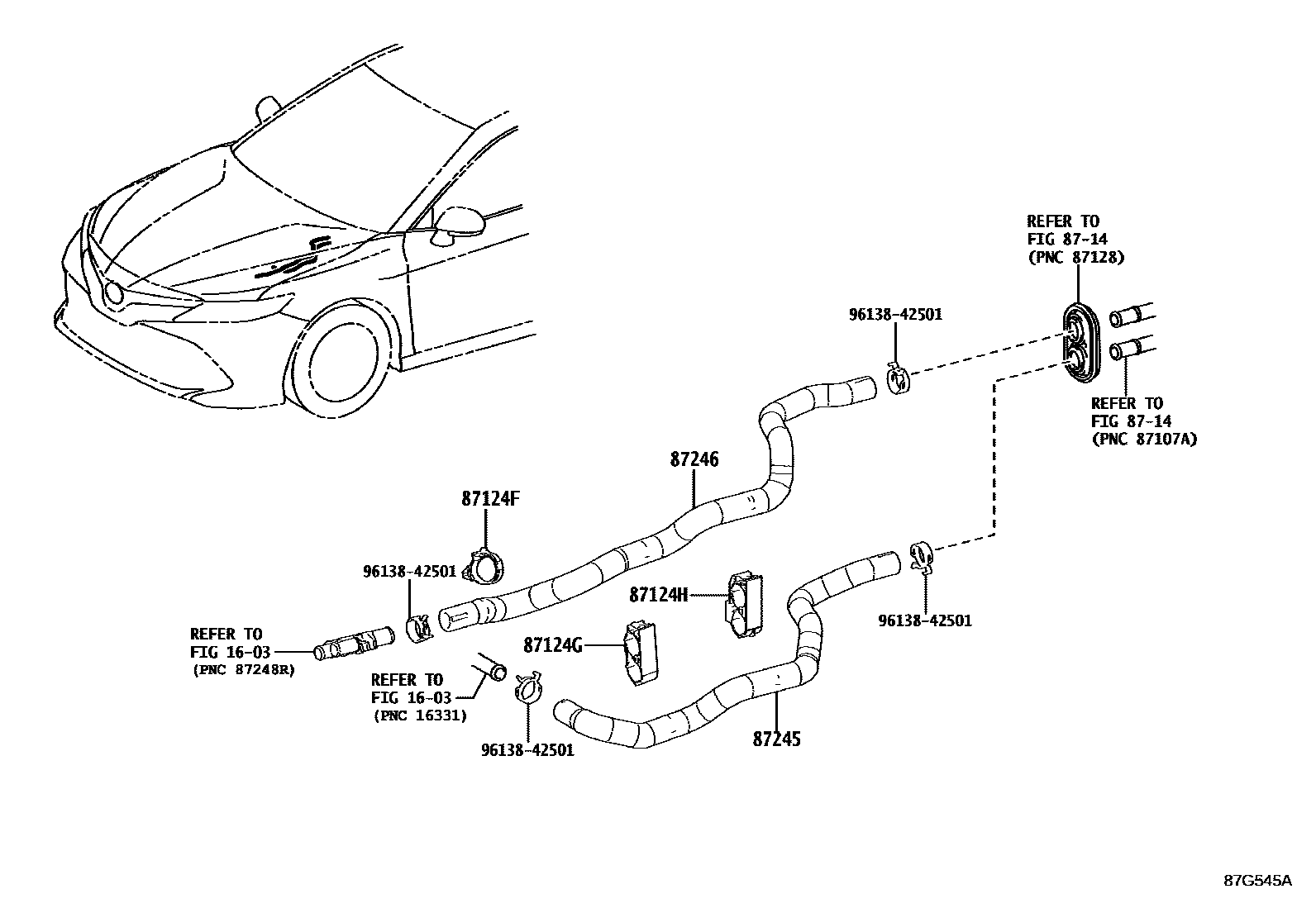

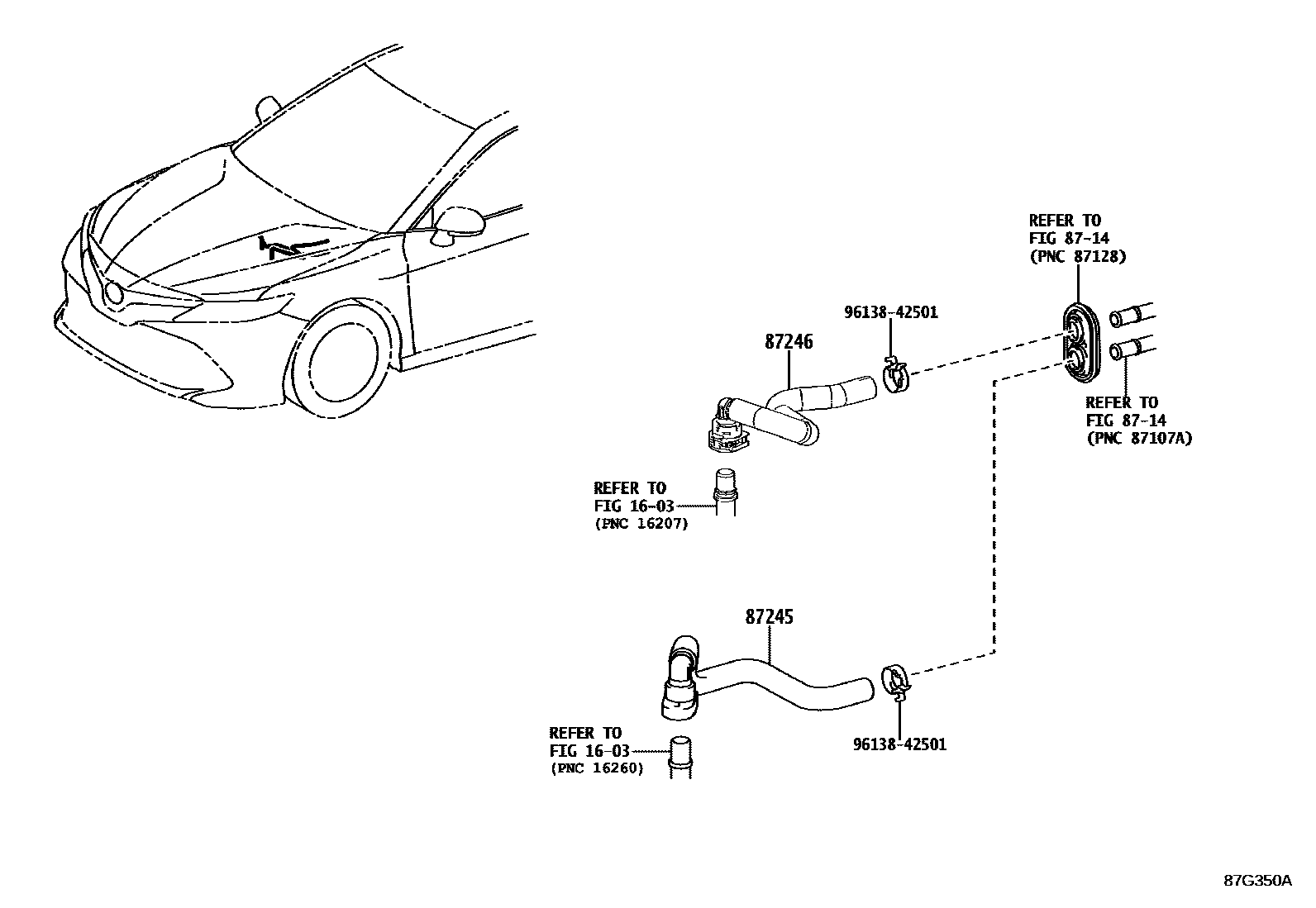

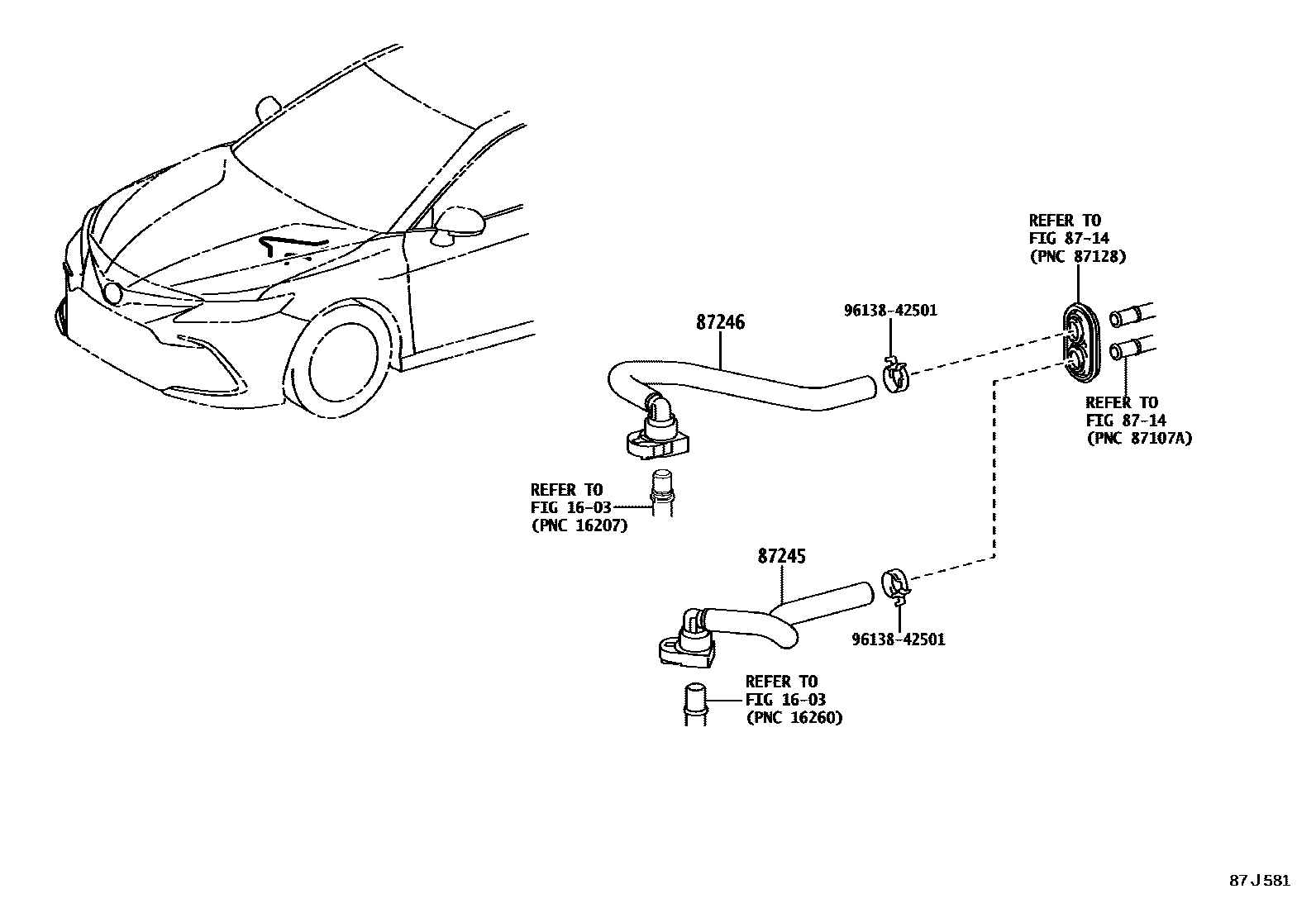

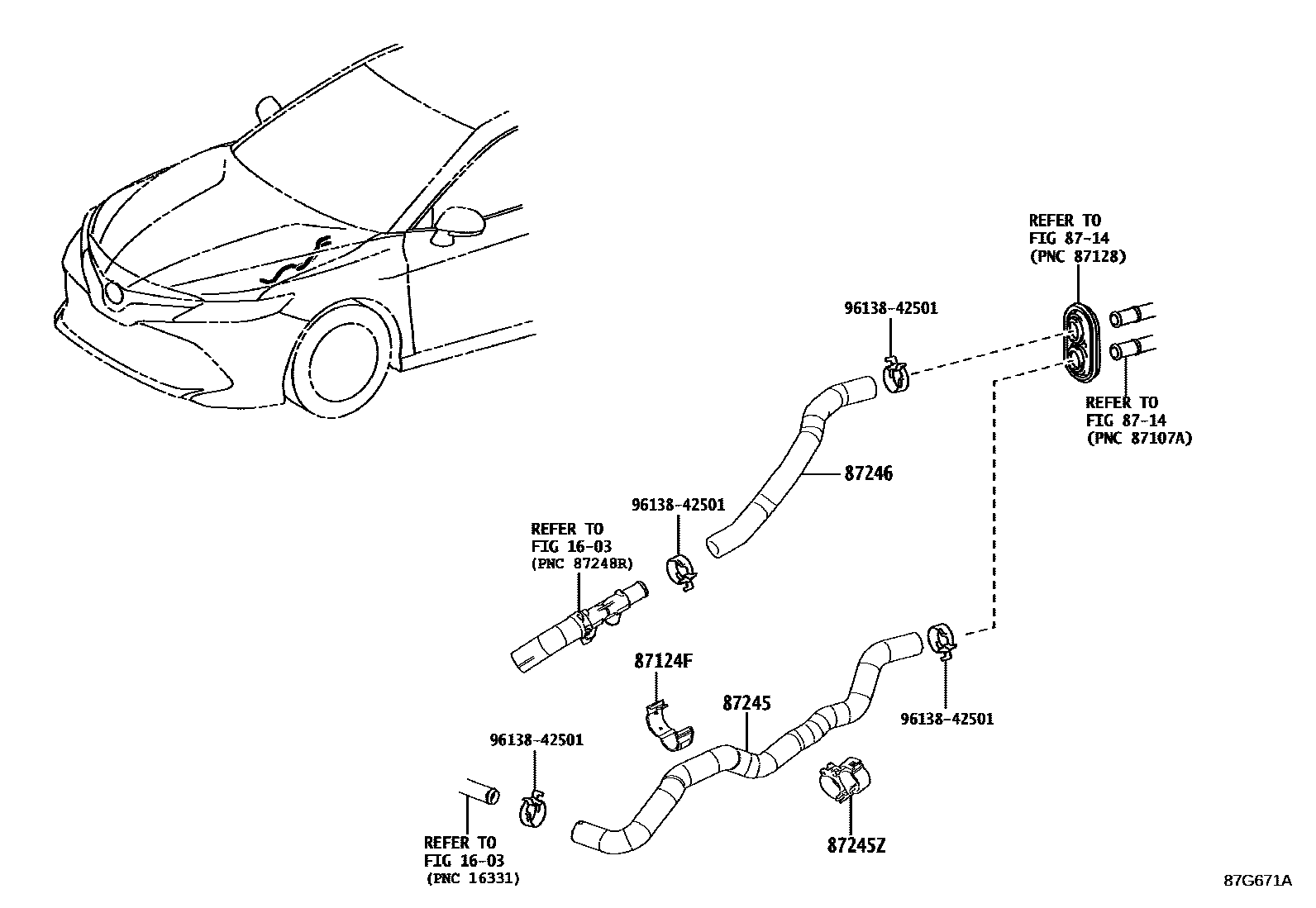

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124F | No. 1 heater hose clamp | 88718-33480 |
| 87124G | No. 2 heater hose clamp | 88718-33500 |
| 87124H | No. 3 heater hose clamp | 88718-33510 |
| 87245 | Heater water inlet hose | 87209-33070 · 87209-33140 · 87245-33830 · 87245-33860 |
| 87245Z | Clip or clip (for heater water hose) | 88718-48270 |
| 87246 | Heater outlet hose | 87209-33080 · 87209-33151 · 87245-33820 · 87245-33870 |
