Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

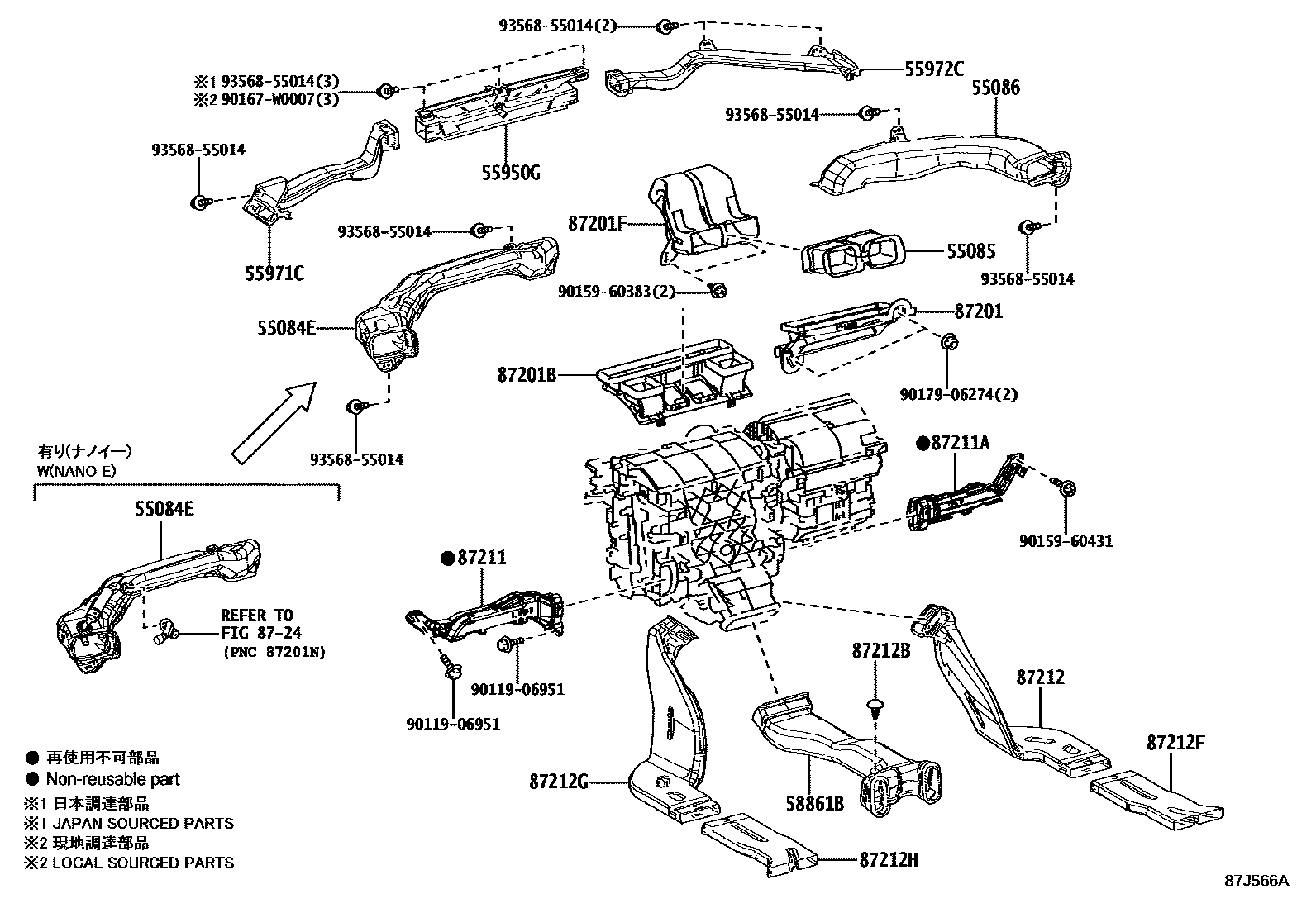

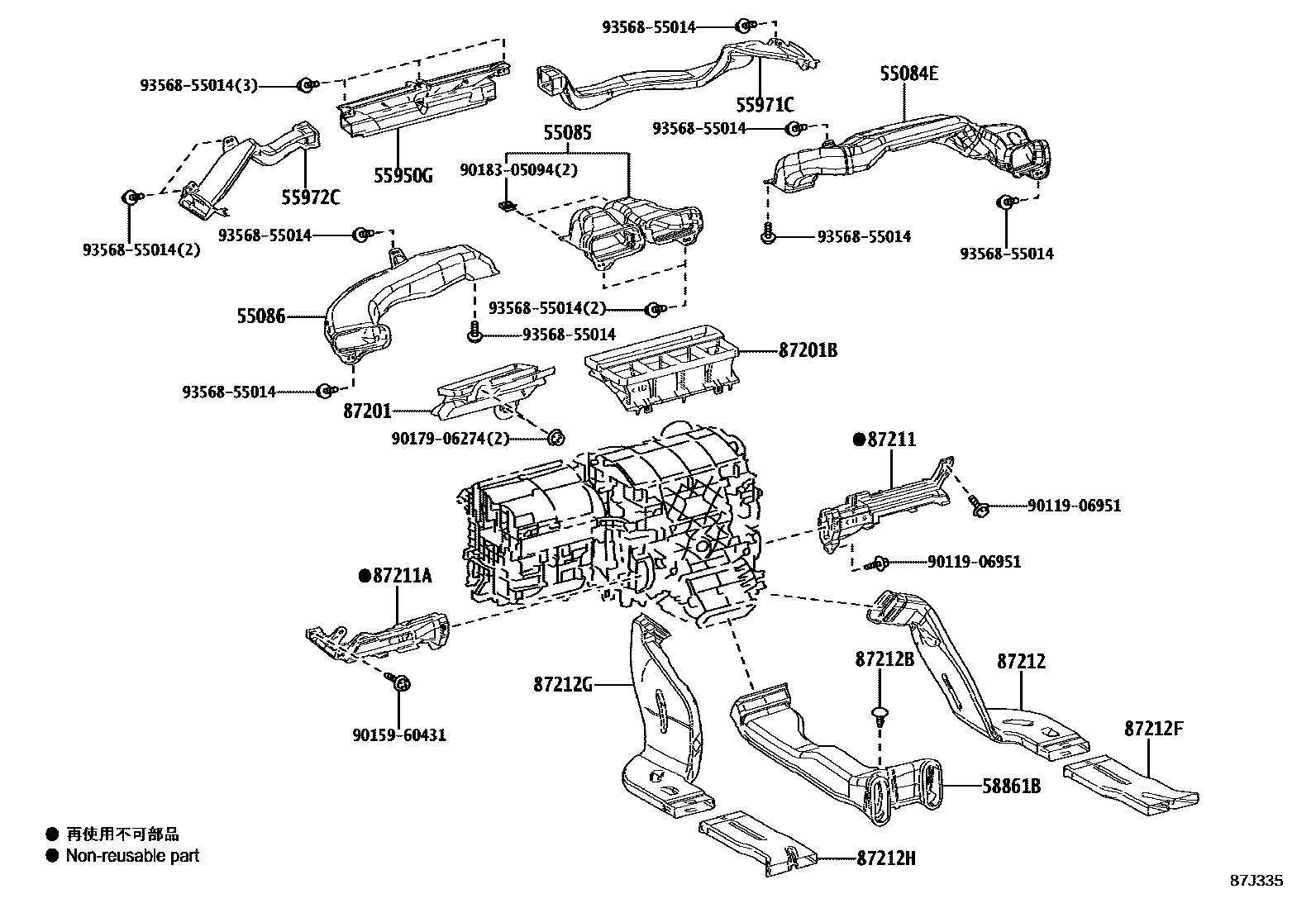

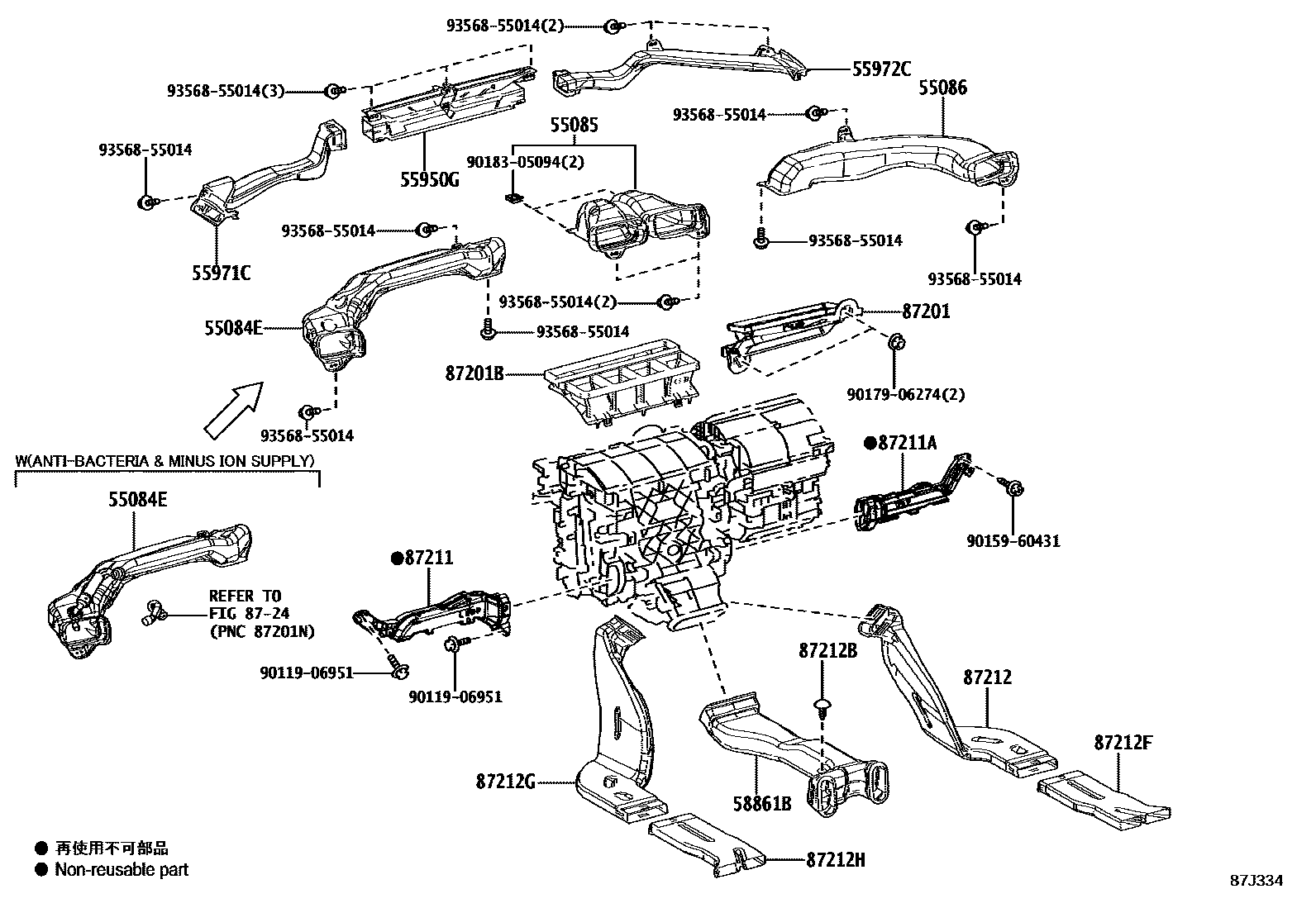

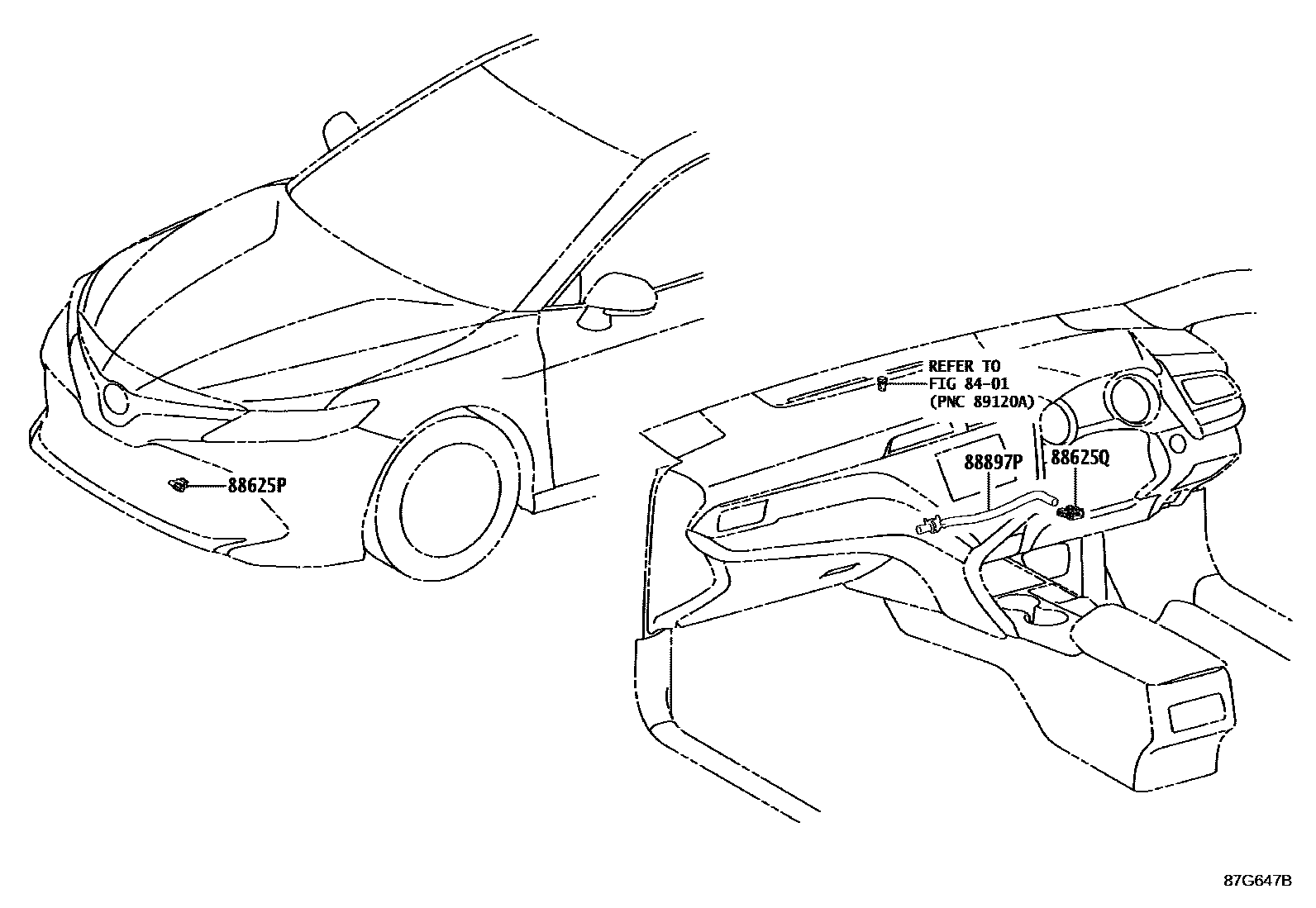

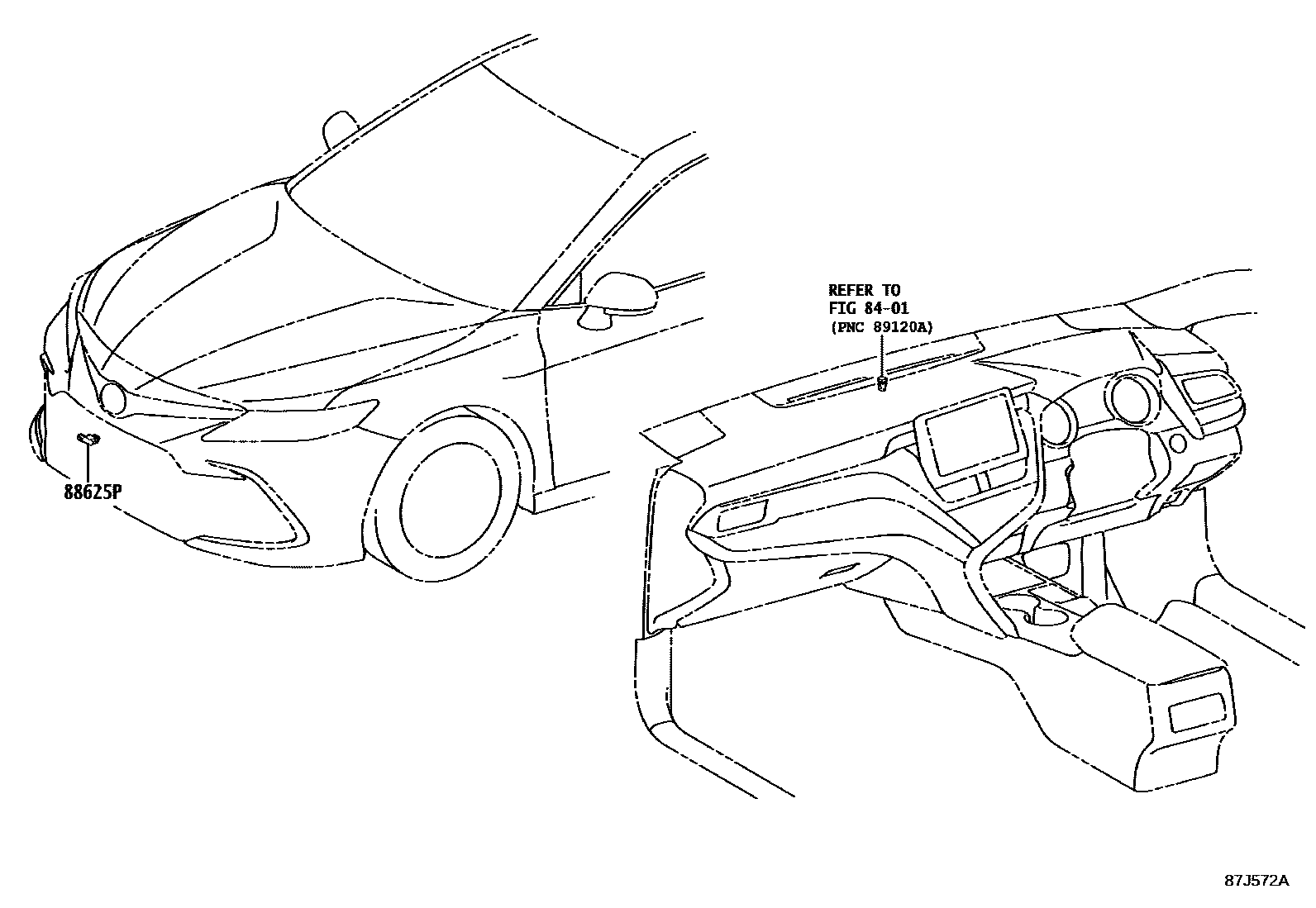

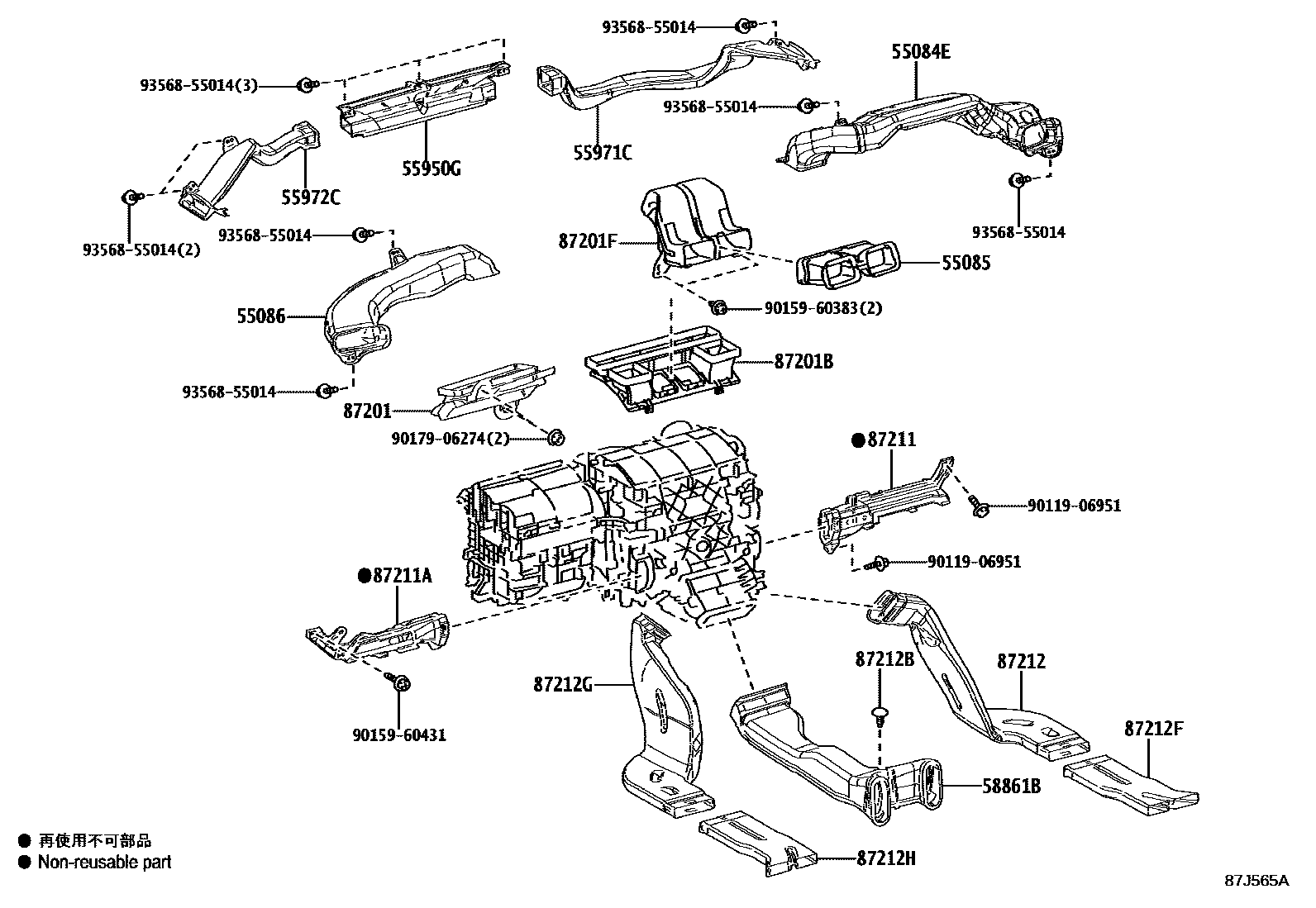

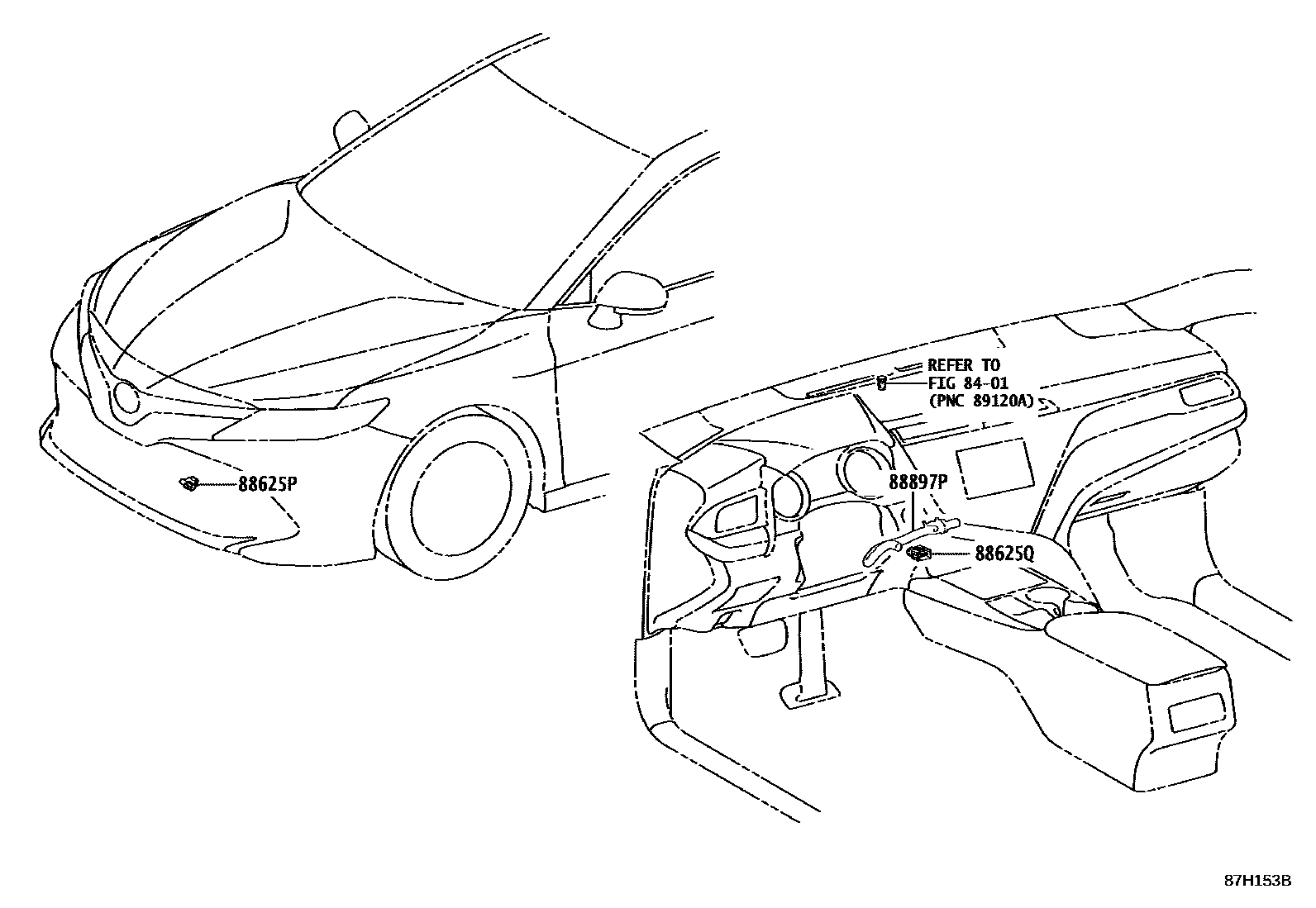

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 18 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-33230 · 55843-33250 · 55870-33030 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55844-33190 · 55844-33200 · 55844-33250 · 55844-33260 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-33180 · 55845-33190 |

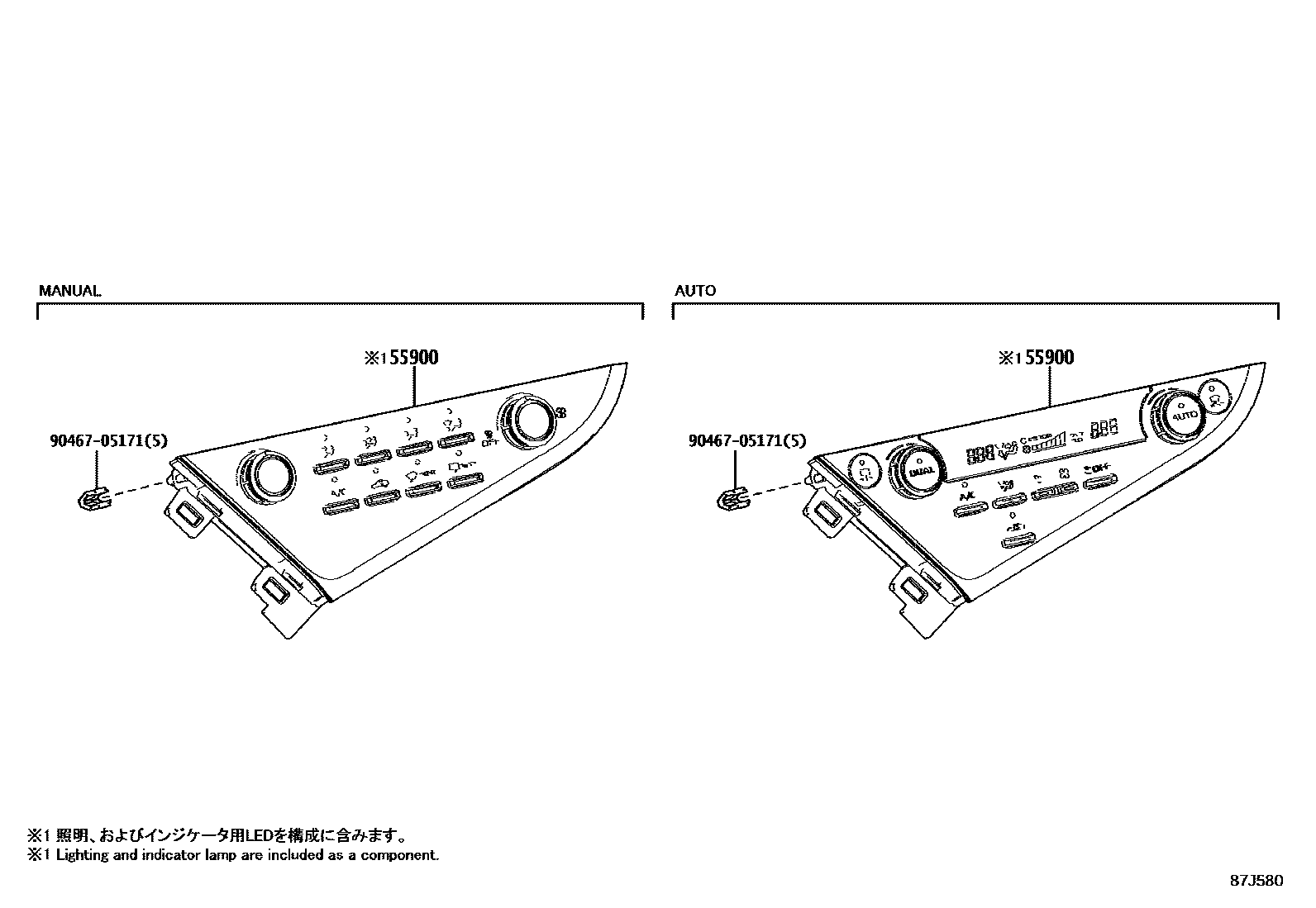

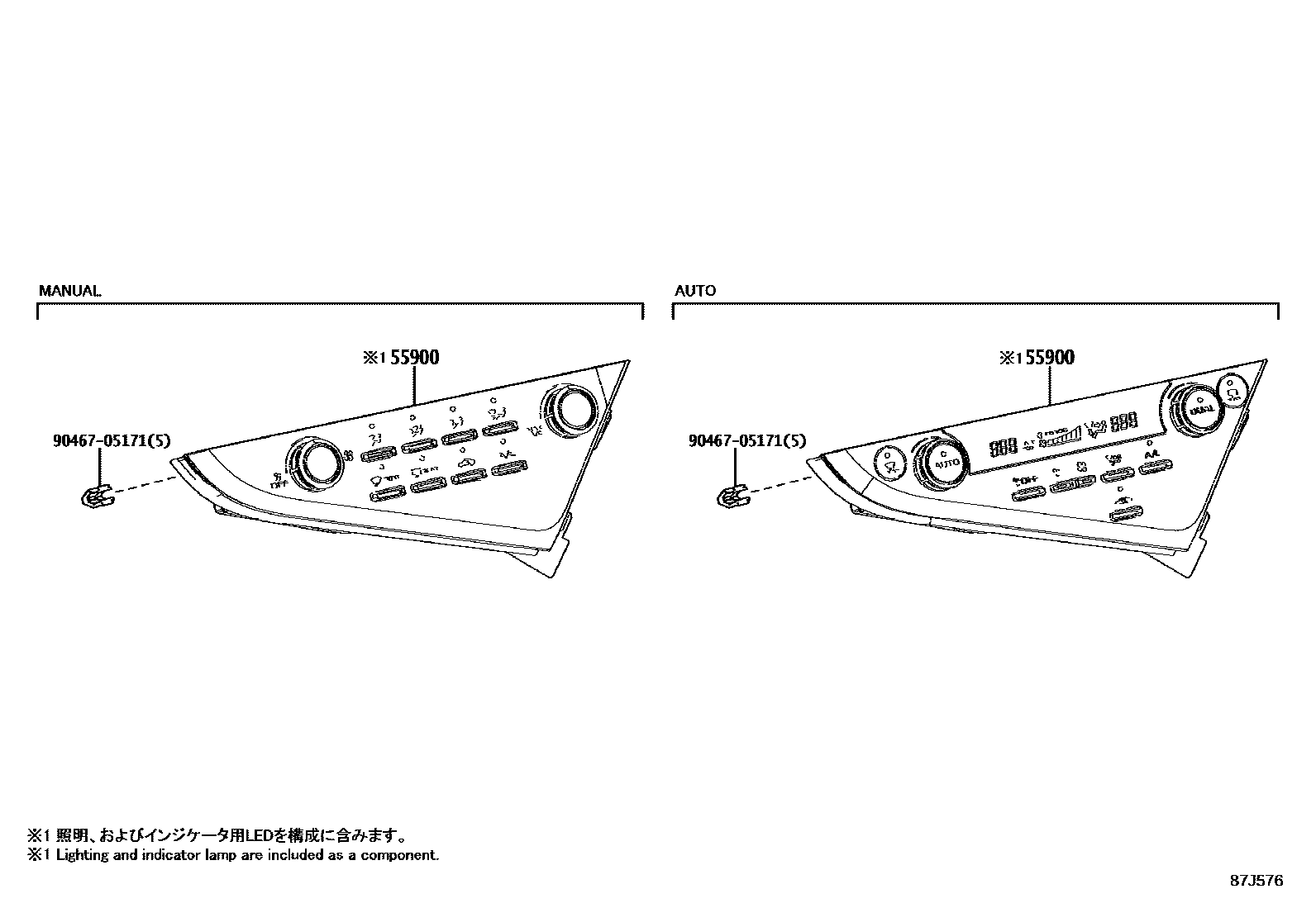

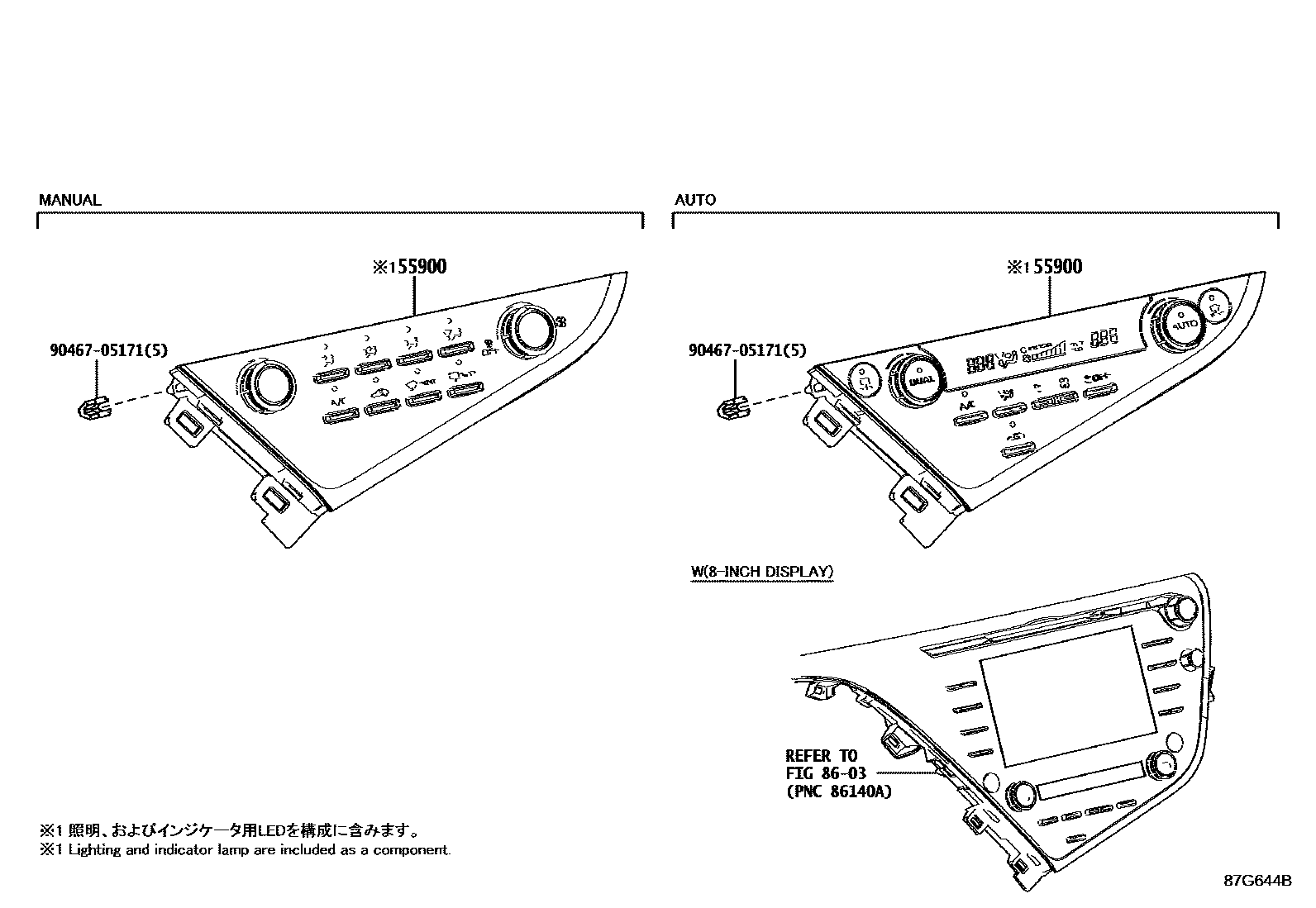

| 55900 | Air conditioning control assembly | 55900-33K70 · 55900-33K80 · 55900-33L00 · 55900-33L20 · 55900-33L30 · 55900-33L80 |

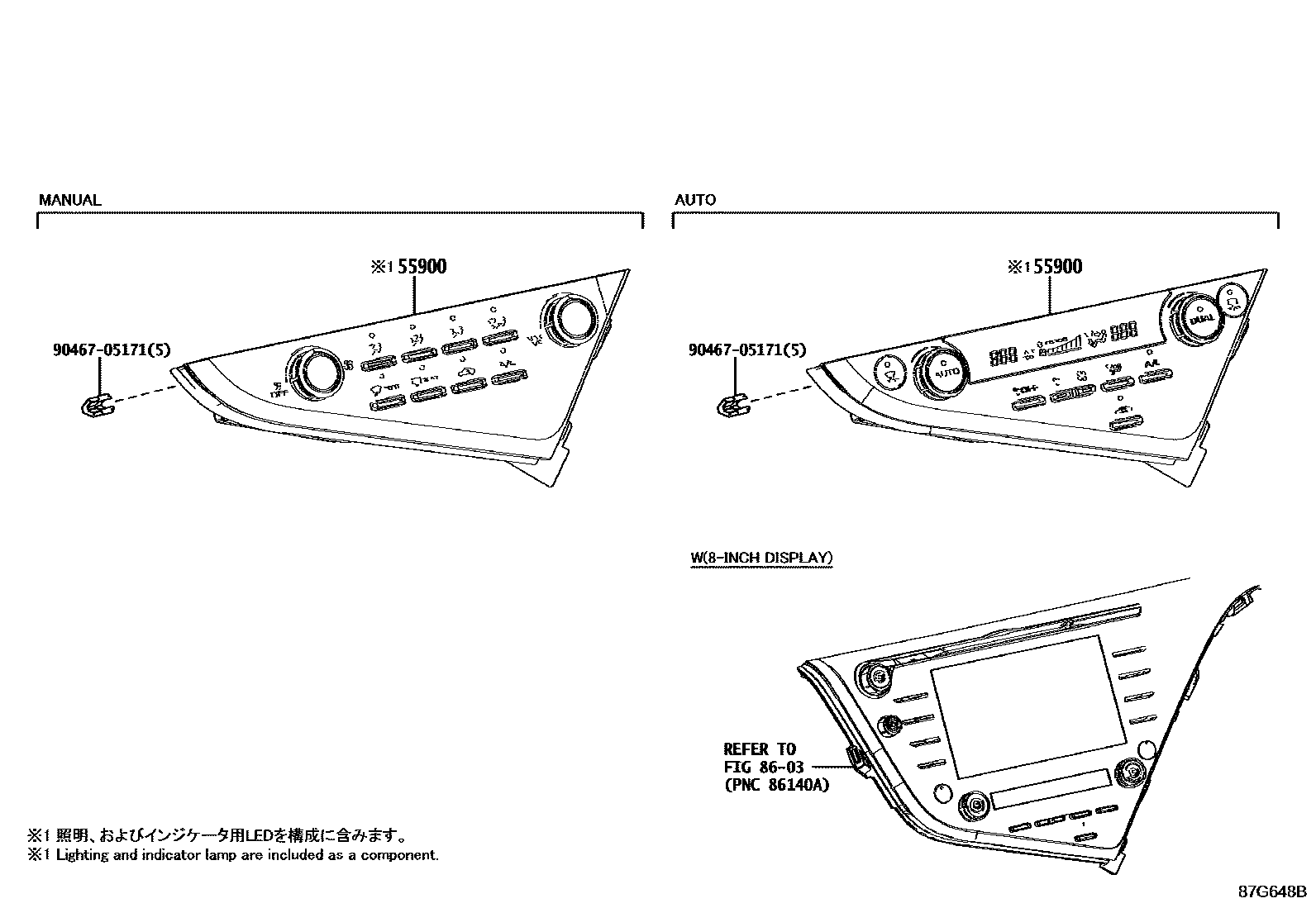

| 55950G | Defroster nozzle assembly | 55950-33140 · 55950-33150 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-33150 · 55971-33160 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-33160 · 55972-33170 |
| 58861B | Air duct No. 1 for armrest box | 58861-33110 · 58861-33120 |
| 87201 | No. 1 air duct sub-assembly | 87201-33470 · 87201-33510 |
| 87201B | No. 2 air duct sub-assembly | 87201-33530 · 87201-33540 · 87201-33600 · 87201-33610 |
| 87201F | No. 3 air duct sub-assembly | 87201-33590 |
| 87211 | No. 1 air duct | 87201-33410 · 87201-33490 |
| 87211A | Duct No. 2 | 87201-33460 · 87201-33500 |
| 87212 | No. 1 rear air duct | 87212-33050 · 87212-33060 · 87212-33061 |
| 87212F | No. 2 rear air duct | 87215-33020 |
| 87212G | No. 3 rear air duct | 87213-33070 · 87213-33071 · 87213-33080 |
| 87212H | No. 4 rear air duct | 87216-33020 |

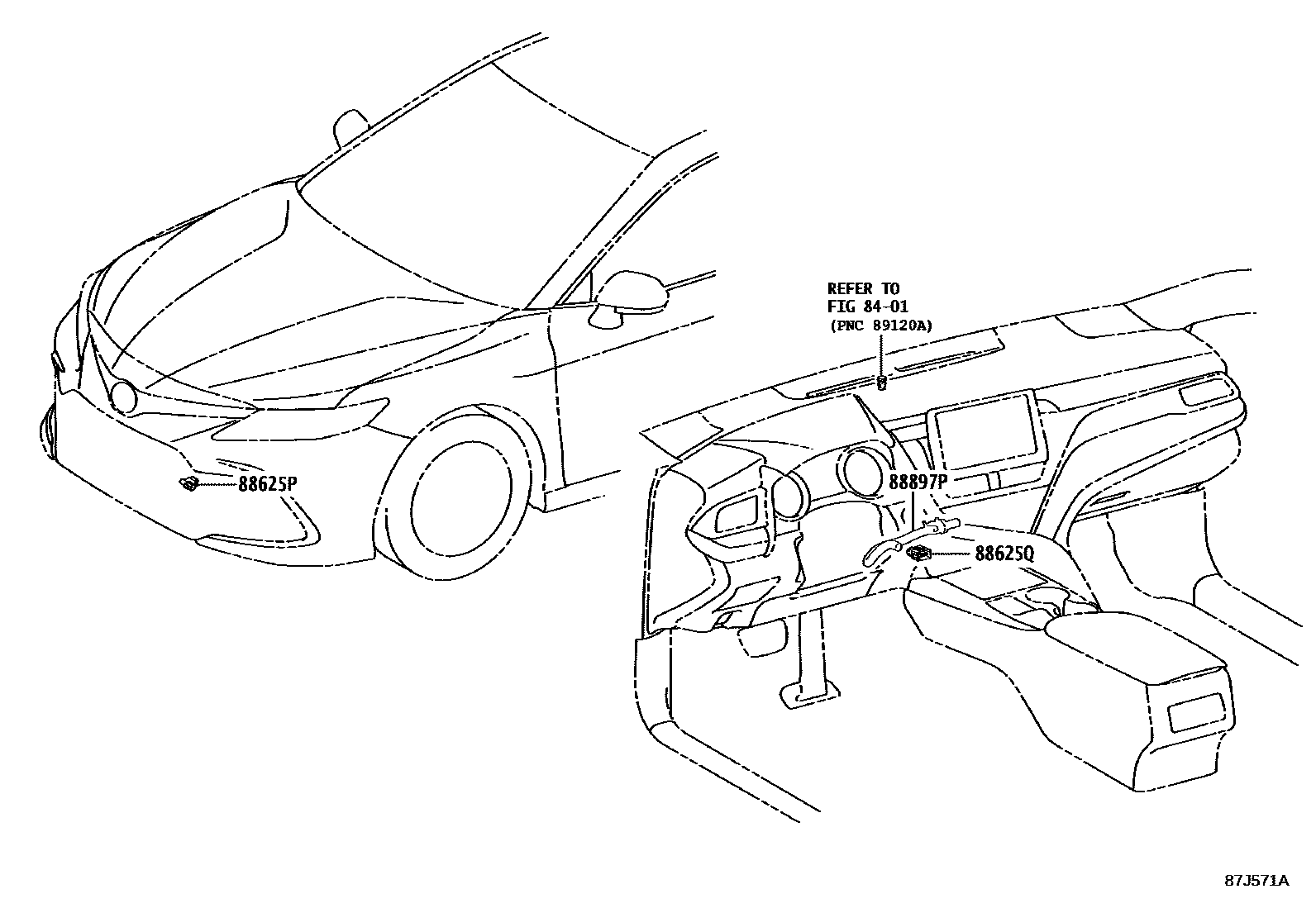

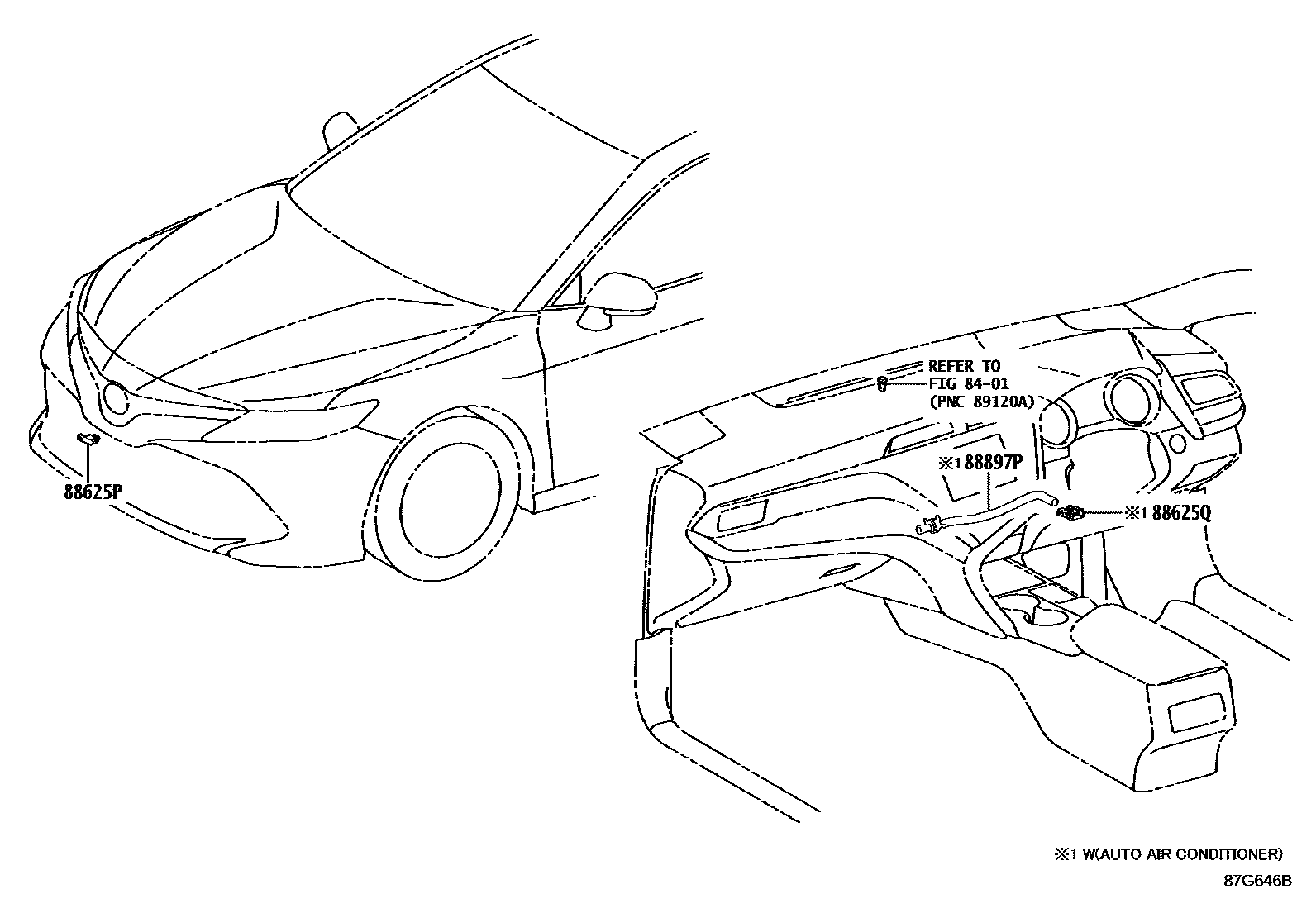

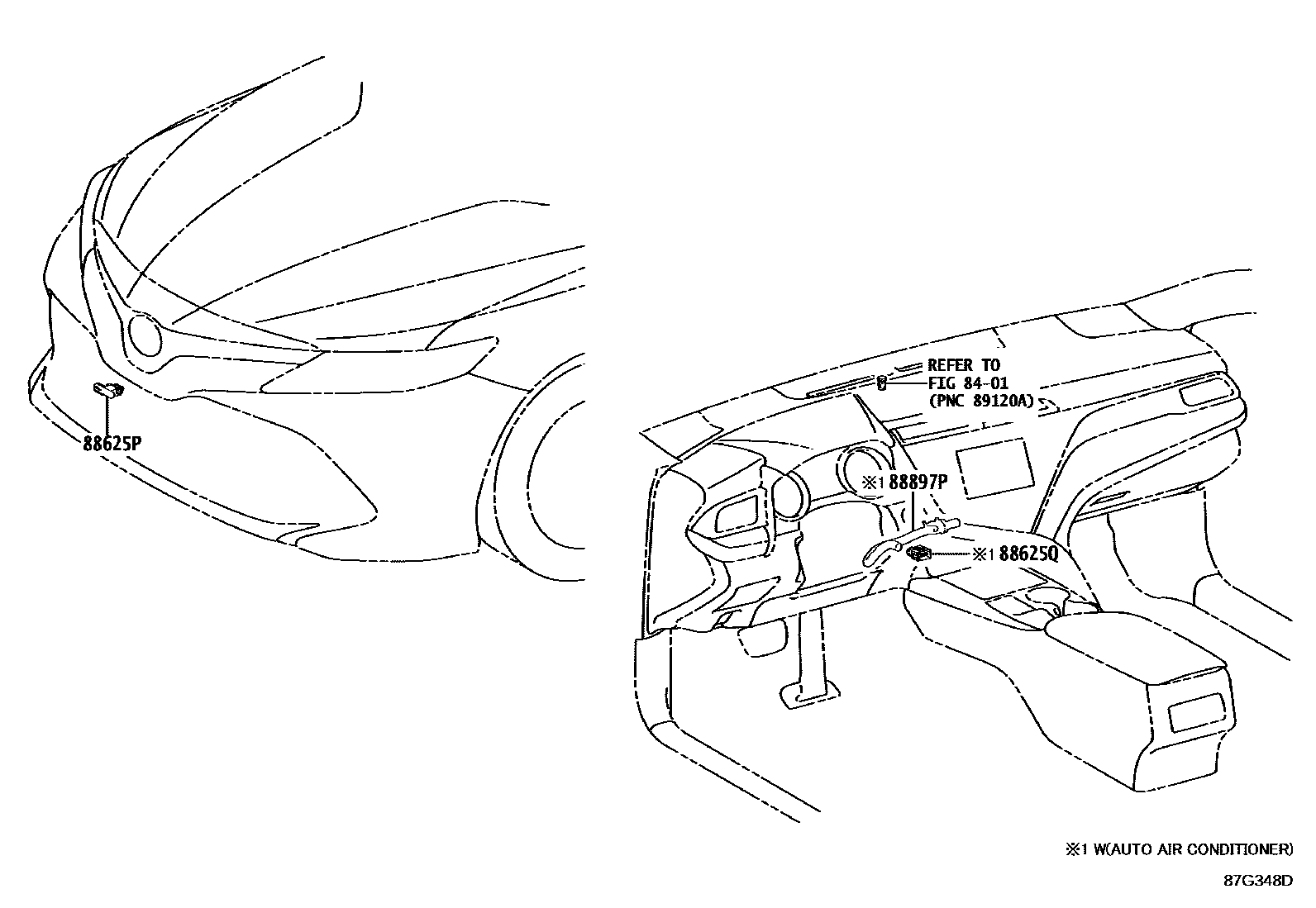

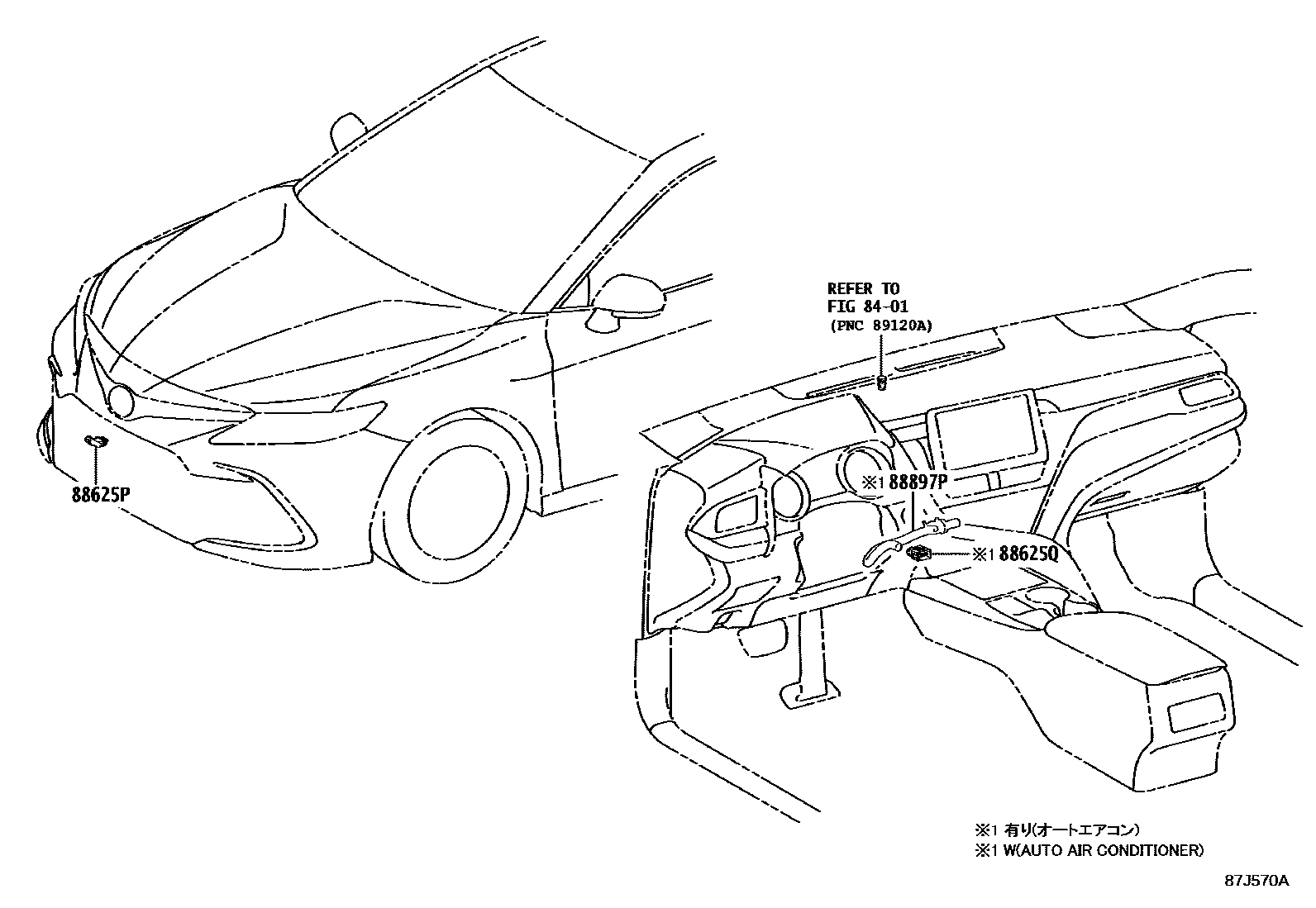

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-28100 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88897P | aspirator | 87201-33480 · 87201-33520 |
