Toyota CAMRY 后视镜 — Figure 8701

Toyota CAMRY EPC diagram 8701, 后视镜, with 4 images and 17 PNC and OE references.

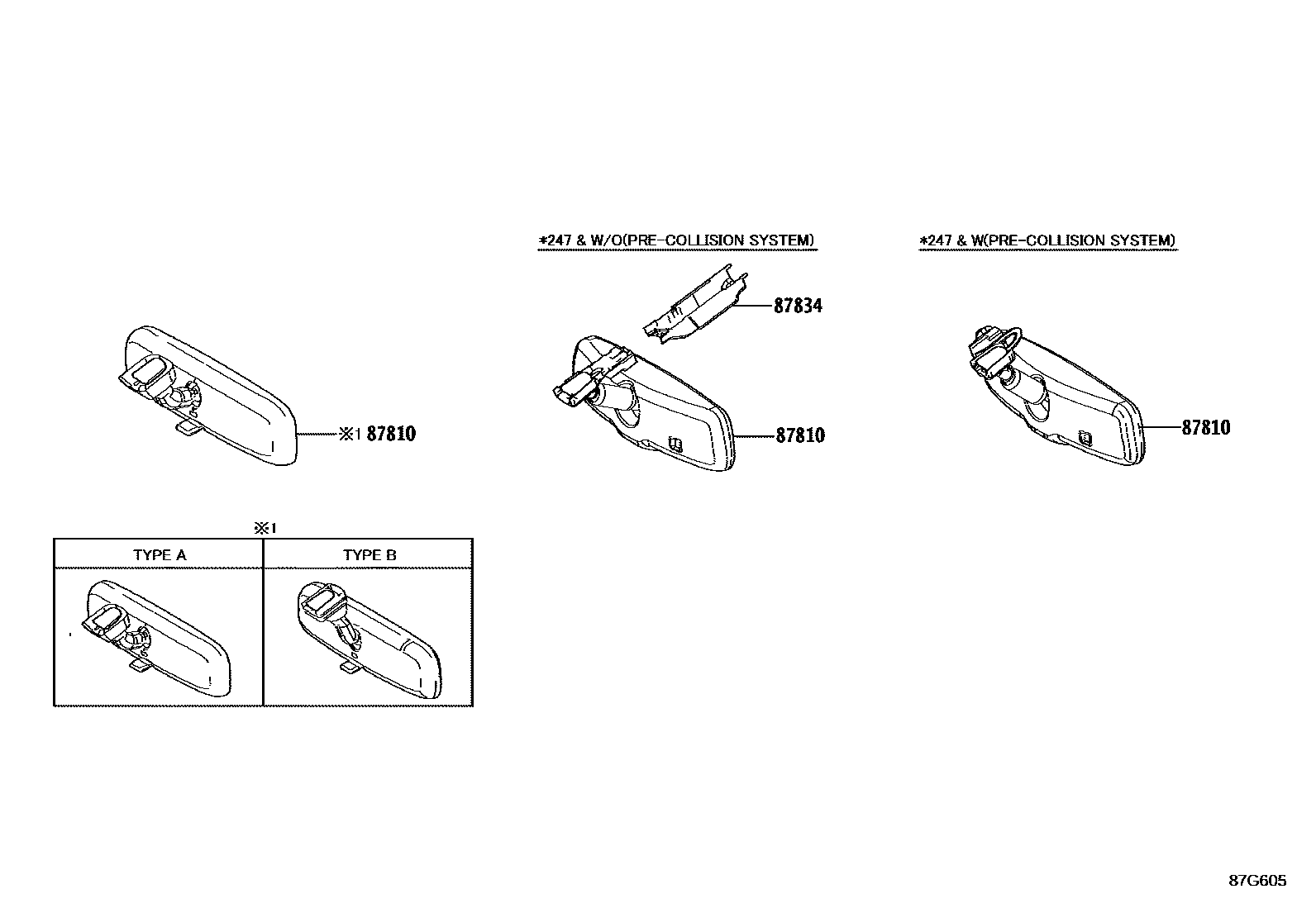

Toyota CAMRY 后视镜 EPC diagram — 87G605
后视镜 — 87G605 (201709 – 999999)

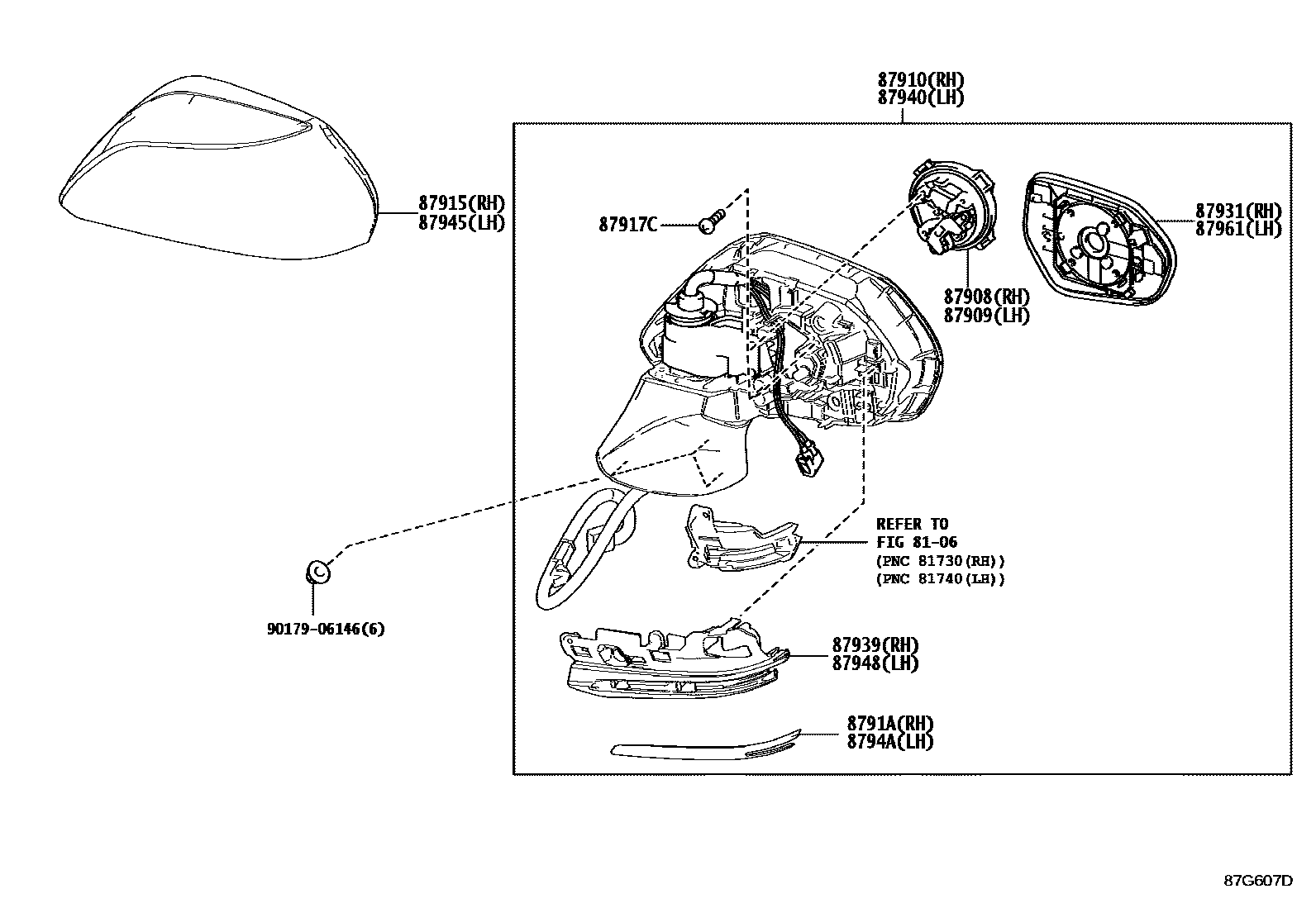

Toyota CAMRY 后视镜 EPC diagram — 87G607D
后视镜 — 87G607D (201709 – 999999)

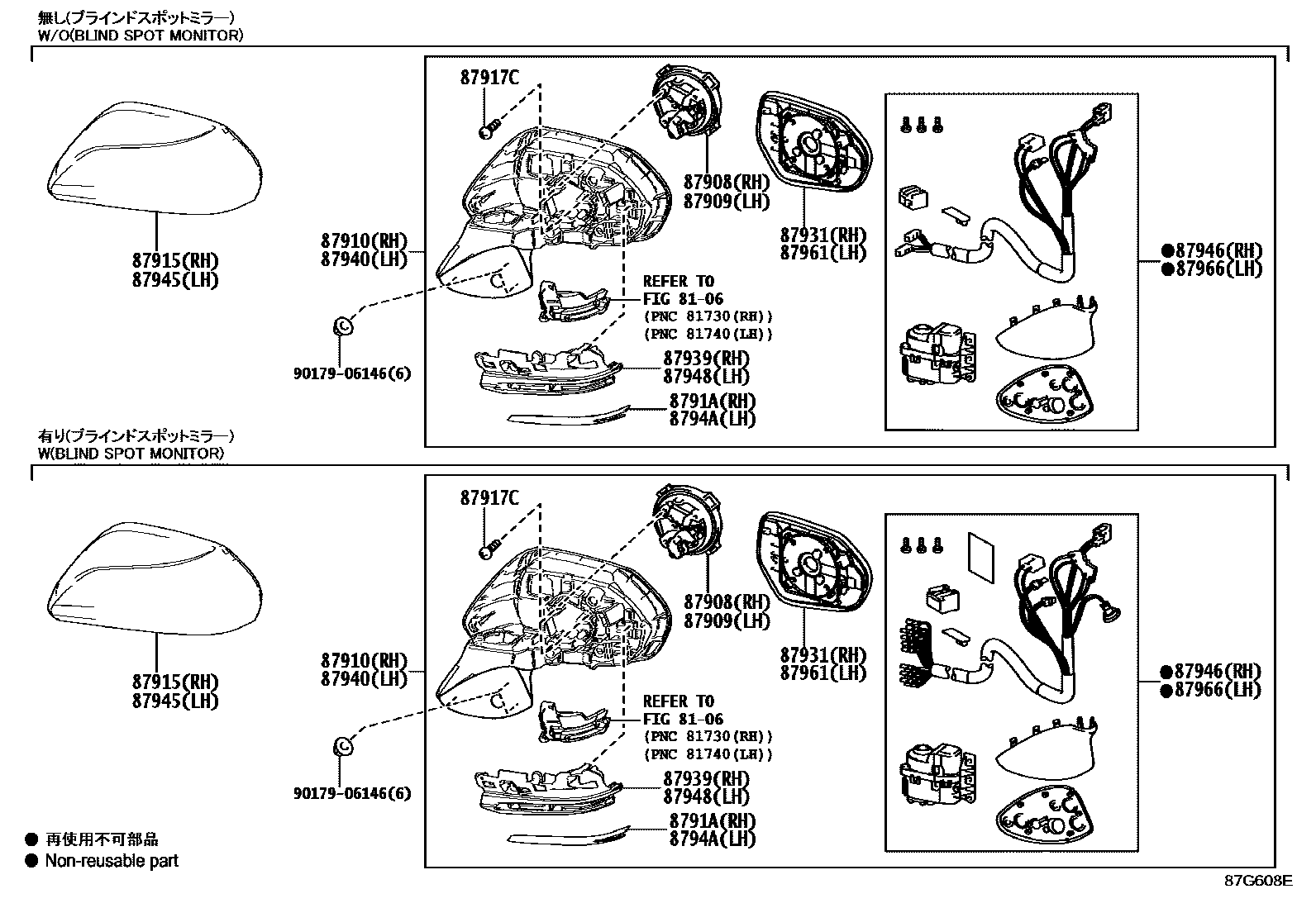

Toyota CAMRY 后视镜 EPC diagram — 87G608E
后视镜 — 87G608E (201712 – 202102)

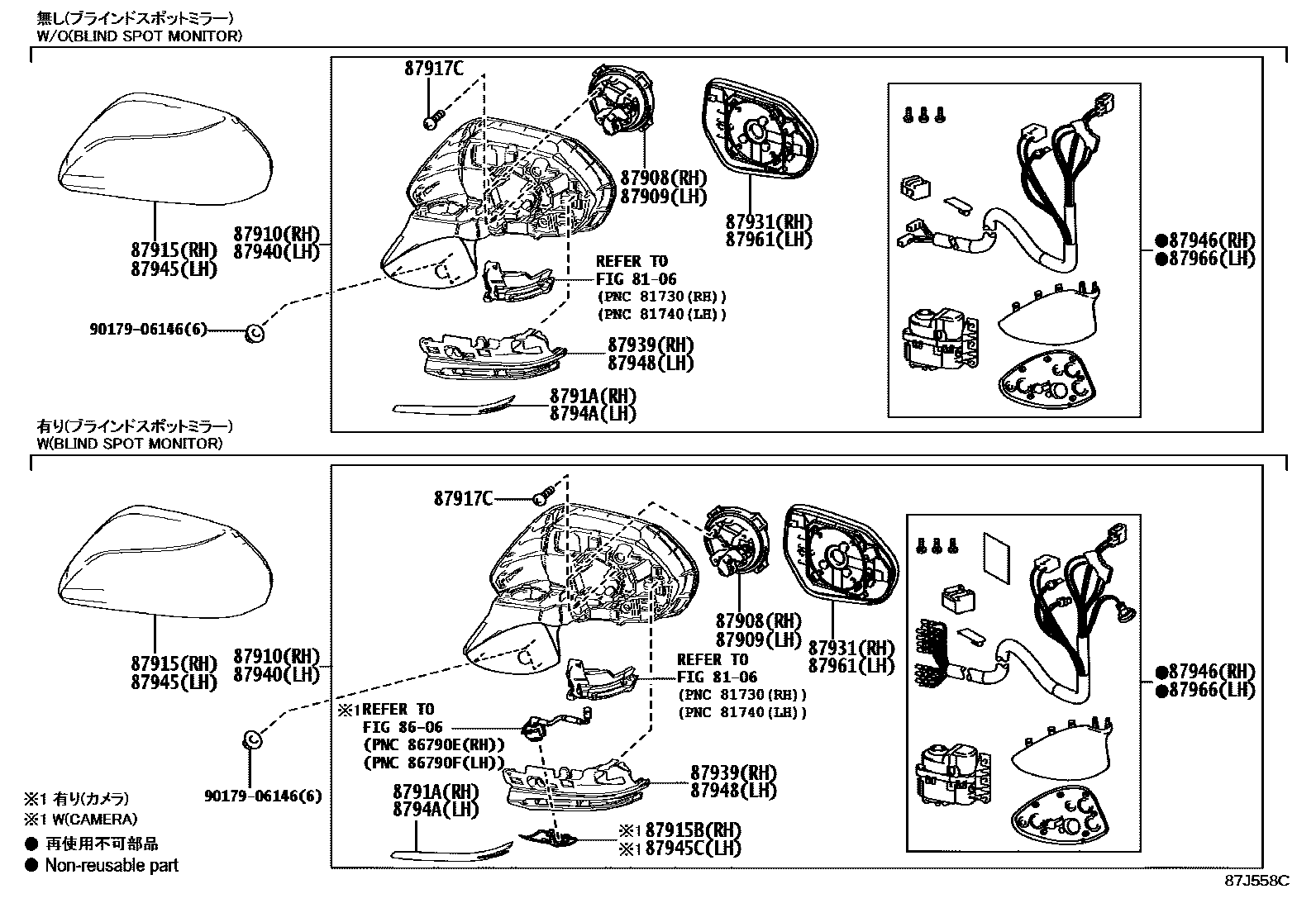

Toyota CAMRY 后视镜 EPC diagram — 87J558C
后视镜 — 87J558C (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0WS50 · 87810-0WS51 · 87810-0WW40 · 87810-0WW41 · 87810-53200 · 87810-53210 · 87810-60191
87834Interior rearview mirror stay fixing cover87818-76010
87908Right exterior rearview mirror actuator assembly87908-42M50 · 87908-60V81
87909Left exterior rearview mirror actuator assembly87908-42M50 · 87908-60V81
87910Right exterior rearview mirror assembly87910-33C40 · 87910-33C50 · 87910-33C60 · 87910-33C70 · 87910-33C90 · 87910-33D30 · 87910-33D60 · 87910-33J50 · 87910-33J60 · 87910-33K10 · 87910-33K30 · 87910-33K60 · 87910-33K61 · 87910-33K70 · 87910-33K80 · 87910-33K81 · 87910-33K90
87915BRight exterior rearview mirror lower cover8791A-33D50
87917CExterior rearview mirror screws87917-15010
8791ARight exterior rearview mirror cover No. 28791B-47360
87931Right exterior rearview mirror87902-12010 · 87902-33120 · 87902-33130 · 87902-33140 · 87902-33150 · 87902-33160 · 87902-33190 · 87902-33200 · 87902-33350 · 87902-33360
87939Right exterior rearview mirror hole cover87939-33D50 · 87939-47360
87940Left exterior rearview mirror assembly87940-33C40 · 87940-33C50 · 87940-33C60 · 87940-33C70 · 87940-33C90 · 87940-33D30 · 87940-33D60 · 87940-33J50 · 87940-33J60 · 87940-33K10 · 87940-33K30 · 87940-33K60 · 87940-33K61 · 87940-33K70 · 87940-33K80 · 87940-33K81 · 87940-33K90
87945CLeft exterior rearview mirror lower cover8794A-33D50
87946Right exterior rearview mirror retractor87946-33C70 · 87946-33C90 · 87946-33D10 · 87946-33D60 · 87946-33J50 · 87946-33K60 · 87946-33K70 · 87946-33K80
87948Left exterior rearview mirror hole cover87948-33D50 · 87948-47250
8794ANo. 2 left exterior rearview mirror cap8794B-47250
87961Left exterior rearview mirror87907-12020 · 87907-33100 · 87907-33110 · 87907-33120 · 87907-33130 · 87907-33140 · 87907-33170 · 87907-33190 · 87907-33191 · 87907-33210
87966Left exterior rearview mirror retractor87966-33C70 · 87966-33C90 · 87966-33D10 · 87966-33D60 · 87966-33J50 · 87966-33K60 · 87966-33K70 · 87966-33K80
