Toyota CAMRY 车载电话和呼救装置 — Figure 8615

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 2 images and 6 PNC and OE references.

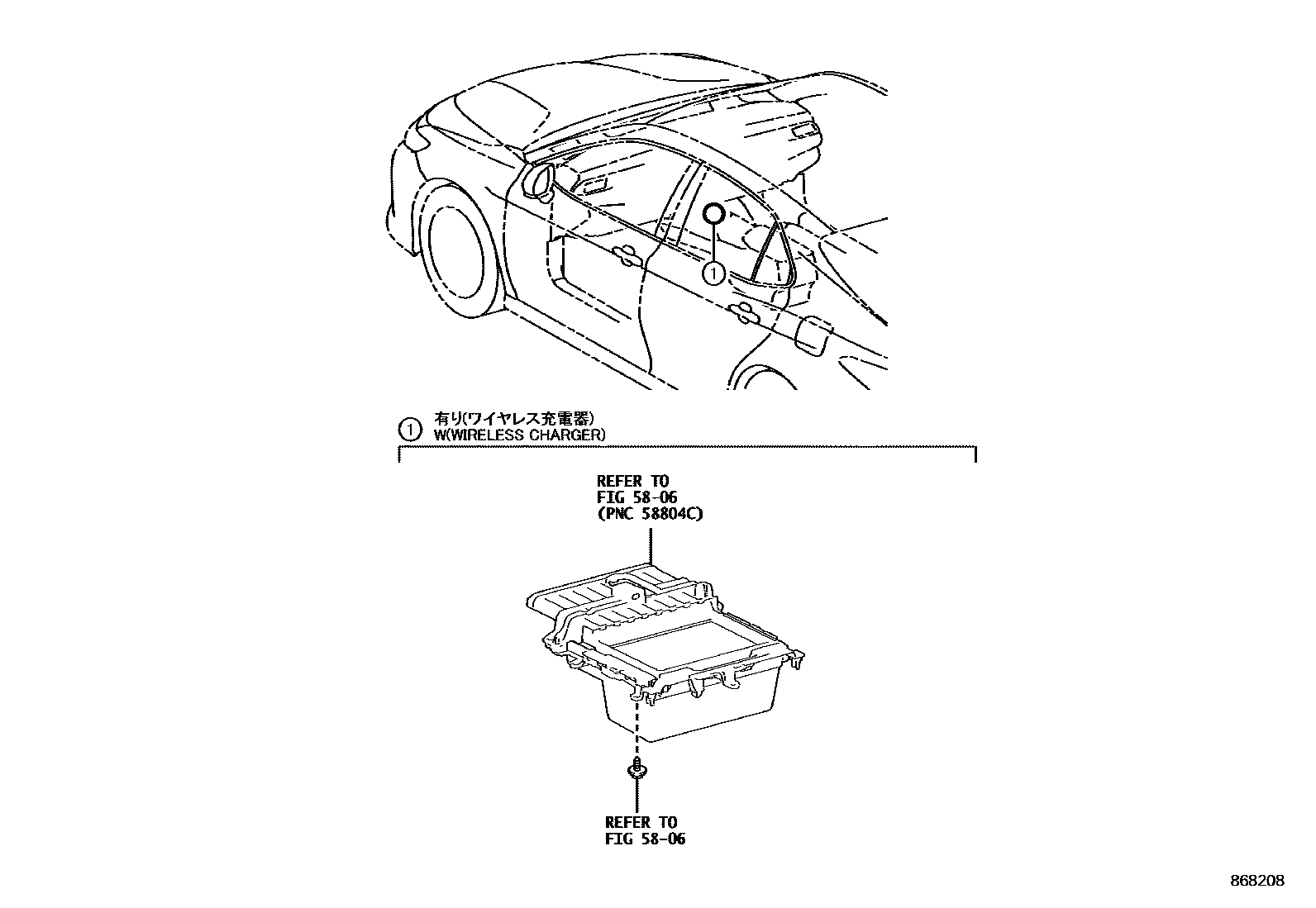

Toyota CAMRY 车载电话和呼救装置 EPC diagram — 868208
车载电话和呼救装置 — 868208 (201709 – 202102)

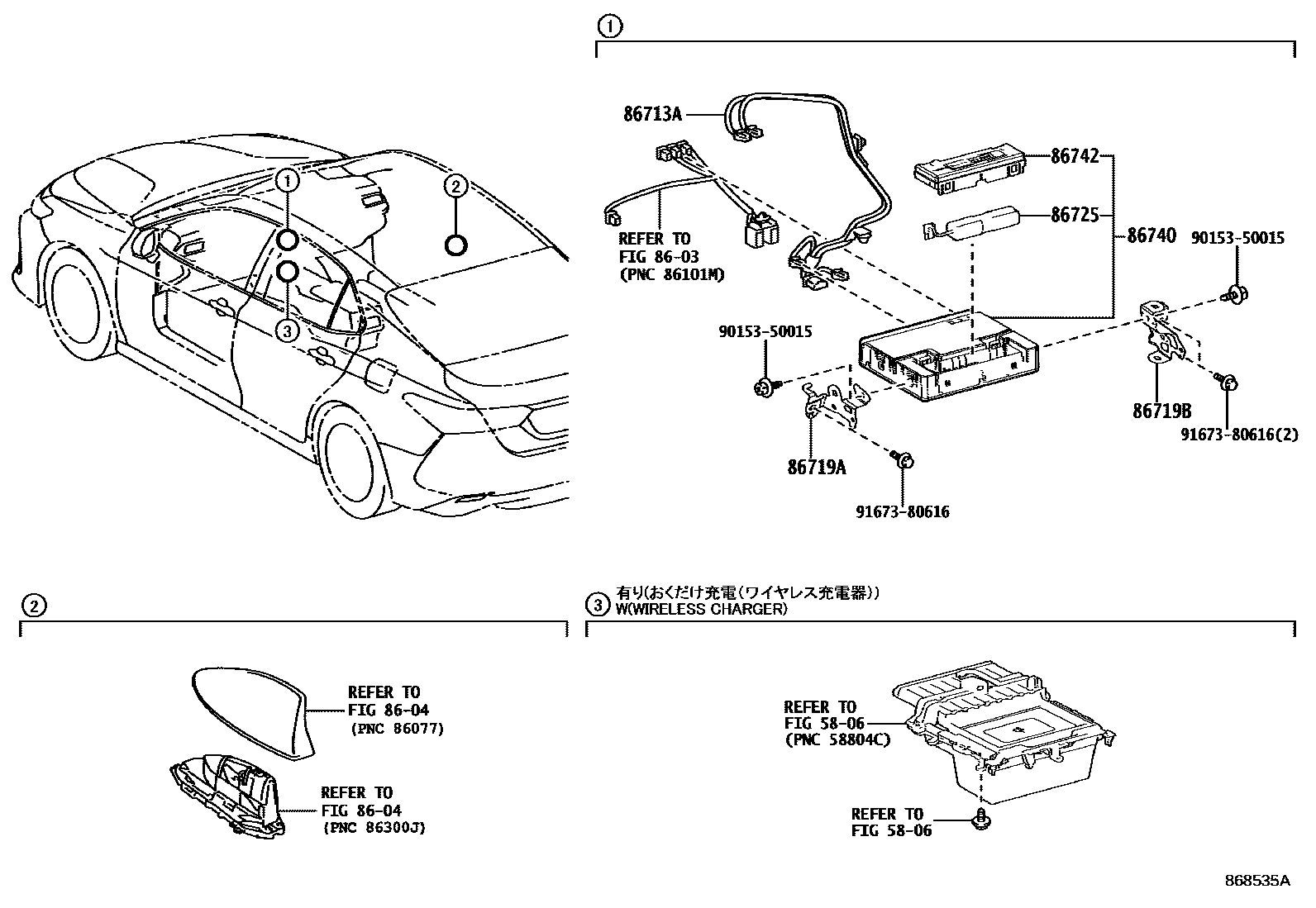

Toyota CAMRY 车载电话和呼救装置 EPC diagram — 868535A
车载电话和呼救装置 — 868535A (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
86713ATelephone ECU harness (to transceiver)86713-33140 · 86713-33160
86719APhone holder No. 186719-33290
86719BPhone holder No. 286719-33300
86725mobile phone battery86725-78010
86740Telephone transceiver assembly86741-52041
86742transceiver cover86742-0D020
