Toyota CAMRY 喇叭 — Figure 8611

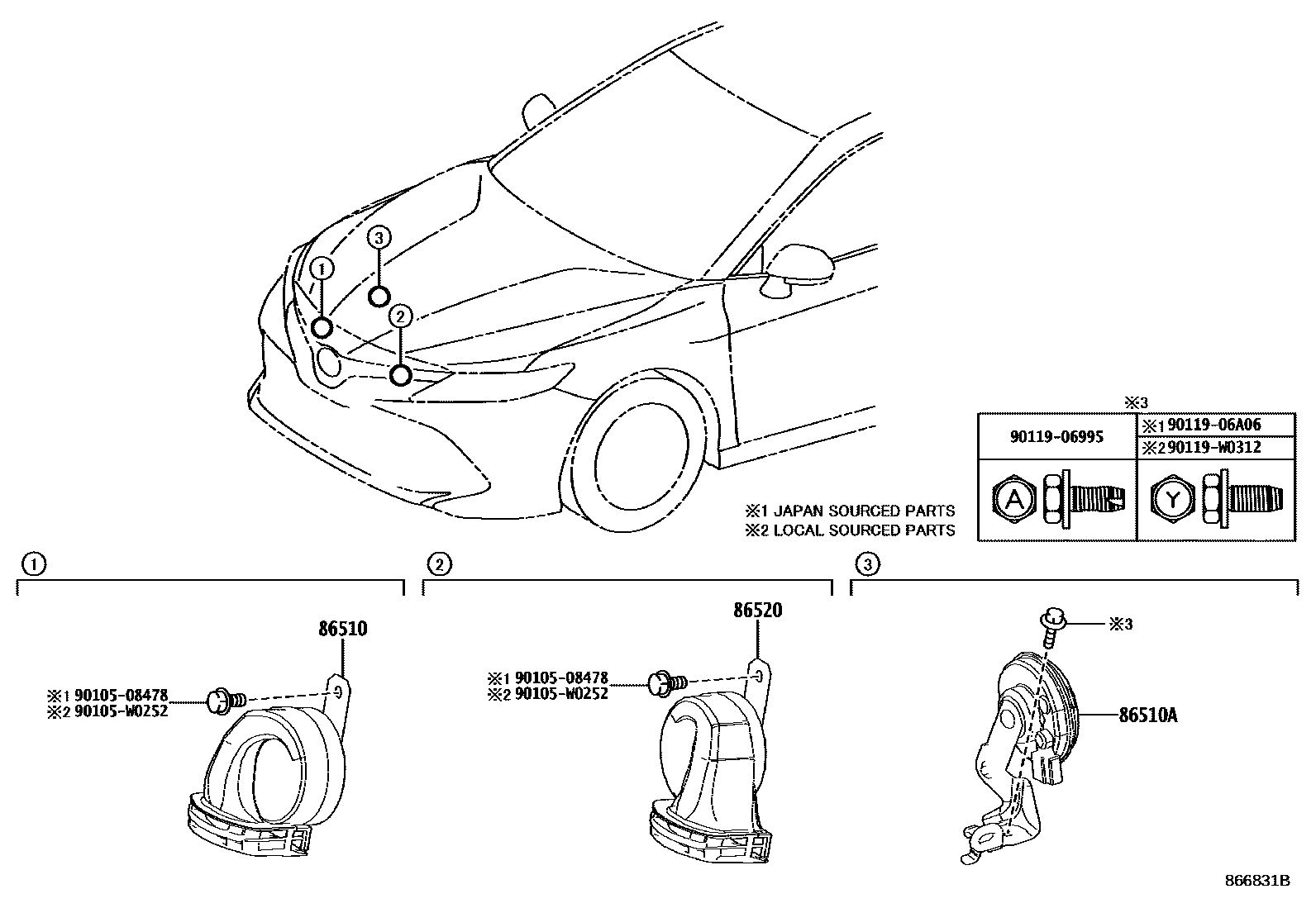

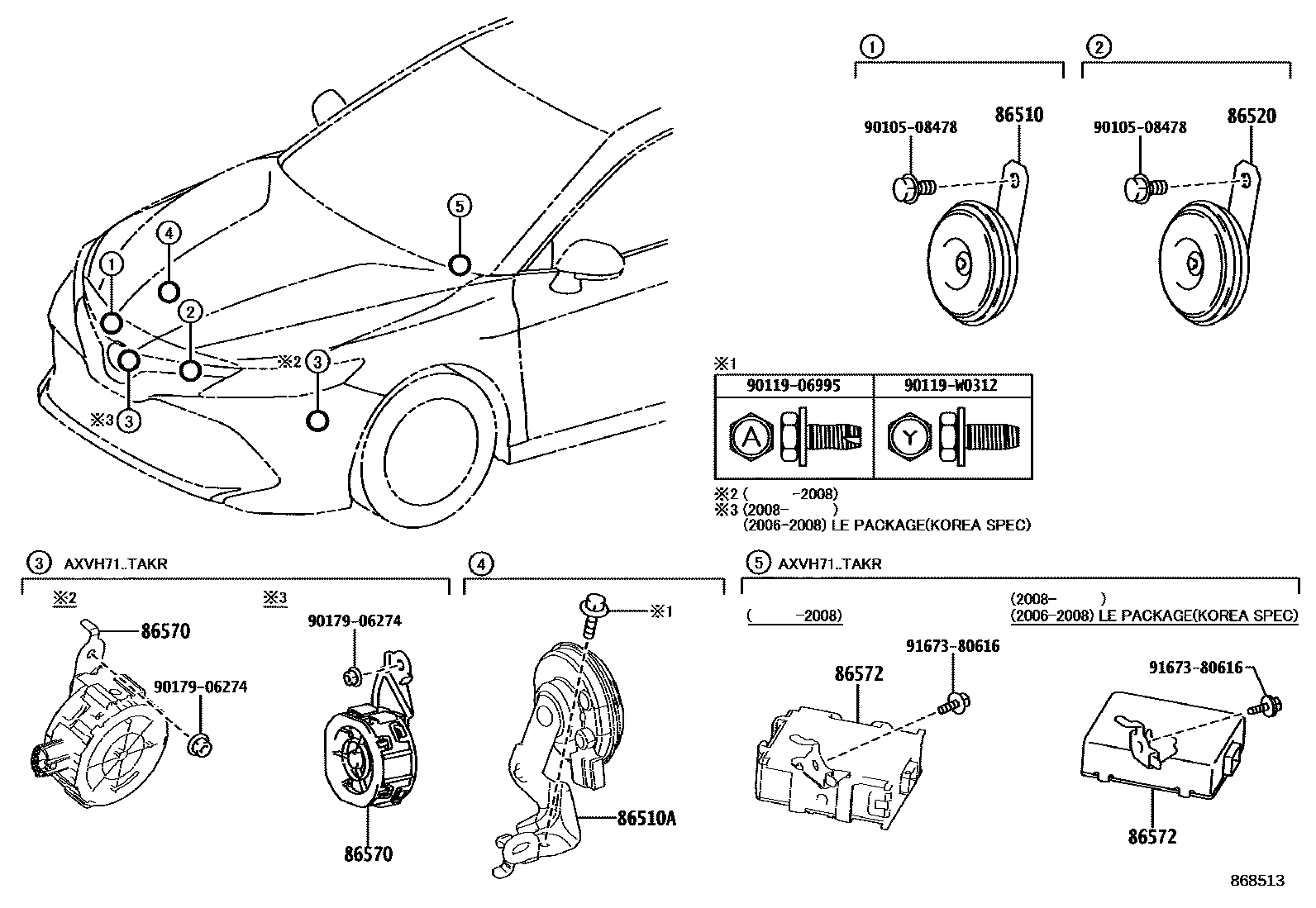

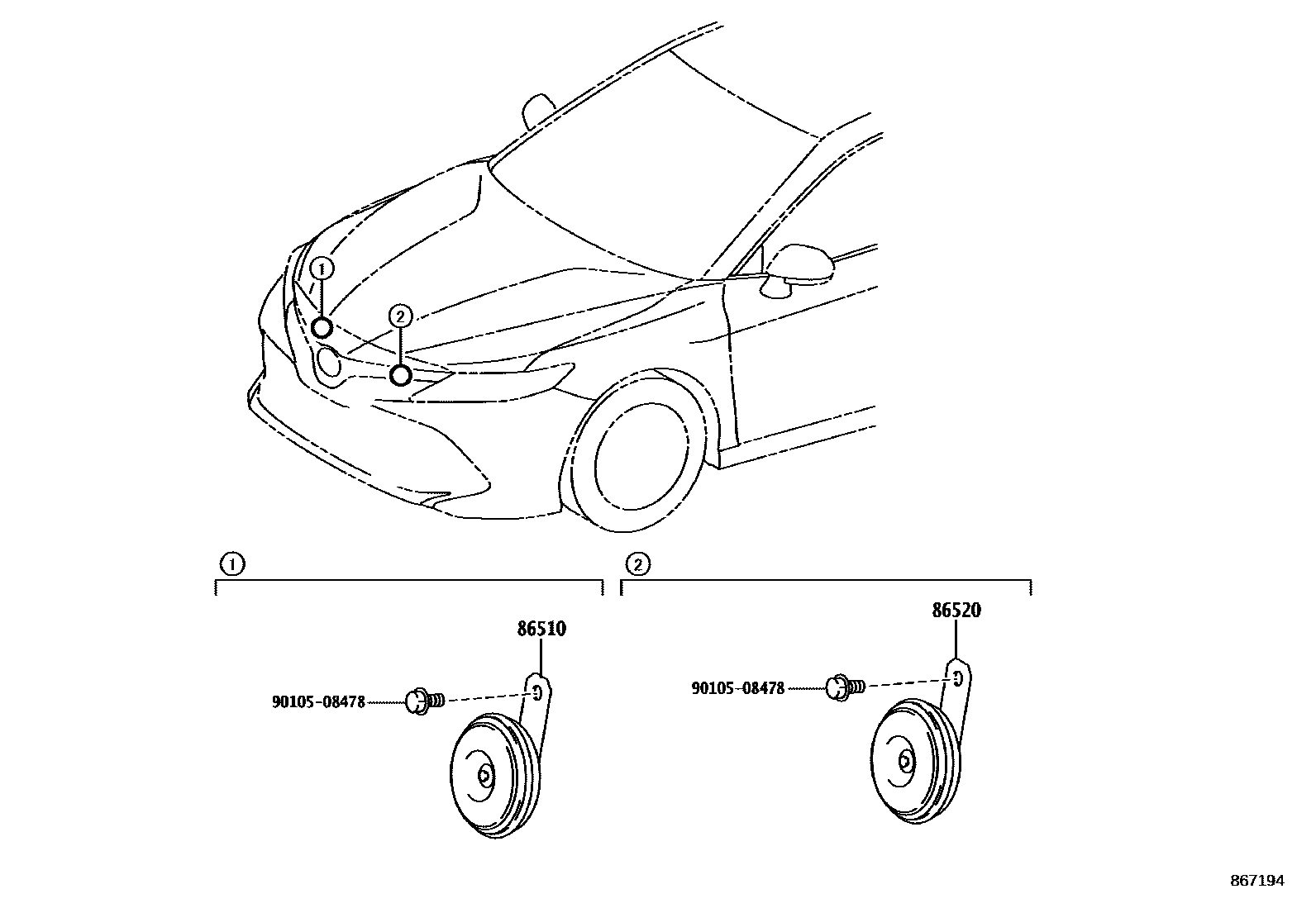

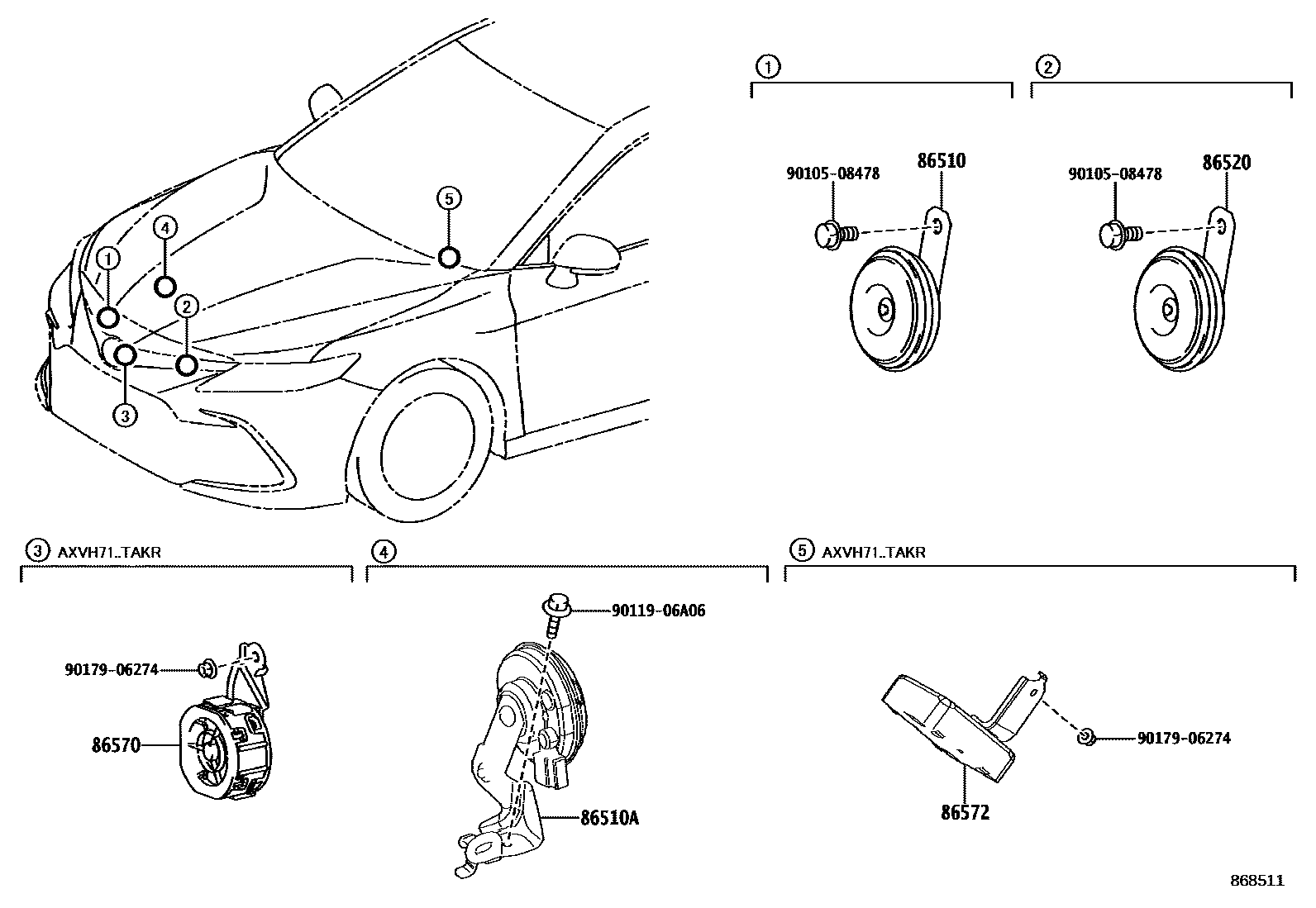

Toyota CAMRY EPC diagram 8611, 喇叭, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-22270 · 86510-33220 · 86510-33290 · 86510-47050 |
| 86510A | Alarm horn assembly | 86560-33060 |
| 86520 | Subwoofer assembly | 86520-22260 · 86520-33180 · 86520-33190 · 86520-47030 |
| 86570 | Vehicle intrusion speaker assembly | 86570-33070 · 86570-33090 |
| 86572 | vehicle hacking speaker controller | 86572-33090 · 86572-33170 · 86572-33200 |
