Toyota CAMRY 倒车影像和摄像头 — Figure 8606

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.

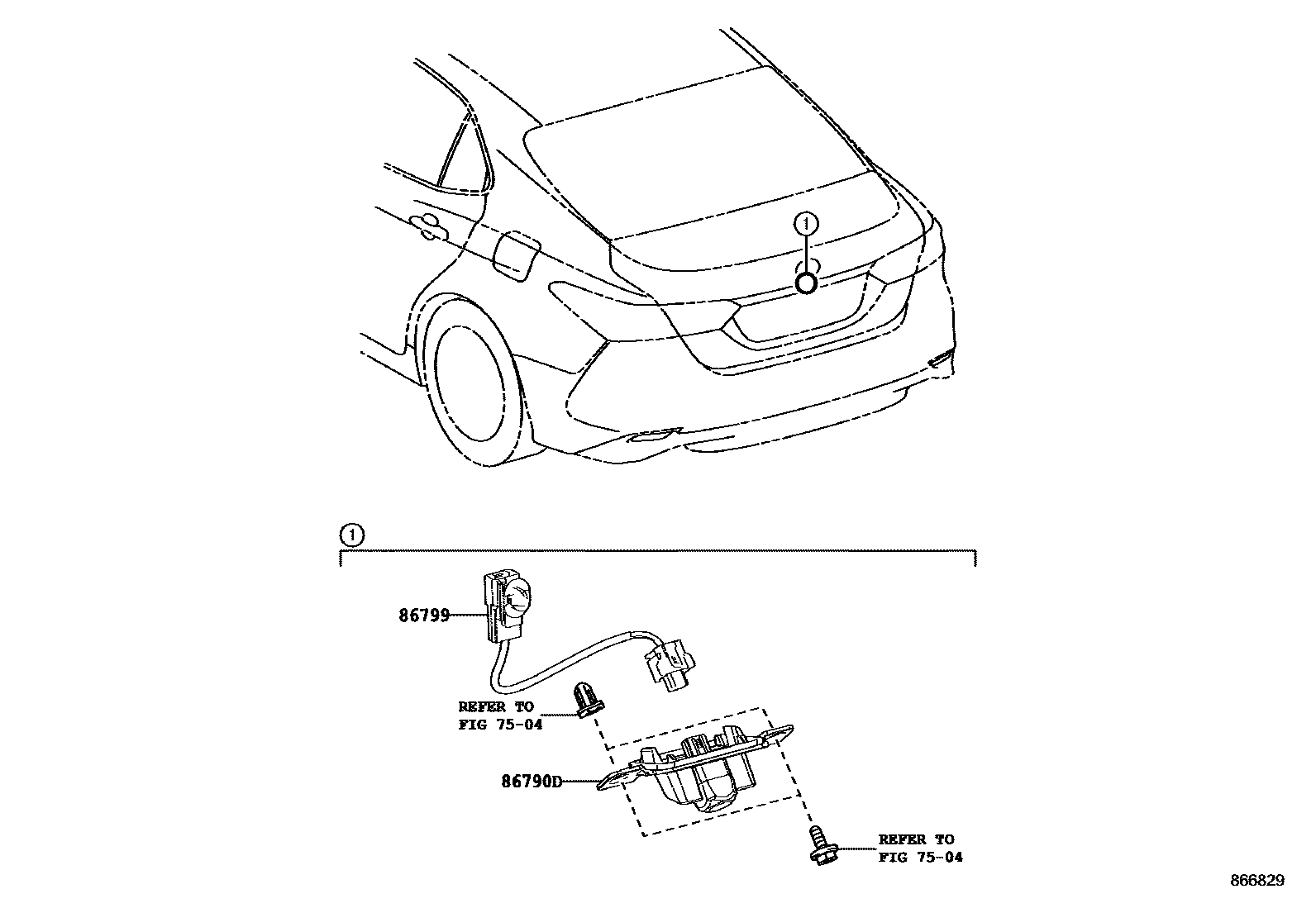

Toyota CAMRY 倒车影像和摄像头 EPC diagram — 866829
倒车影像和摄像头 — 866829 (201709 – 202102)

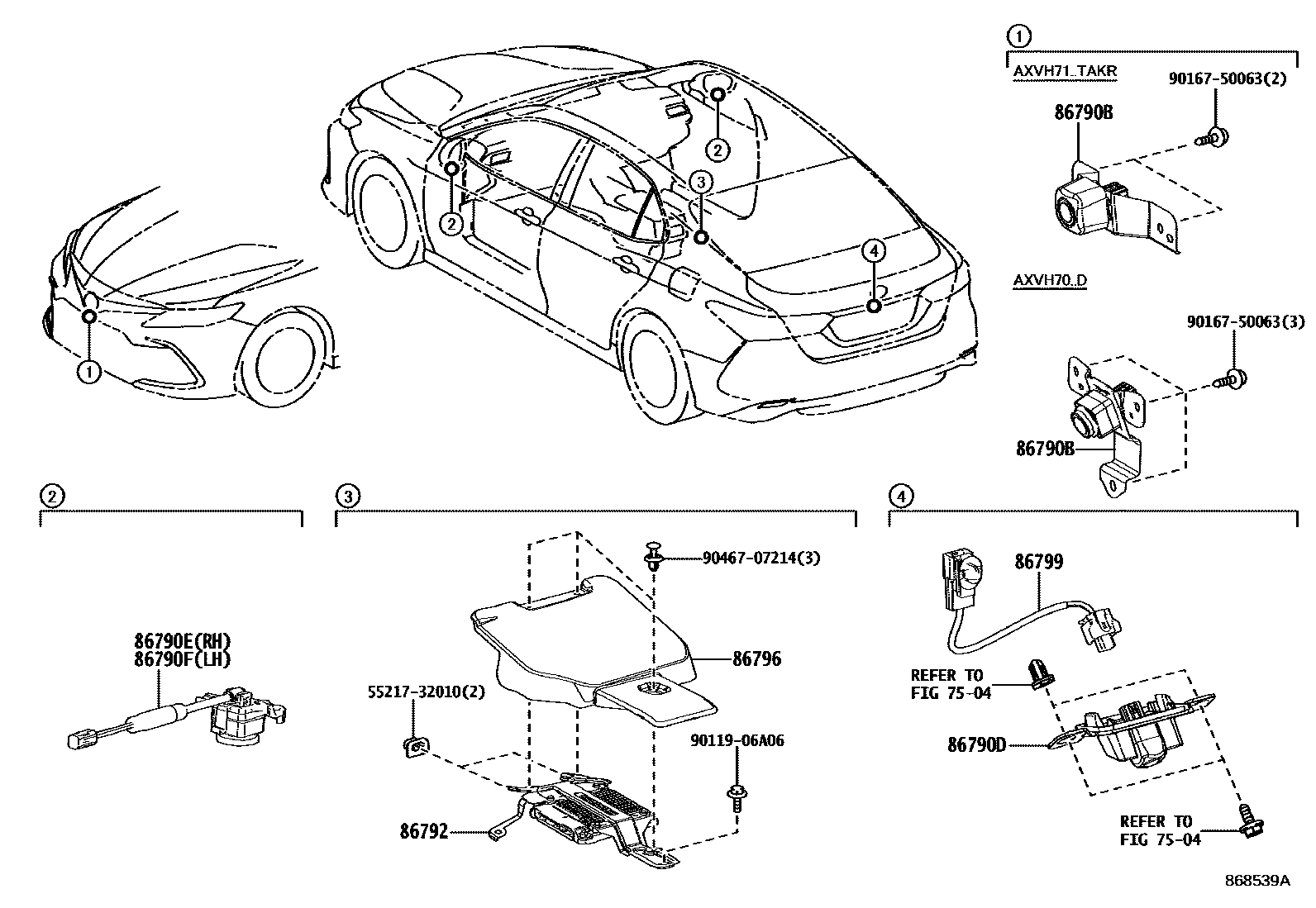

Toyota CAMRY 倒车影像和摄像头 EPC diagram — 868539A
倒车影像和摄像头 — 868539A (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
86790BFront image camera assembly86790-33221 · 86790-33230 · 86790-33231
86790DRear reversing image camera assembly86790-33180 · 86790-33260 · 867B0-33080 · 867B0-33230 · 867B0-33240
86790ERight image camera assembly86790-33250 · 86790-33251
86790FLeft image camera assembly86790-33240 · 86790-33241
86792Reversing camera controller86792-33271 · 86792-33430 · 86792-33431
86799Reversing image camera wiring harness86799-33020 · 86799-33030 · 86799-33040
