Toyota CAMRY antenna — Figure 8604

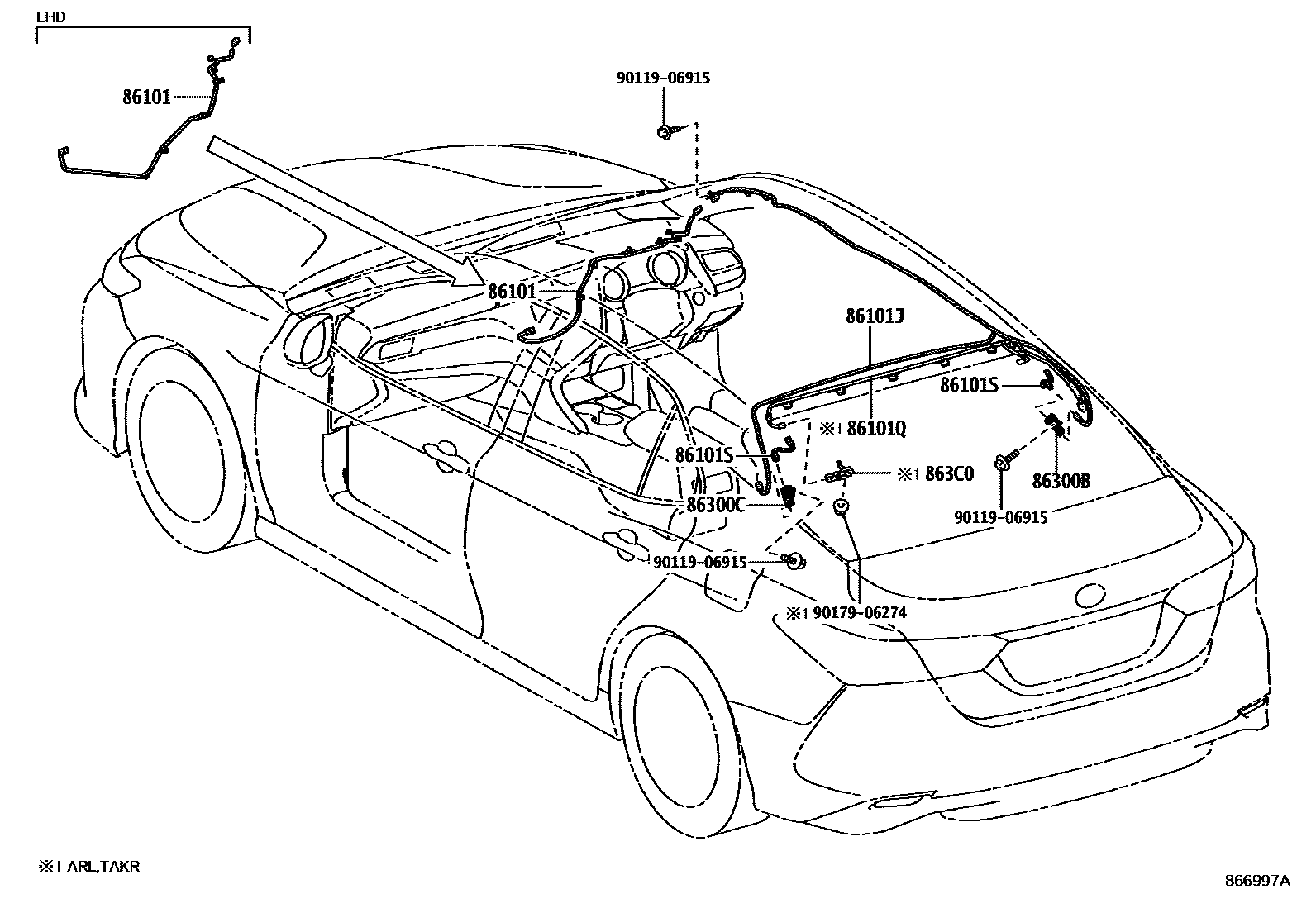

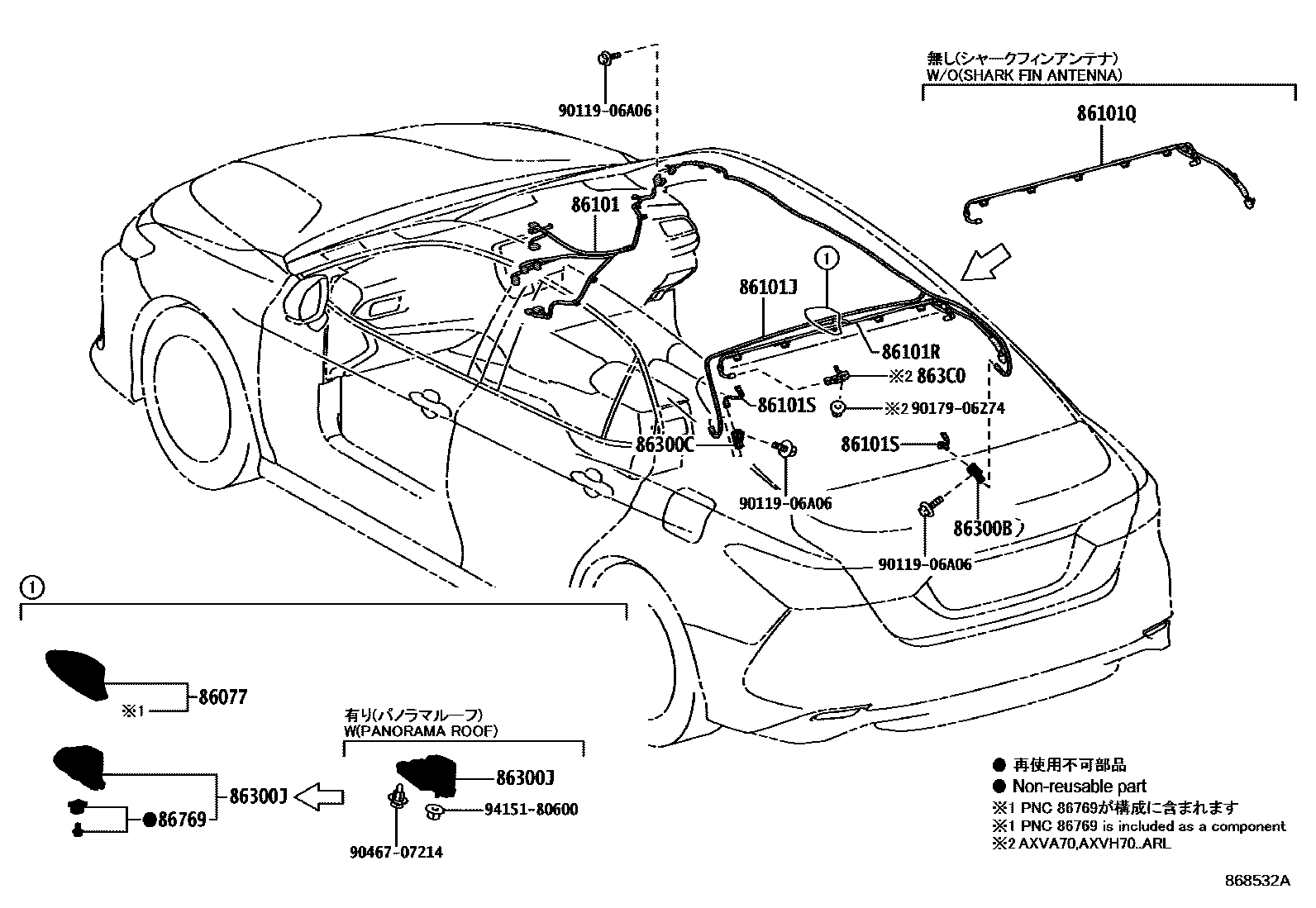

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-33K40 · 86101-33K70 · 86101-33N20 · 86101-33X30 · 86101-33X50 · 86101-33X60 · 86101-33Y10 · 86101-33Y20 · 86101-33Y50 · 86101-33Y60 · 86101-3TG50 · 86101-3TG60 · 86101-3TG70 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-33J20 · 86101-33J30 · 86101-33K20 · 86101-33K30 · 86101-33M50 · 86101-33N50 · 86101-33U30 · 86101-33W60 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-33L20 |
| 86101R | No. 5 antenna wire sub-assembly | 86101-33V20 |
| 86101S | Antenna wire sub-assembly | 86101-33J00 |
| 86300B | No. 1 amplifier antenna assembly | 86300-33370 |
| 86300C | No. 2 amplifier antenna assembly | 86300-33380 |
| 86300J | Roof antenna assembly | 86760-62030 · 86760-62040 |
| 863C0 | Digital audio broadcast receiver antenna assembly | 863C0-33040 |
| 86769 | roof radome | 86769-62010 |
