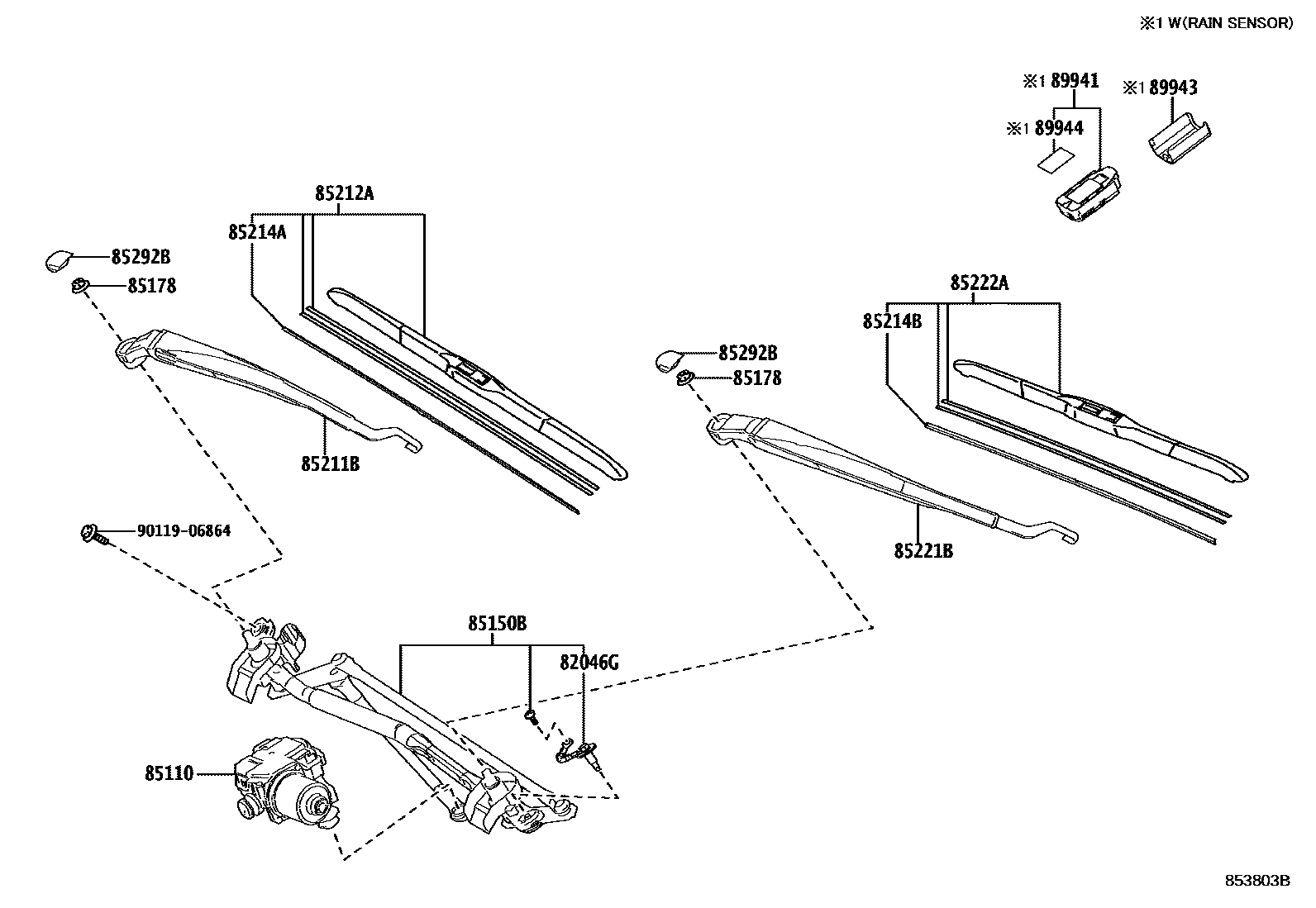

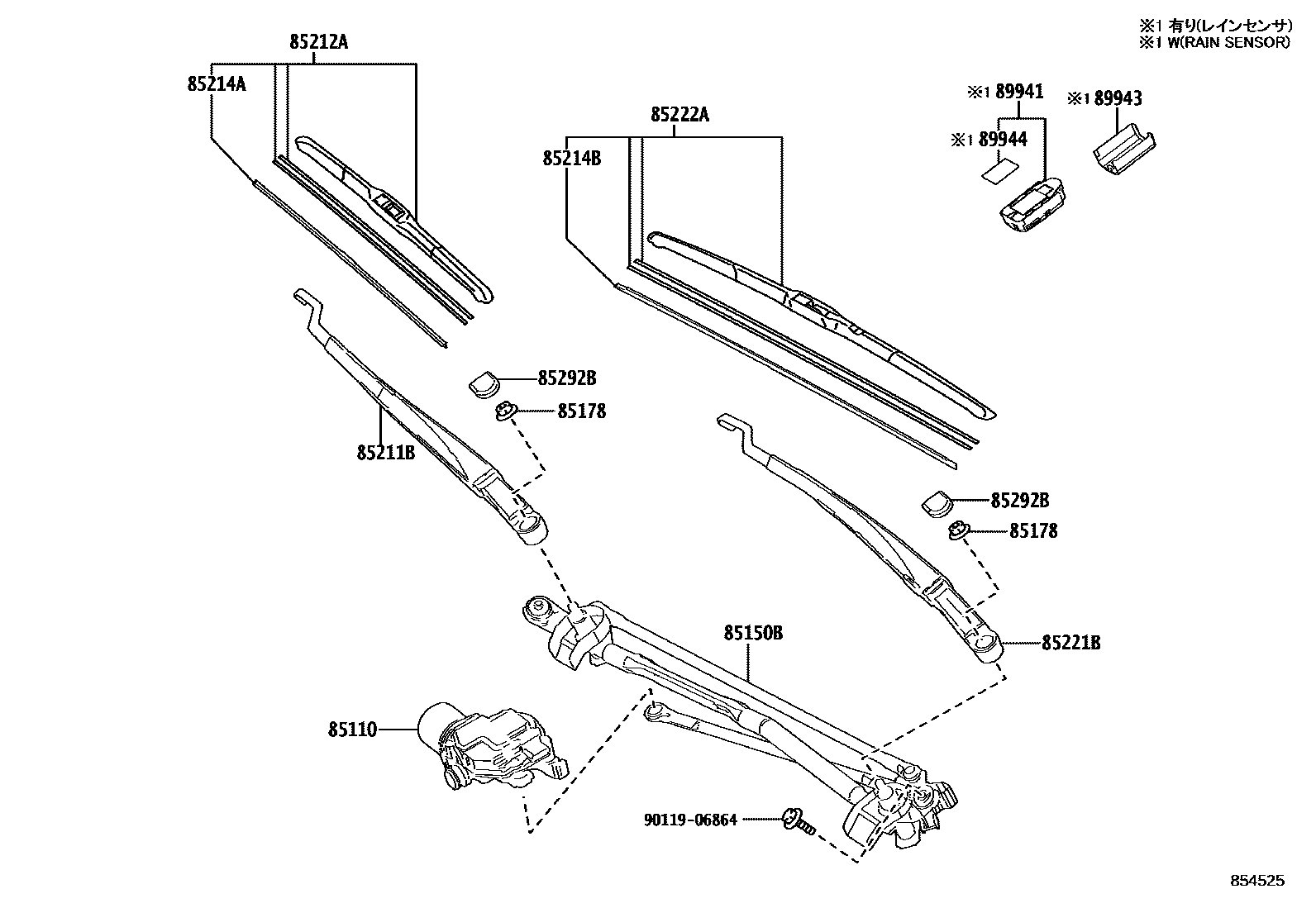

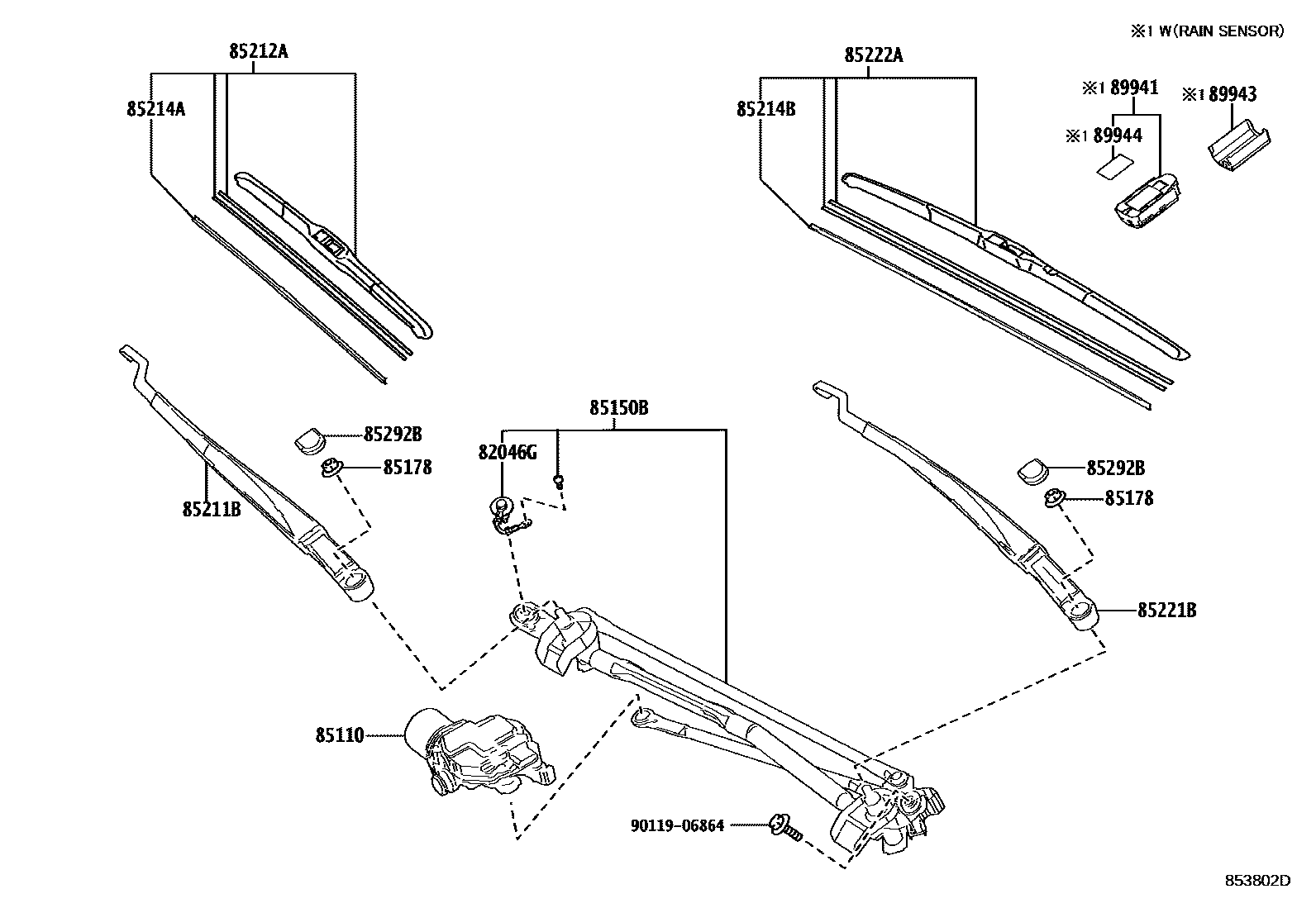

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82046G | Body ground wire sub-assembly | 82046-33060 |
| 85110 | Windshield wiper motor assembly | 85110-33430 · 85110-33432 · 85110-33440 · 85110-33441 |
| 85150B | Wiper connecting rod assembly | 85150-33290 · 85150-33291 · 85150-33320 · 85150-33330 · 85150-33331 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-33440 · 85211-33450 · 85211-33460 |
| 85212A | Right front wiper blade | 85212-33340 · 85212-33350 · 85212-52210 |
| 85214A | Right wiper rubber strip | 85214-52110 · 85214-60120 |
| 85214B | Left wiper rubber strip | 85214-52110 · 85214-60120 |
| 85221B | Left front wiper arm | 85221-33390 · 85221-33440 · 85221-33450 |
| 85222A | Left front wiper blade | 85222-33340 · 85222-33350 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 89941 | rain sensor | 89941-33060 |
| 89943 | Rain sensor cover | 89943-33060 |
| 89944 | Rain sensor tape | 89944-42020 |
