Toyota CAMRY 空气囊 — Figure 8421

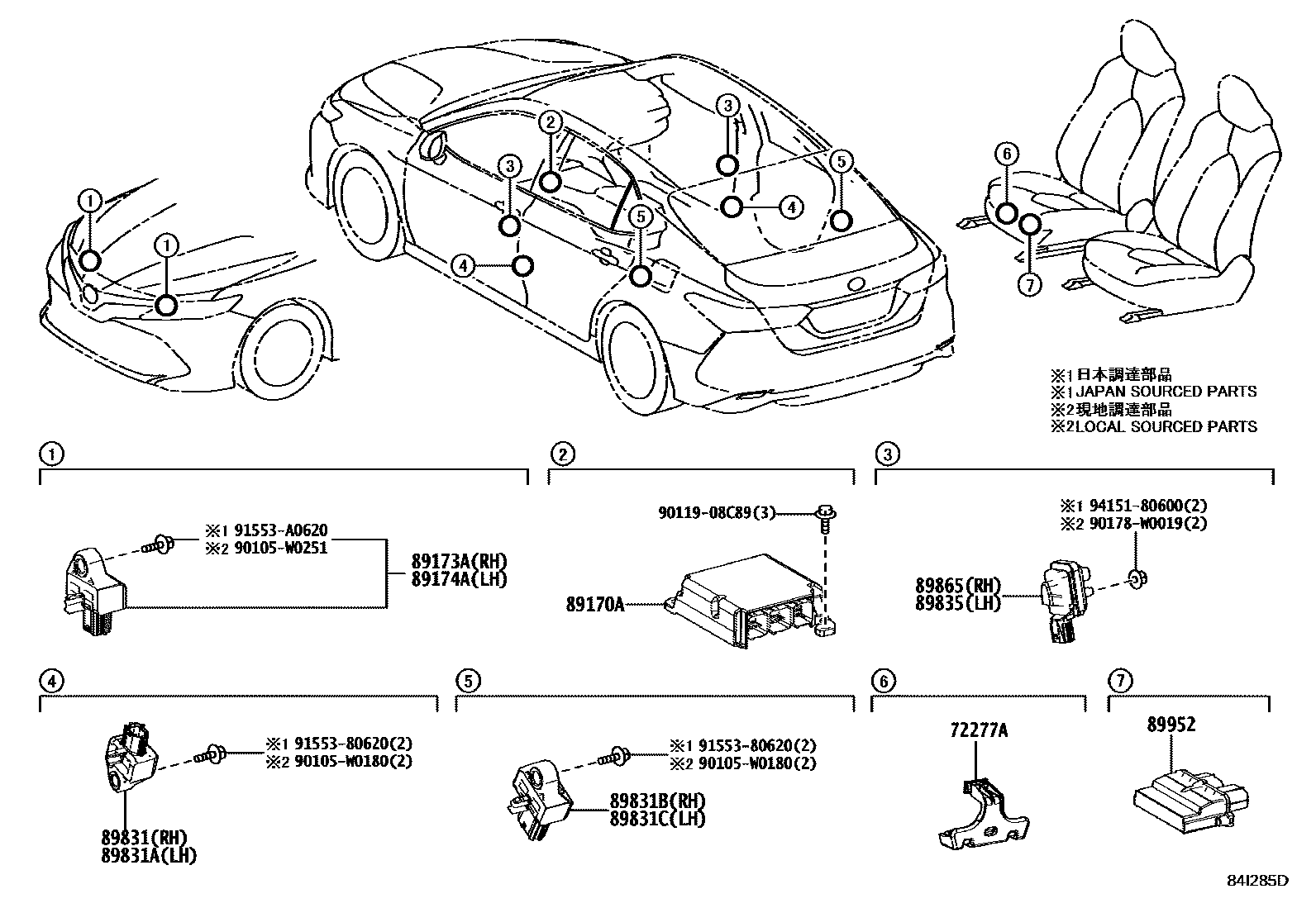

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-47050 |
| 89170A | Air bag ECU assembly | 89170-33690 · 89170-33700 · 89170-33A90 · 89170-33B10 · 89170-33B40 · 89170-33B60 · 89170-33B80 · 89170-33F30 · 89170-33F40 · 89170-33F50 · 89170-33F60 · 89170-33F70 · 89170-33G10 · 89170-33G40 · 89170-33G60 · 89170-33G70 · 89170-33G90 · 89170-33J00 |
| 89173A | Right front air bag sensor | 89173-39525 · 89173-49505 |
| 89174A | Left front air bag sensor | 89173-39525 · 89173-49505 |
| 89831 | Right side air bag sensor No. 1 | 89831-33090 |
| 89831A | Left No. 1 side airbag sensor | 89831-33090 |
| 89831B | Right side air bag sensor No. 2 | 89831-33080 |
| 89831C | Left No. 2 side airbag sensor | 89831-33080 |
| 89835 | Left door side air bag sensor | 8983A-33010 · 8983A-33011 |
| 89865 | Right door side air bag sensor | 8983A-33010 · 8983A-33011 |
| 89952 | Occupant detection ECU | 89952-12030 |
