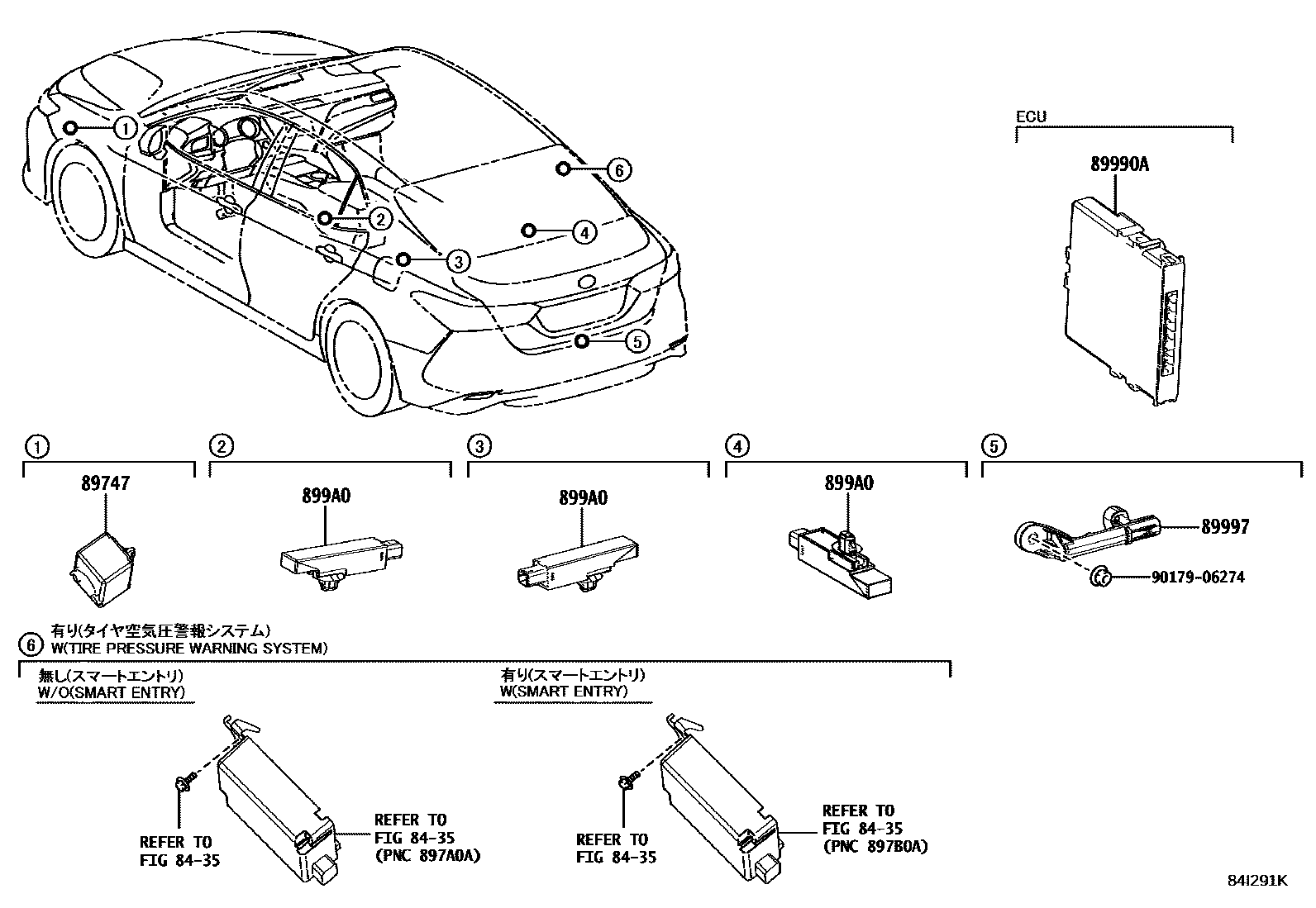

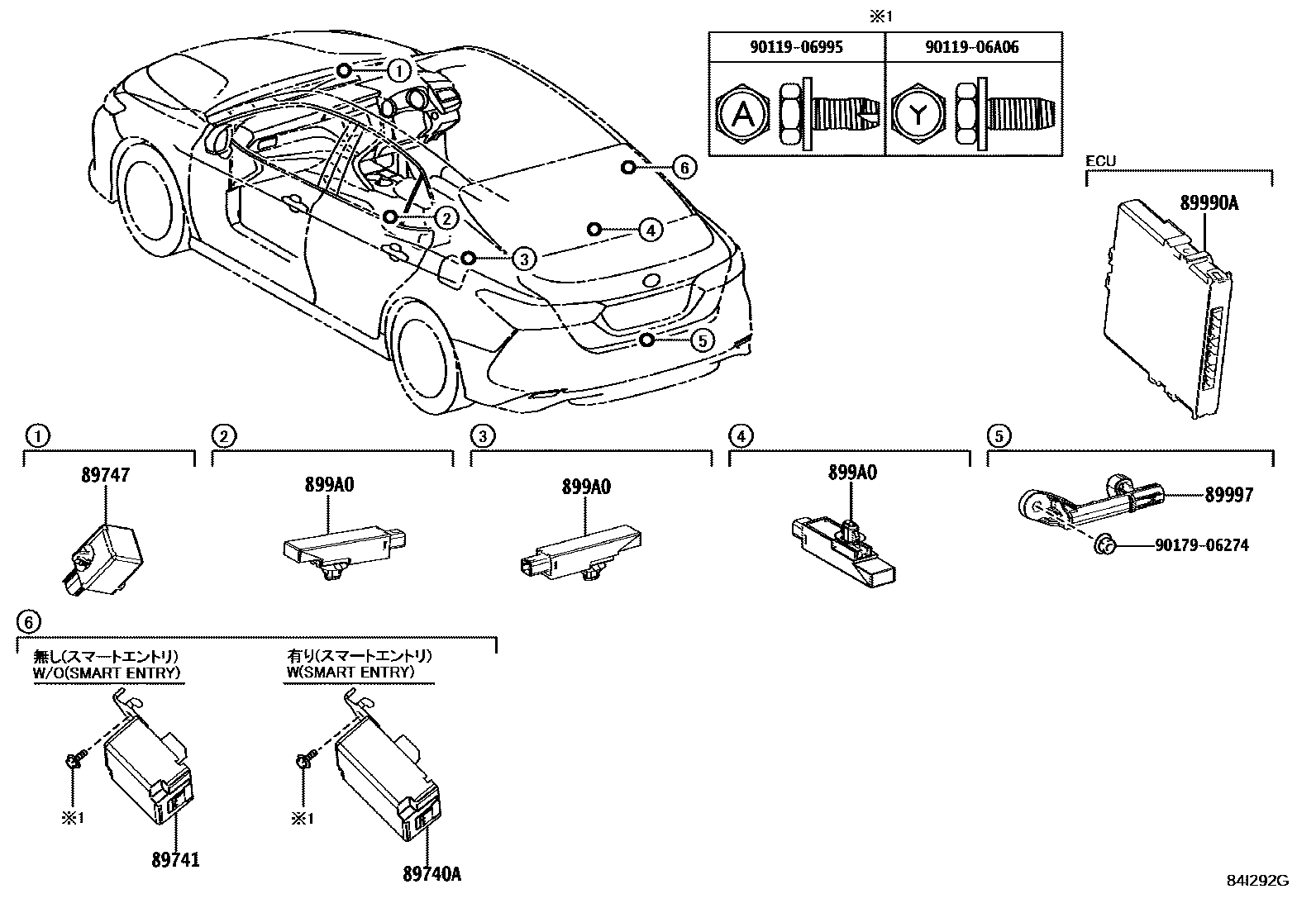

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-33440 · 89740-33520 |
| 89741 | door control receiver | 89741-33620 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-33400 · 89990-33401 · 89990-33690 · 89990-33691 · 89990-33692 · 89990-33860 · 89990-33870 · 89990-33A30 · 89990-33A40 · 89990-33A41 · 89990-33A42 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-47010 |
