Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417

Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.

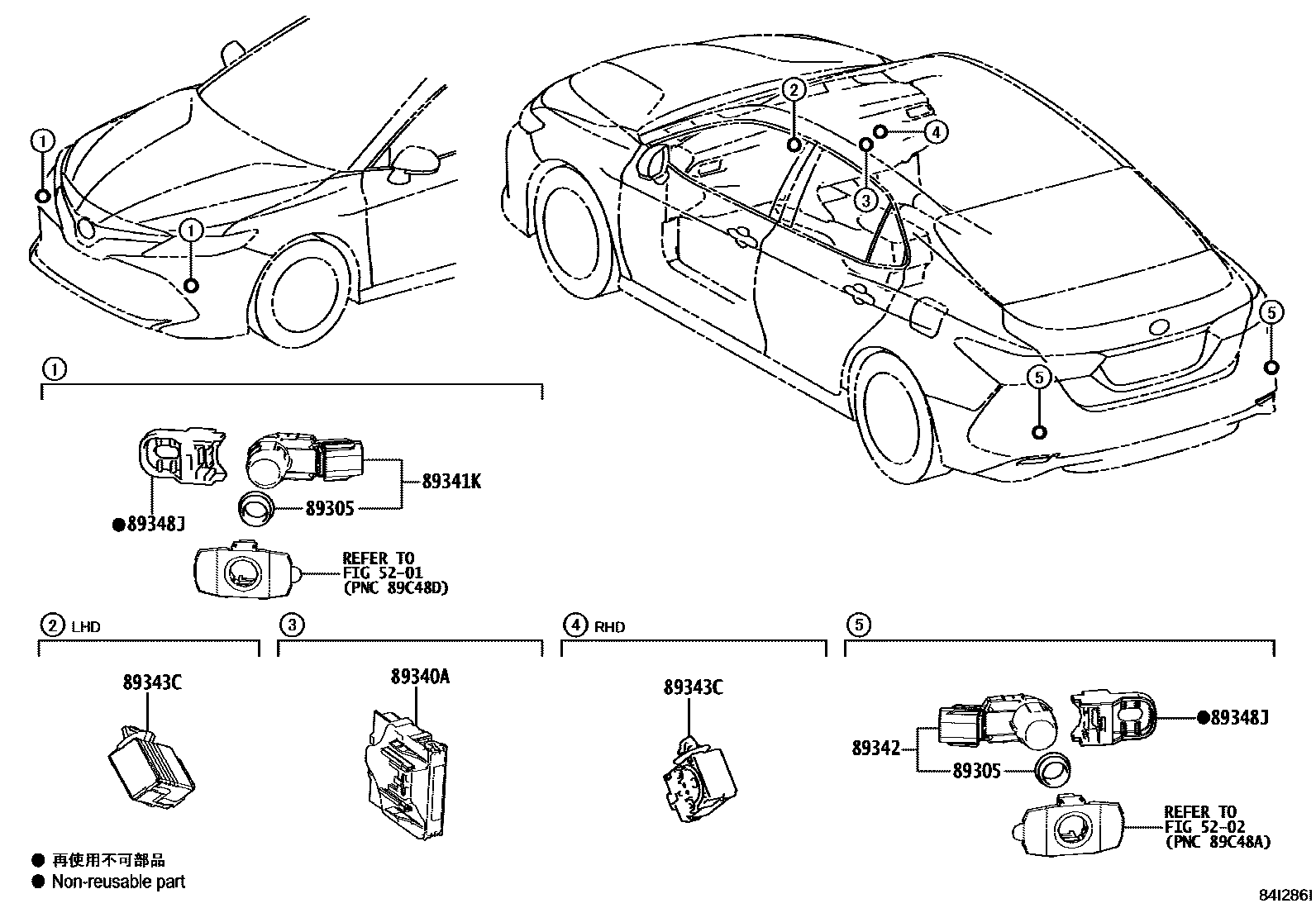

Toyota CAMRY 测距雷达和倒车雷达 EPC diagram — 84I286I
测距雷达和倒车雷达 — 84I286I (201709 – 202102)

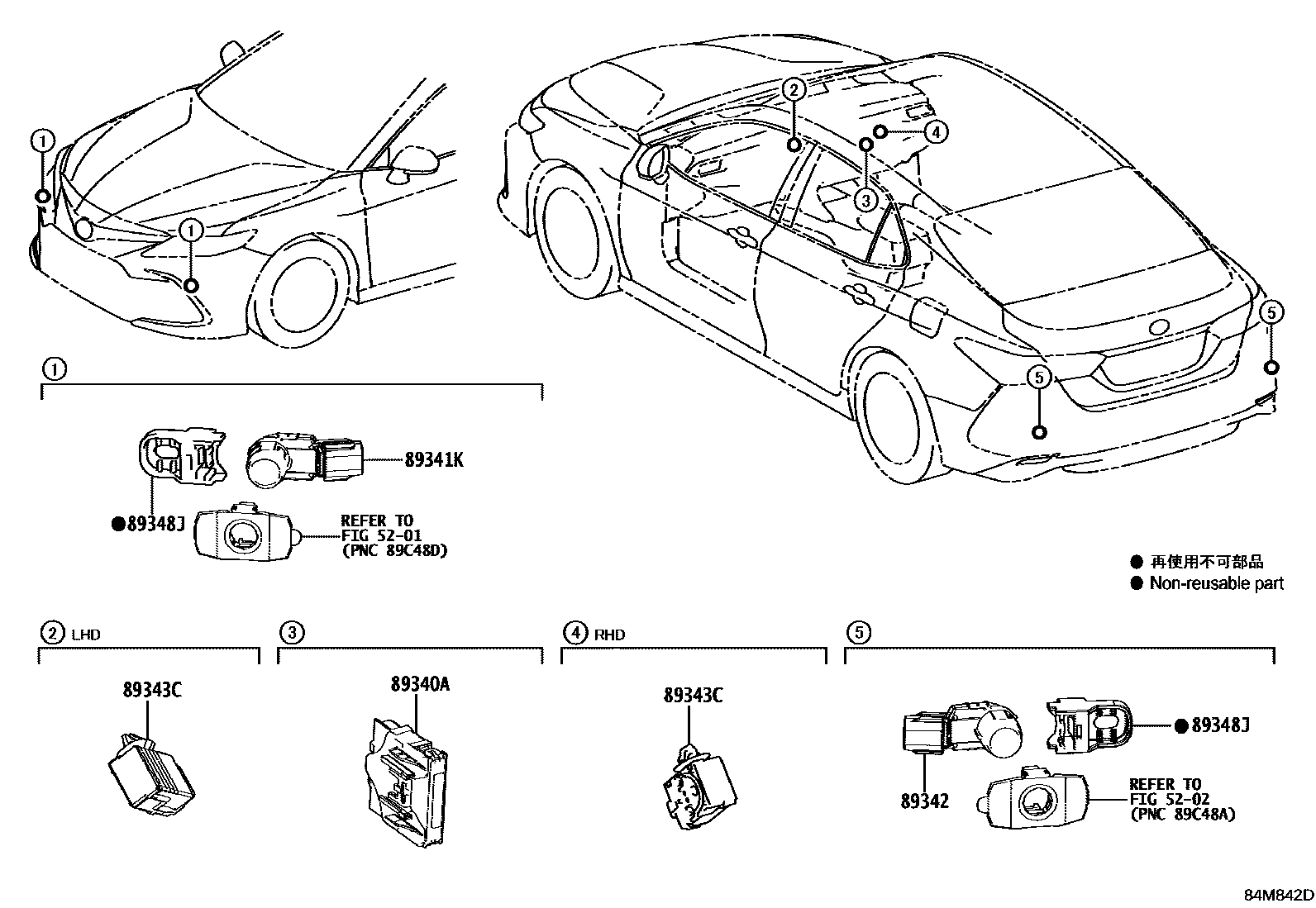

Toyota CAMRY 测距雷达和倒车雷达 EPC diagram — 84M842D
测距雷达和倒车雷达 — 84M842D (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
89305Ultrasonic sensor pad assembly89305-47010
89340ADistance warning ECU assembly89340-33230 · 89340-33350
89343CNo. 1 distance warning buzzer89343-48010
89348JUltrasonic sensor clip89348-33190
