Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 8 PNC and OE references.

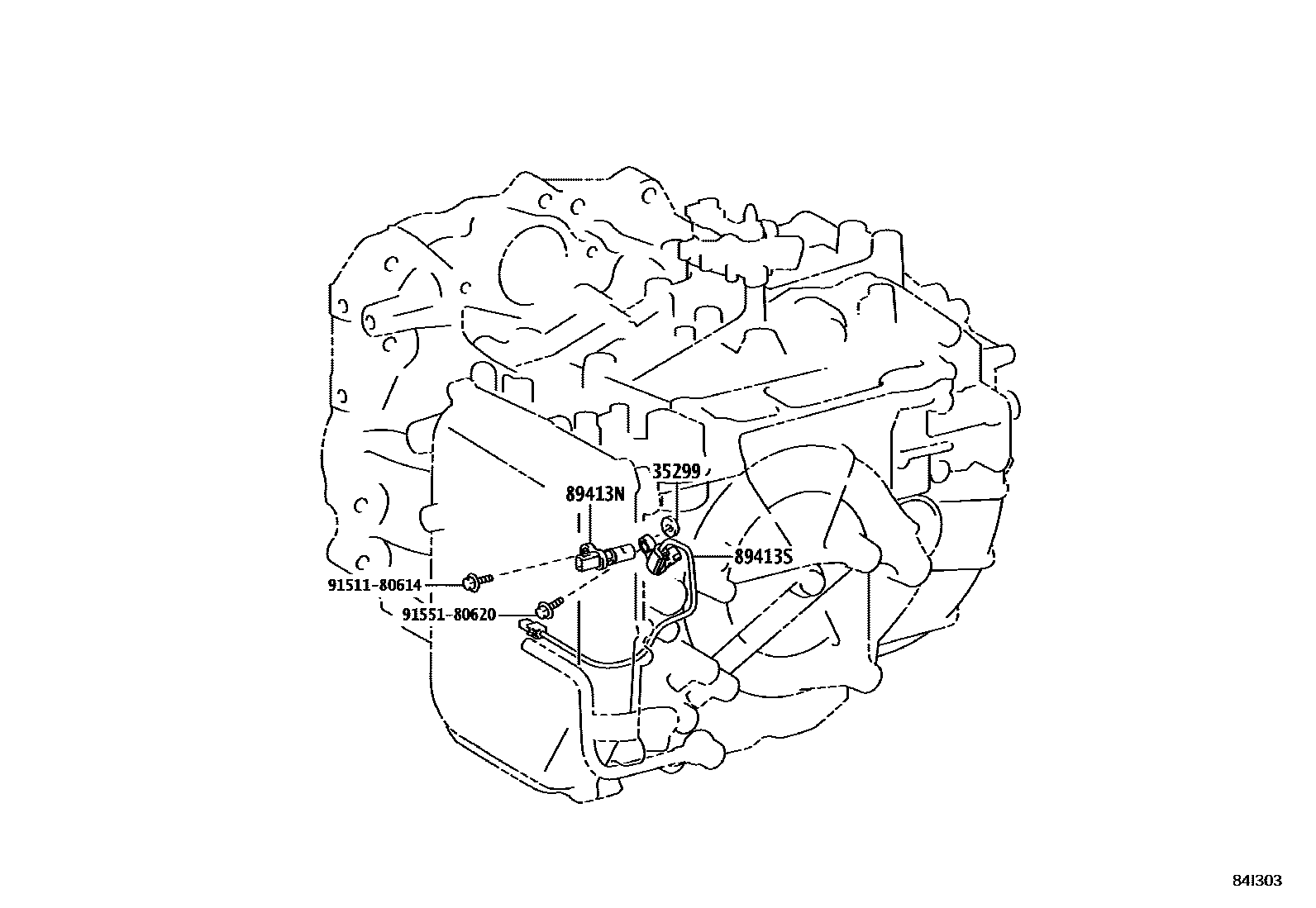

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 84I303
超速档和电子控制变速器 — 84I303 (201712 – 999999)

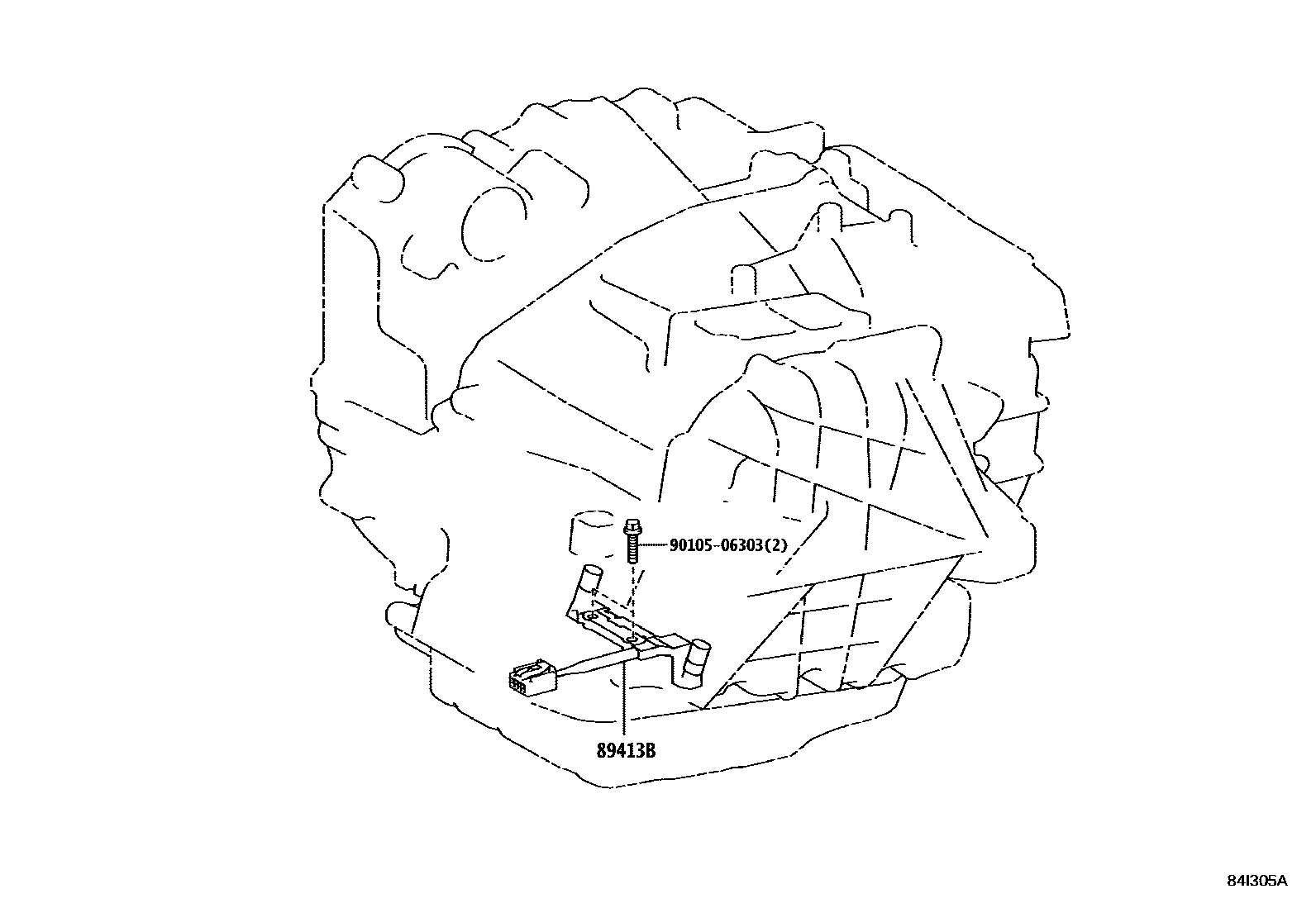

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 84I305A
超速档和电子控制变速器 — 84I305A (201709 – 999999)

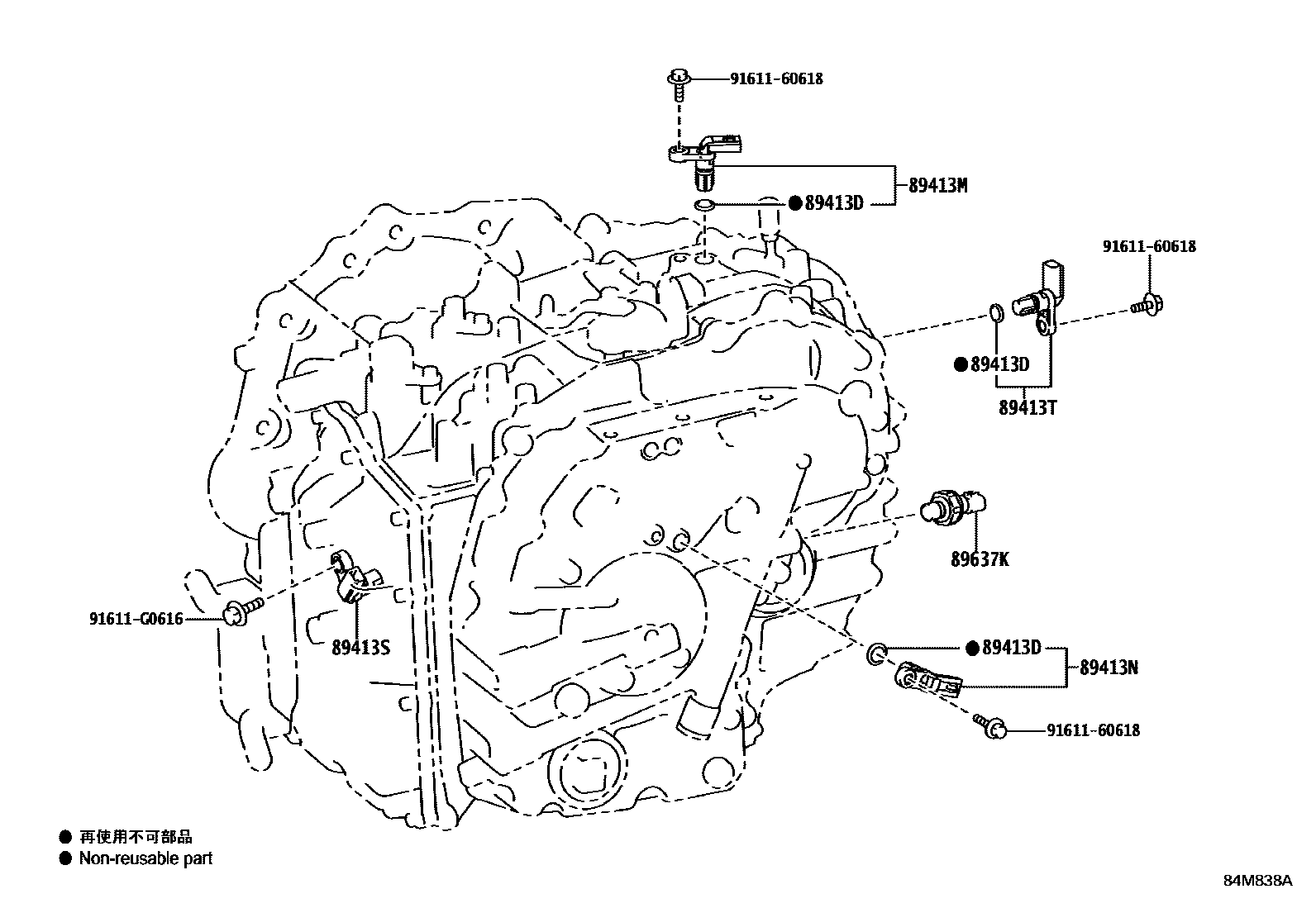

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 84M838A
超速档和电子控制变速器 — 84M838A (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
35299Transmission speed sensor spacer35469-33020 · 35469-48010
89413BTransmission speed sensor89413-73010
89413DO-ring (for transmission speed sensor)90301-11008
89413MTransmission speed sensor (NOUT)89413-12010
89413NTransmission speed sensor (NT)89413-12010 · 89413-33040 · 89413-33041
89413STransmission speed sensor (NC)89413-11021 · 89413-33050 · 89413-33051
89413TTransmission Speed Sensor (NSS)89413-12010
89637Koil pressure sensor89637-12040
