Toyota CAMRY 电子燃油喷射系统 — Figure 8404

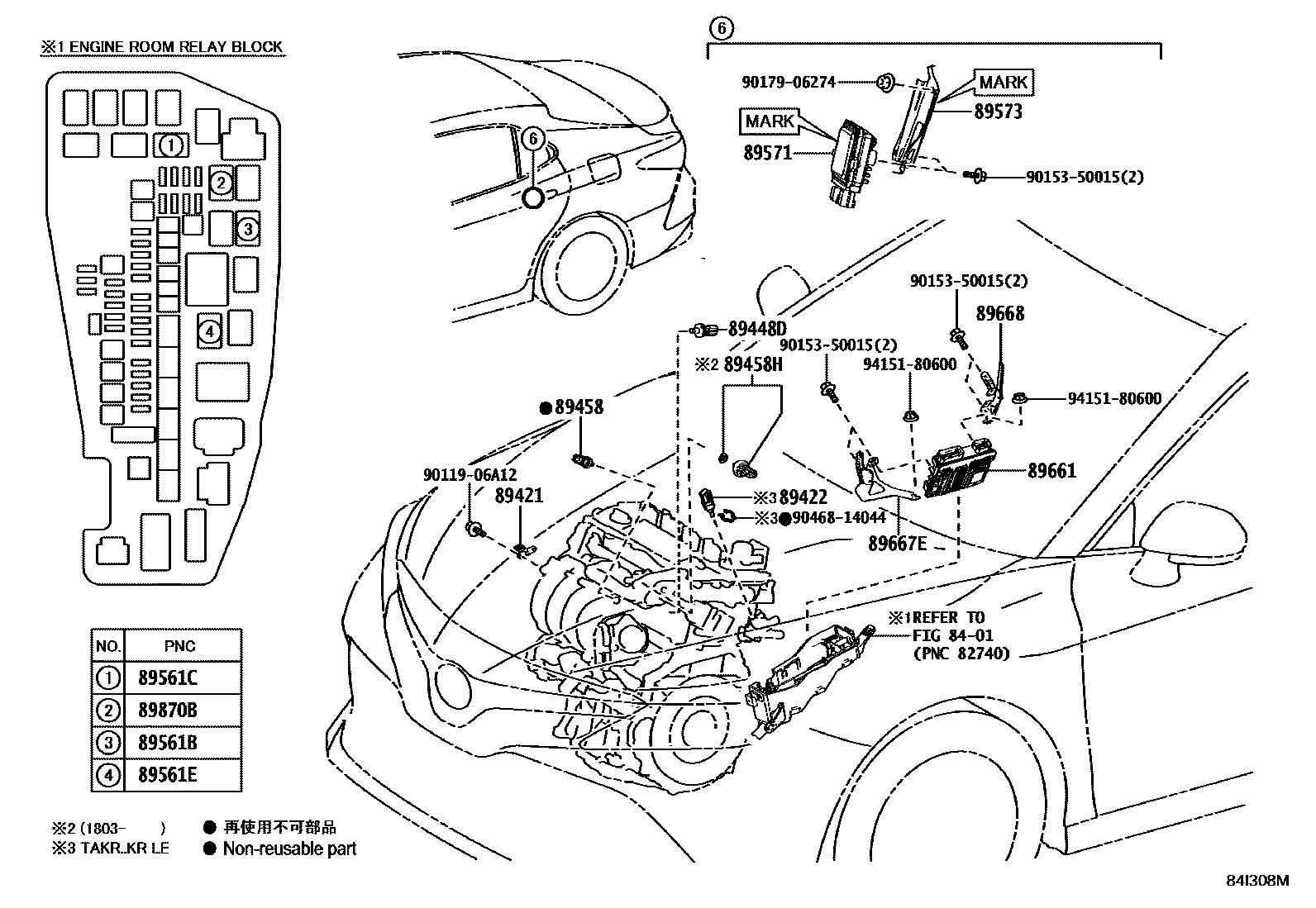

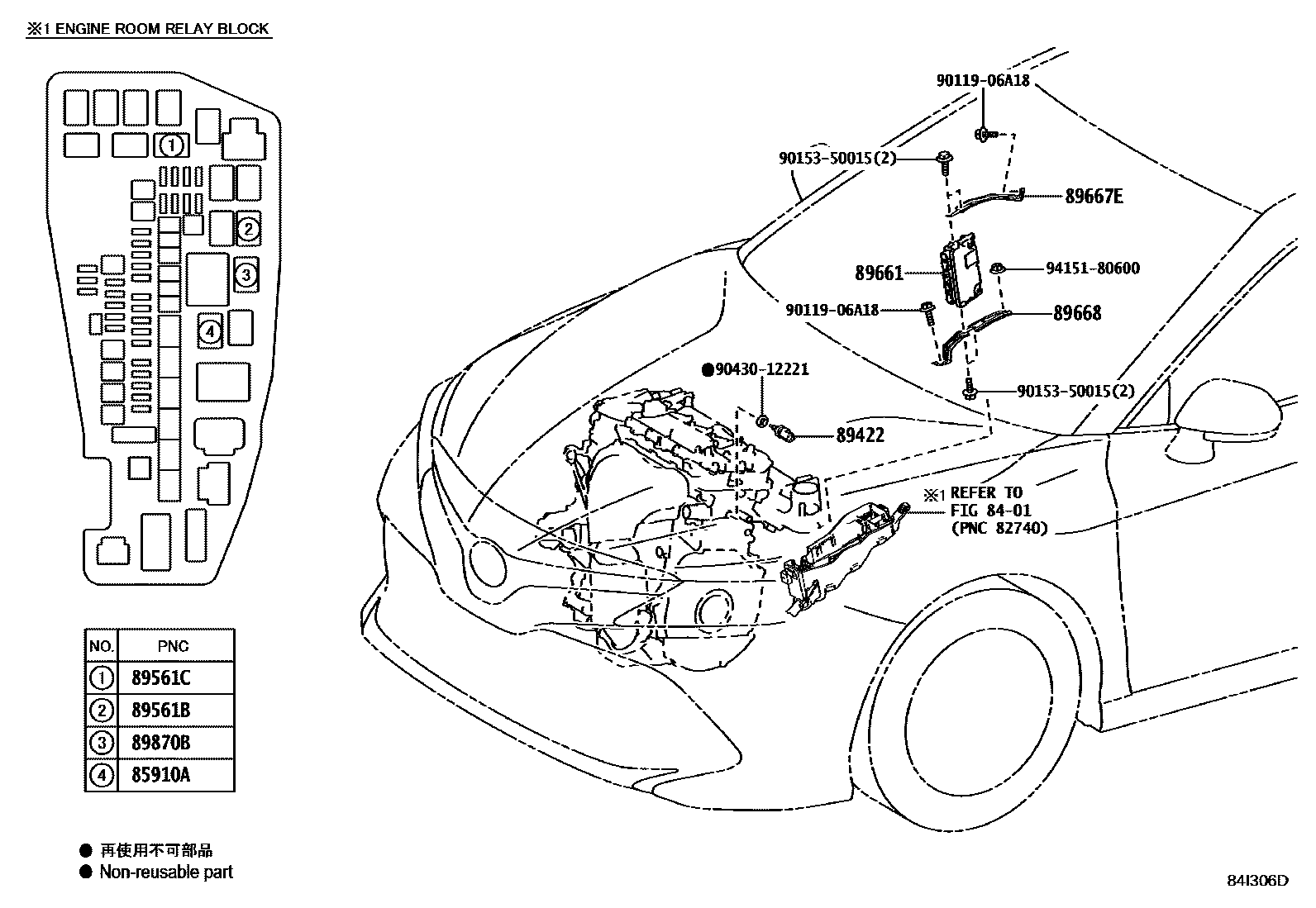

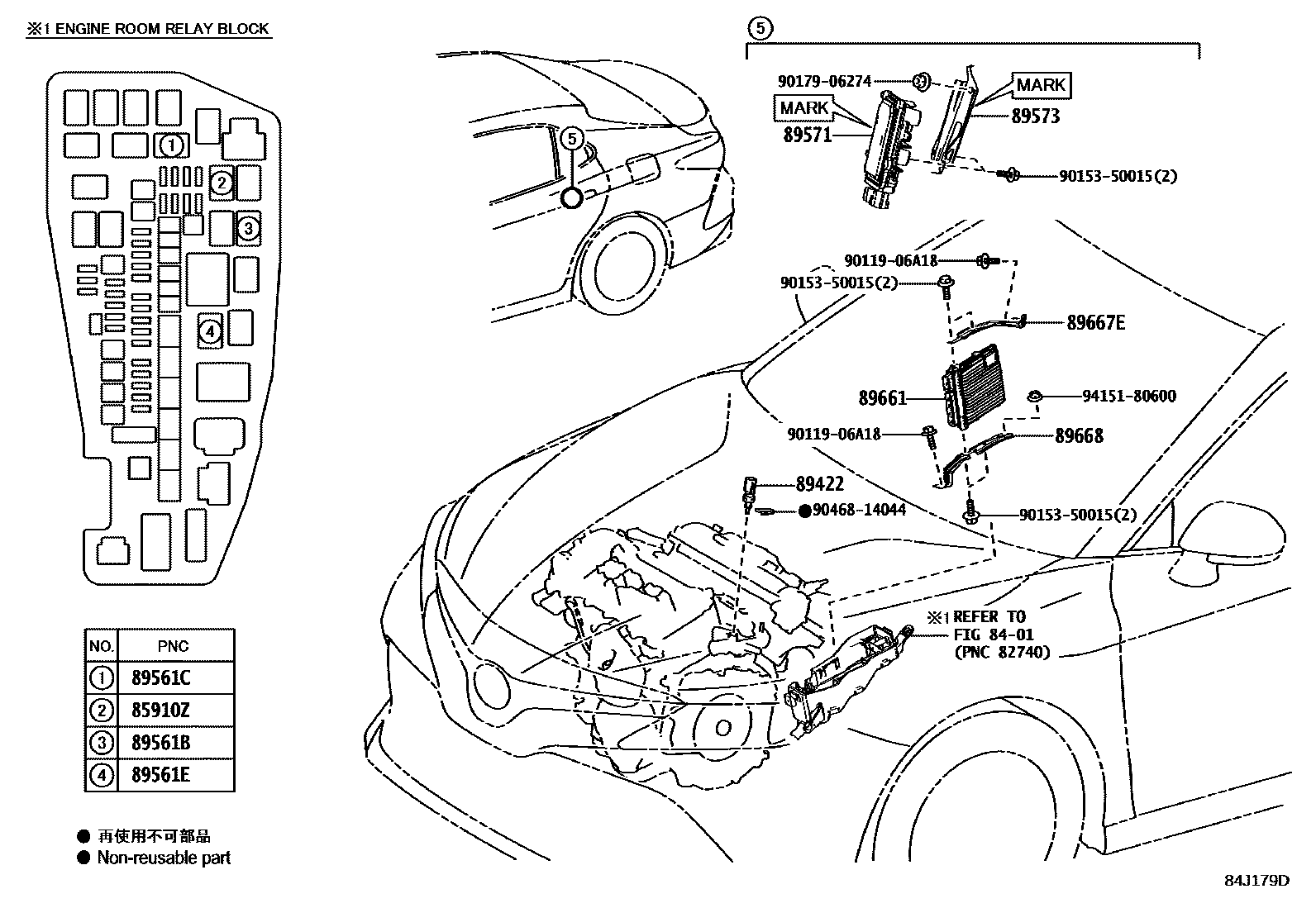

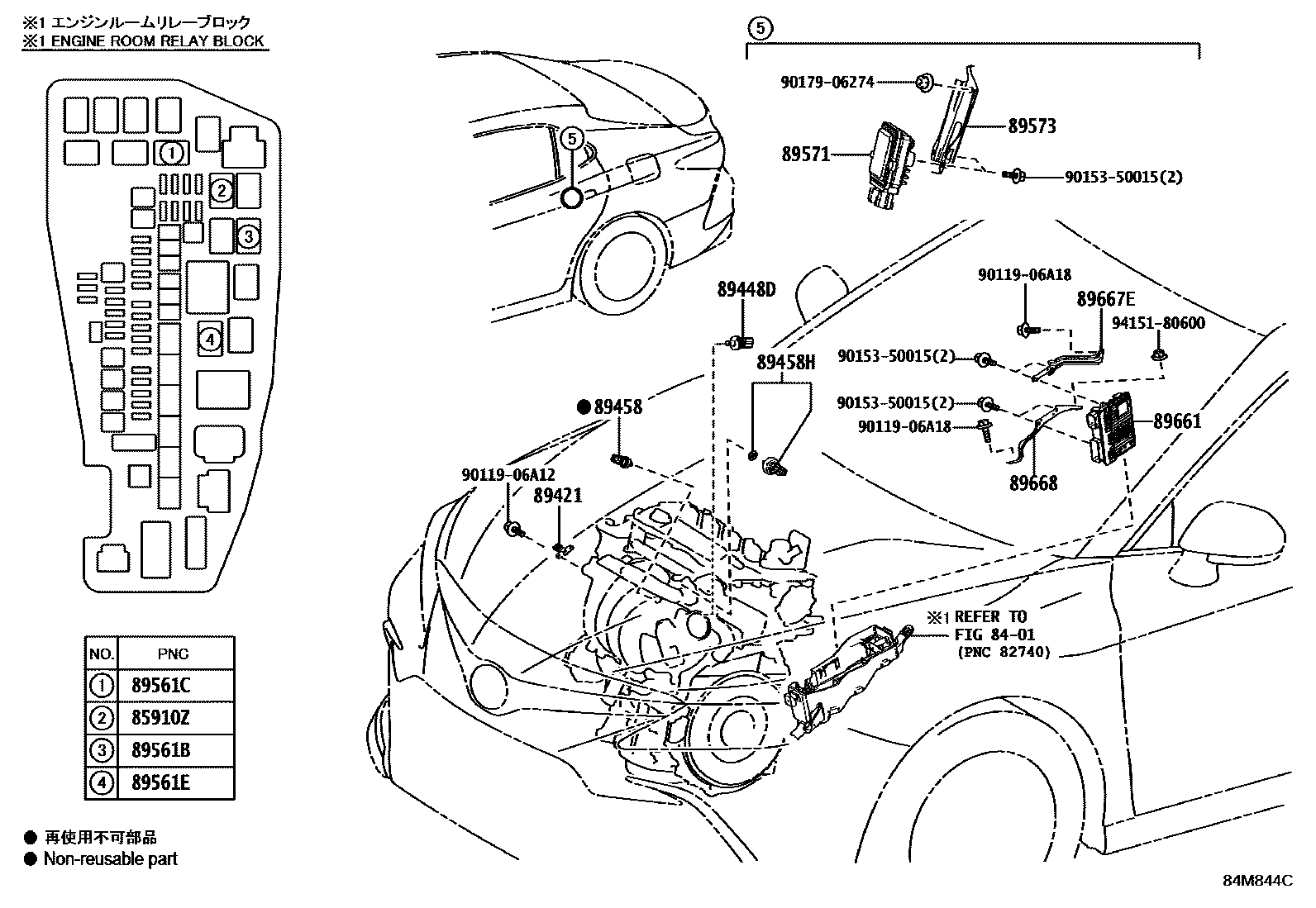

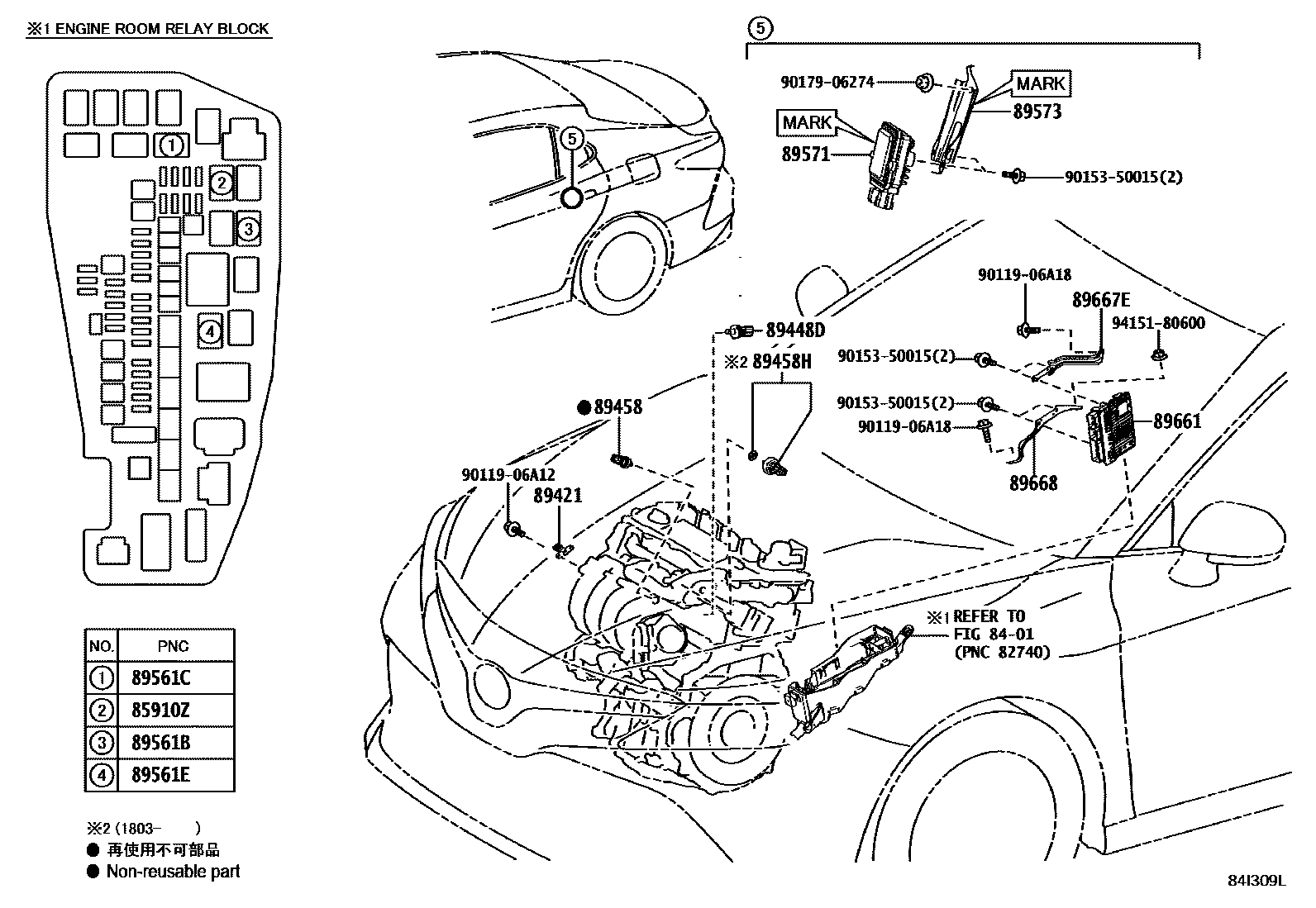

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02027 |
| 85910Z | Injection relay (for EFI) | 90987-02027 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 · 89422-33040 · 89422-47010 |
| 89448D | Oil pressure and sensors | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-33030 |
| 89458H | No. 2 fuel pressure sensor | 89458-33041 · 89458-33042 |
| 89561B | Electronic fuel injection No. 1 main relay | 90987-02027 |
| 89561C | Electronic fuel injection No. 2 main relay | 90987-02027 |
| 89561E | Electronic fuel injection No. 3 main relay | 90987-02027 |
| 89571 | Fuel pump control ECU | 89571-33030 · 89571-42010 · 89571-58010 · 89571-58020 |
| 89573 | Fuel pump control ECU bracket | 89573-33040 · 89573-33070 |
| 89661 | Engine control ECU | 89661-33G20 · 89661-33T10 · 89661-33T20 · 89661-33T60 · 89661-33U00 · 89661-33U01 · 89661-33Y20 · 89661-33Y30 · 89661-33Y31 · 89661-33Y60 · 89661-33Z80 · 89661-3T840 · 89661-3T870 · 89661-3T880 · 89661-3T890 · 89661-3TA20 · 89661-3TA50 · 89661-3TB50 · 89661-3TB60 · 89661-3TB61 · 89661-3TB70 · 89661-3TB80 · 89661-3TC70 · 89661-3TC90 · 89661-3TE40 · 89661-3TE50 · 89661-3TE60 · 89661-3TF10 · 89661-3TF30 · 89661-3TJ80 · 89661-3TK80 · 89661-3TK90 · 89661-3TL40 |
| 89667E | No. 1 engine control ECU bracket | 89667-33190 · 89667-33200 · 89667-33210 |
| 89668 | No. 2 engine control ECU bracket | 89668-33240 · 89668-33250 · 89668-33260 · 89668-33290 |
| 89870B | Electronic drive unit relay | 90987-02027 |
