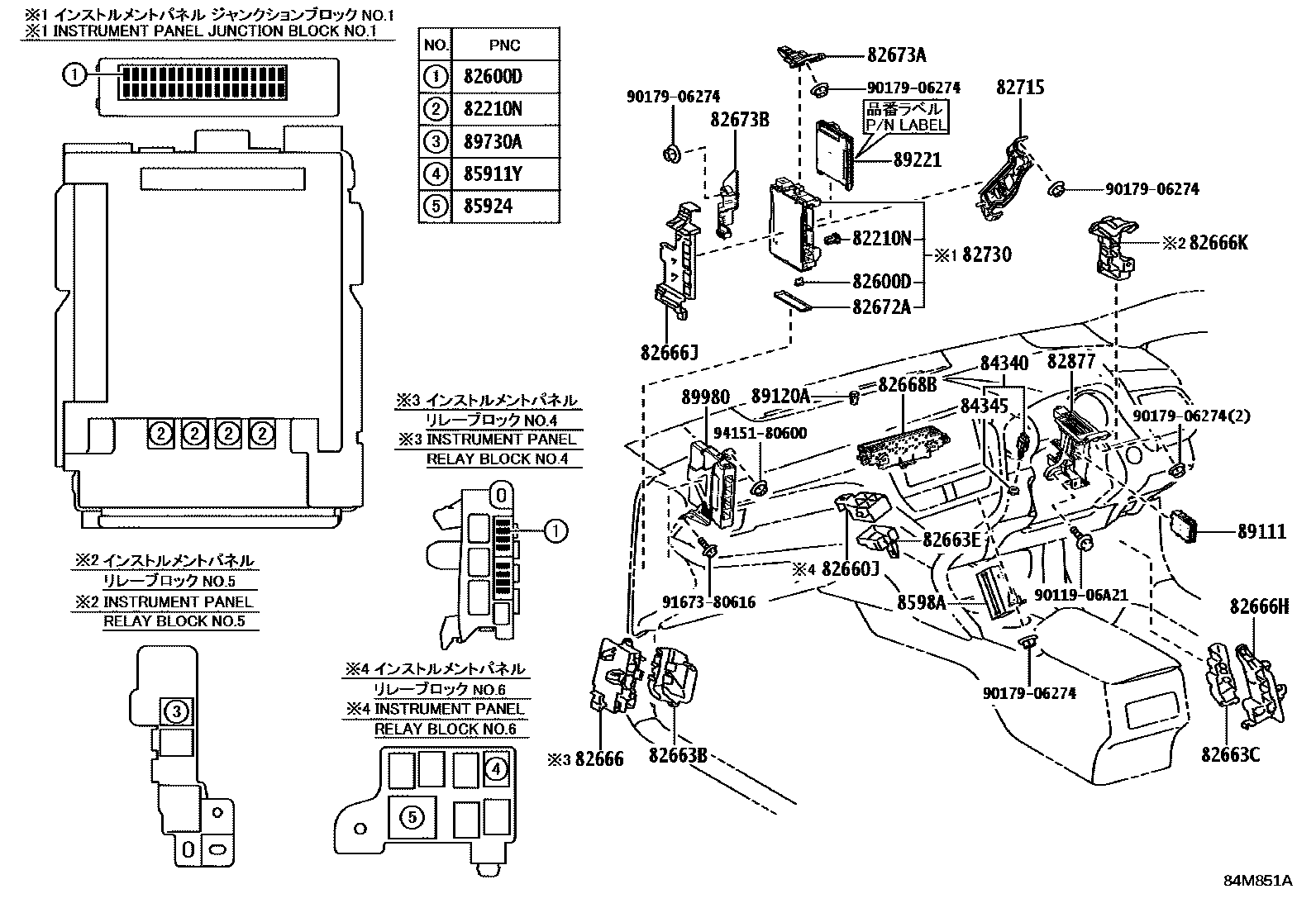

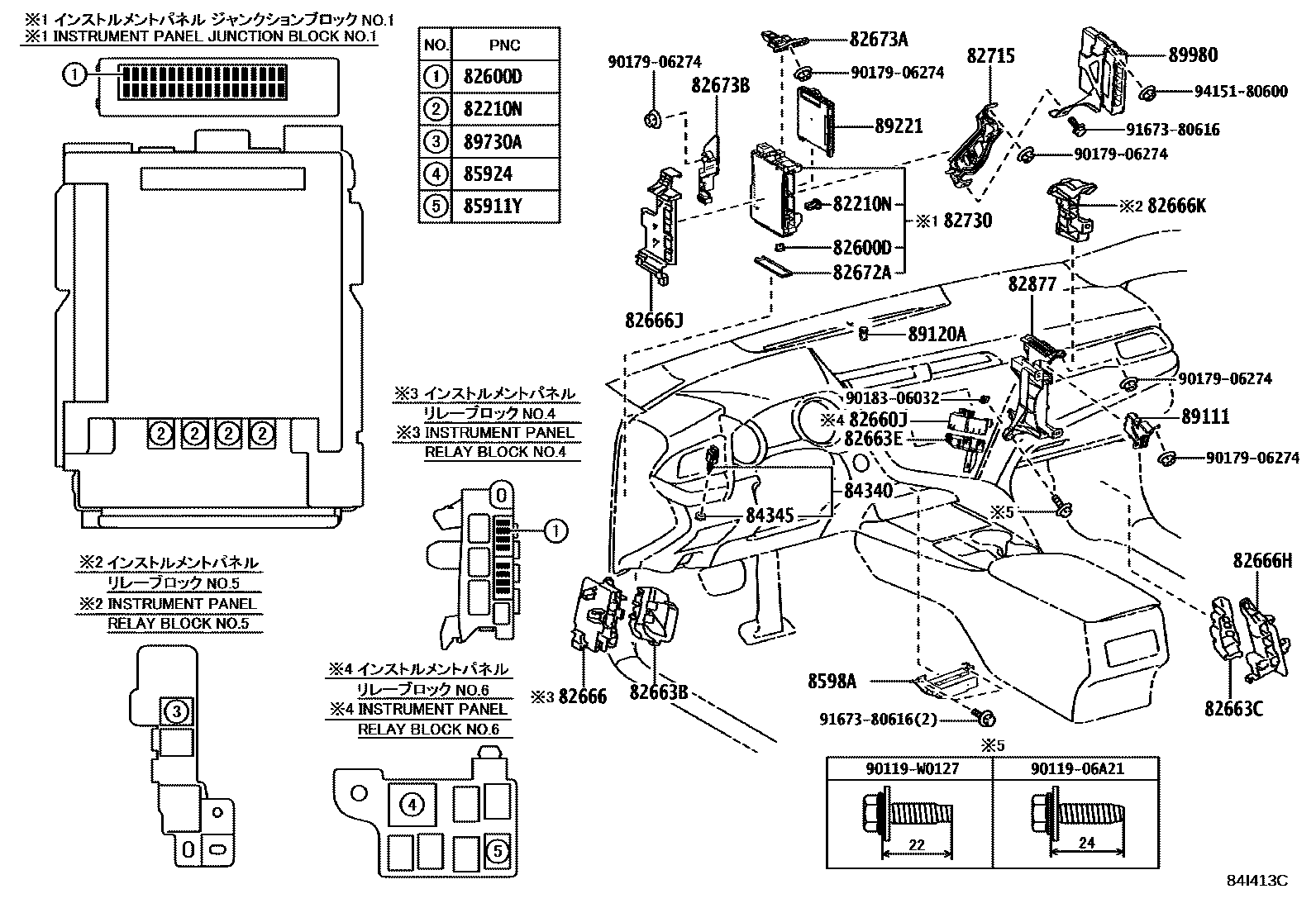

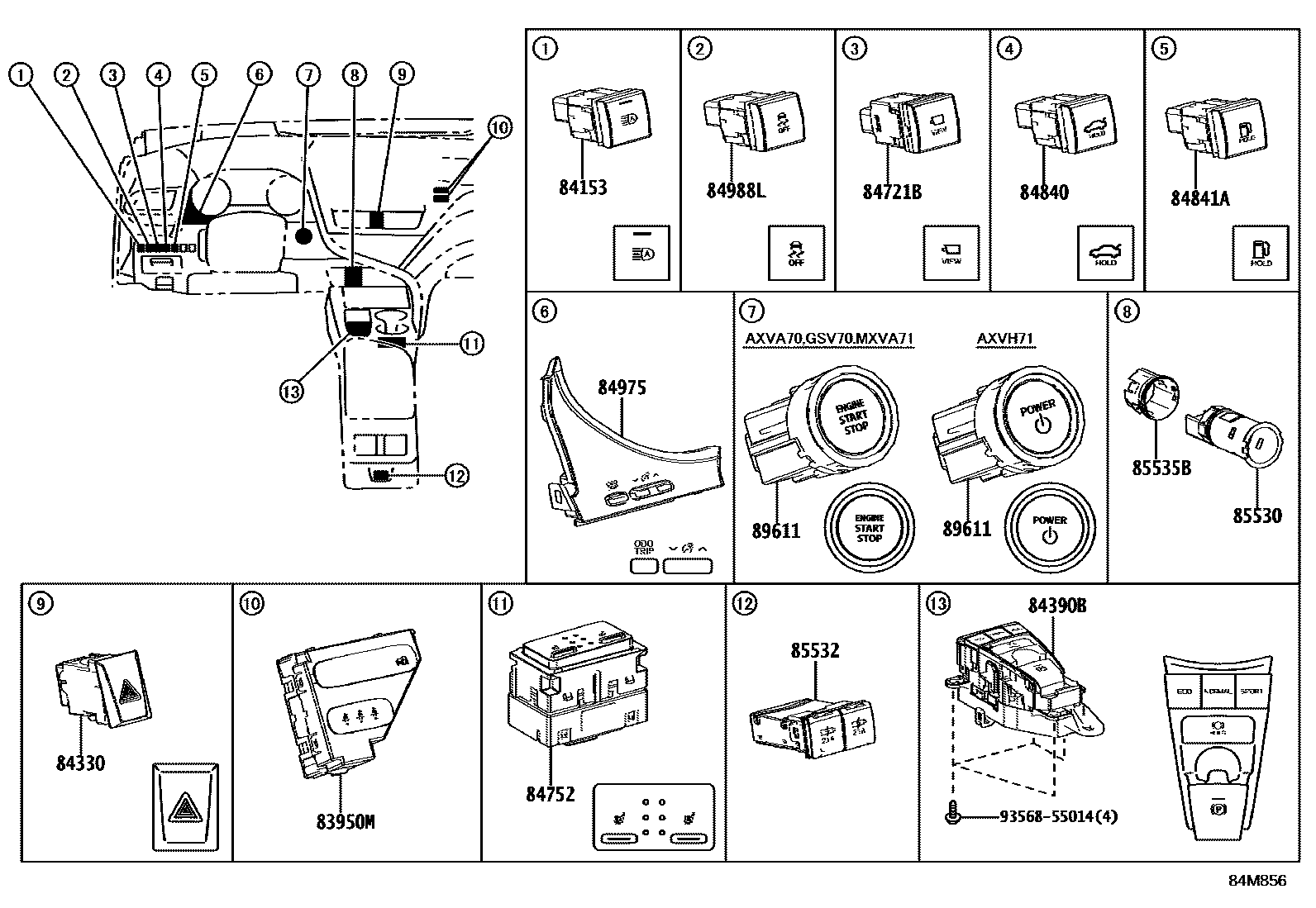

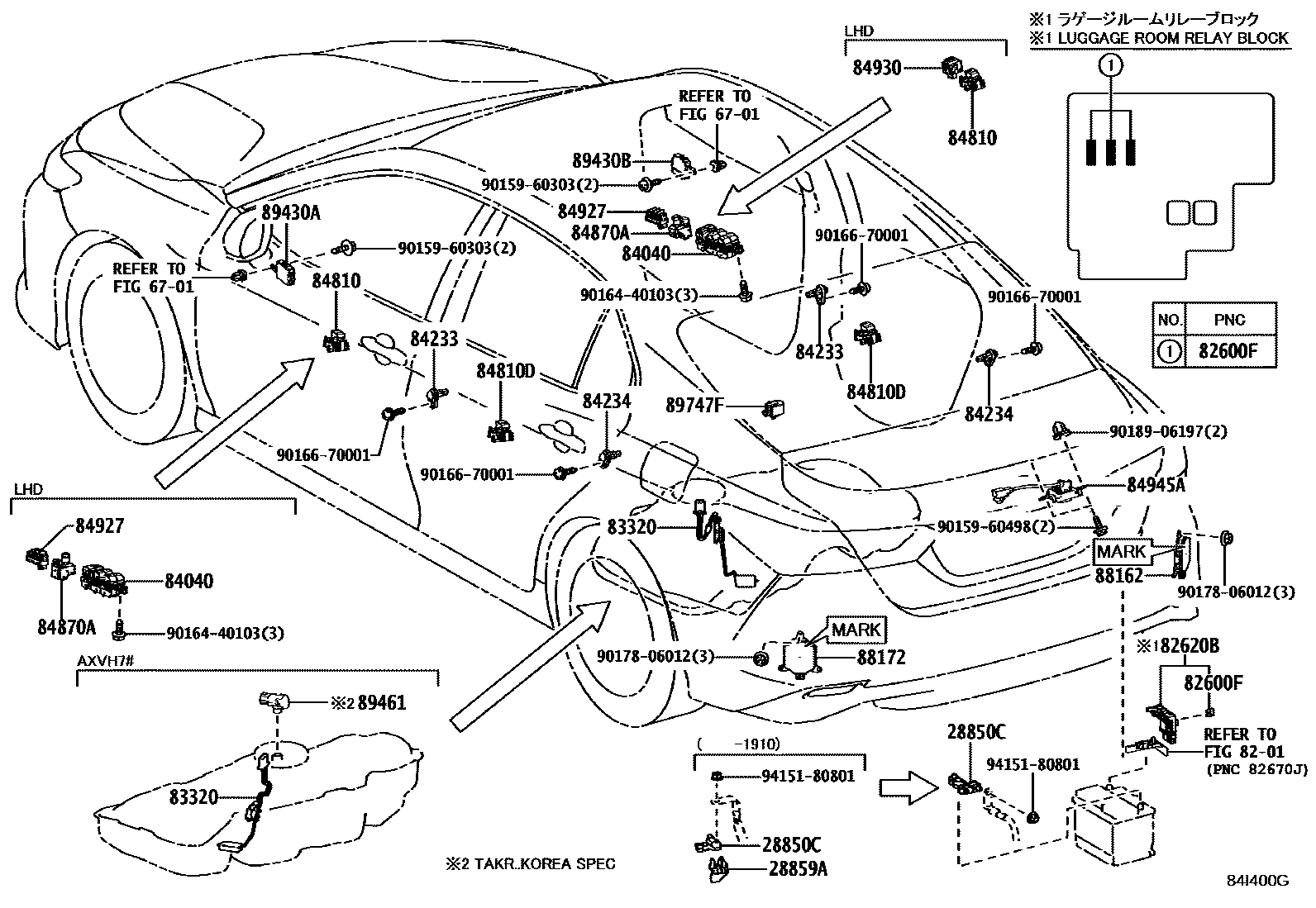

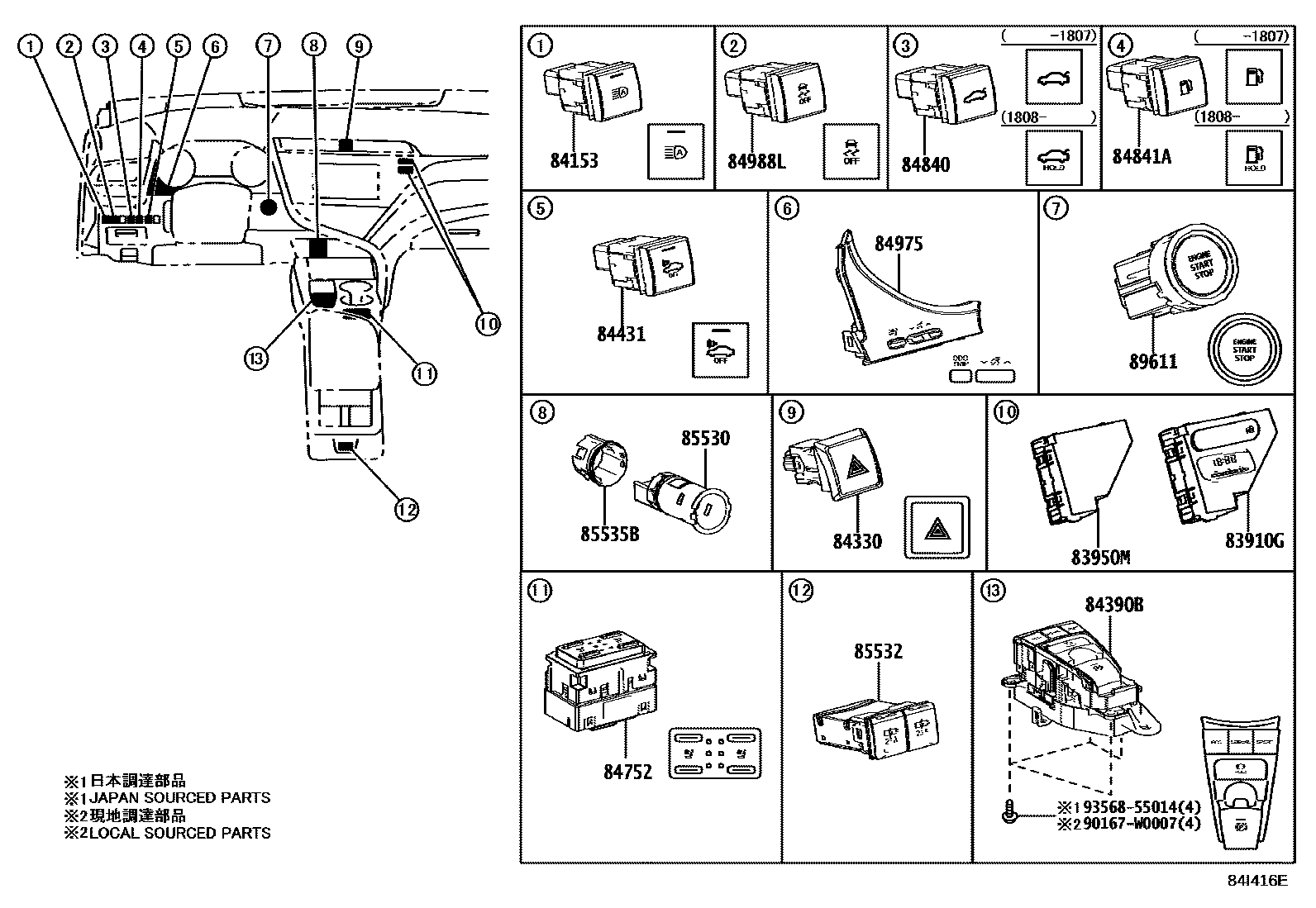

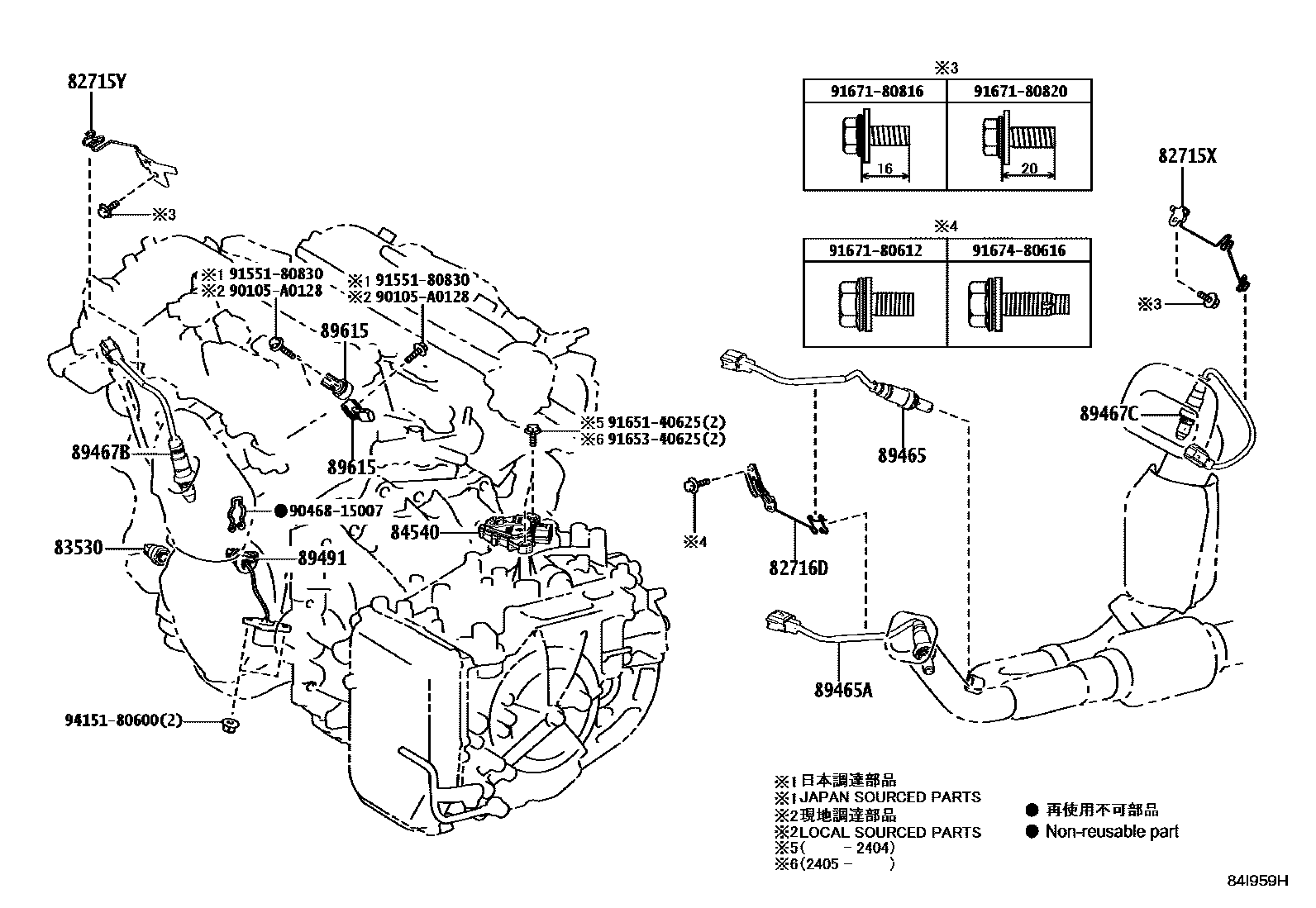

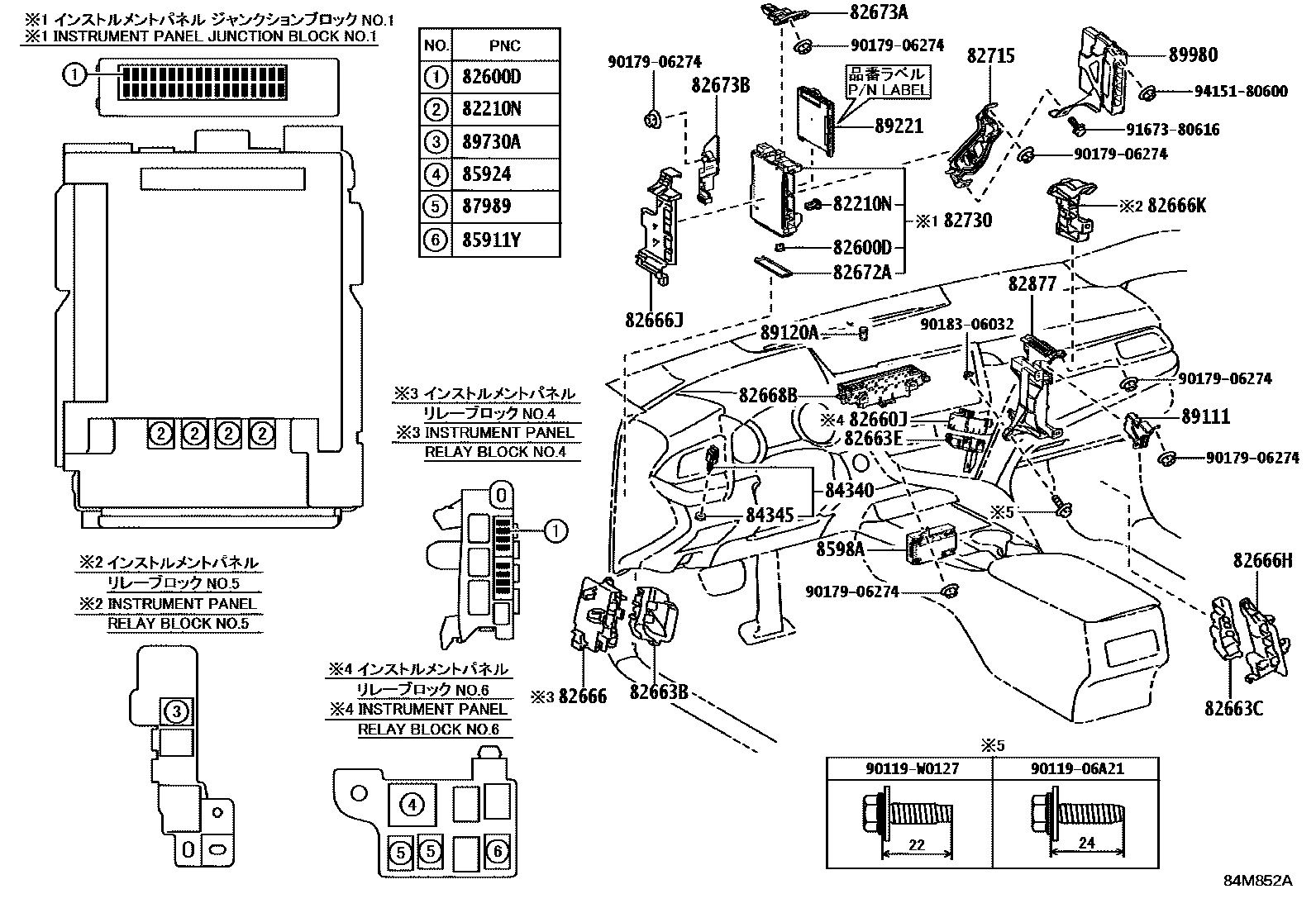

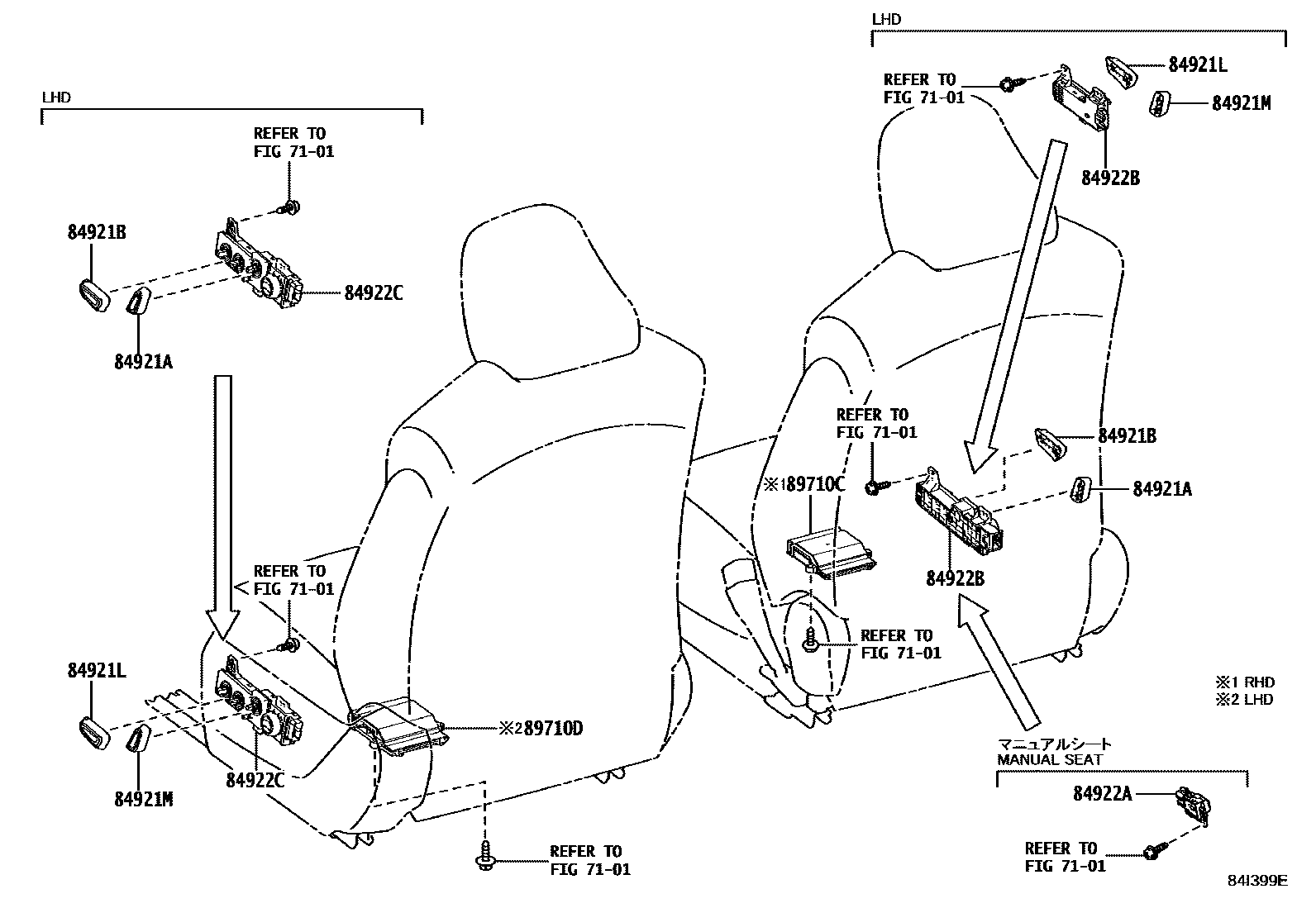

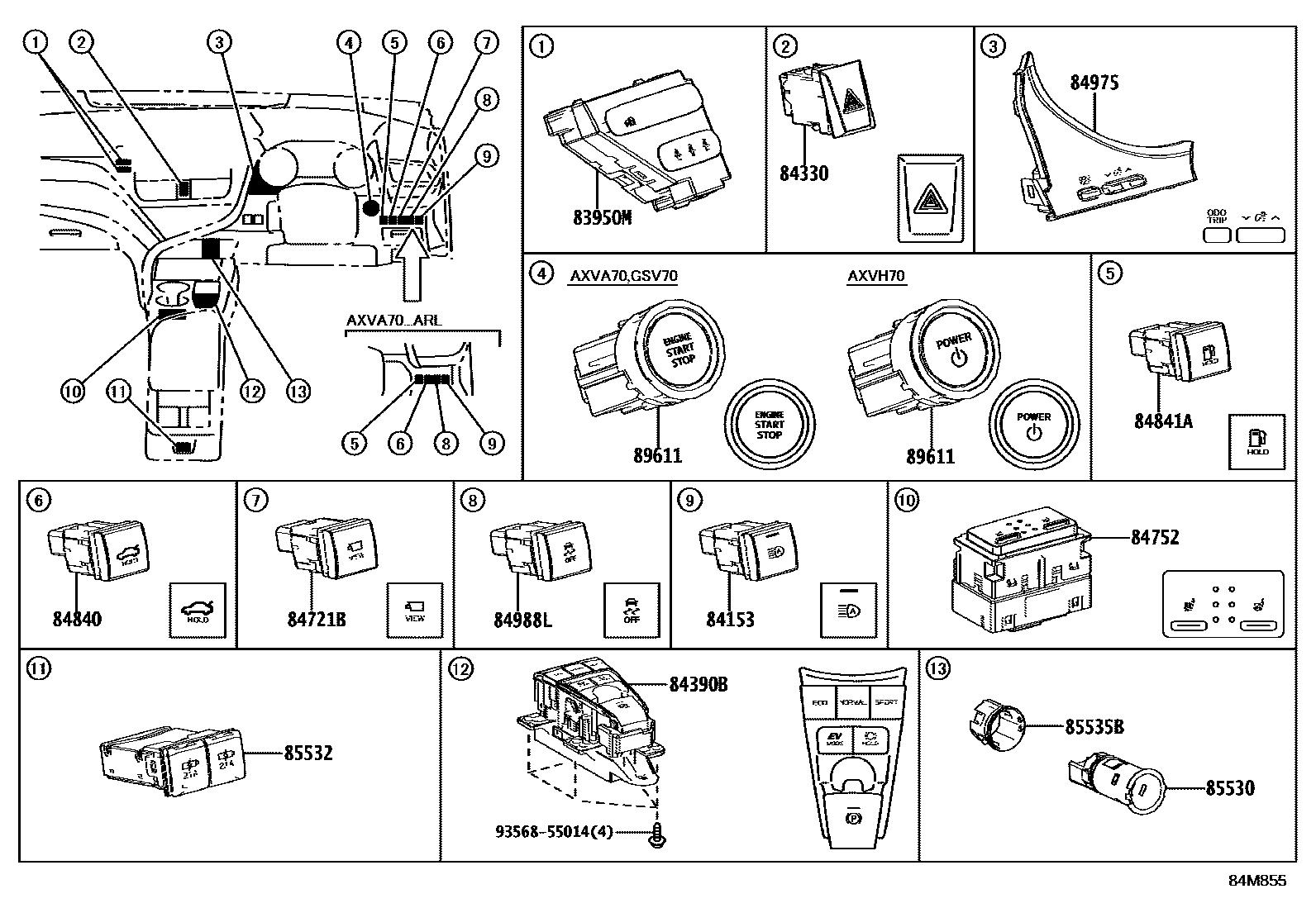

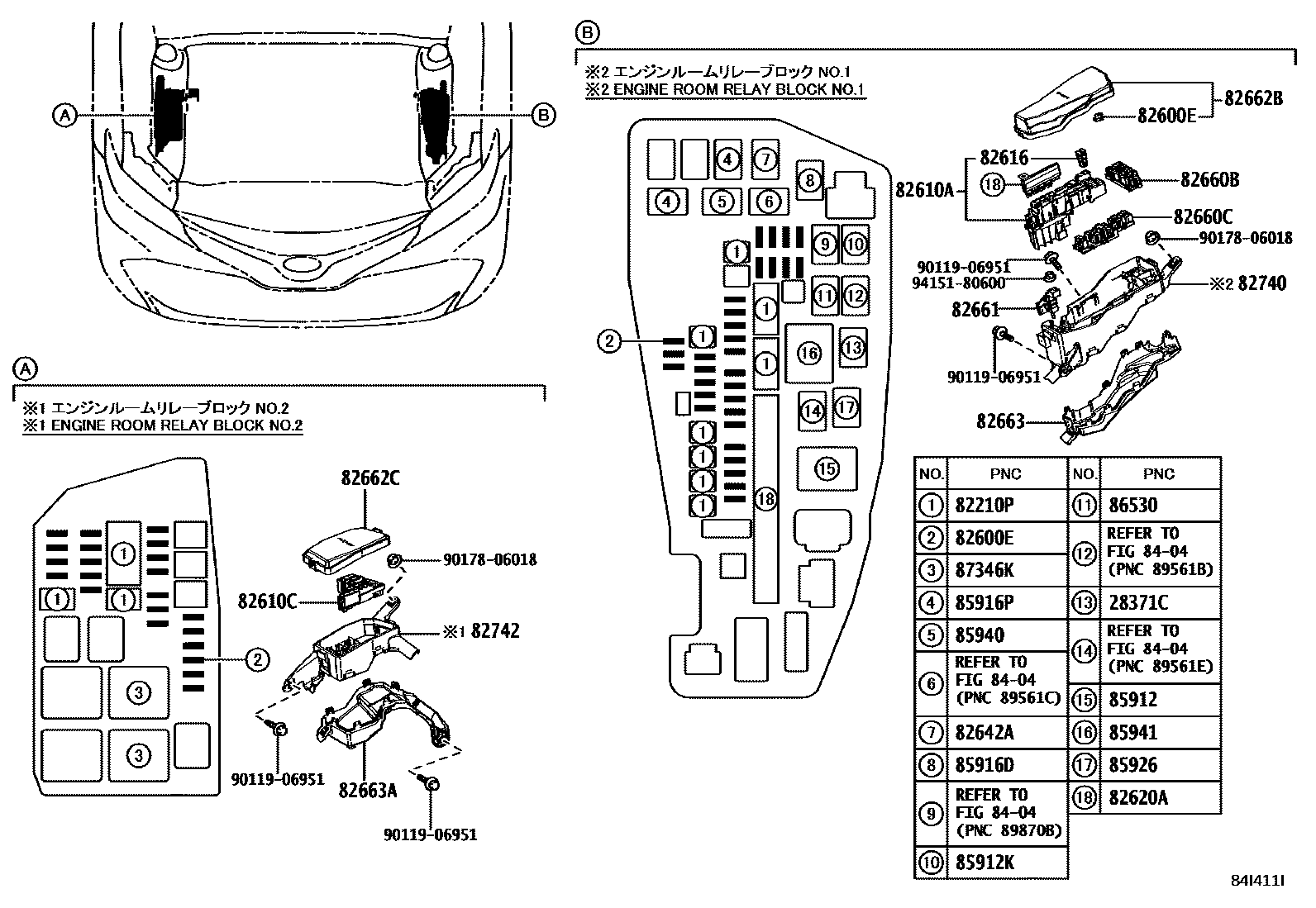

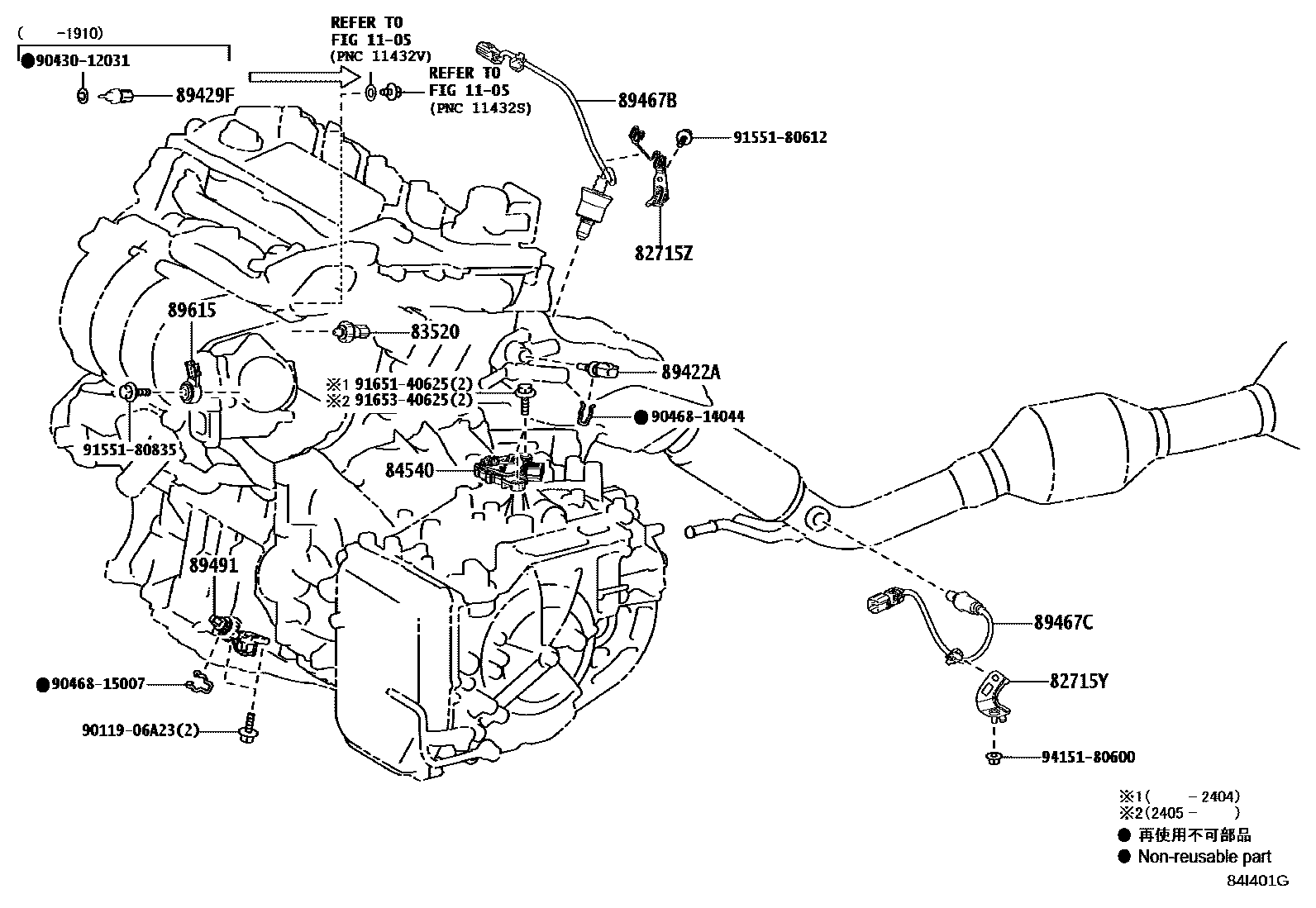

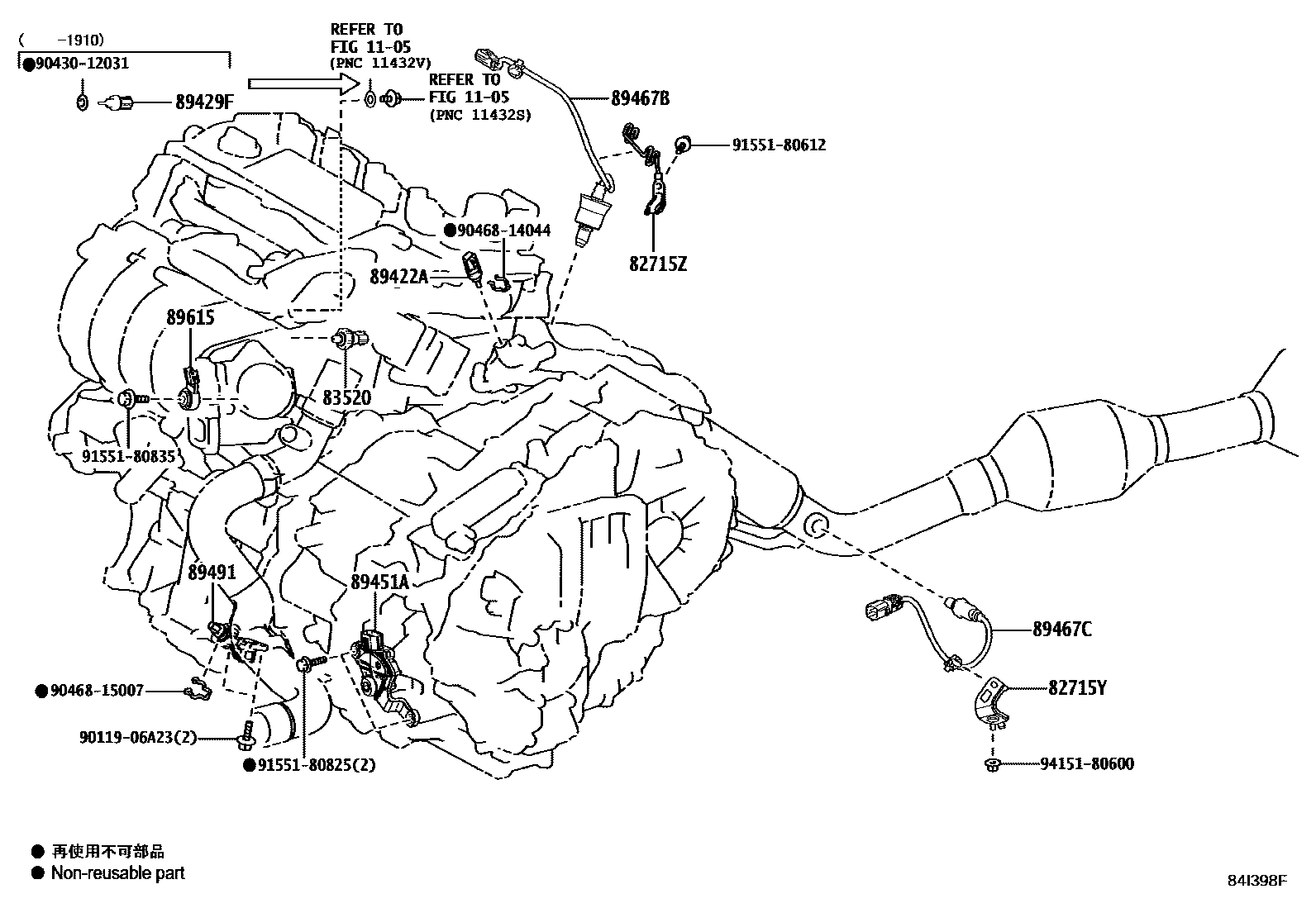

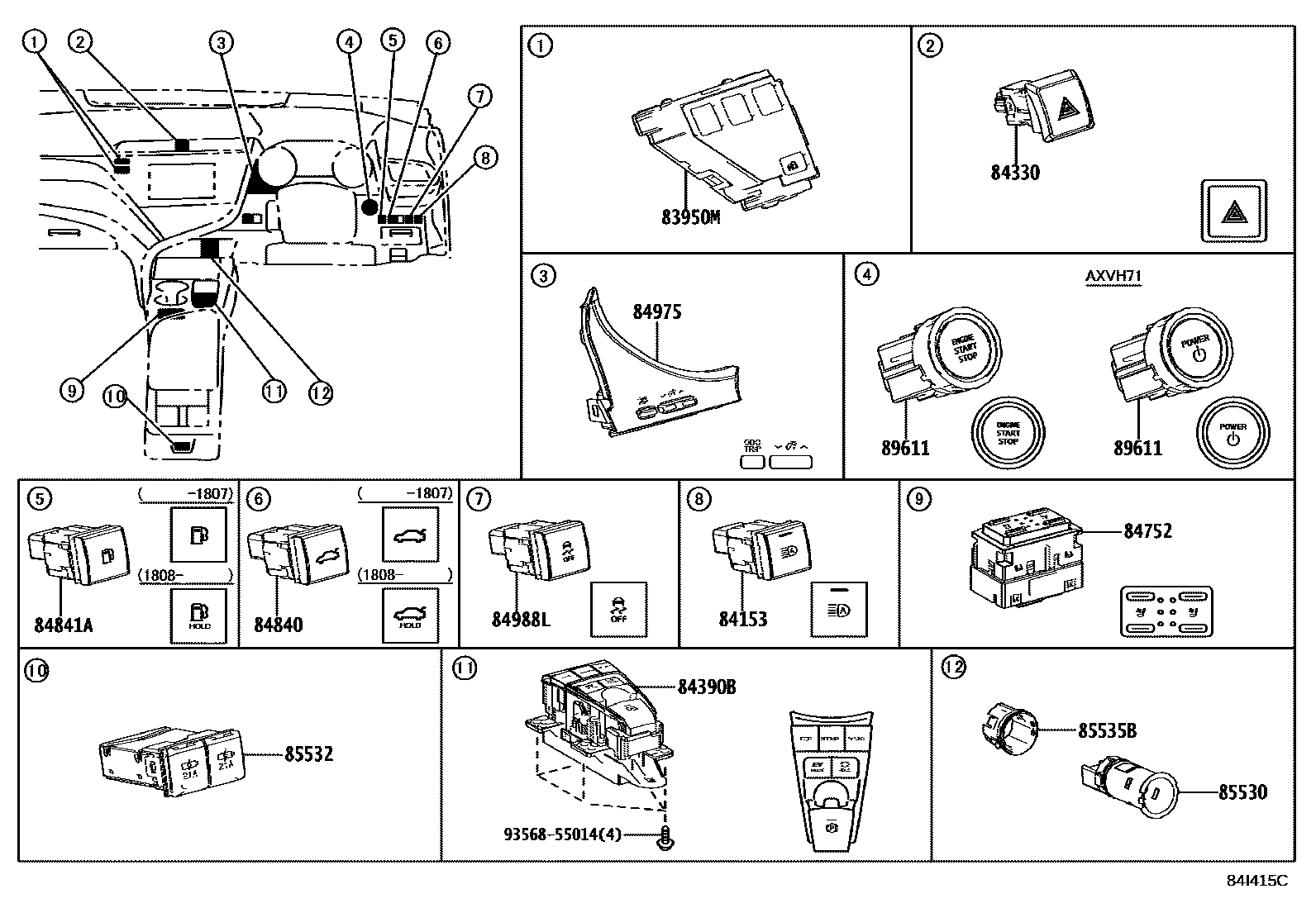

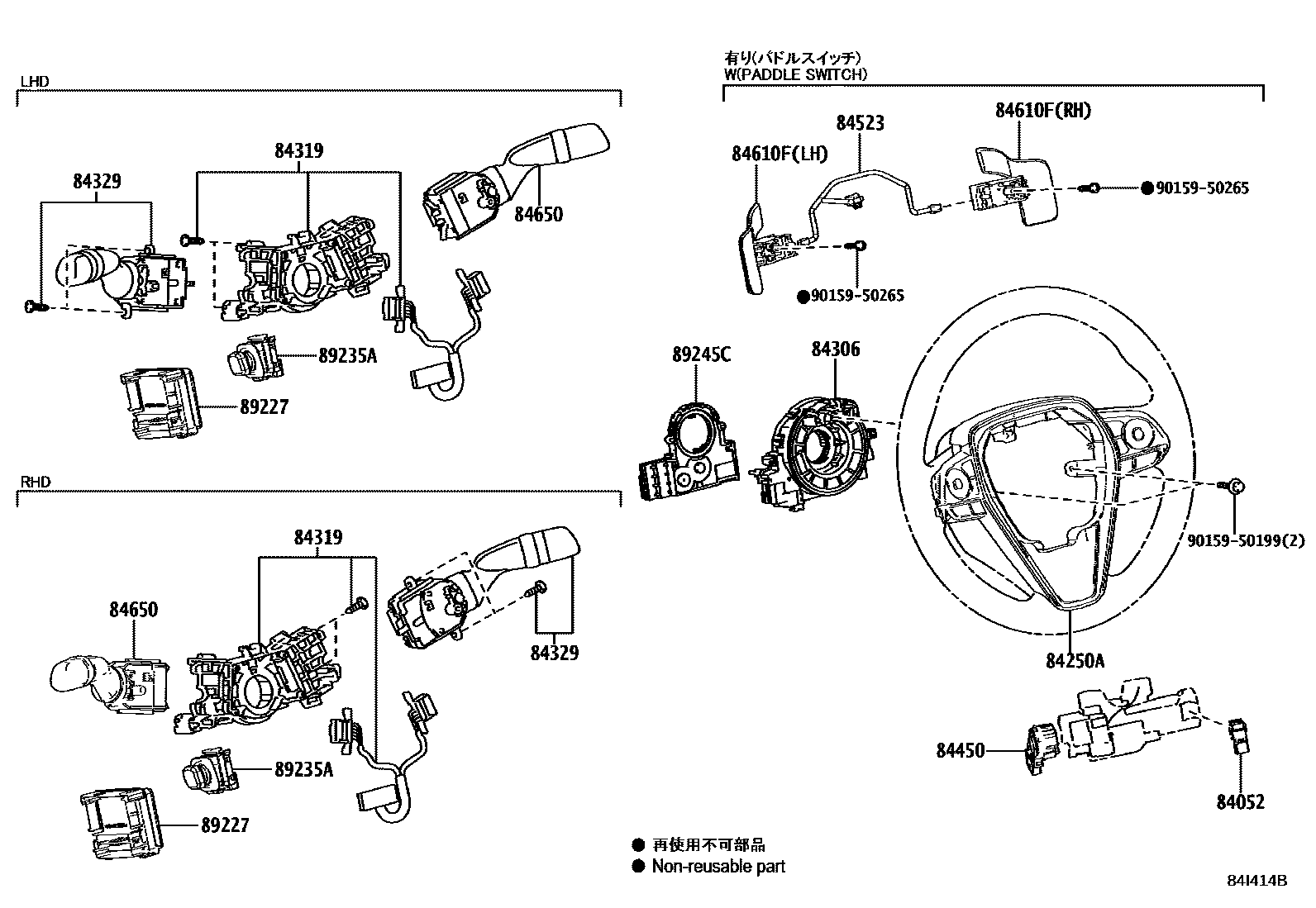

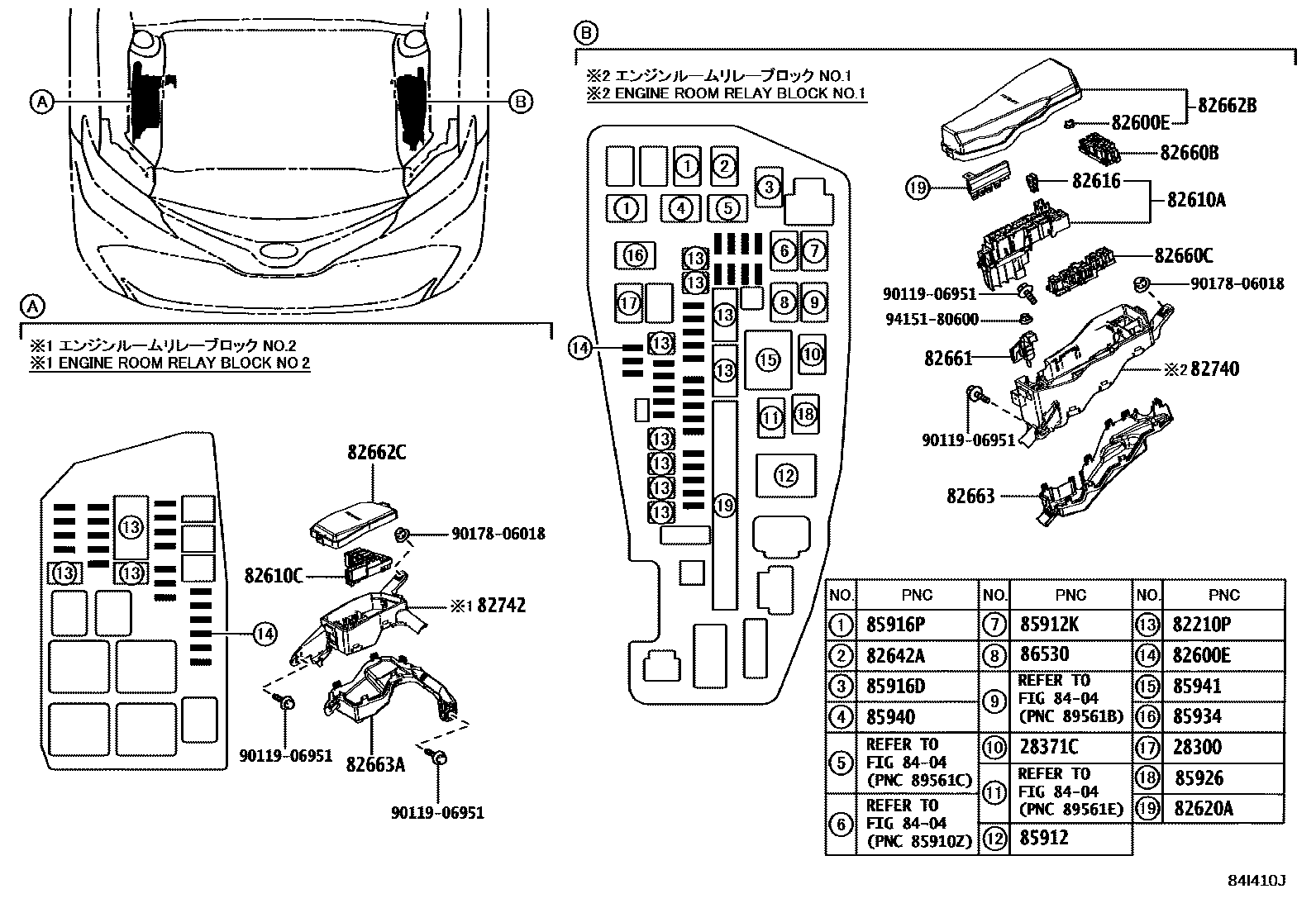

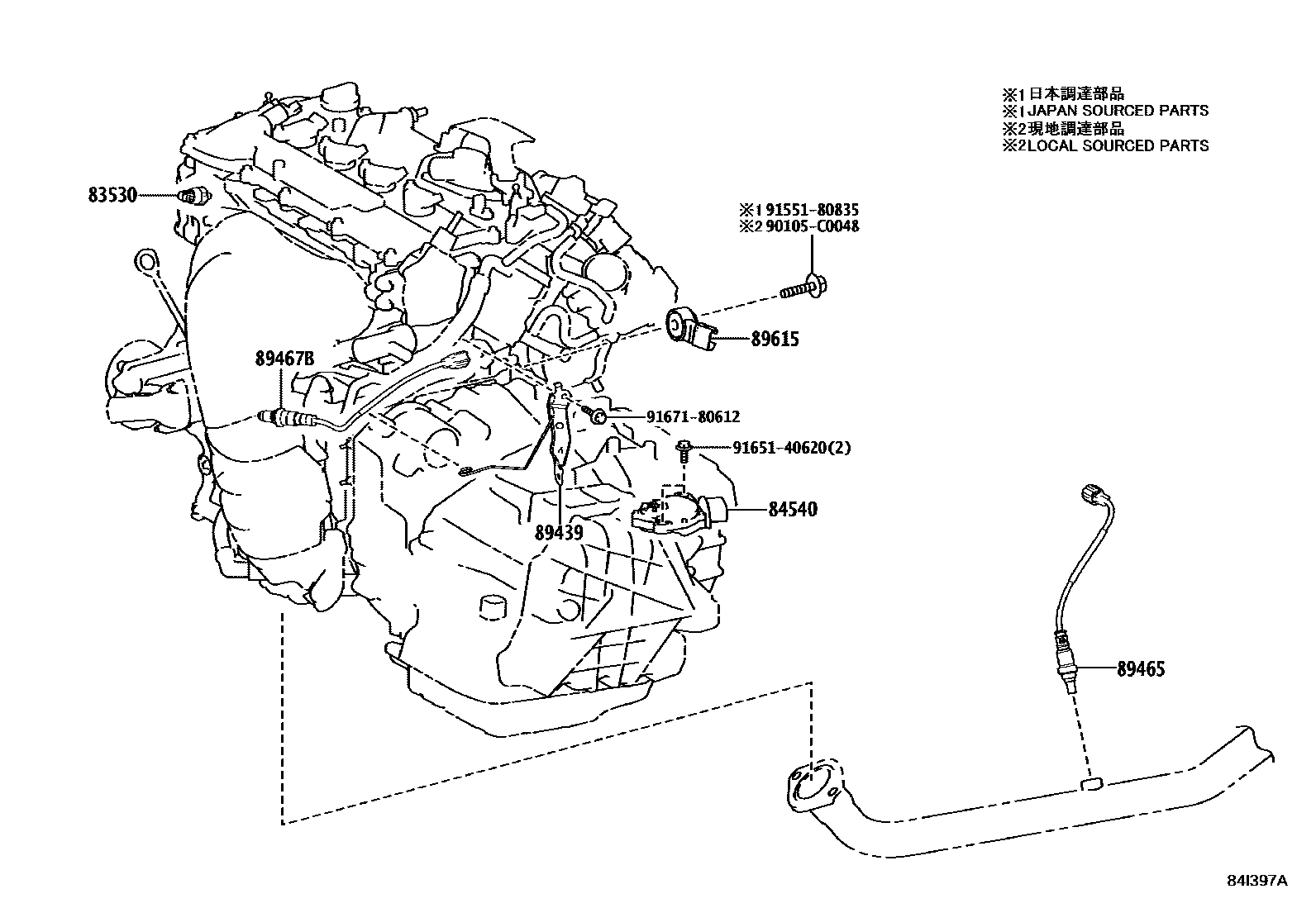

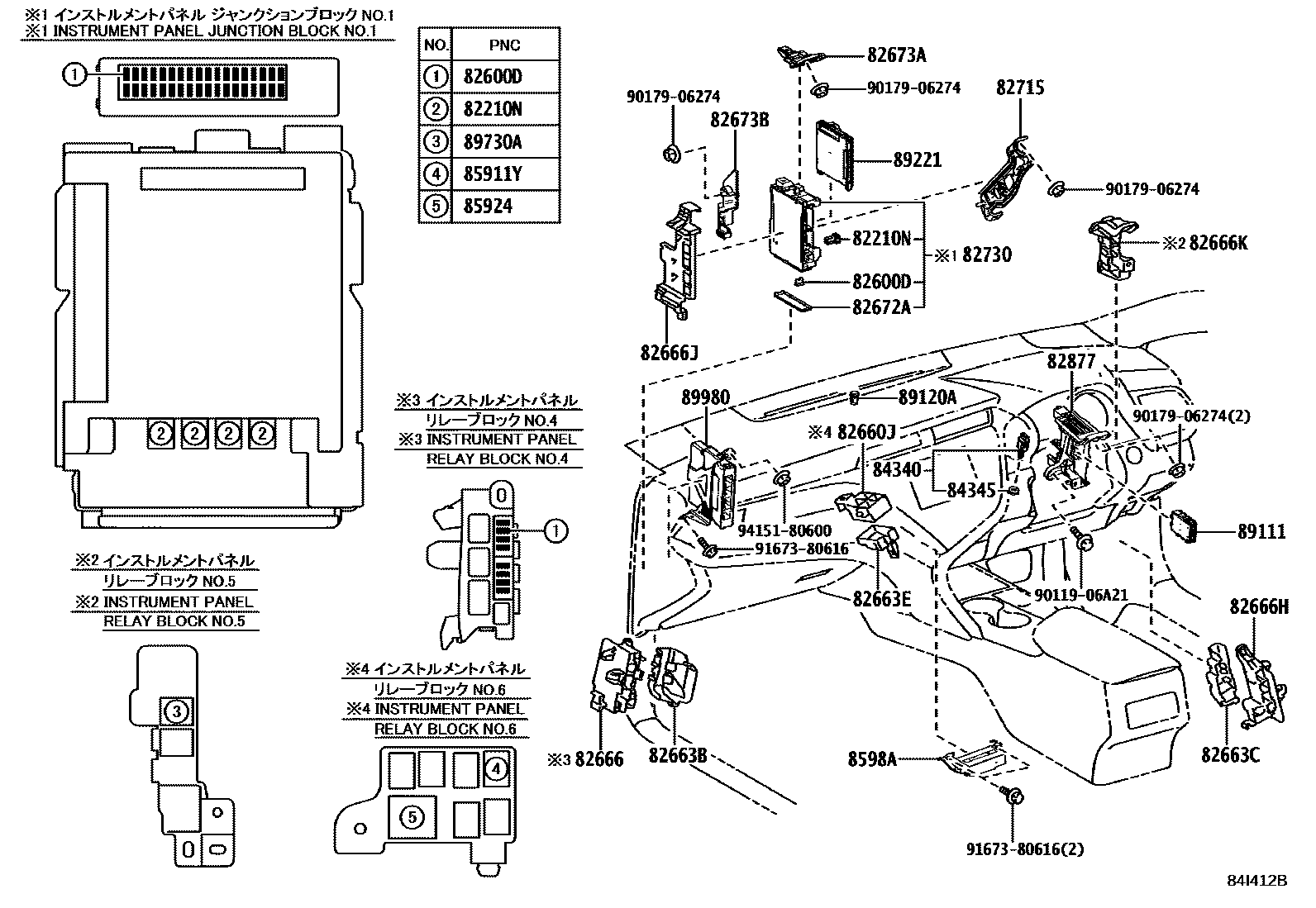

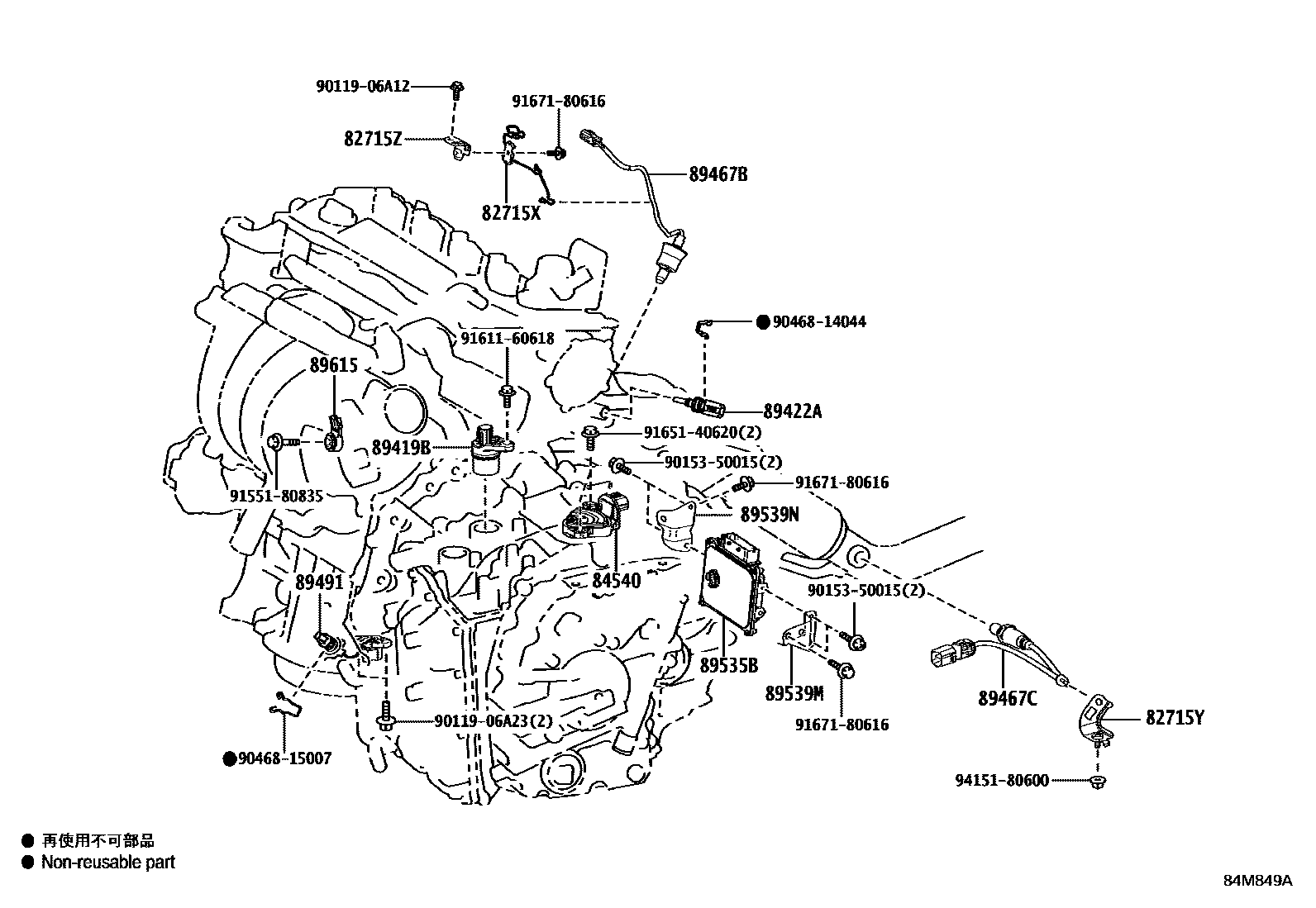

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 18 images and 127 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 28850C | Battery status sensor assembly | 28850-25010 · 28850-70010 |
| 28859A | Battery current sensor mount | 28859-25010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08296 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09020 · 90982-09022 · 90982-09024 |
| 82610A | Fuse box assembly | 82610-33130 · 82610-33140 |
| 82610C | Fuse box assembly | 82610-33150 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33140 |
| 82620B | Fuse box assembly | 82620-33110 · 82620-33111 |
| 82642A | driving light relay | 90987-02027 |
| 82660B | Relay assembly | 82660-33100 |
| 82660C | Relay assembly | 82660-33110 |
| 82660J | Relay assembly | 82660-33060 · 82660-33080 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662B | No. 2 relay box upper cover | 82662-33760 · 82662-33800 · 82662-33810 · 82662-33B20 · 82662-33B21 · 82662-33B50 · 82662-33B51 · 82662-33B52 · 82662-33B60 · 82662-33B61 · 82662-33C30 · 82662-33C31 |
| 82662C | No. 3 relay box upper cover | 82662-33B30 |
| 82663 | Relay box lower cover | 82663-33210 · 82663-33230 |
| 82663A | No. 2 relay box lower cover | 82663-33220 |
| 82663B | No. 3 relay box lower cover | 82663-33240 |
| 82663C | No. 4 relay box lower cover | 82663-33250 |
| 82663E | No. 7 relay box lower cover | 82663-33260 |
| 82666 | Connector holder | 82666-33570 |
| 82666H | Connector holder No. 2 | 82666-33580 |
| 82666J | No. 3 connector holder | 82666-33630 |
| 82666K | No. 4 connector holder | 82666-33640 |
| 82668B | No. 5 connector holder | 82666-33590 |
| 82672A | Junction box cover | 82672-33390 · 82672-33391 |
| 82673A | Junction box bracket | 82673-33120 |
| 82673B | Junction box bracket | 82673-33150 |
| 82715 | Wire harness clamp bracket | 82715-33Q20 · 82715-33T30 |
| 82715X | No. 2 wire harness clip bracket | 82715-12V90 · 82715-33T50 |
| 82715Y | No. 3 wire harness clip bracket | 82715-33J90 · 82715-33K30 |
| 82715Z | Wire harness clamp bracket | 82715-12X50 · 82715-33K11 |
| 82716D | No. 2 wire harness clip bracket | 82715-33K00 |
| 82730 | Instrument panel junction box assembly | 82730-33Q10 · 82730-33Q11 · 82730-33Q30 · 82730-33Q31 |
| 82740 | Engine room relay box assembly | 82740-33080 · 82740-33090 |
| 82742 | Engine room No. 2 relay box | 82742-33050 |
| 82877 | Right ECU integrated box | 82877-33030 · 82877-33040 |
| 83320 | Fuel gauge sensor assembly | 83320-33150 · 83320-33160 |
| 83520 | Oil pressure gauge sensor assembly | 83520-33010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-33260 |
| 83950M | Warning light assembly | 83950-33060 · 83950-33070 · 83950-33080 · 83950-33100 · 83950-33110 · 83950-33170 · 83950-33210 |
| 84040 | Multi-channel network main switch assembly | 84040-10030 · 84040-10040 · 84040-12230 · 84040-12240 · 84040-33140 · 84040-33150 · 84040-33160 · 84040-33170 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84153 | Automatic high beam switch | 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84306 | Spiral cable sub-assembly | 84308-11010 · 84308-33090 |
| 84319 | Steering wheel switch housing | 84319-11010 · 84319-33030 |
| 84329 | turn signal switch | 84329-33060 · 84329-33070 · 84329-33090 · 84329-33120 · 84329-33130 |
| 84330 | Hazard warning signal switch assembly | 84332-33100 · 84332-33110 · 84332-33140 |
| 84340 | brake light switch assembly | 84340-19095 · 84340-49075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-33010 · 84390-33020 · 84390-33030 · 84390-33040 · 84390-33050 · 84390-33060 · 84390-33080 · 84390-33090 |
| 84431 | vehicle intrusion speaker switch | 84431-33060 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-33010 · 84540-33020 · 84540-33021 |
| 84610F | Transmission shift switch assembly | 84610-33010 · 84610-33011 · 84610-33020 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-33580 · 84652-33590 · 84652-33600 · 84652-33610 |
| 84721B | Panoramic display switch | 84721-33010 |
| 84752 | Relax seat switch | 84752-33110 · 84752-33120 · 84752-33130 · 84752-33400 |
| 84810 | Electric window lift switch assembly | 84810-12120 · 84810-26040 · 84810-47010 · 84810-48030 |
| 84810D | Rear electric window lift switch assembly | 84810-12120 · 84810-26040 · 84810-47010 · 84810-48030 |
| 84840 | Trunk door opening switch assembly | 84840-33120 · 84840-33121 |
| 84841A | Fuel filler cap opener switch | 84841-33040 · 84841-33041 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12120 · 84872-12150 · 84872-12160 · 84872-12190 · 84872-15010 · 84872-33040 · 84872-33070 · 84872-33080 · 84872-33090 · 84872-33120 · 84872-33170 · 84872-47020 · 84872-47030 · 84872-60110 · 84872-60160 · 84872-62050 |
| 84922B | Front right electric seat switch | 84922-33140 |
| 84927 | Seat memory switch | 84927-33120 · 84927-33130 |
| 84930 | Door control switch assembly | 84930-47030 |
| 84945A | Luggage electronic key switch | 84945-33040 |
| 84975 | trip odometer switch | 84975-33040 · 84975-33050 |
| 84988L | VSC off switch | 84988-33100 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85532 | USB charging socket | 85532-33010 · 85532-33020 · 85532-60020 |
| 85535B | No. 1 power outlet cover | 85535-33100 |
| 85911Y | Front seat heater relay | 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | VVT relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02027 |
| 85924 | Ignition control relay | 90987-02031 |
| 85926 | Headlight dimmer relay | 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90987-02027 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 90987-02027 |
| 85941 | windshield washer relay | 90987-02025 |
| 8598A | door control battery | 8598A-33010 · 8598A-33030 · 8598A-33040 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87346K | PTC heater relay | 90987-02025 |
| 87989 | Rearview mirror control relay | 90987-04004 |
| 88162 | Blind spot monitor right sensor | 88162-33030 · 88162-33070 · 88162-33071 · 88162-33120 · 88162-33130 · 88162-33131 |
| 88172 | Blind spot monitor left sensor | 88162-33030 · 88162-33070 · 88162-33071 · 88162-33120 · 88162-33130 · 88162-33131 |
| 89111 | Network gateway ECU | 89100-33020 · 89100-33021 · 89100-33030 · 89100-33040 · 89100-33050 · 89111-10060 · 89111-12030 · 89111-33180 · 89111-33190 · 89111-76040 · 89111-76050 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-33R70 · 89220-33R80 · 89220-33R90 · 89220-33S00 · 89220-33S10 · 89220-33S20 · 89220-33U10 · 89220-33Z40 · 89220-33Z50 · 89220-33Z60 · 89220-33Z70 · 89220-33Z80 · 89220-33Z90 · 89220-3T040 · 89220-3T140 · 89220-3T150 · 89220-3T160 · 89220-3T170 · 89220-3T180 · 89220-3T190 · 89220-3T200 · 89220-3T210 · 89220-3T220 · 89220-3T290 · 89220-3T360 · 89220-3T370 · 89220-3T800 · 89220-3T810 · 89220-3T830 · 89220-3T840 · 89220-3T850 · 89220-3T860 · 89220-3T870 · 89220-3T880 · 89220-3T890 · 89220-3TQ00 · 89220-3TQ10 · 89220-3TQ30 · 89220-3TQ40 · 89220-3TQ50 · 89220-3TQ60 · 89220-3TQ70 · 89220-3TQ80 · 89220-3TQ90 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-33030 · 89227-48070 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245C | steering sensor | 8924B-33040 · 8924B-50050 |
| 89419B | gear shift sensor | 89419-12011 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89430A | Left exterior rearview mirror control ECU assembly | 89430-33250 · 89430-33251 |
| 89430B | Right exterior mirror control ECU assembly | 89430-33260 · 89430-33261 |
| 89439 | Sensor holder | 82715-33T60 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-48020 |
| 89465 | oxygen sensor | 89465-33620 · 89465-42230 |
| 89465A | Oxygen sensor No. 2 | 89465-33630 |
| 89467B | air fuel ratio sensor | 89467-12280 · 89467-33270 · 89467-33290 · 89467-48270 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-33210 · 89467-48320 |
| 89491 | Engine oil level sensor | 89491-33050 · 89491-33051 · 89491-33052 · 89491-48020 · 89491-48021 · 89491-48040 · 89491-48041 |
| 89535B | Transmission control ECU | 89535-33050 |
| 89539M | No. 1 transmission control ECU bracket | 89539-42080 |
| 89539N | No. 2 transmission control ECU bracket | 89539-42090 |
| 89611 | One-button start switch | 89611-30142 · 89611-30143 · 89611-30144 · 89611-30145 · 89611-42012 · 89611-42013 · 89611-42014 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89710C | Right position control ECU assembly | 89710-33070 · 89710-33071 |
| 89710D | Left position control ECU assembly | 89710-33060 · 89710-33061 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89980 | Hybrid vehicle control ECU assembly | 89980-33150 · 89980-33160 · 89980-33310 · 89980-33360 · 89980-33510 · 89980-33530 · 89980-33640 · 89980-33660 · 89980-33740 |
