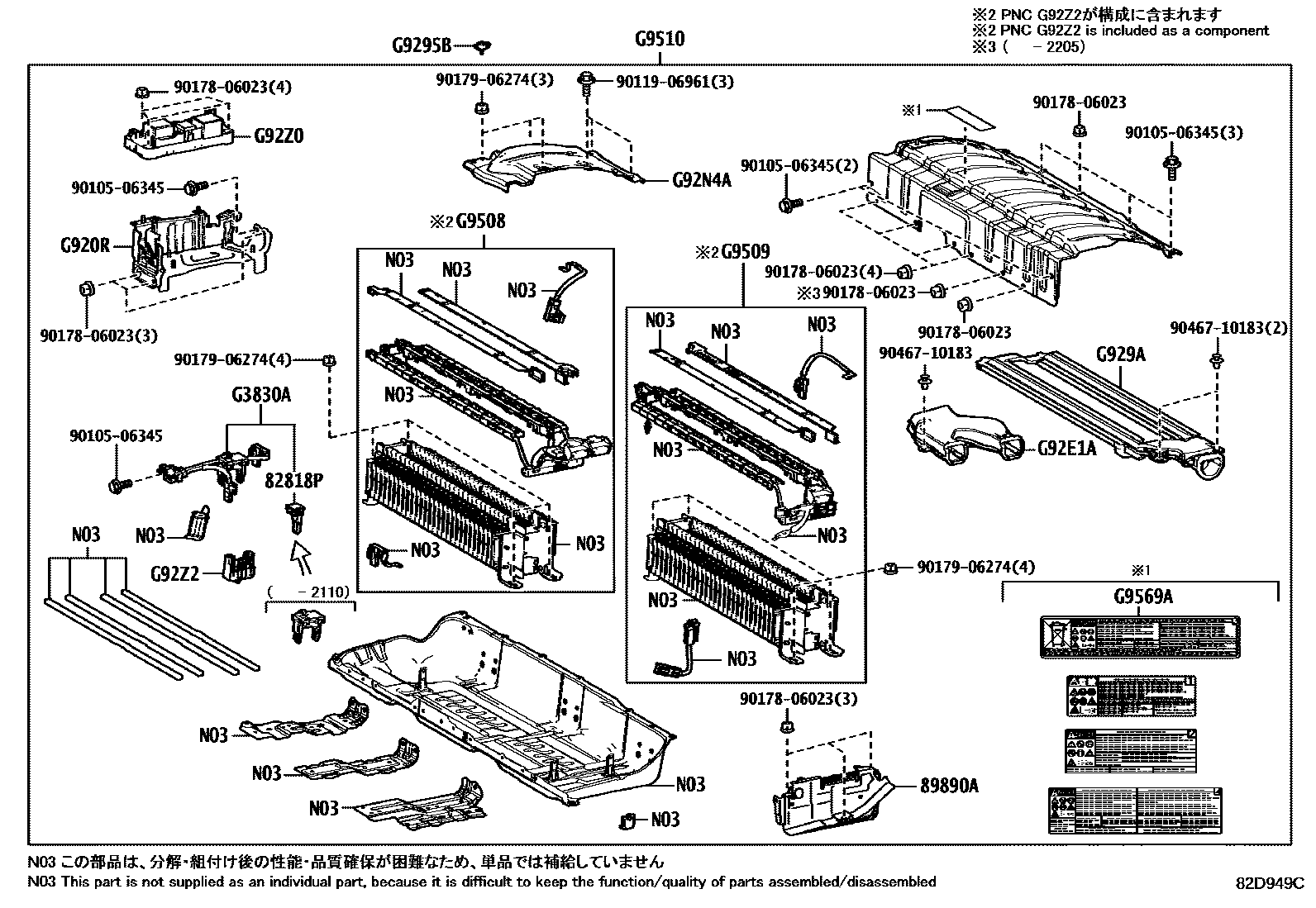

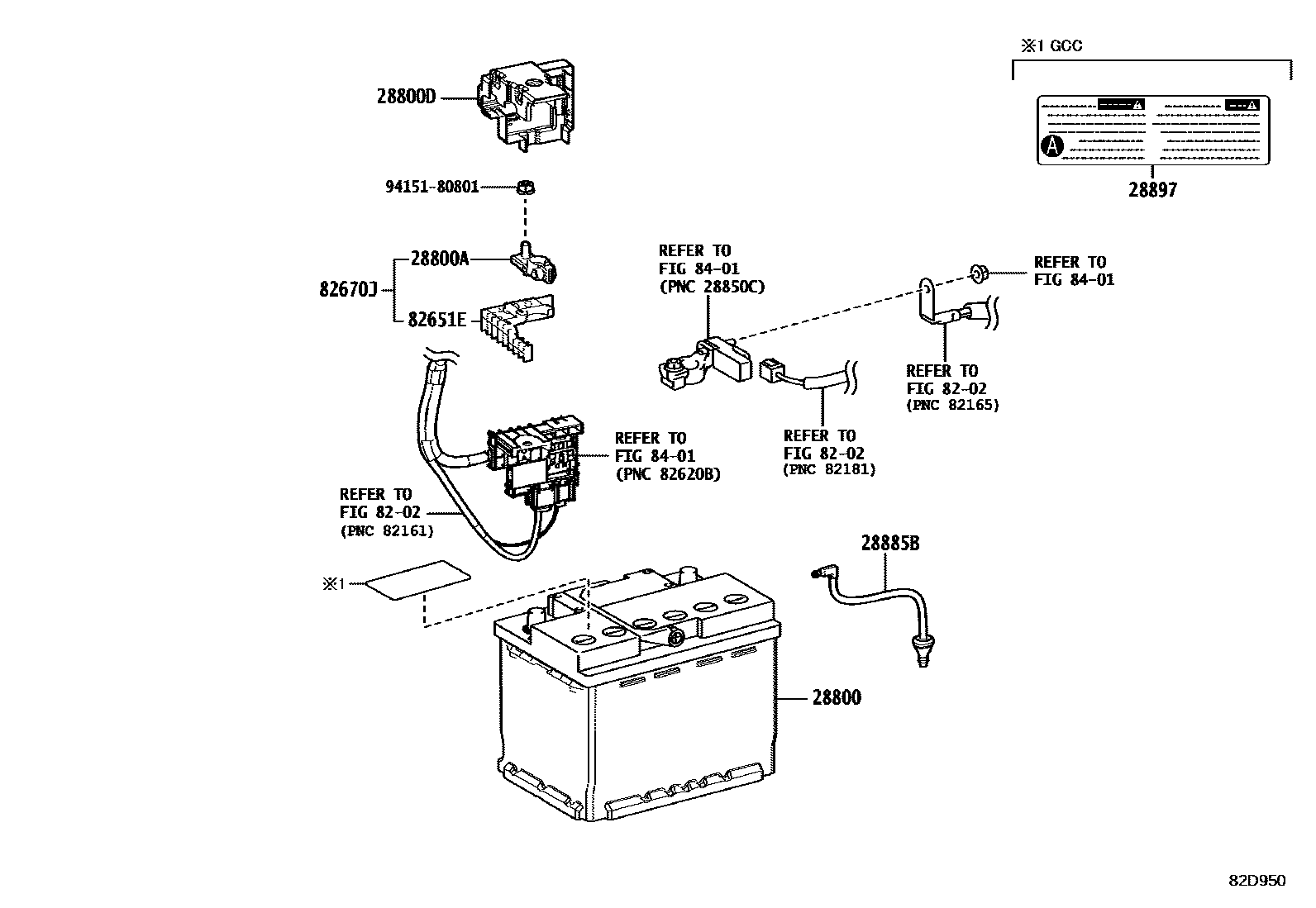

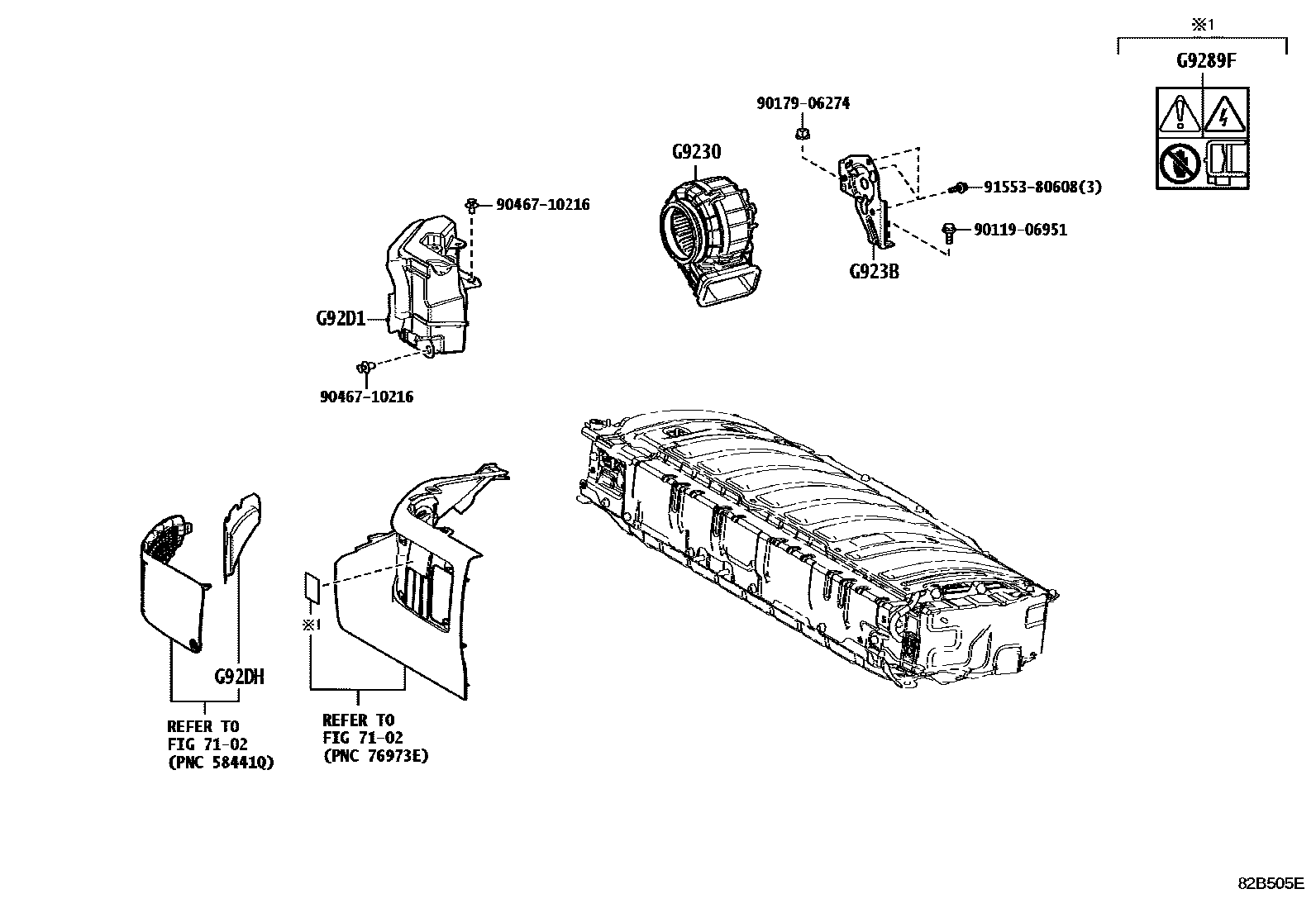

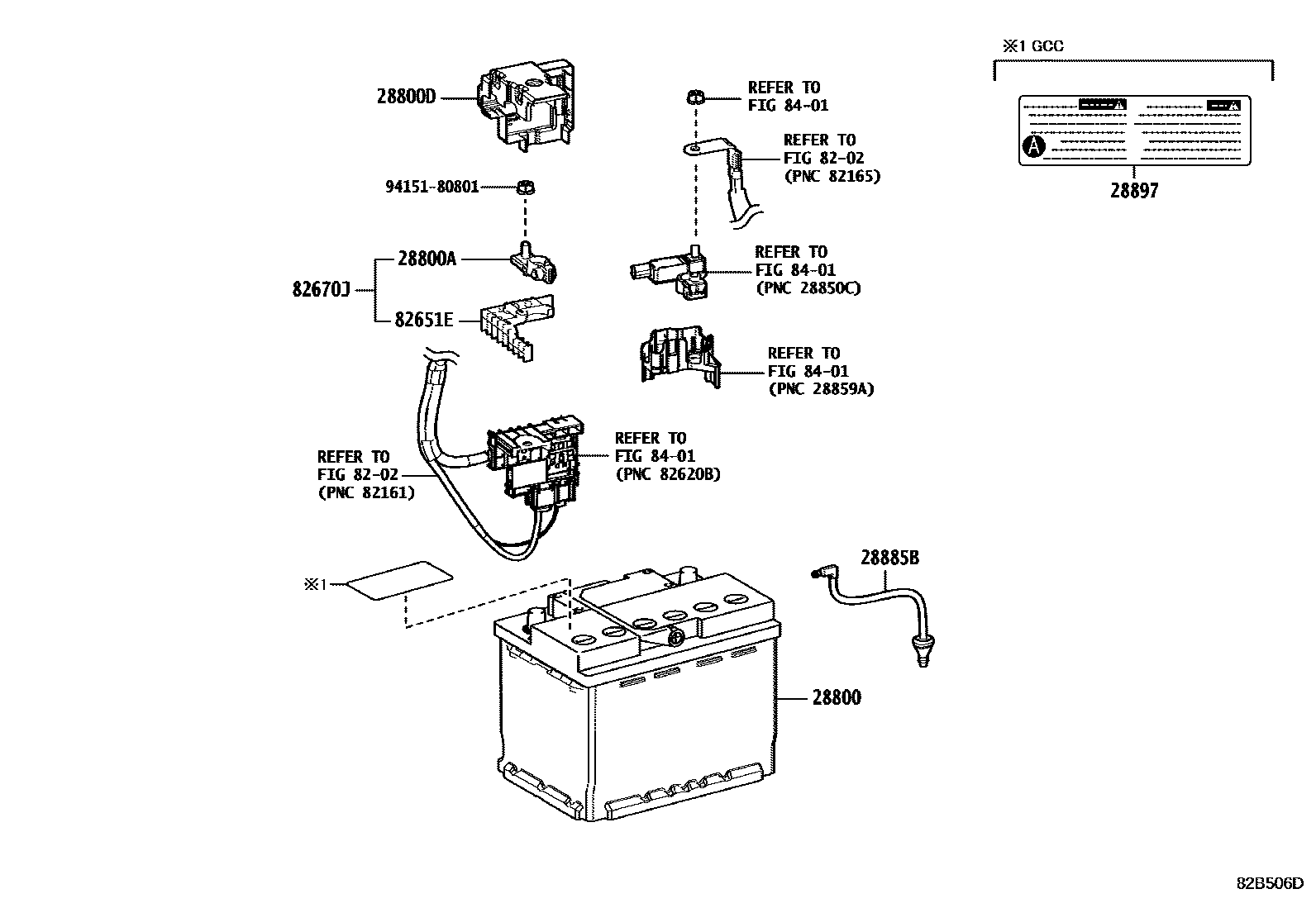

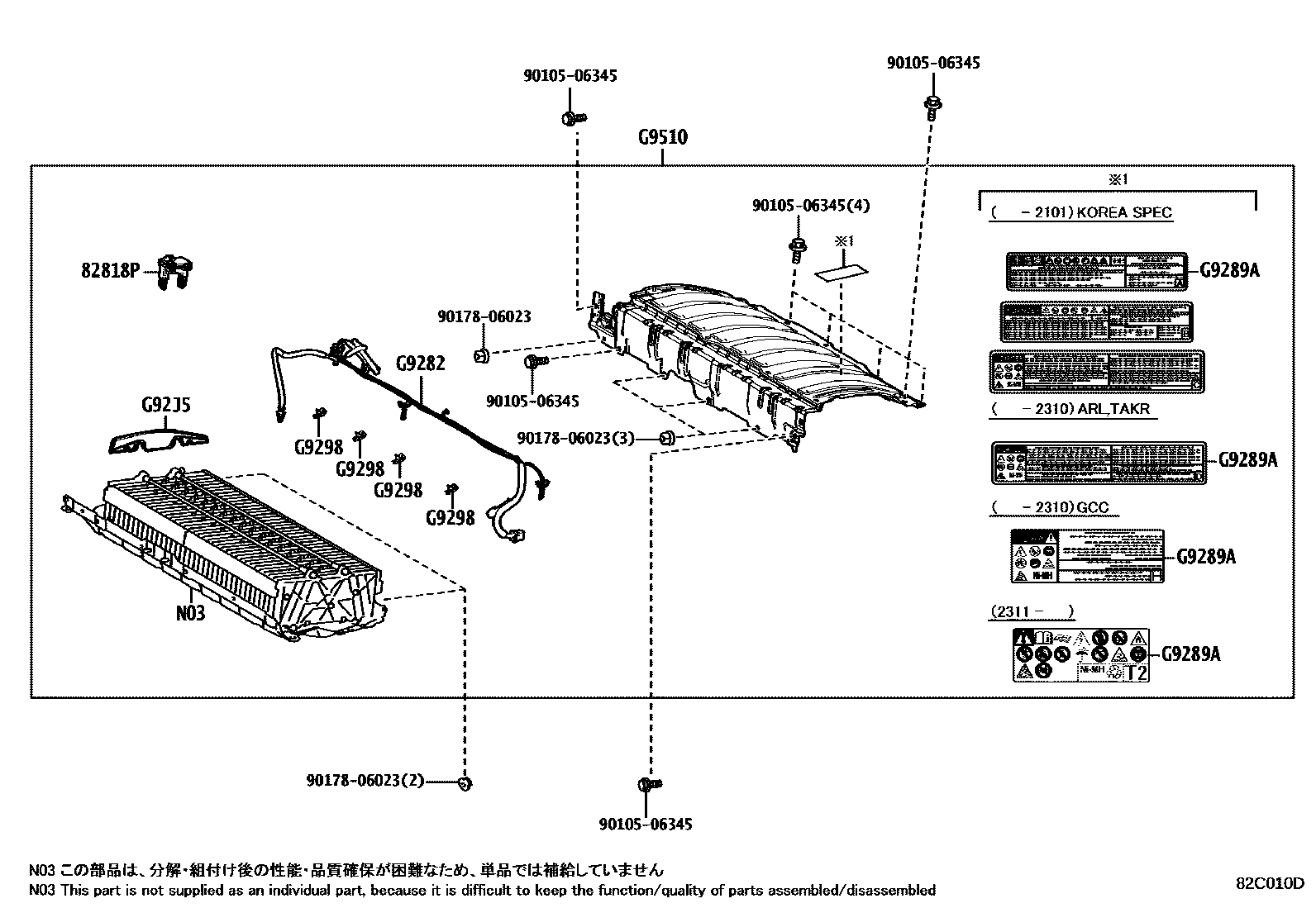

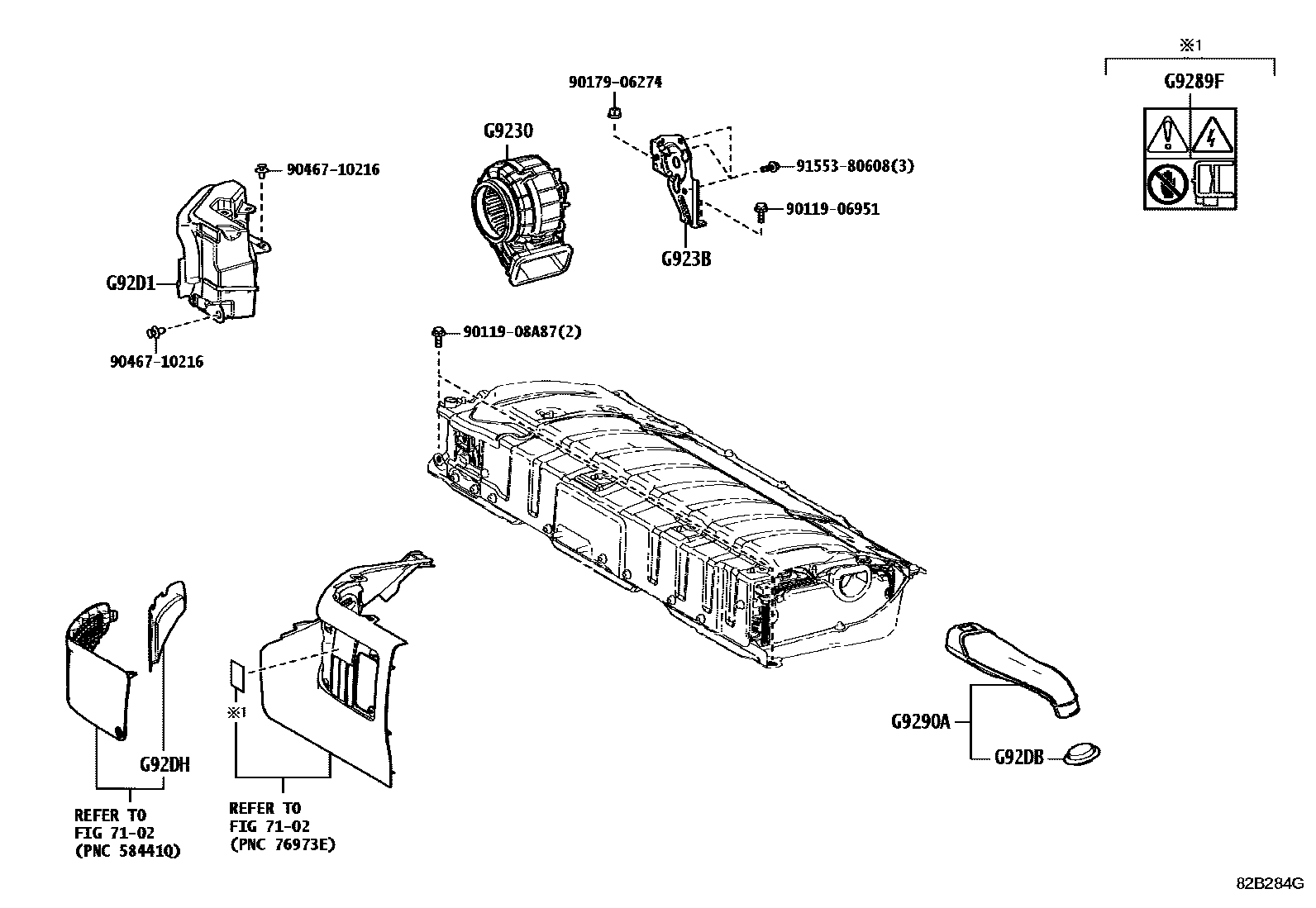

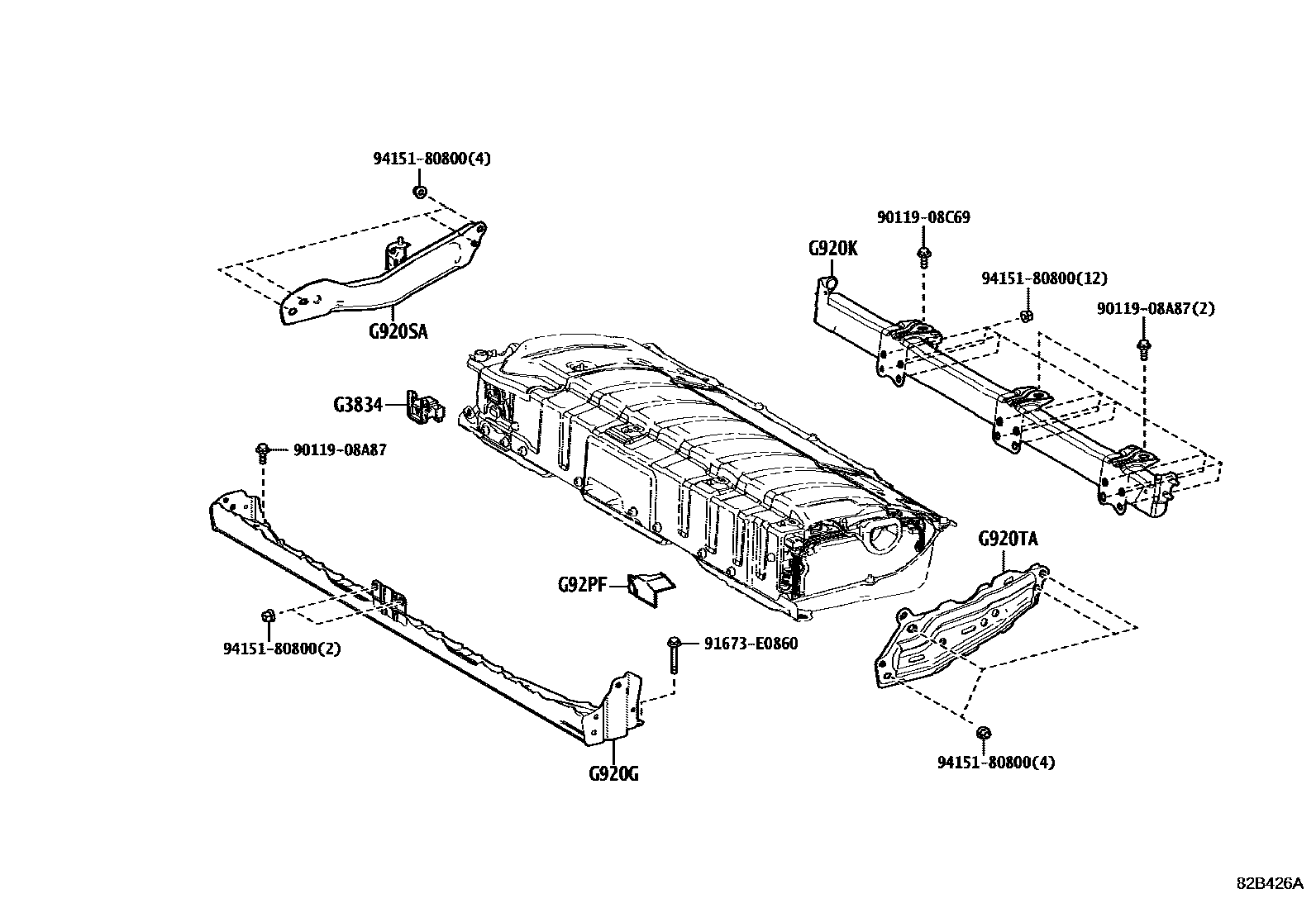

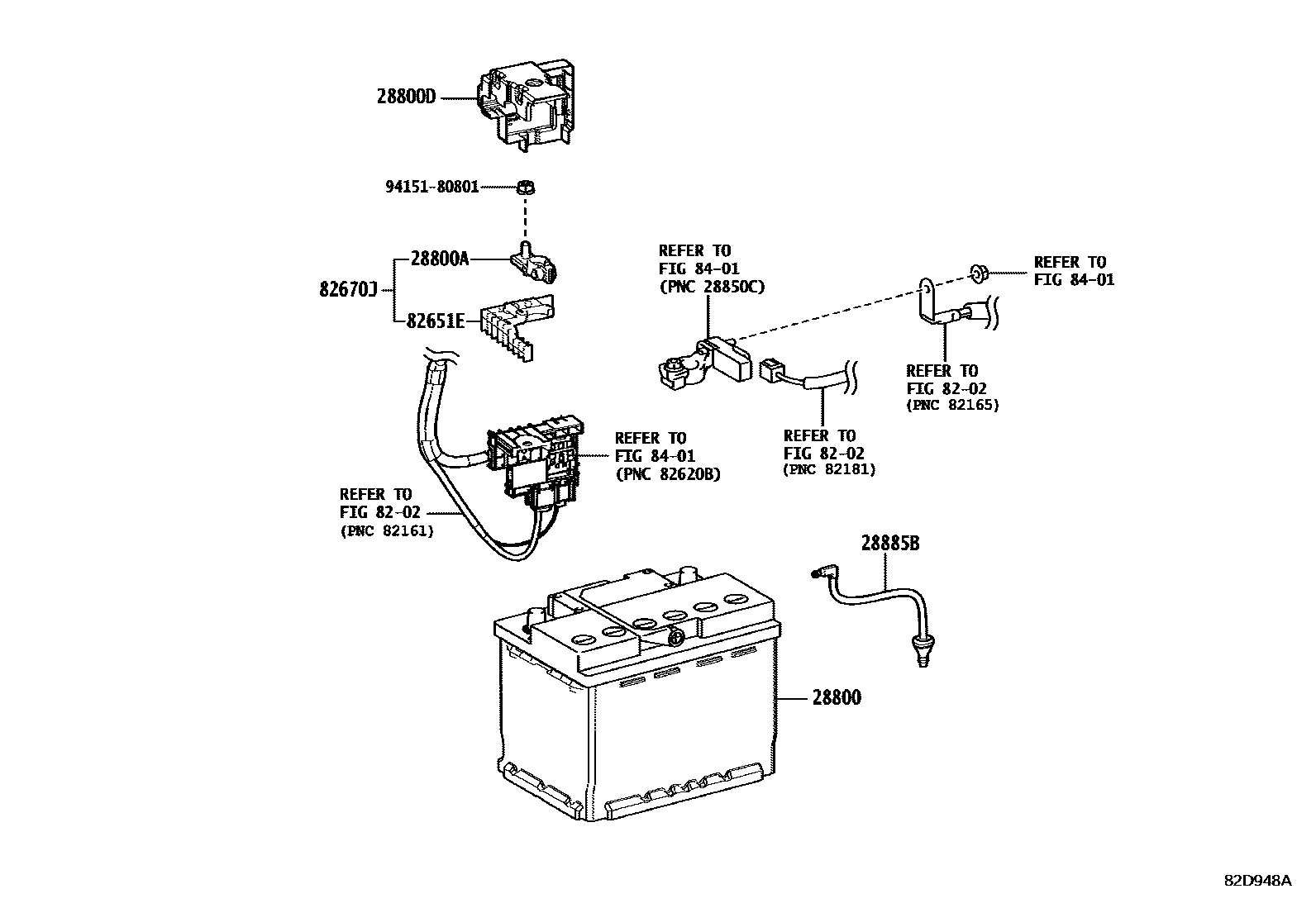

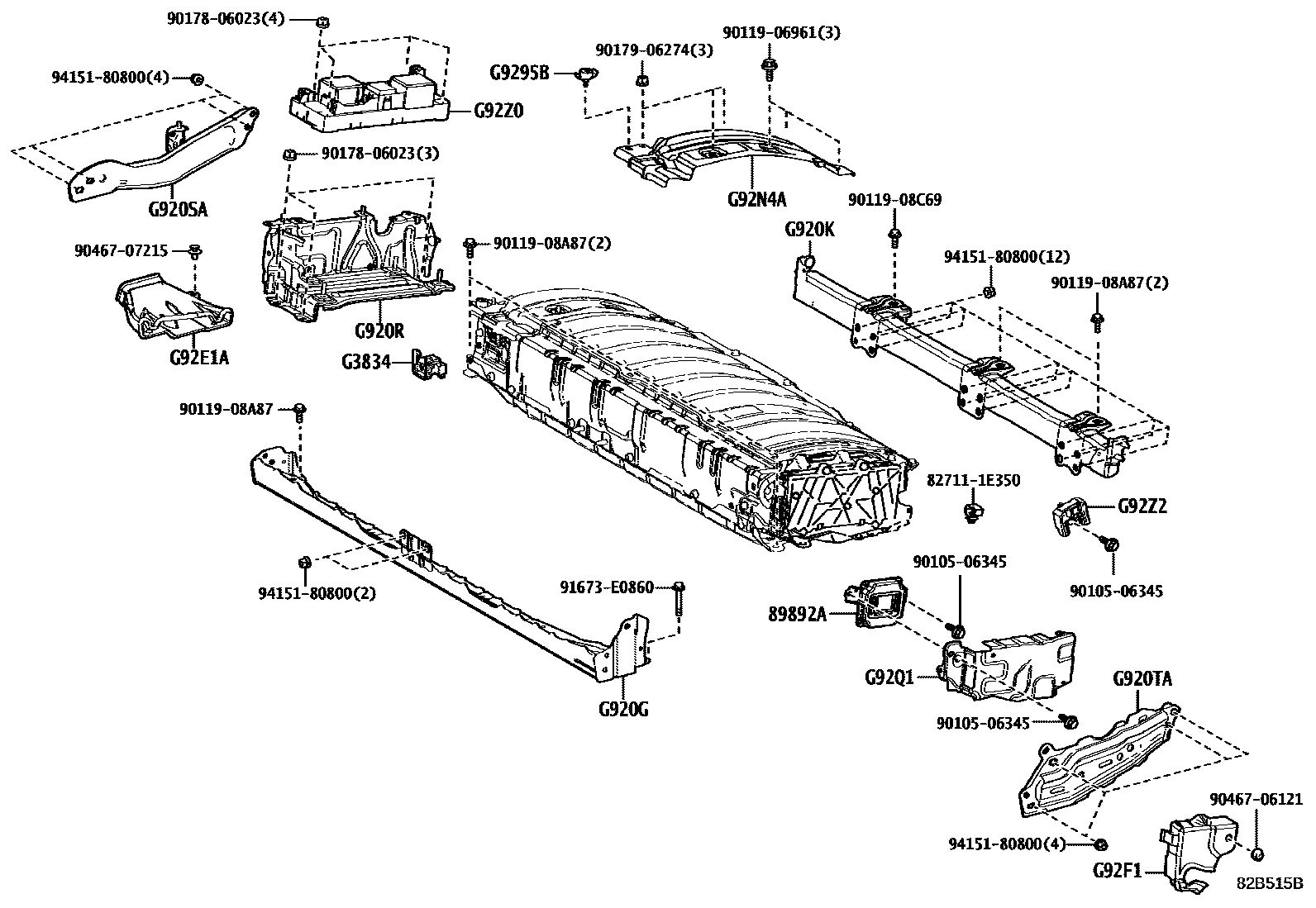

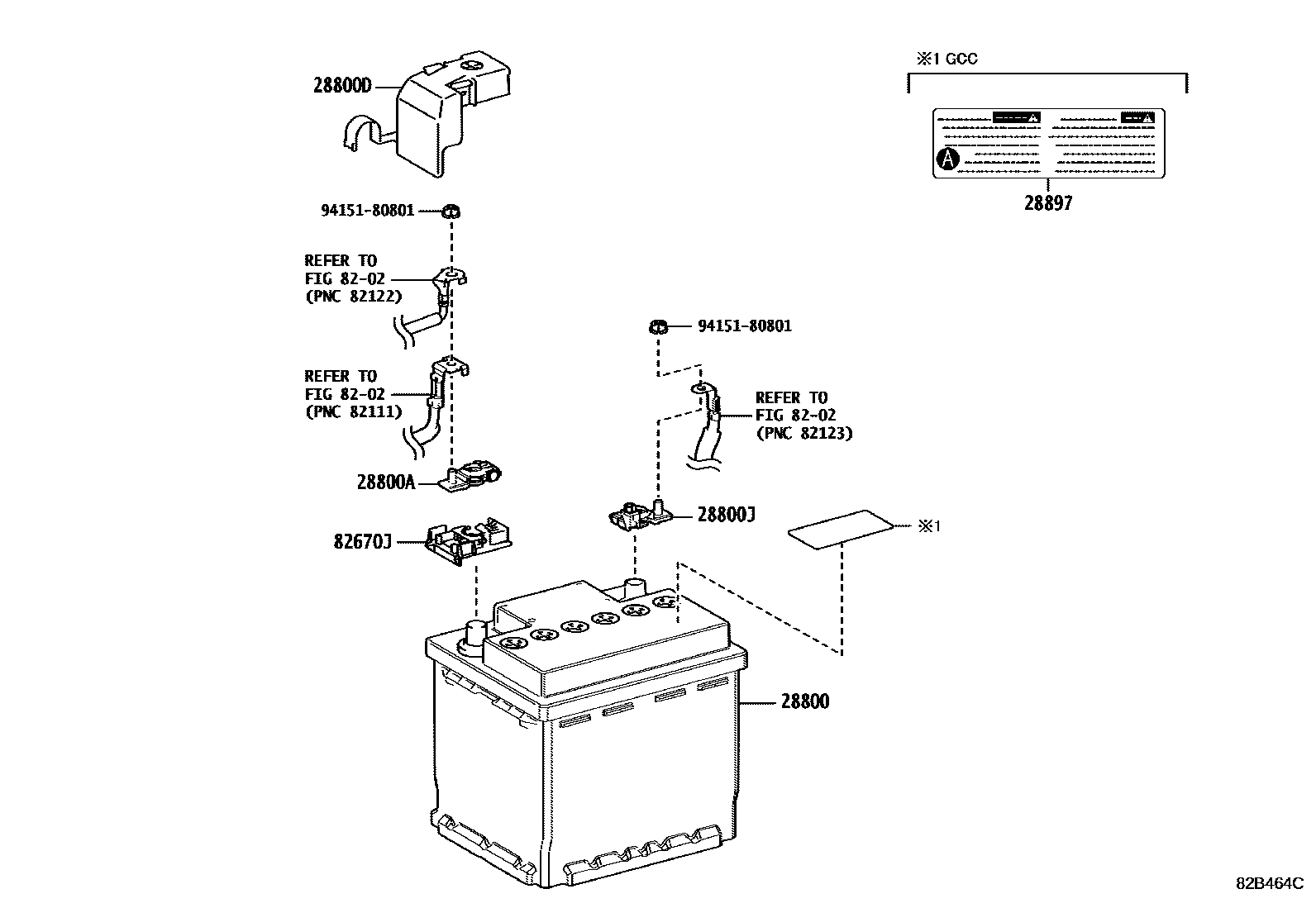

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 10 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-24103 · 28800-25010 · 28800-25011 · 28800-25012 · 28800-25013 · 28800-25020 · 28800-25030 · 28800-25031 · 28800-25032 · 28800-25033 · 28800-31440 · 28800-31441 · 28800-31442 |
| 28800A | battery positive terminal | 90982-05053 · 90982-05072 |
| 28800D | Connector cover (for battery terminals) | 82621-33030 · 82621-33031 · 82821-33440 |
| 28800J | battery negative terminal | 90982-06061 |
| 28885B | battery hose | 28885-25010 |
| 28897 | Battery warning nameplate | 28897-36030 |
| 82651E | Terminal box | 82671-33090 |
| 82670J | Junction box assembly | 82670-33140 · 82671-33100 |
| 82818P | Harness protection device | 82817-47Q60 · G92SK-K0020 |
| 89890A | Battery ECU assembly | 89890-33012 |
| 89892A | battery voltage sensor | 89892-33040 |
| G3830A | Electric vehicle battery plug assembly | G3830-47120 |
| G3834 | Service plug handle | G3834-47050 |
| G920G | No. 4 HV battery end plate sub-assembly | G920G-33010 |
| G920K | No. 5 HV battery end plate sub-assembly | G920K-33010 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-33020 · G920R-33030 |
| G920SA | HV battery No. 3 shielding sub-assembly | G920S-33020 |
| G920TA | EV battery No. 4 shielding sub-assembly | G920T-33020 |
| G9230 | Battery cooling blower assembly | G9230-33050 |
| G923B | Battery cooling blower bracket | G923B-33020 |
| G9282 | HV battery thermistor | G9282-33030 |
| G9289A | battery warning label | G9288-48040 · G9288-48080 · G9288-50010 · G9288-76030 |
| G9289F | AA battery warning label | 82685-47110 · 82685-47111 |
| G9290A | HV battery hose assembly | G9290-33020 |
| G9295B | Battery cover lock | G9295-30020 |
| G9298 | HV battery clip | G928E-47010 |
| G929A | HV battery hose No. 1 | G929A-33020 |
| G92D1 | No. 1 HV battery air inlet | G92D1-33050 |
| G92DB | No. 1 HV battery seal | G92DB-47030 |
| G92DH | No. 1 HV battery air intake filter | G92DH-33050 |
| G92E1A | No. 1 HV battery left air inlet | G92E1-33010 · G92E1-33020 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-33020 |
| G92J5 | No. 1 HV battery seal | G92J5-47030 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-33030 · G92N4-33040 |
| G92PF | No. 4 HV battery protective cover | G92PF-33010 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-33050 |
| G92Z0 | HV battery junction box assembly | G92Z0-33040 · G92Z0-33041 · G92Z0-33051 · G92Z0-47100 · G92Z0-47110 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9508 | No. 1 HV power supply battery assembly | G9509-33010 |
| G9509 | No. 2 HV power supply battery assembly | G9508-33010 |
| G9510 | HV power supply battery assembly | G9510-33101 · G9510-33110 · G9510-33111 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-47120 |
