Toyota CAMRY 后组合灯 — Figure 8111

Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 23 PNC and OE references.

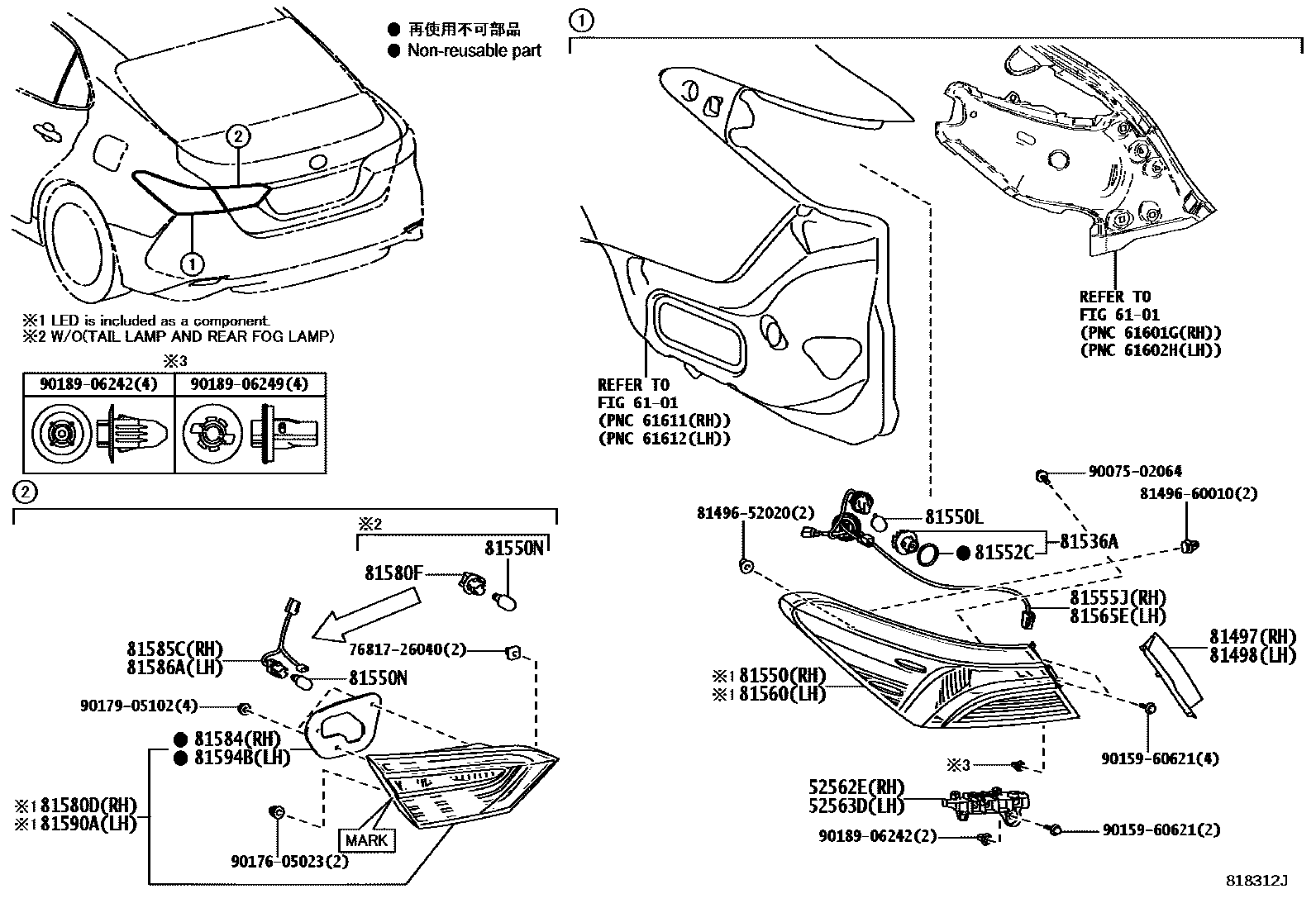

Toyota CAMRY 后组合灯 EPC diagram — 818312J
后组合灯 — 818312J (201709 – 999999)

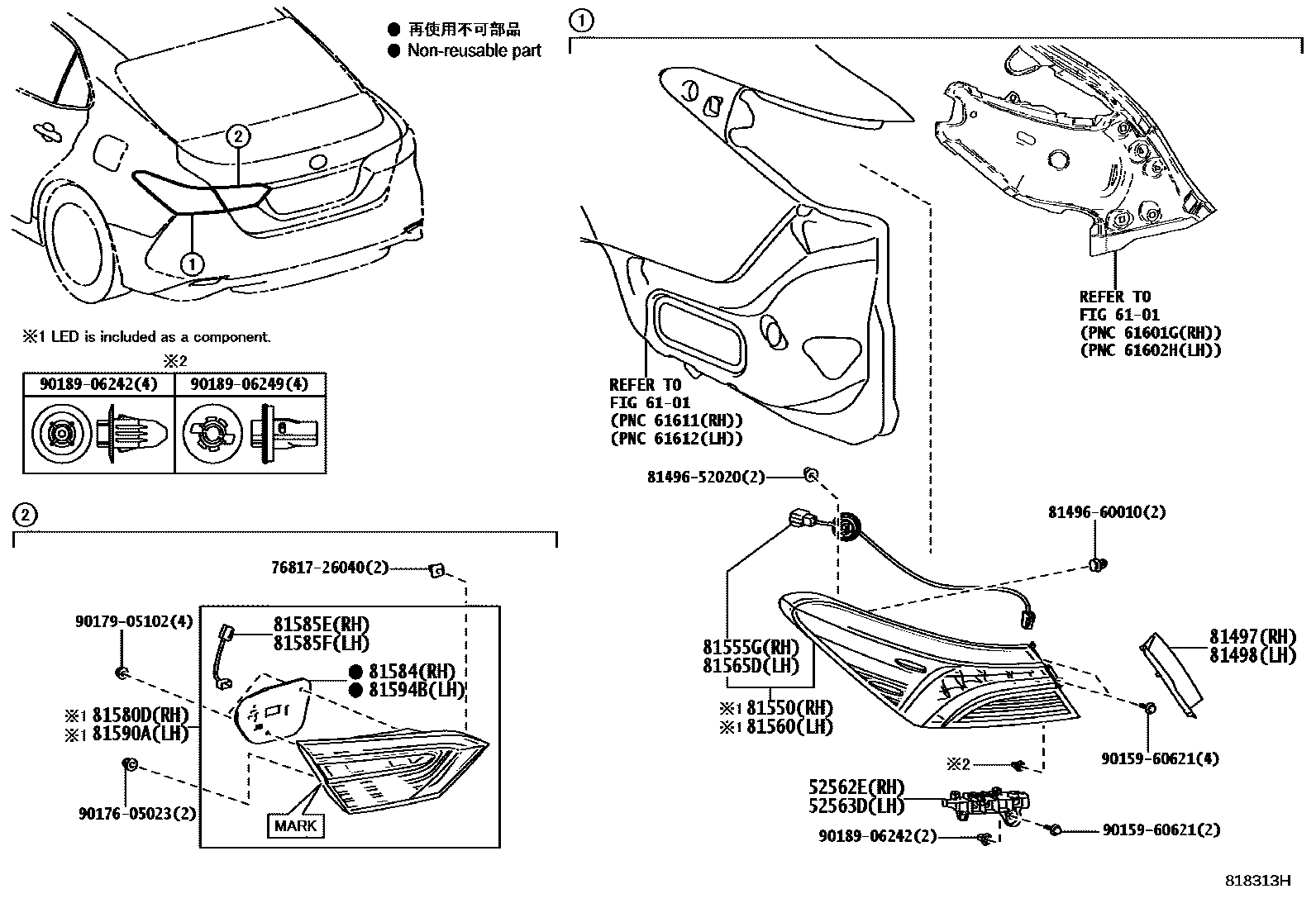

Toyota CAMRY 后组合灯 EPC diagram — 818313H
后组合灯 — 818313H (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
52562ERear bumper upper right fixing bracket52562-33060
52563DRear bumper upper left fixing bracket52563-33060
81497Right rear combination lamp cover81497-33020
81498Left rear combination lamp cover81498-33020
81536ARear LED combination light81536-52C80
81550Right rear combination light assembly81550-33690 · 81550-33730 · 81550-33880 · 81551-33660 · 81551-33700 · 81551-33720 · 81551-33870 · 81551-33A10
81550LRear turn signal light bulb90981-15021
81550Nreversing light bulb90981-11059
81552CRear combination light gasket90075-68010
81555GRight rear combination lamp wire81555-33690
81555JRight rear combination lamp holder and wiring harness81555-33660 · 81555-33700
81560Left rear combination light assembly81560-33690 · 81560-33730 · 81560-33880 · 81561-33660 · 81561-33700 · 81561-33720 · 81561-33870 · 81561-33A10
81565DLeft rear combination lamp wire81555-33690
81565ELeft rear combination lamp holder and wiring harness81555-33660 · 81555-33700
81580DRight rear light assembly81580-33340 · 81580-33390 · 81580-33500 · 81581-33210 · 81581-33320 · 81581-33360 · 81581-33370 · 81581-33380 · 81581-33410 · 81581-33520
81580FRear light lamp holder plug90075-99005
81584Right rear light seal81582-33330 · 81582-33350
81585CRight rear light lamp holder and wiring harness81585-33320
81585ERight rear light wire81585-33350
81585FLeft rear light wire81585-33350
81586ALeft rear light lamp holder and wiring harness81585-33320 · 81585-33330
81590ALeft rear light assembly81590-33340 · 81590-33350 · 81590-33390 · 81590-33500 · 81590-33510 · 81591-33210 · 81591-33320 · 81591-33330 · 81591-33360 · 81591-33370 · 81591-33380 · 81591-33420 · 81591-33530
81594BLeft rear light seal81592-33330 · 81592-33350
