Toyota CAMRY Headlamp — Figure 8101

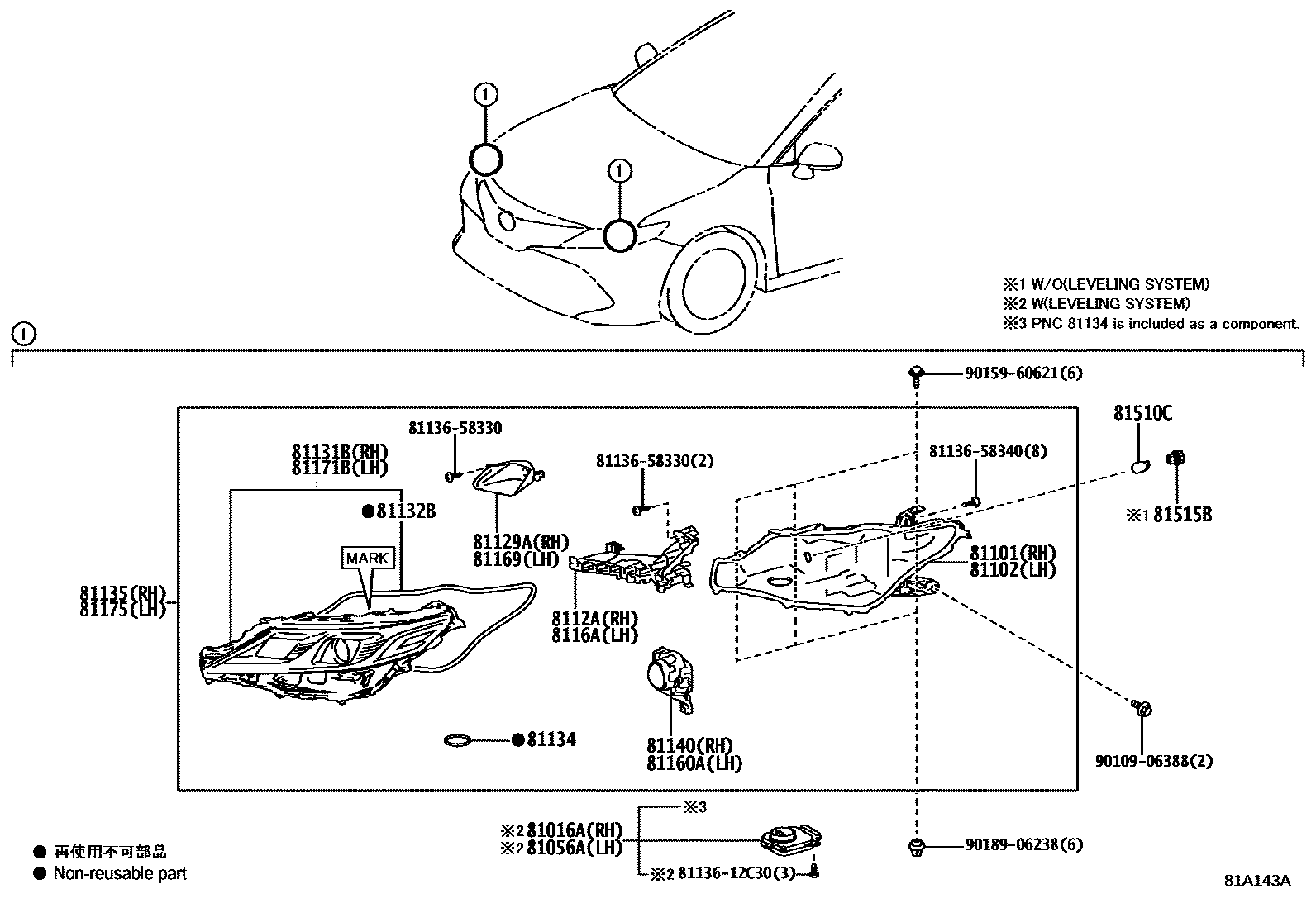

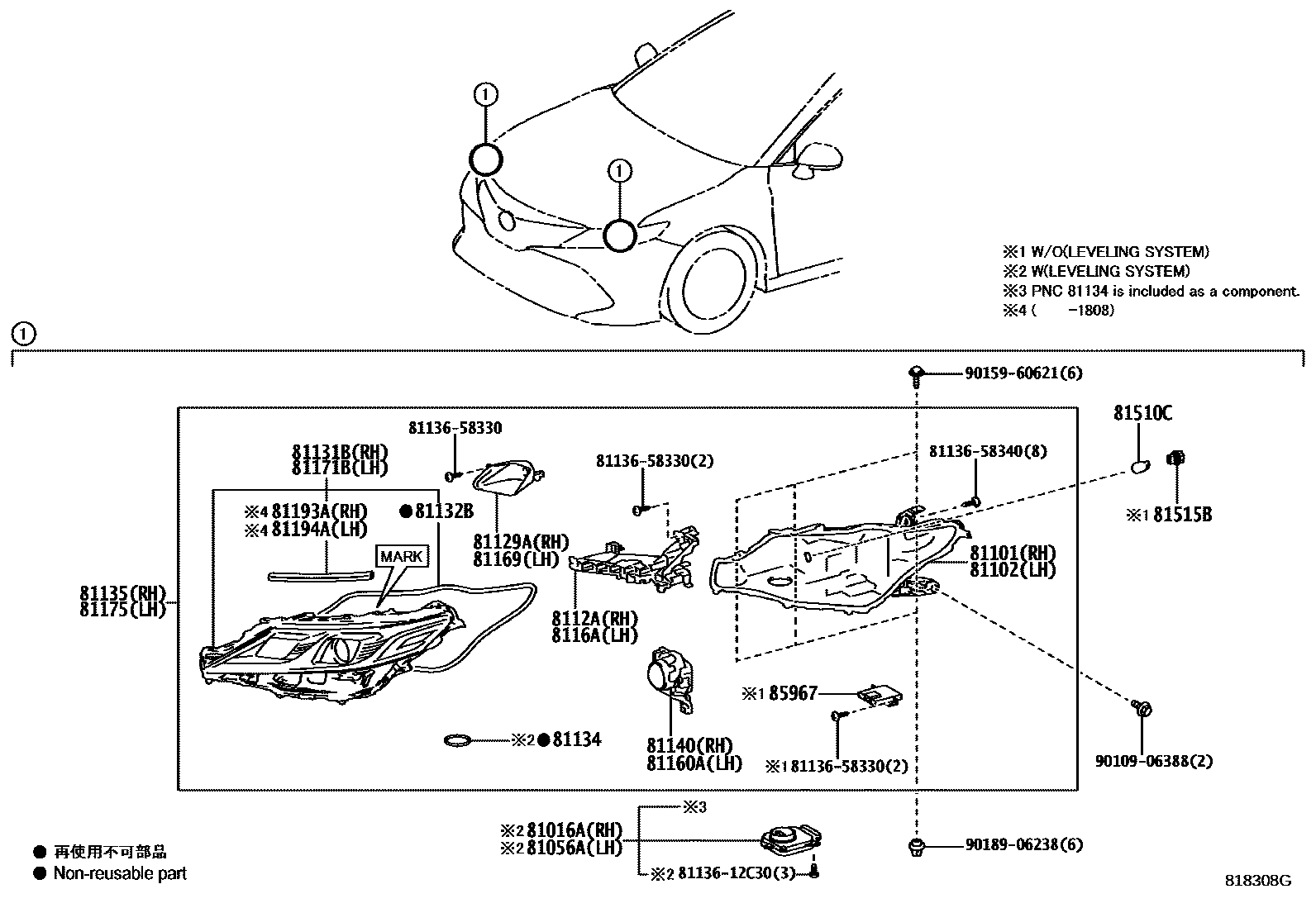

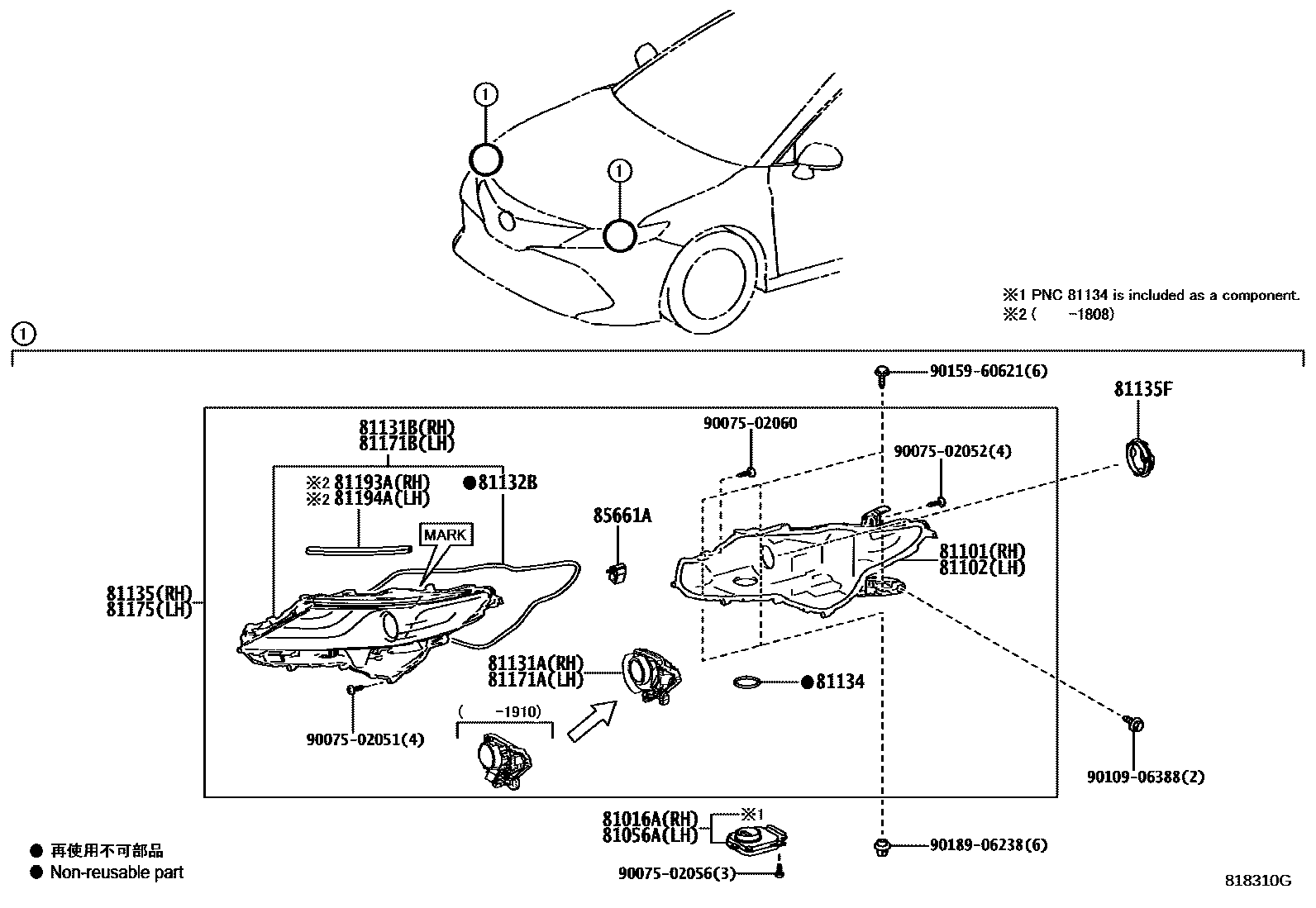

Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Right headlight ECU sub-assembly | 81016-33A30 · 81016-33D50 · 81016-33E70 · 81016-33E71 |
| 81056A | Left headlight ECU sub-assembly | 81056-33D10 · 81056-33E10 · 81056-33E11 · 81056-33E80 |
| 81101 | Right headlight housing sub-assembly | 81101-33070 · 81101-33110 |
| 81102 | Left headlight housing sub-assembly | 81102-33060 · 81102-33110 |
| 81129A | Right headlight reflector | 81129-33D50 |
| 8112A | Right No. 1 headlight width indicator LED assembly | 8112A-33D50 |
| 81131A | Right headlight assembly | 81130-33E10 · 81130-33E11 · 81130-33E70 · 81130-33E71 · 81130-33K40 · 81130-33K50 |
| 81131B | Right headlight lampshade | 81131-33A30 · 81131-33D50 · 81131-33D51 · 81131-33D91 · 81131-33E00 · 81131-33E10 · 81131-33E11 · 81131-33E80 · 81131-33K40 · 81131-33K50 |
| 81132B | Headlight cover gasket | 81132-48C30 · 81132-58330 |
| 81134 | headlight gasket | 81134-58340 · 90075-23003 |
| 81135 | Right headlight assembly assembly | 81145-33A20 · 81145-33A30 · 81145-33D50 · 81145-33D51 · 81145-33D71 · 81145-33D80 · 81145-33D81 · 81145-33D92 · 81145-33E00 · 81145-33E01 · 81145-33E10 · 81145-33E11 · 81145-33E12 · 81145-33E80 · 81145-33E81 · 81145-33G00 · 81145-33K10 · 81145-33K40 · 81145-33K50 |
| 81135F | headlight rear cover | 90075-66016 |
| 81140 | Right headlight LED assembly assembly | 81140-33A30 · 81140-33D50 · 81140-33D70 · 81140-33G00 |
| 81160A | Left headlight LED assembly assembly | 81160-33D10 · 81160-33D30 · 81160-33E80 · 81160-33G00 |
| 81169 | Left headlight reflector | 81169-33D10 |
| 8116A | Left No. 1 headlight width indicator LED assembly | 8116A-33D10 |
| 81171A | Left headlight assembly | 81170-33D70 · 81170-33D71 · 81170-33E10 · 81170-33E11 · 81170-33K40 · 81170-33K50 |
| 81171B | Left headlight lampshade | 81171-33D10 · 81171-33D11 · 81171-33D51 · 81171-33D60 · 81171-33D70 · 81171-33D71 · 81171-33E20 · 81171-33E80 · 81171-33K40 · 81171-33K50 |
| 81175 | Left headlight assembly assembly | 81185-33C70 · 81185-33D10 · 81185-33D11 · 81185-33D31 · 81185-33D40 · 81185-33D41 · 81185-33D52 · 81185-33D60 · 81185-33D61 · 81185-33D70 · 81185-33D71 · 81185-33D72 · 81185-33E20 · 81185-33E21 · 81185-33E80 · 81185-33G00 · 81185-33K10 · 81185-33K40 · 81185-33K50 |
| 81193A | Right headlight protective cover | 81117-33D50 · 81117-33E70 |
| 81194A | Left headlight protective cover | 81157-33D10 · 81157-33E10 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 81515-42050 |
| 85661A | Headlight beam height adjustment motor | 85661-48050 |
| 85967 | Light control ECU | 85967-33050 |
