Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

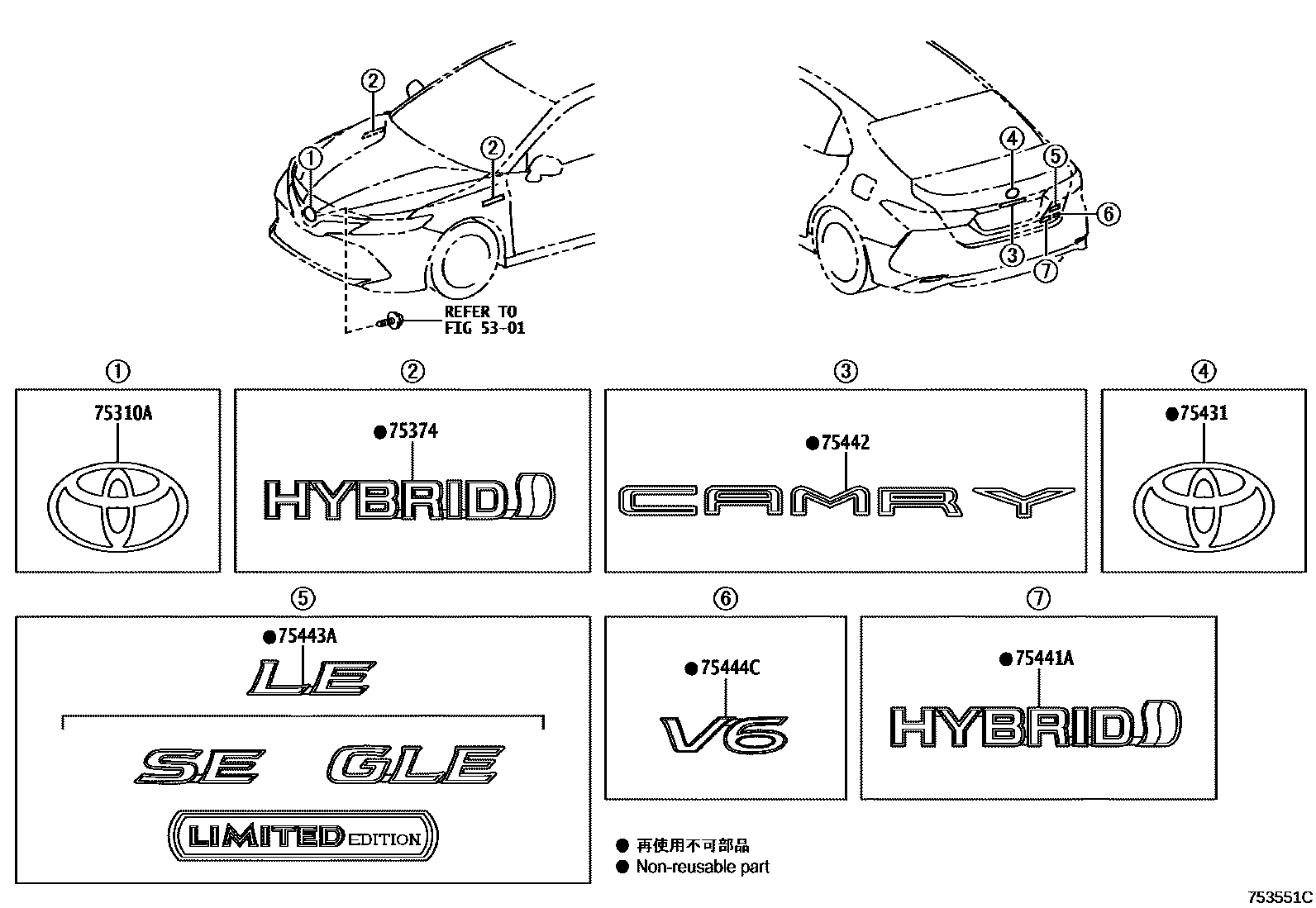

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 753551C
丰田徽标和铭牌(车外和车内) — 753551C (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly53141-33130 · 53141-33140 · 75310-33030 · 75310-33050 · 75310-33080 · 75310-33090 · 90975-02160 · 90975-02161
75374side panel sign75374-33110 · 75374-33120
75431luggage compartment door sign75403-48010 · 90975-02071
75441ATrunk door No. 1 name plate75441-33190
75442Trunk door number plate No. 275442-33450
75443ATrunk door No. 3 nameplate75443-33630 · 75443-33640 · 75443-33650 · 75443-33660
75444CTrunk door No. 4 nameplate75443-33530
