Toyota CAMRY battery holder — Figure 7402

Toyota CAMRY EPC diagram 7402, battery holder, with 2 images and 5 PNC and OE references.

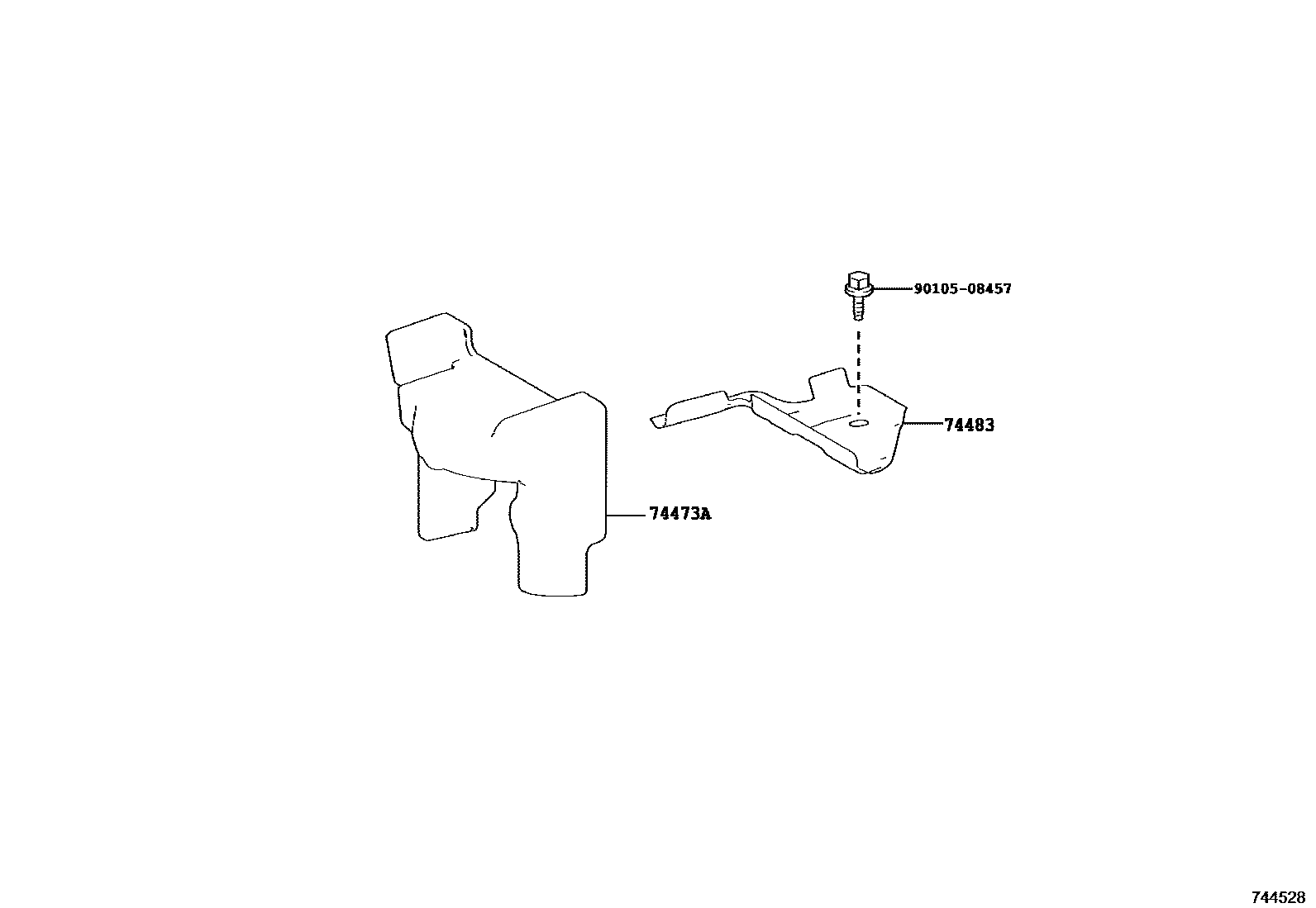

Toyota CAMRY battery holder EPC diagram — 744528
battery holder — 744528 (201712 – 999999)

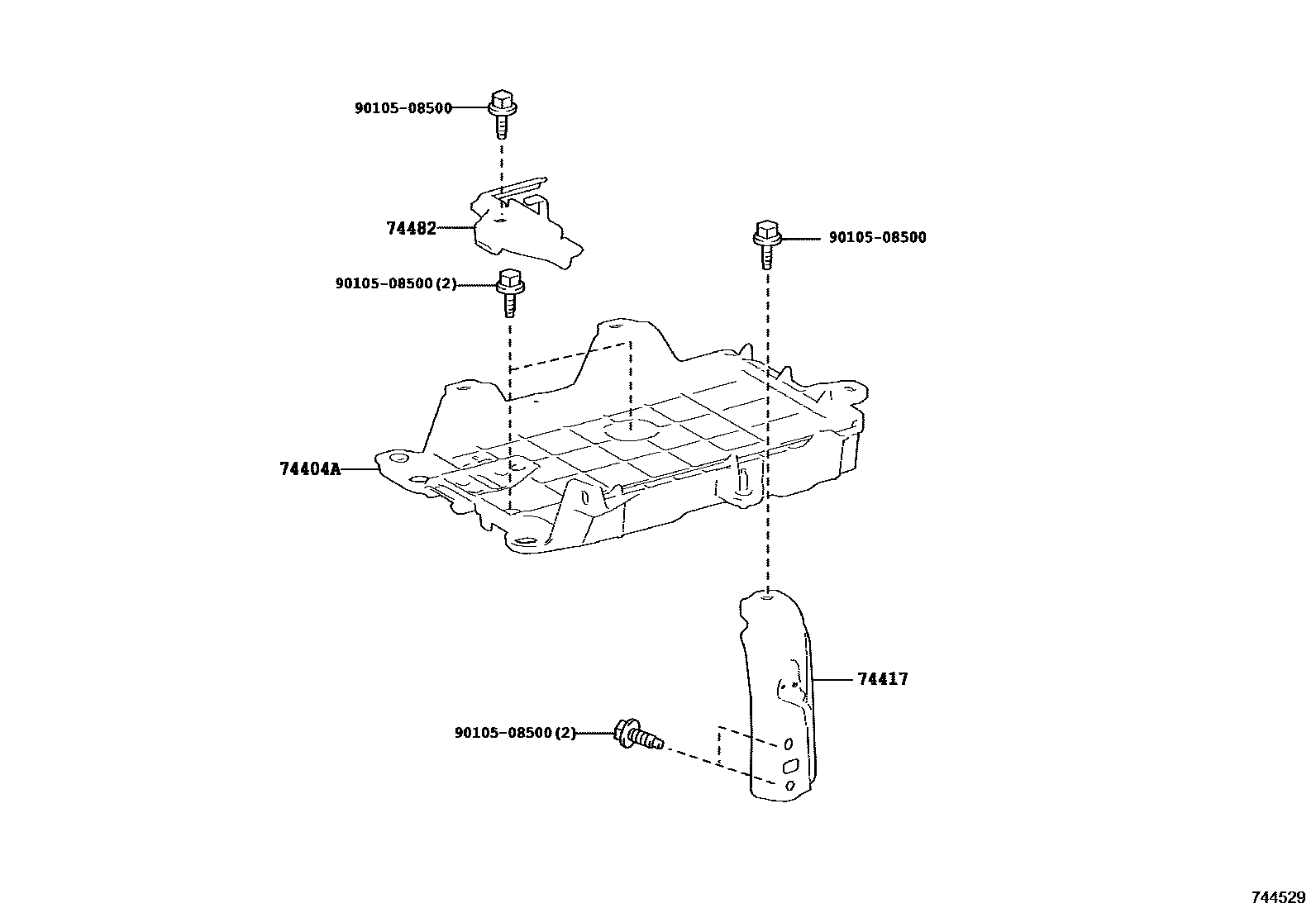

Toyota CAMRY battery holder EPC diagram — 744529
battery holder — 744529 (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-33160
74417battery holder bracket74401-33010
74473ANo. 1 battery separator74473-33010
74482No. 2 battery clip74482-33020
74483No. 3 battery clip74483-33030
