Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

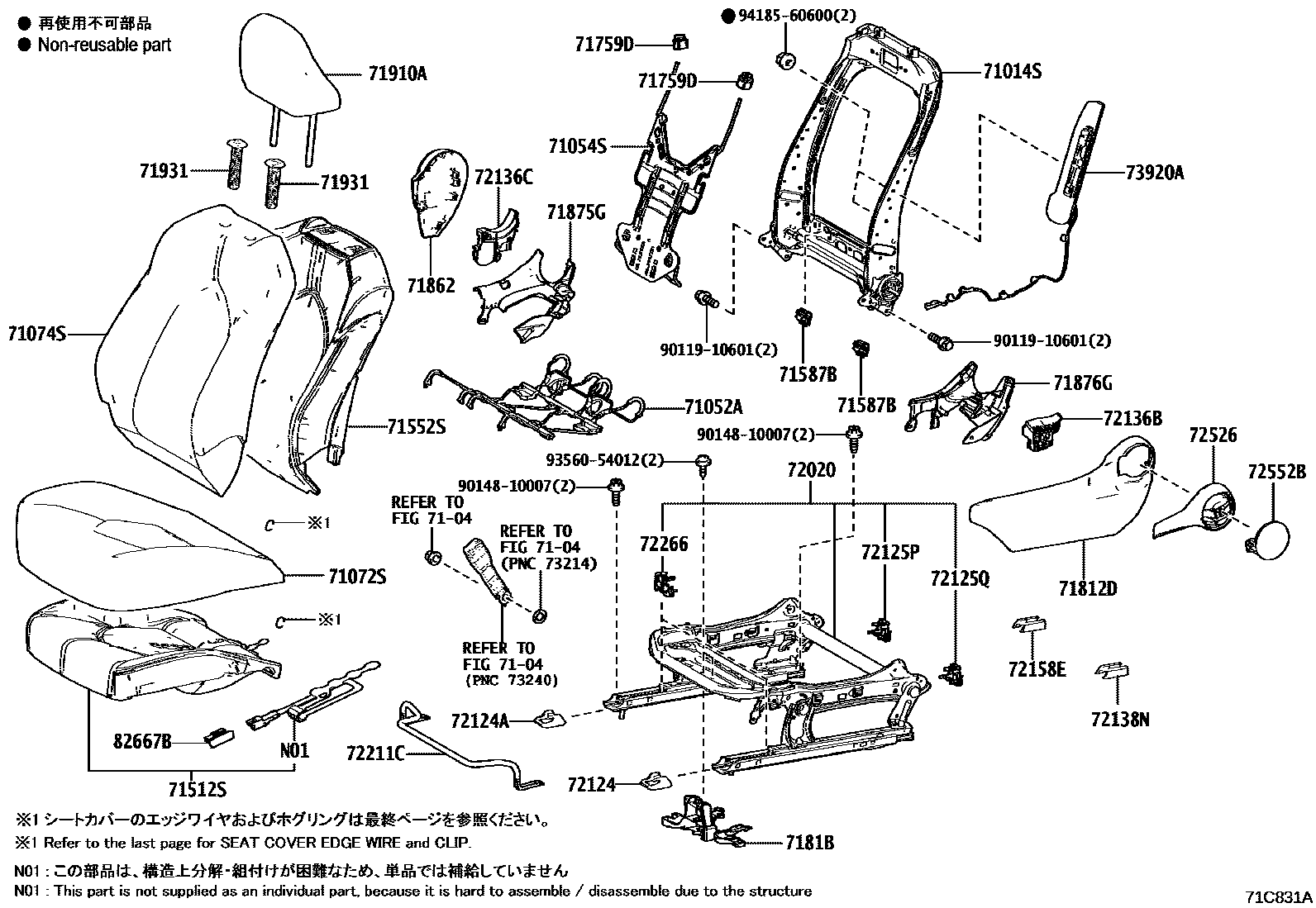

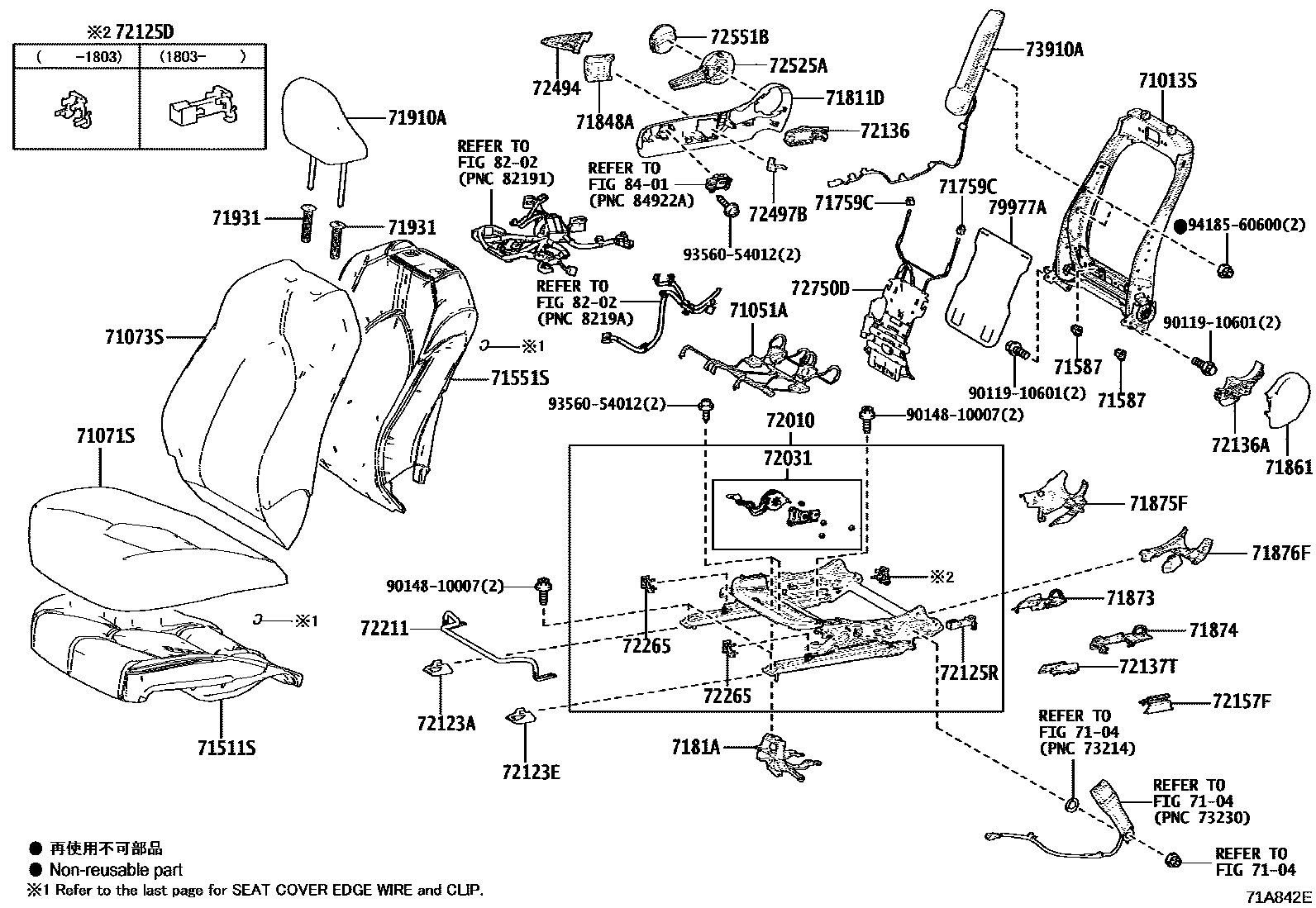

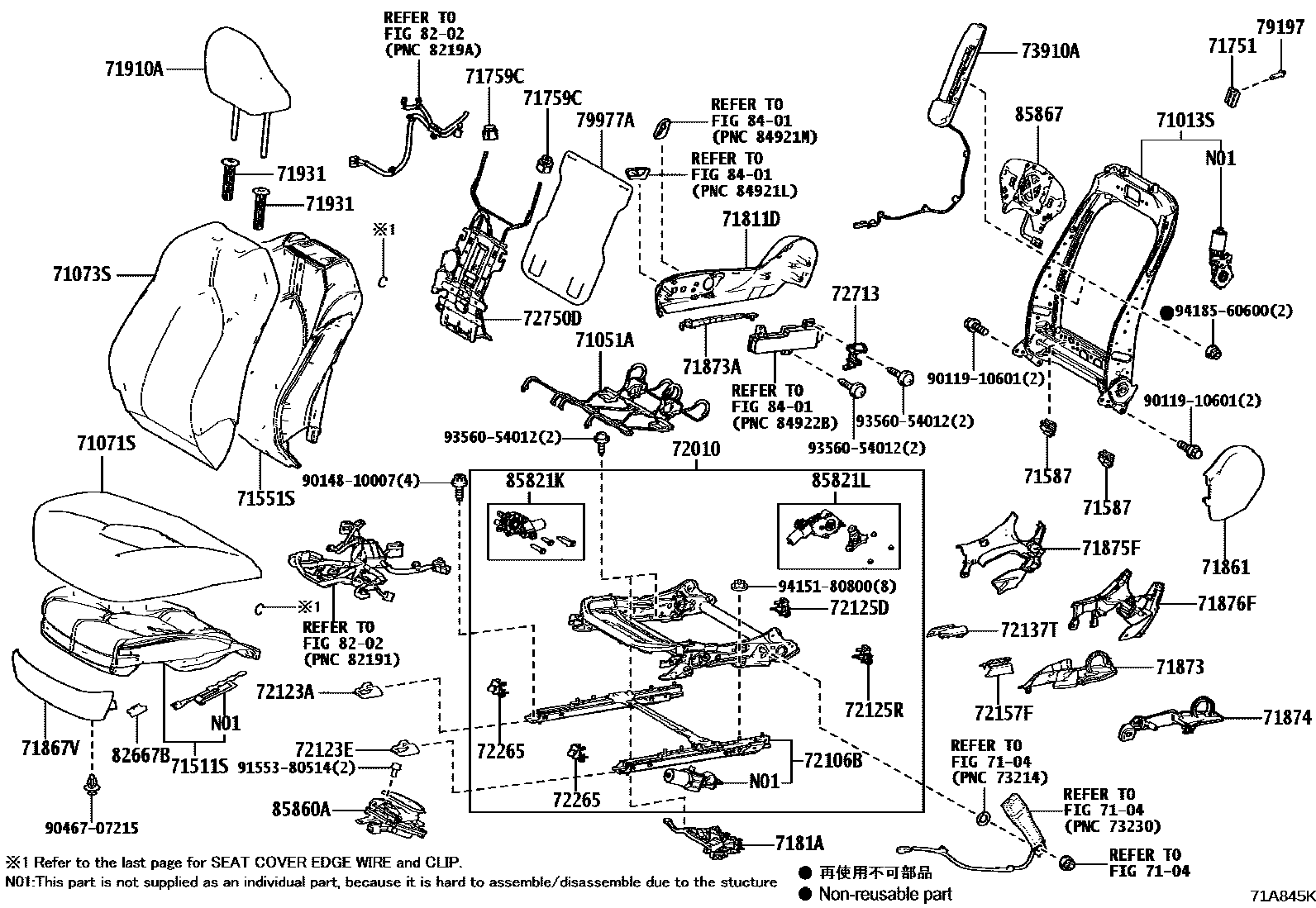

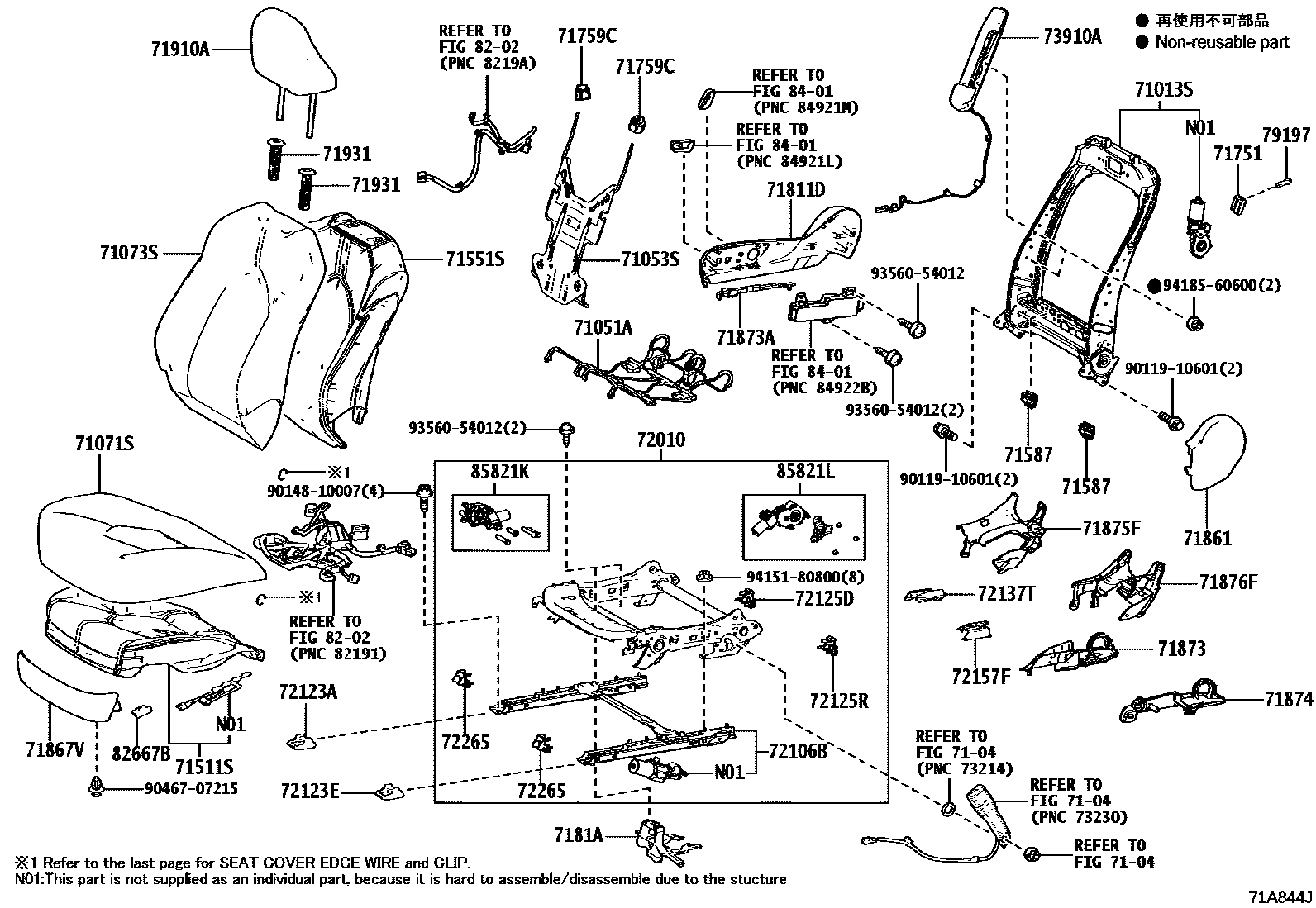

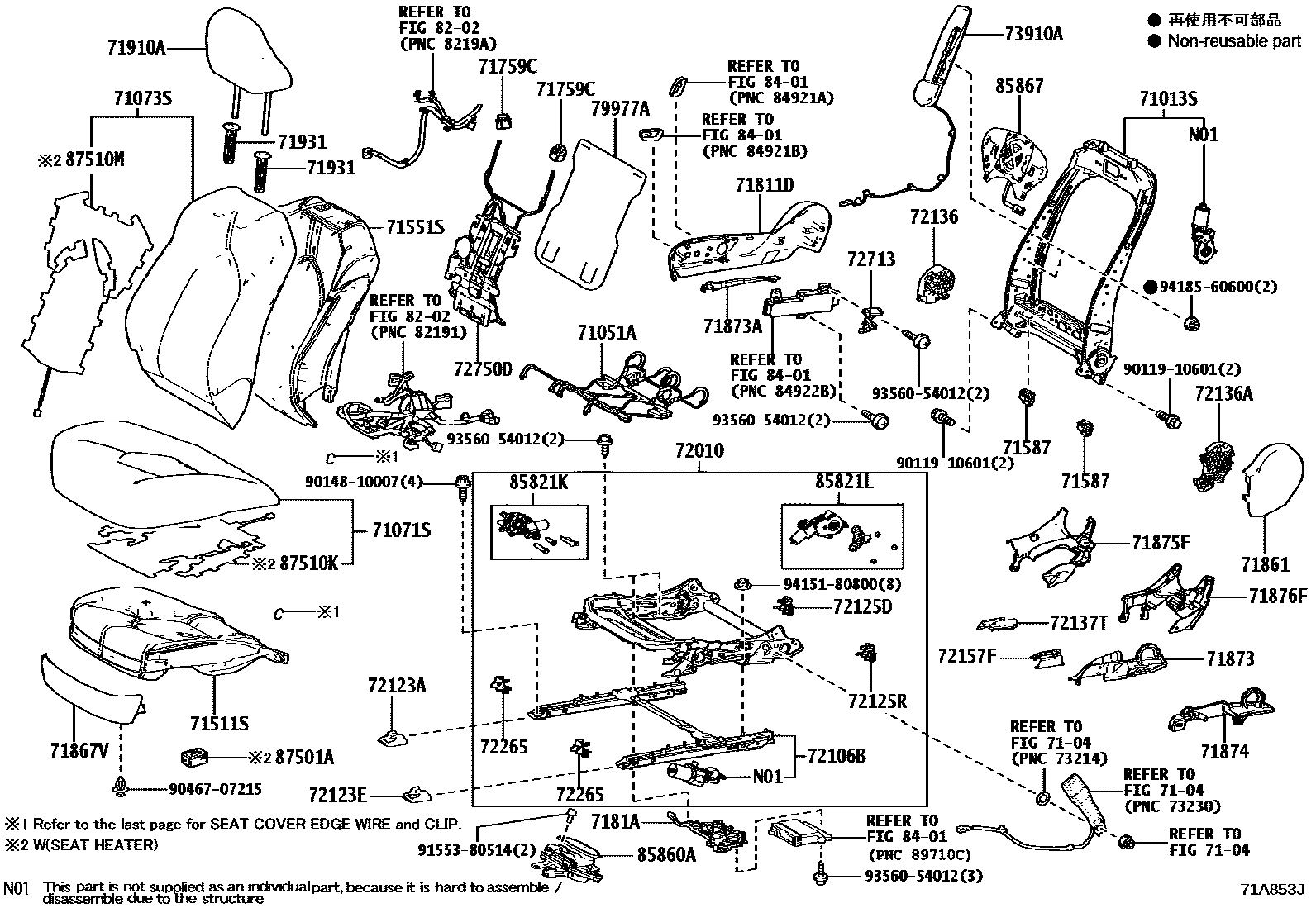

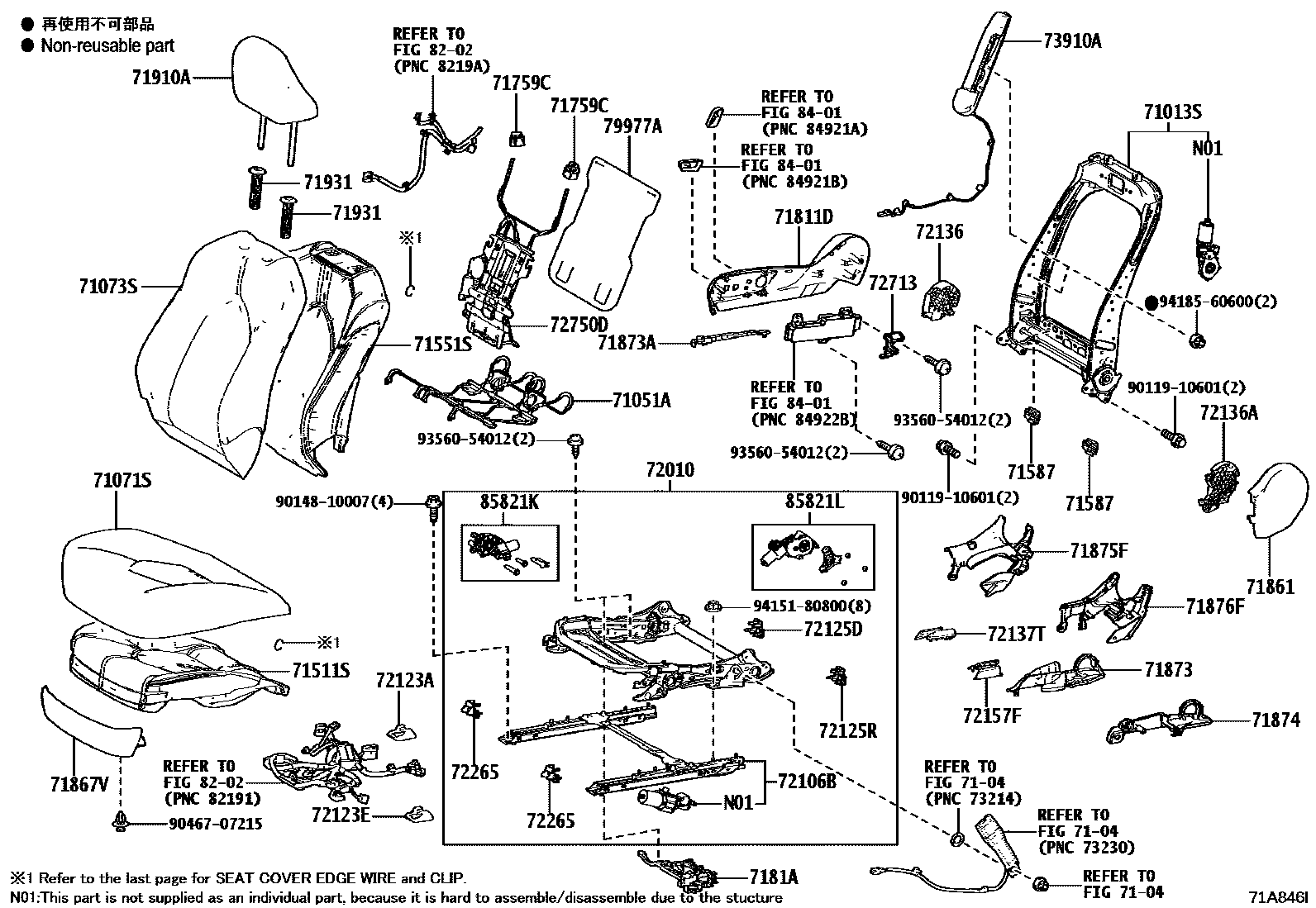

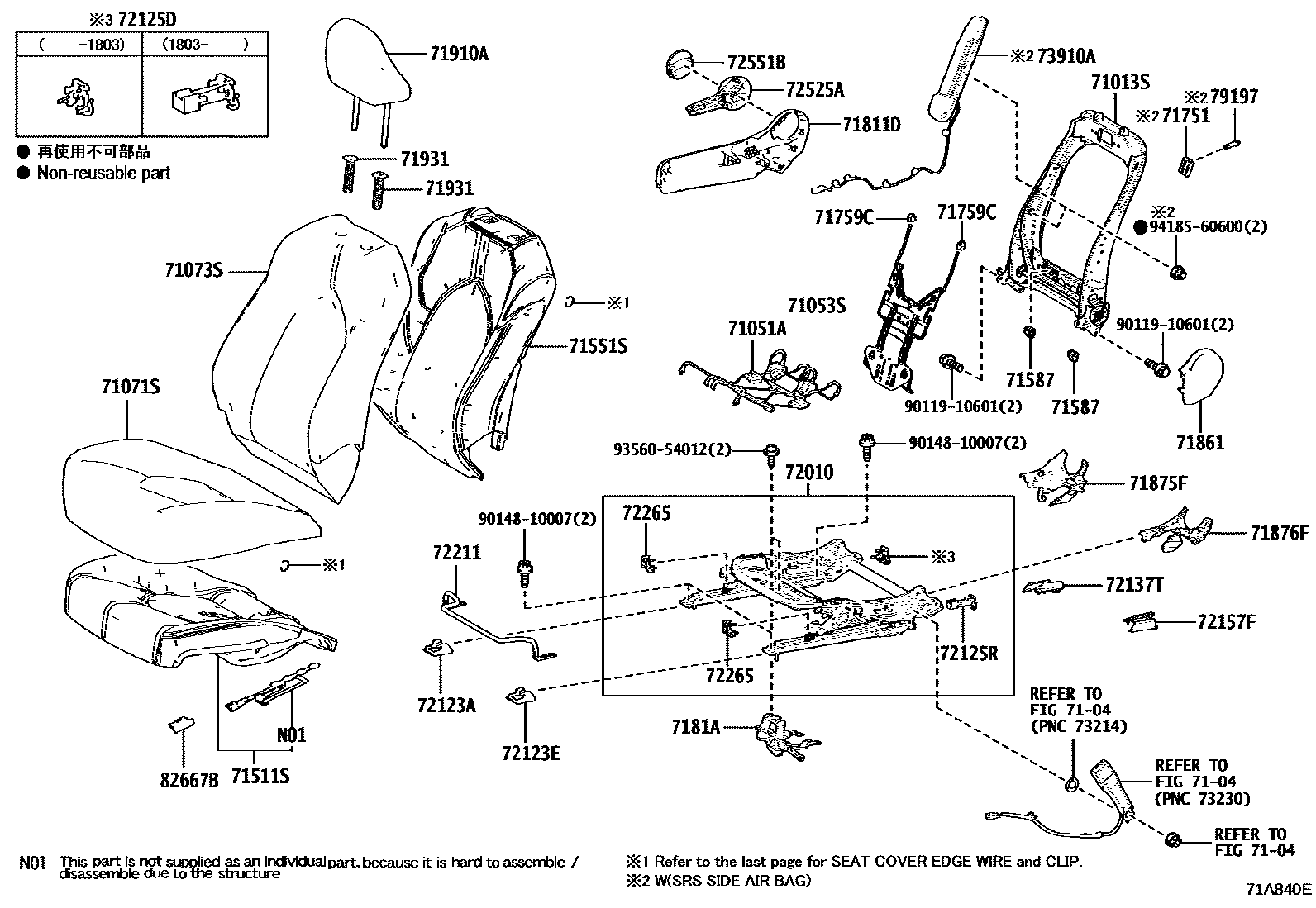

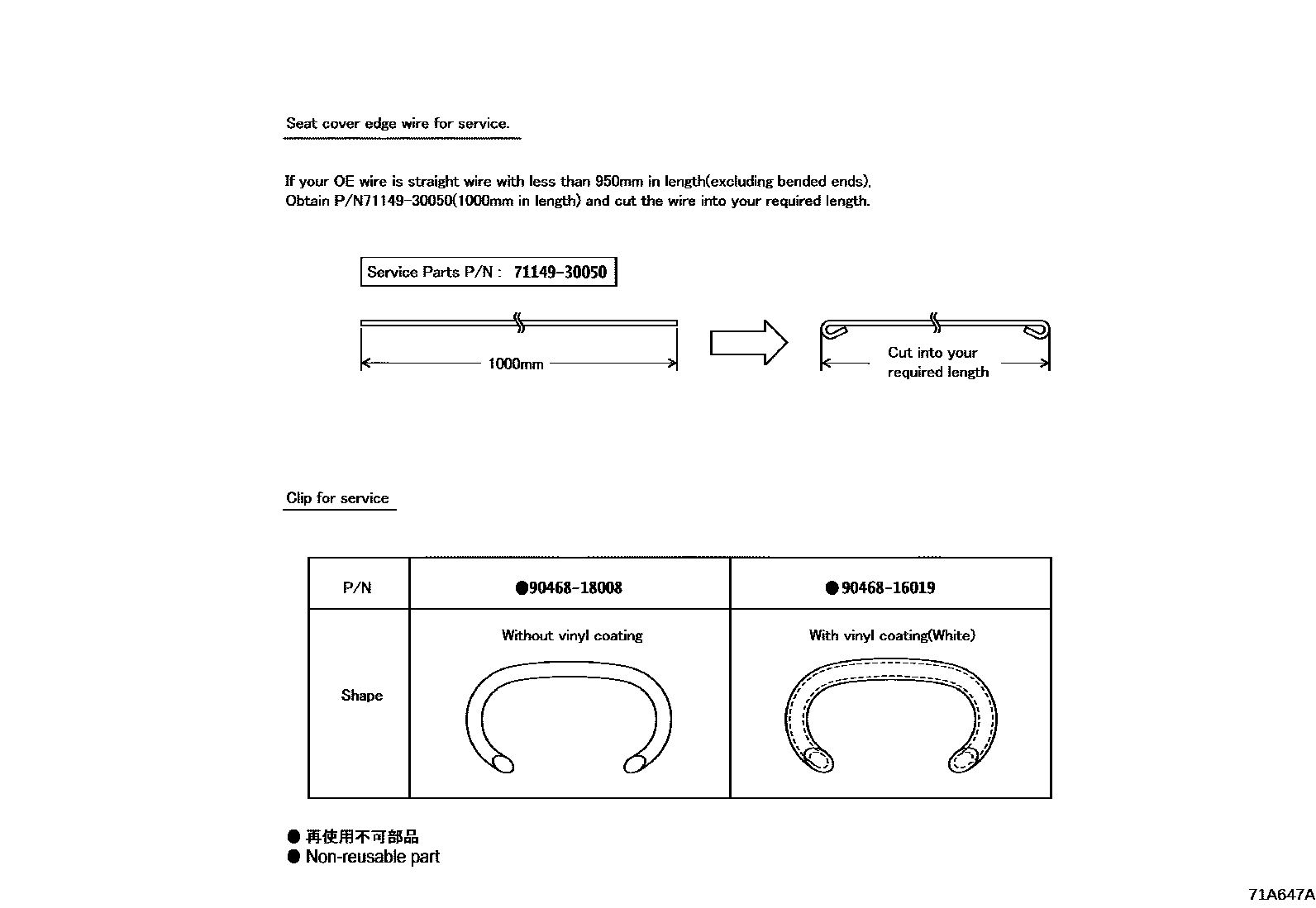

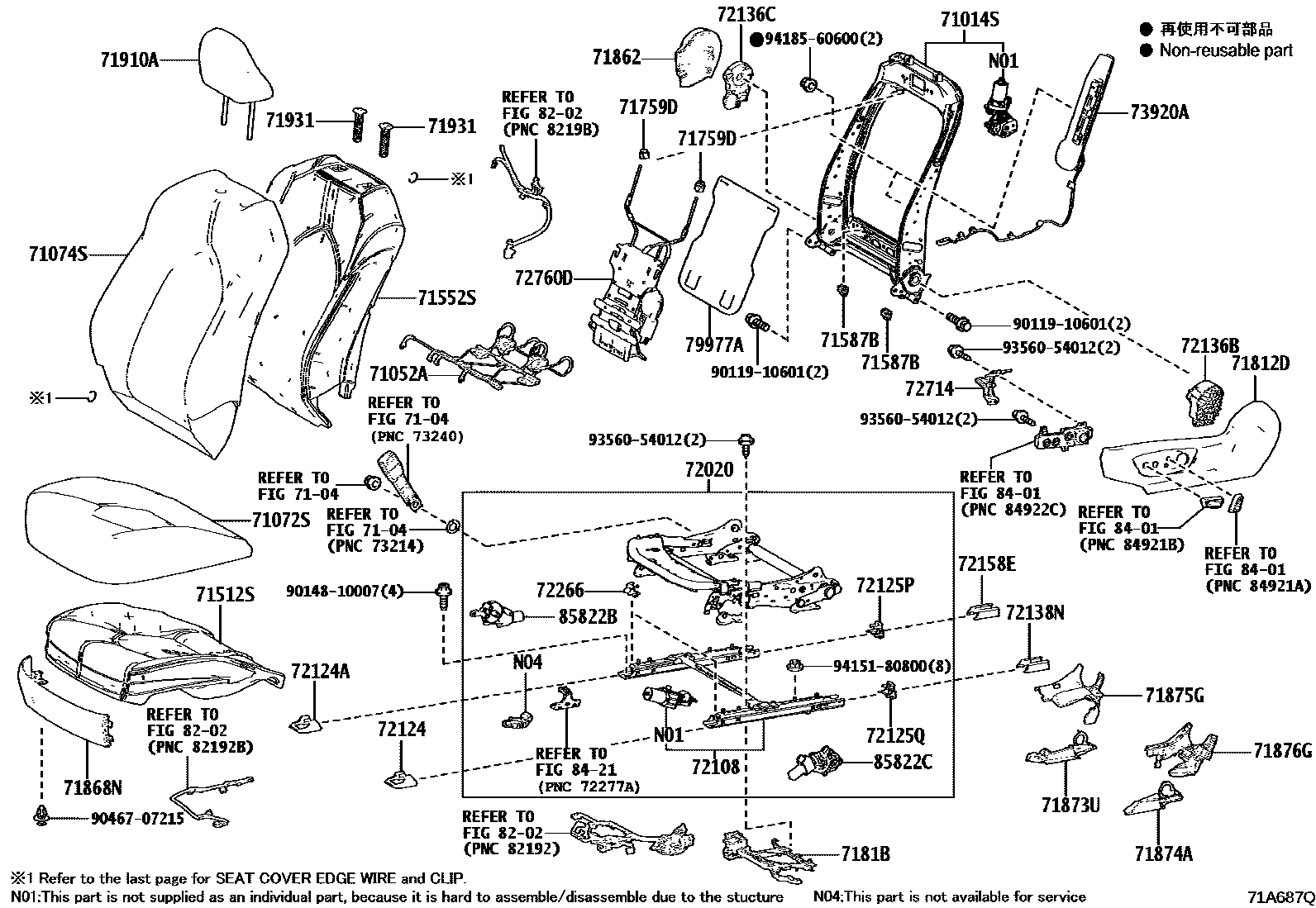

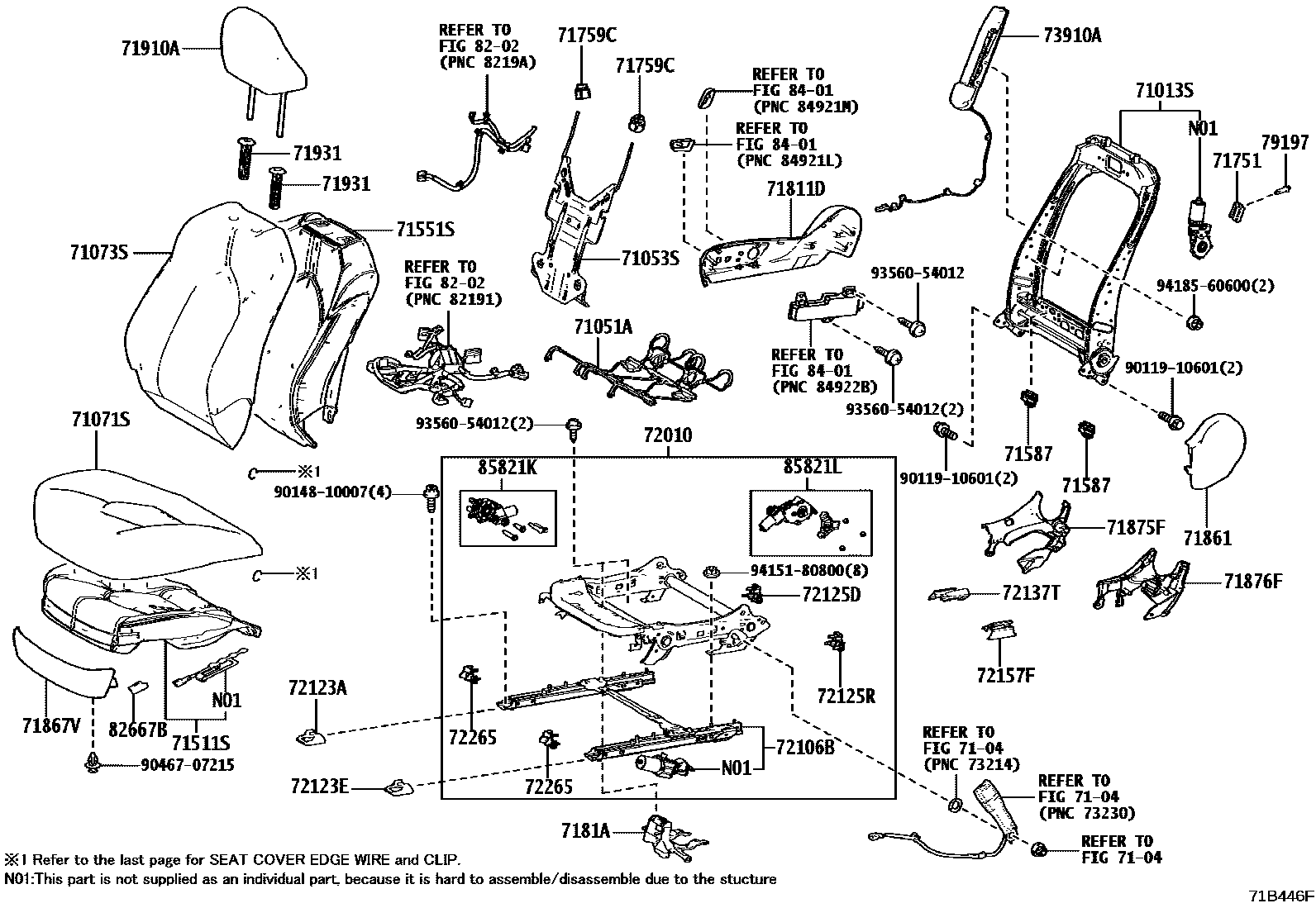

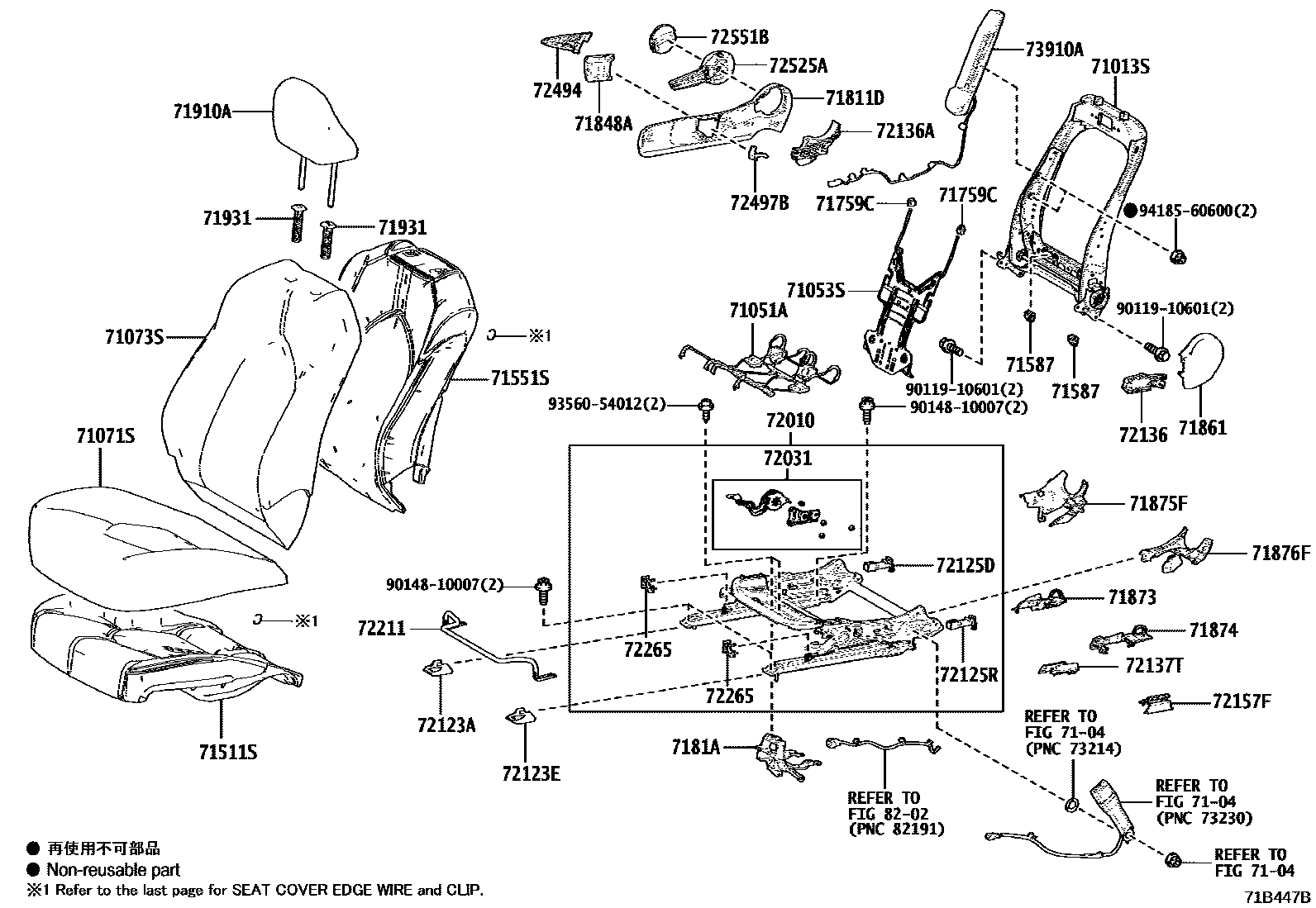

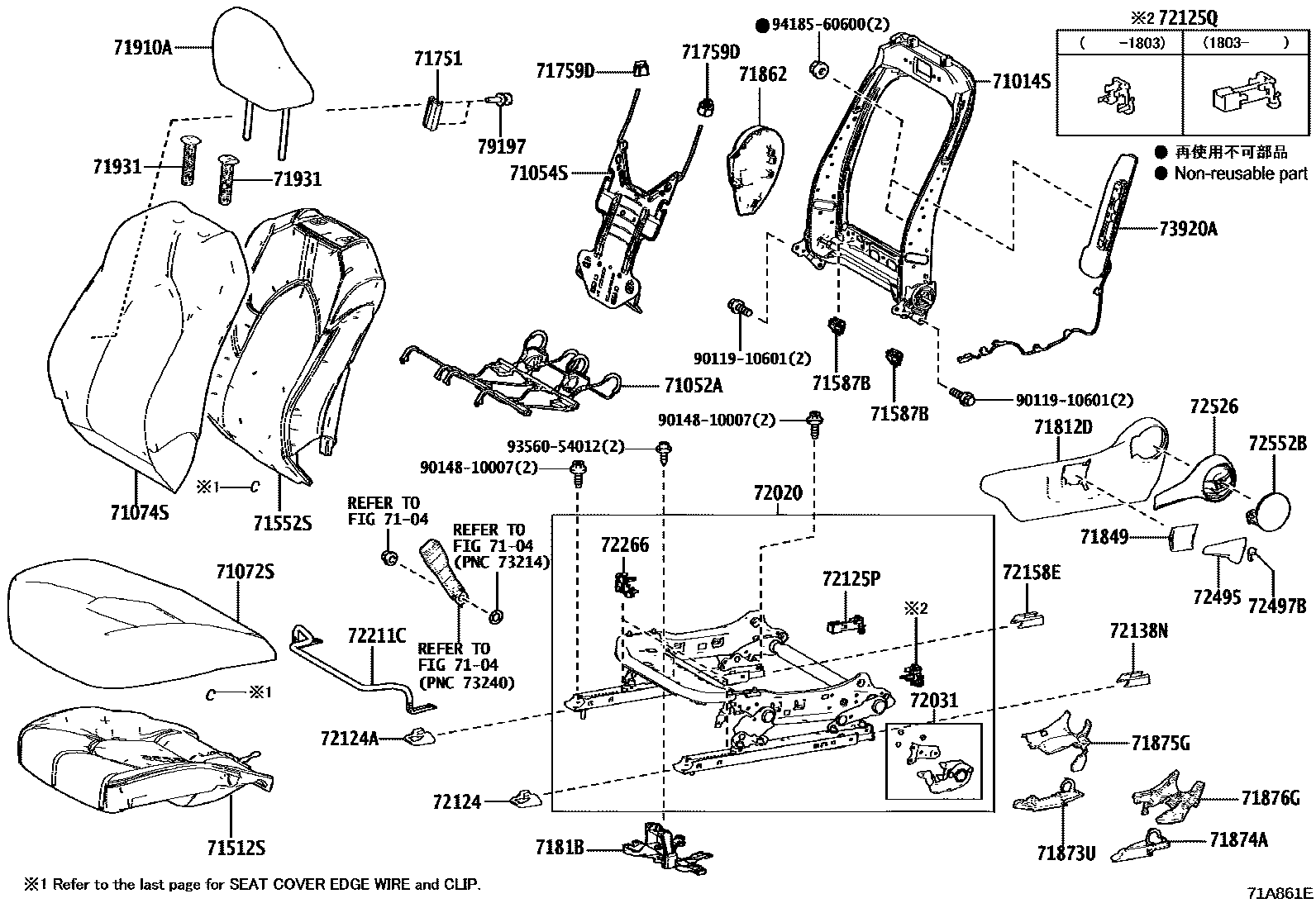

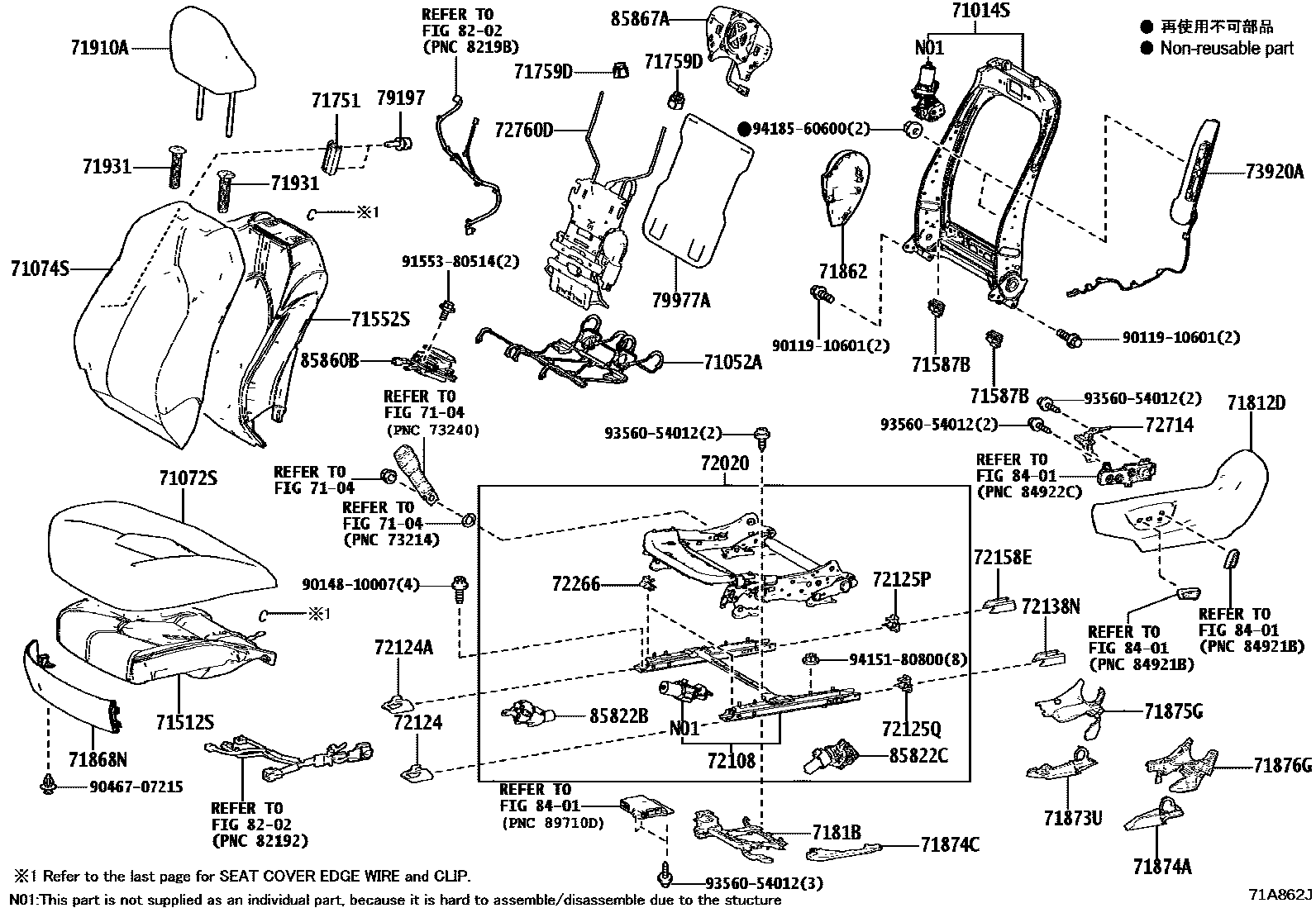

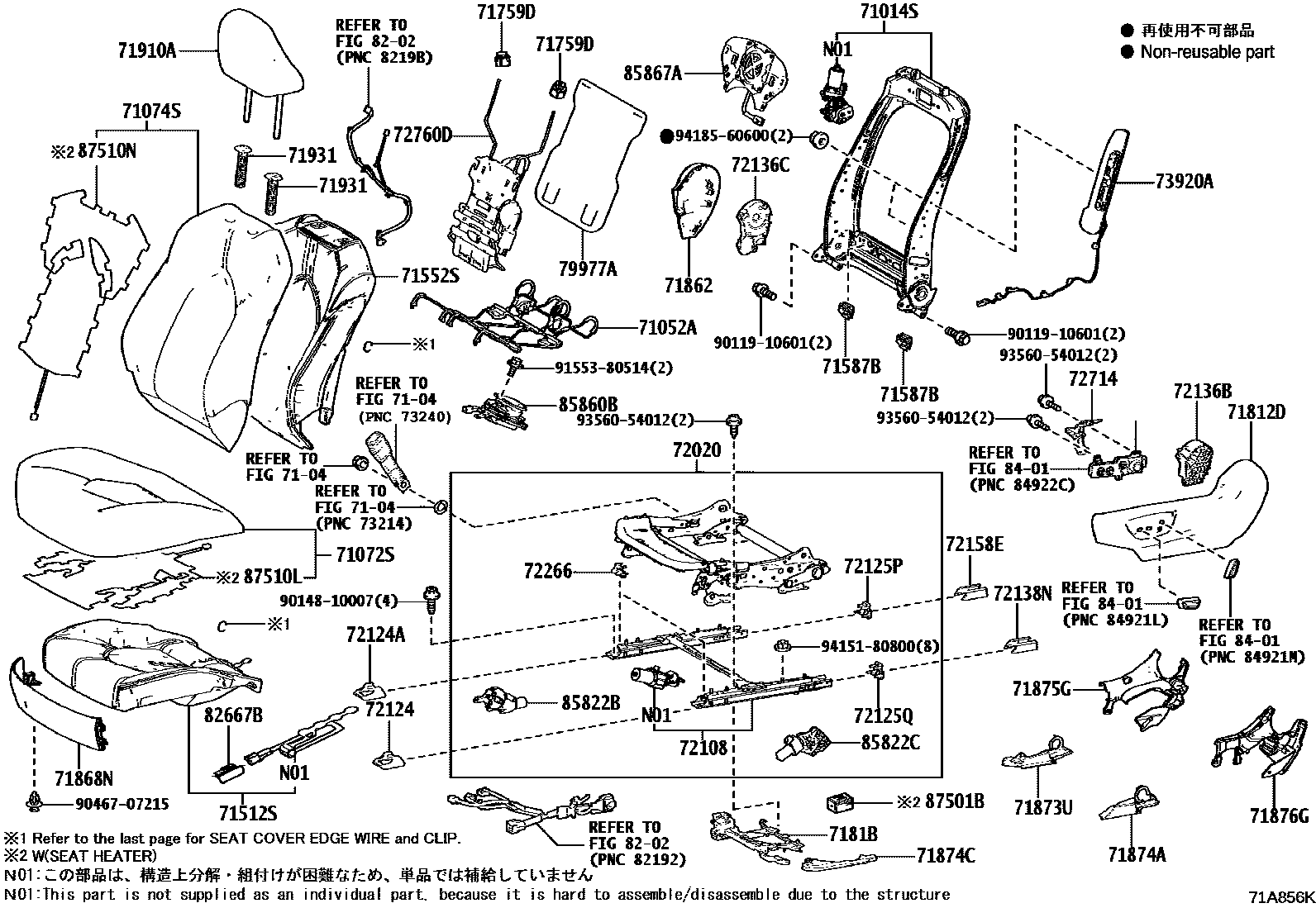

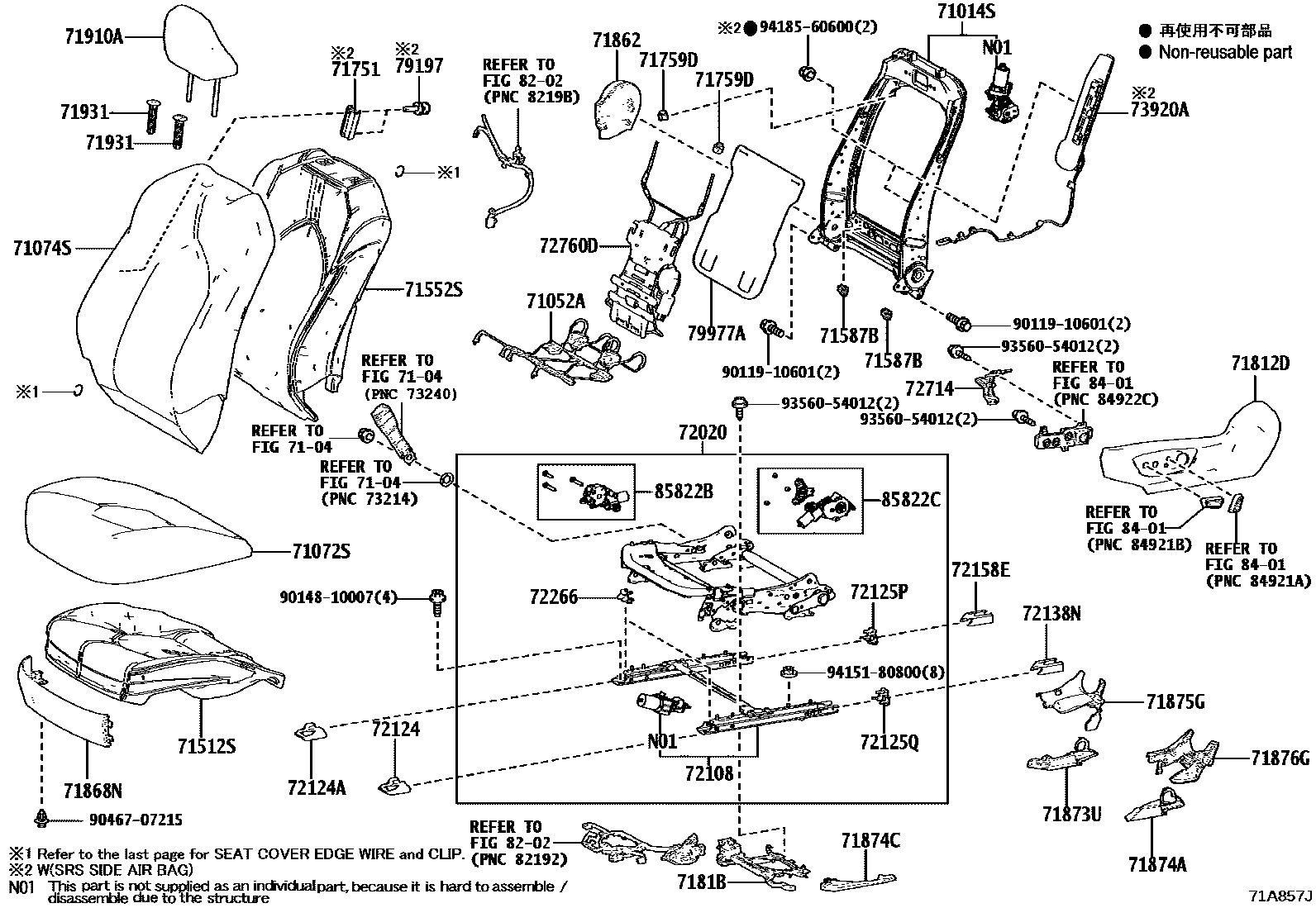

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 15 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-33330 · 71013-33331 · 71013-33340 · 71013-33350 · 71013-33351 · 71013-33380 · 71013-33381 · 71013-33390 · 71013-33530 · 71013-33531 · 71013-33540 · 71013-33541 · 71013-33550 · 71013-33560 · 71013-33570 · 71013-33571 |
| 71014S | Front left seat back frame sub-assembly | 71014-33150 · 71014-33160 · 71014-33170 · 71014-33200 · 71014-33210 · 71014-33370 · 71014-33380 · 71014-33390 · 71014-33400 · 71014-33420 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-33280 · 71501-33290 · 71511-33520 · 71511-33530 · 71511-33560 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-33250 · 71502-33260 · 71512-33430 · 71512-33440 · 71512-33470 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33390 · 71551-33400 · 71551-33410 · 71551-33430 · 71551-33470 |
| 71552S | Front left seat back cushion (for split seats) | 71551-33390 · 71552-33290 · 71552-33300 · 71552-33320 · 71552-33360 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71587B | Front seat back edge protective cover | 71587-47010 |
| 71751 | Seat cover hanger | 71751-47050 |
| 71759C | Front seat back hook No. 1 | 71759-50040 · 71759-52050 |
| 71759D | Front seat back hook 2 | 71759-50040 · 71759-52050 |
| 7181A | Front right seat cushion harness holder | 7181A-33010 · 7181A-47010 |
| 7181B | Front left seat cushion harness holder | 7181B-33010 · 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873A | Front seat cushion lower guard | 71873-47090 |
| 71873U | Front right seat cushion lower guard panel | 71874-47080 |
| 71874 | Front left seat cushion lower guard | 71873-33140 · 71873-47080 |
| 71874A | Front left seat cushion lower guard | 71874-47070 |
| 71874C | Front seat cushion lower guard | 71874-47090 |
| 72010 | Front right seat adjuster assembly | 72010-33490 · 72010-33500 · 72010-33540 · 72010-33541 · 72010-33640 · 72010-47360 · 72010-47361 · 72010-47381 |
| 72020 | Front left seat adjuster assembly | 72020-33450 · 72020-33470 · 72020-33570 · 72020-47360 · 72020-47361 · 72020-47381 |
| 72031 | Front seat height adjuster assembly | 72443-47010 · 72443-47011 · 72443-47020 · 72443-47021 |
| 72106B | Seat slide rail upper right rail sub-assembly | 72106-33060 · 72106-33070 · 72106-33080 |
| 72108 | Seat slide upper left guide rail sub-assembly | 72108-33040 · 72108-33050 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-47060 |
| 72123E | Front right seat inner slide rail bracket cover | 72123-47060 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-47060 |
| 72124A | Front left seat inner slide rail bracket cover | 72123-47060 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-47010 · 72125-47020 |
| 72125P | Slide rail cover on rear seat 3 | 72125-47010 · 72125-47020 |
| 72125Q | Slide rail cover on rear seat No. 4 | 72125-47010 · 72125-47020 |
| 72125R | Slide rail cover on rear seat No. 1 | 72125-47010 · 72125-47020 |
| 72136 | No. 1 seat slide rail lower rail | 72136-33230 · 72136-33250 |
| 72136A | No. 2 seat slide rail lower rail | 72136-33240 · 72136-33260 |
| 72136B | No. 3 seat slide rail lower rail | 72136-33290 · 72136-33320 |
| 72136C | No. 4 seat slide rail lower rail | 72136-33300 · 72136-33340 |
| 72137T | Rear right seat outer slide rail bracket cover | 72137-47060 |
| 72138N | Rear left seat outer slide rail bracket cover | 72137-47060 |
| 72157F | Rear right seat inner slide rail bracket cover | 72157-47080 |
| 72158E | Rear left seat inner slide rail bracket cover | 72158-47080 |
| 72211 | Seat slide adjustment handle | 72211-47050 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72497B | Right height adjuster bracket cover | 72498-47010 · 72498-47020 |
| 72713 | Right seat adjuster protective clip bracket | 72713-47010 |
| 72714 | Left seat adjuster protective clip bracket | 72714-47010 |
| 72750D | Right lumbar support adjuster assembly | 72750-11010 · 72750-11020 |
| 72760D | Left lumbar support adjuster assembly | 72760-11010 · 72760-11020 |
| 73910A | Front right seat airbag assembly | 73910-33070 · 73910-33080 |
| 73920A | Front left seat airbag assembly | 73920-33070 · 73920-33080 |
| 79197 | Seat back cover hook | 79197-47010 |
| 79977A | Seat back felt pad | 79977-33030 |
| 82667B | Connector holder | 82666-47630 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-11020 · 85801-47020 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-11030 · 85801-47010 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-11040 · 85801-47040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-11050 · 85801-47030 |
| 85860A | Right seat cushion temperature control blower assembly | 85801-11010 · 85801-42040 |
| 85860B | Left seat cushion temperature control blower assembly | 85802-11010 · 85802-42020 |
| 85867 | Right seat back temperature control blower | 85867-11010 · 85867-42020 |
| 85867A | Left-hand seat back temperature control blower | 85867-11010 · 85867-42020 |
| 87501A | Right seat heater control sub-assembly | 87501-33010 |
| 87501B | Left side seat heater control sub-assembly | 87501-33010 |
| 87510K | Front right seat cushion heater assembly | 87510-33480 |
| 87510L | Front left seat cushion heater assembly | 87510-33490 |
| 87510M | Front right seat back heater assembly | 87530-33170 |
| 87510N | Front left seat back heater assembly | 87530-33170 |
