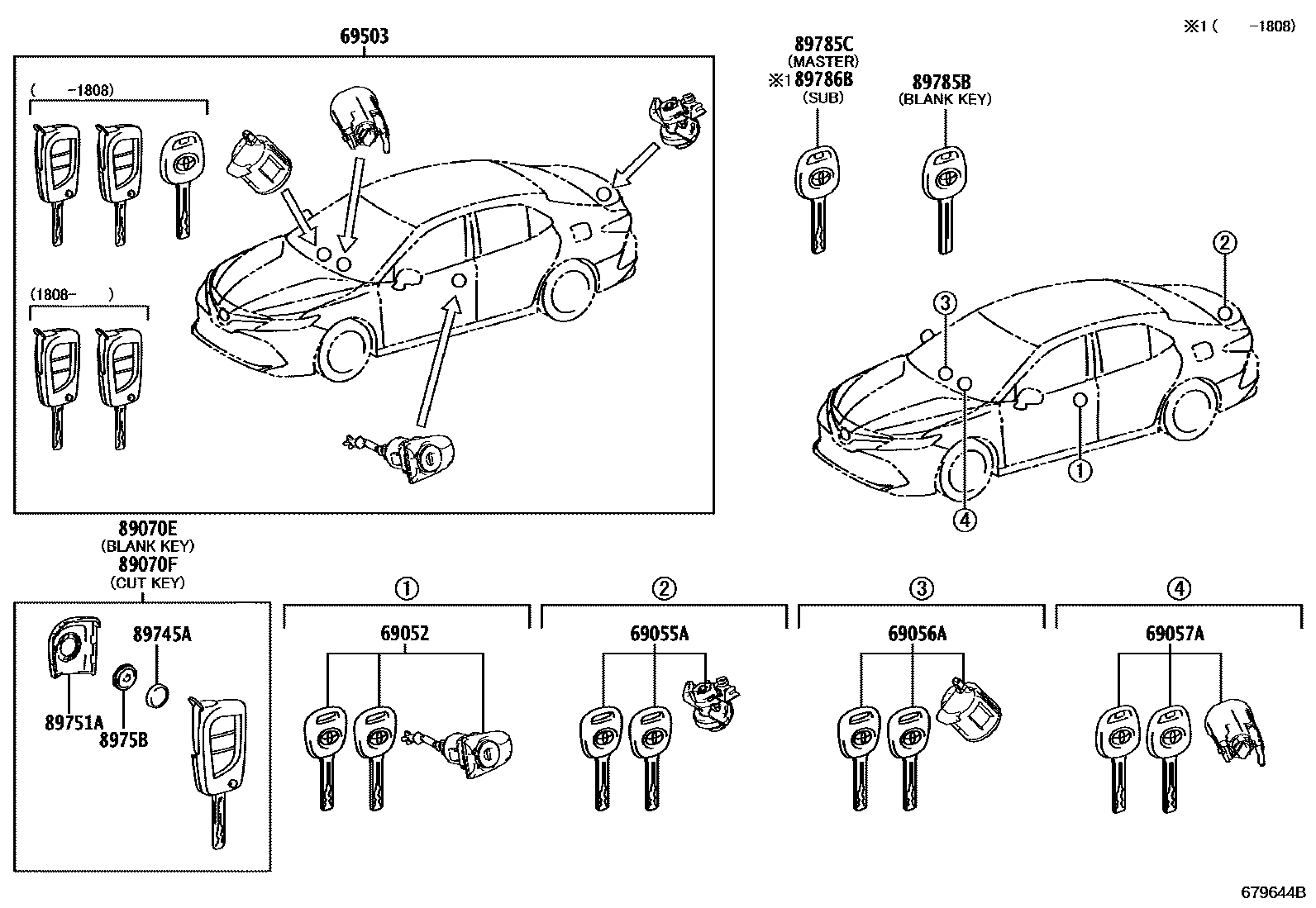

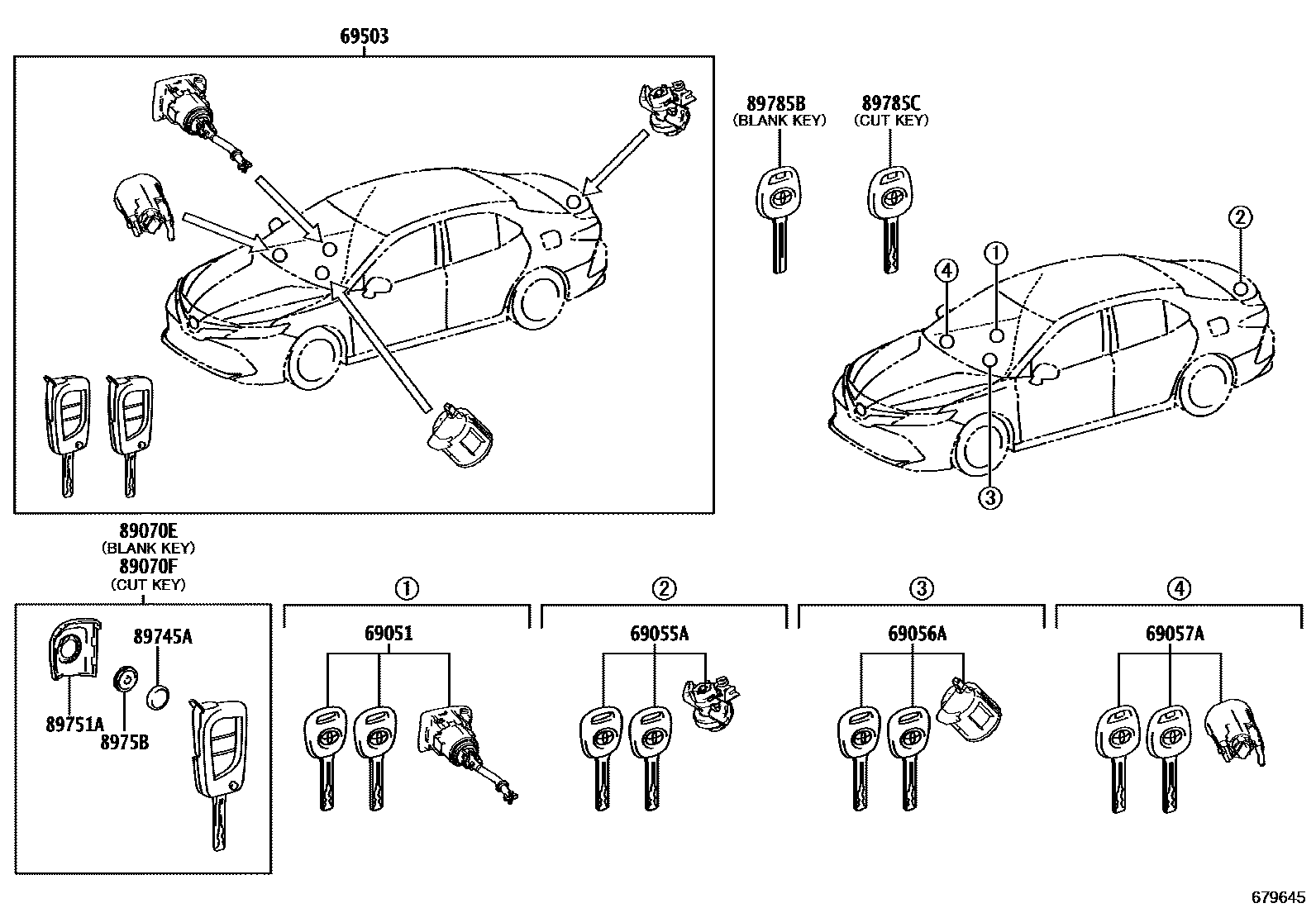

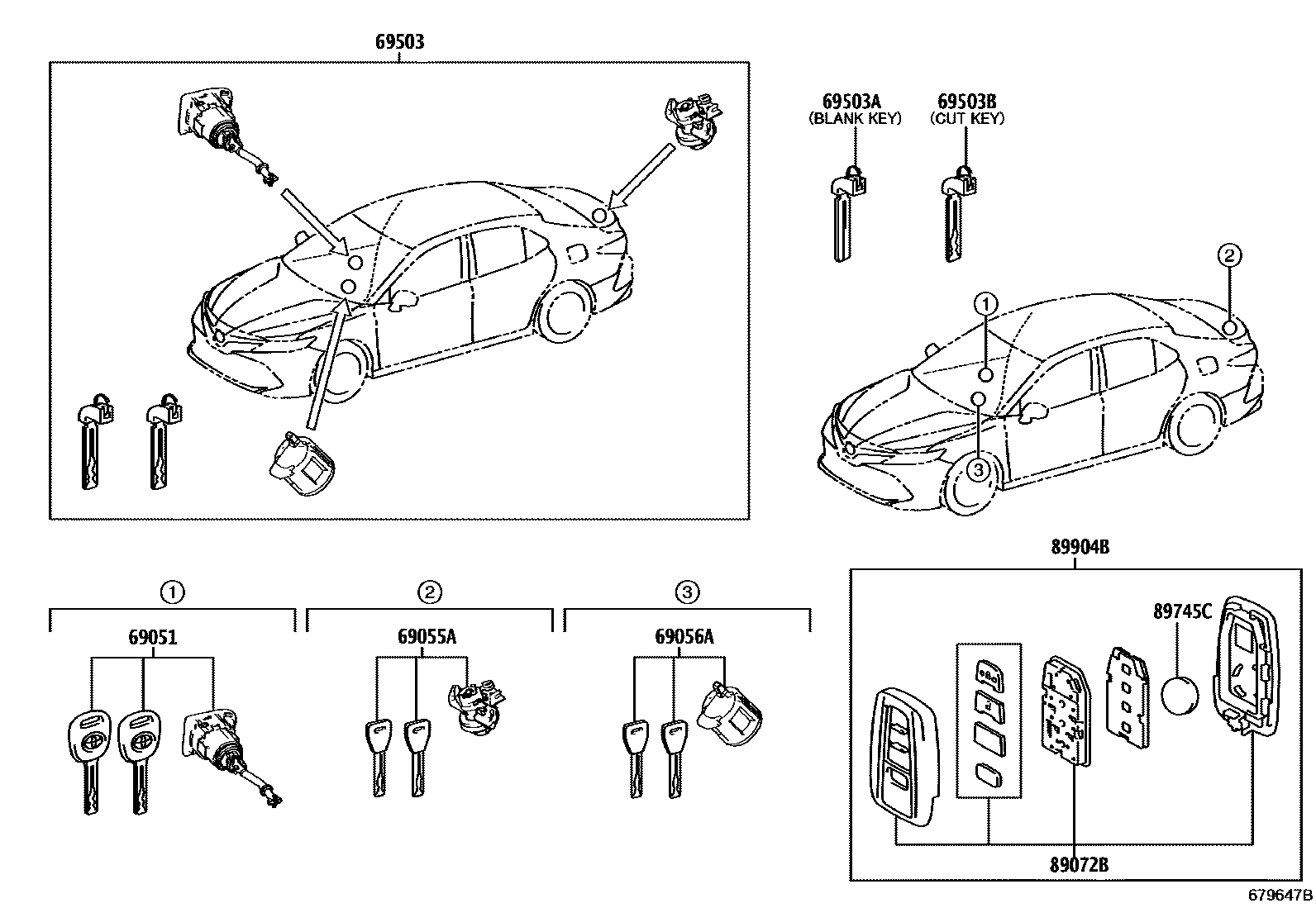

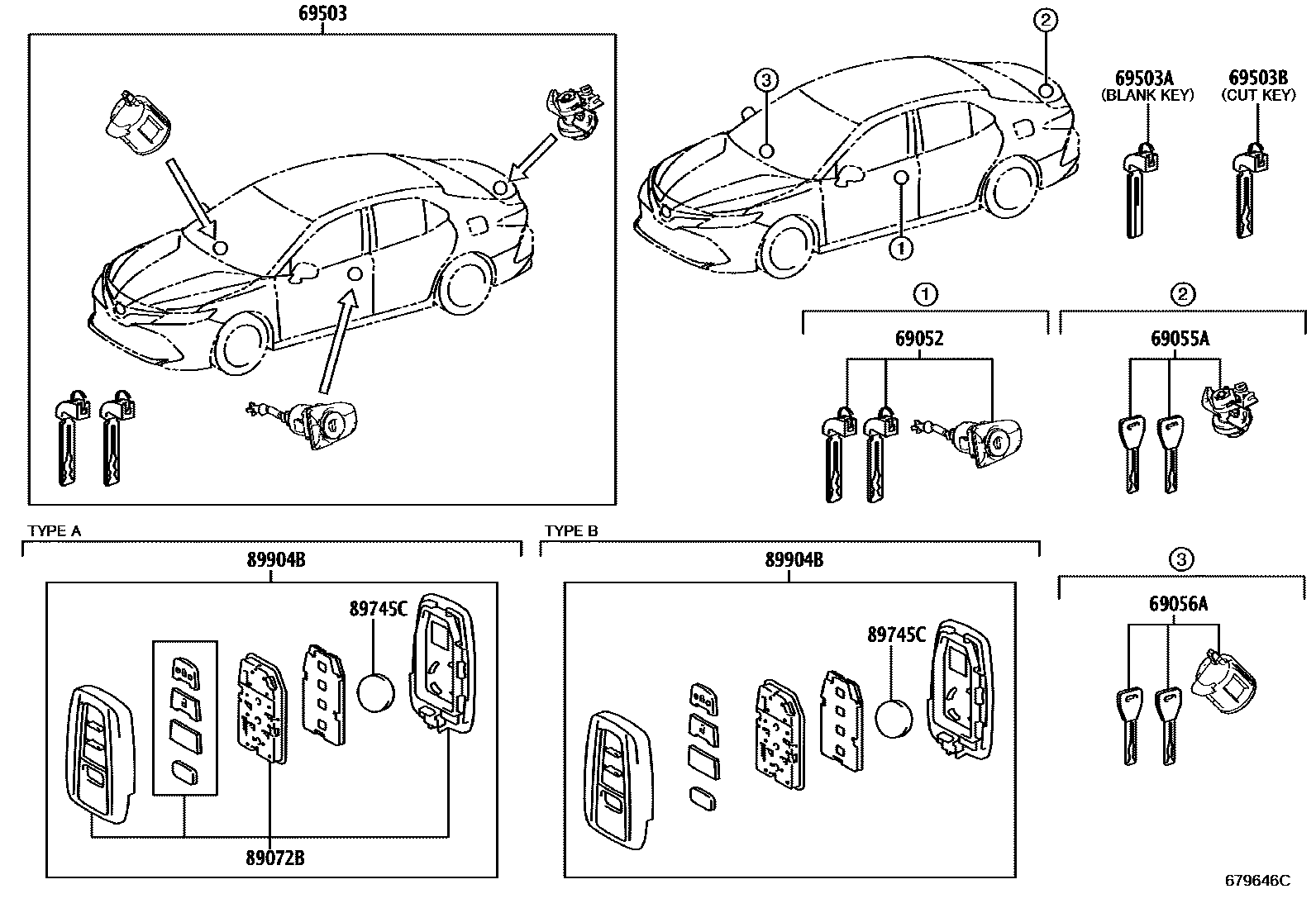

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-33380 · 69051-33390 |
| 69052 | Left door lock cylinder and key assembly | 69052-33400 · 69052-33410 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33500 · 69055-33510 |
| 69056A | Glove box lock cylinder and key assembly | 69056-30240 · 69056-30270 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-33410 |
| 69503 | Door lock cylinder components | 69005-33E20 · 69005-33E40 · 89704-33B00 · 89704-33B30 · 89704-33B31 · 89704-33B33 · 89704-33B70 · 89704-33B80 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 |
| 89070E | Remote key assembly | 89070-33F00 · 89070-33F01 · 89070-33F20 · 89070-33F21 · 89070-33J00 |
| 89070F | Remote key assembly (internal tooth key) | 89070-33F60 · 89070-33F61 · 89070-33F80 · 89070-33F81 · 89070-33J10 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33870 · 89072-33890 · 89072-33A50 · 89072-33C90 · 89072-33E40 · 89072-33E50 · 89072-33E60 · 89072-33F00 · 89072-33F10 · 89072-33F20 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-12140 |
| 89785C | transceiver key master transmitter | 89785-12150 |
| 89786B | transceiver key secondary transmitter | 89786-33060 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33550 · 89904-33570 · 89904-33740 · 89904-33770 · 89904-33890 · 89904-33A20 · 89904-33C90 · 89904-33D40 · 89904-33D50 · 89904-33J10 · 89904-33K30 · 89904-33K40 |
