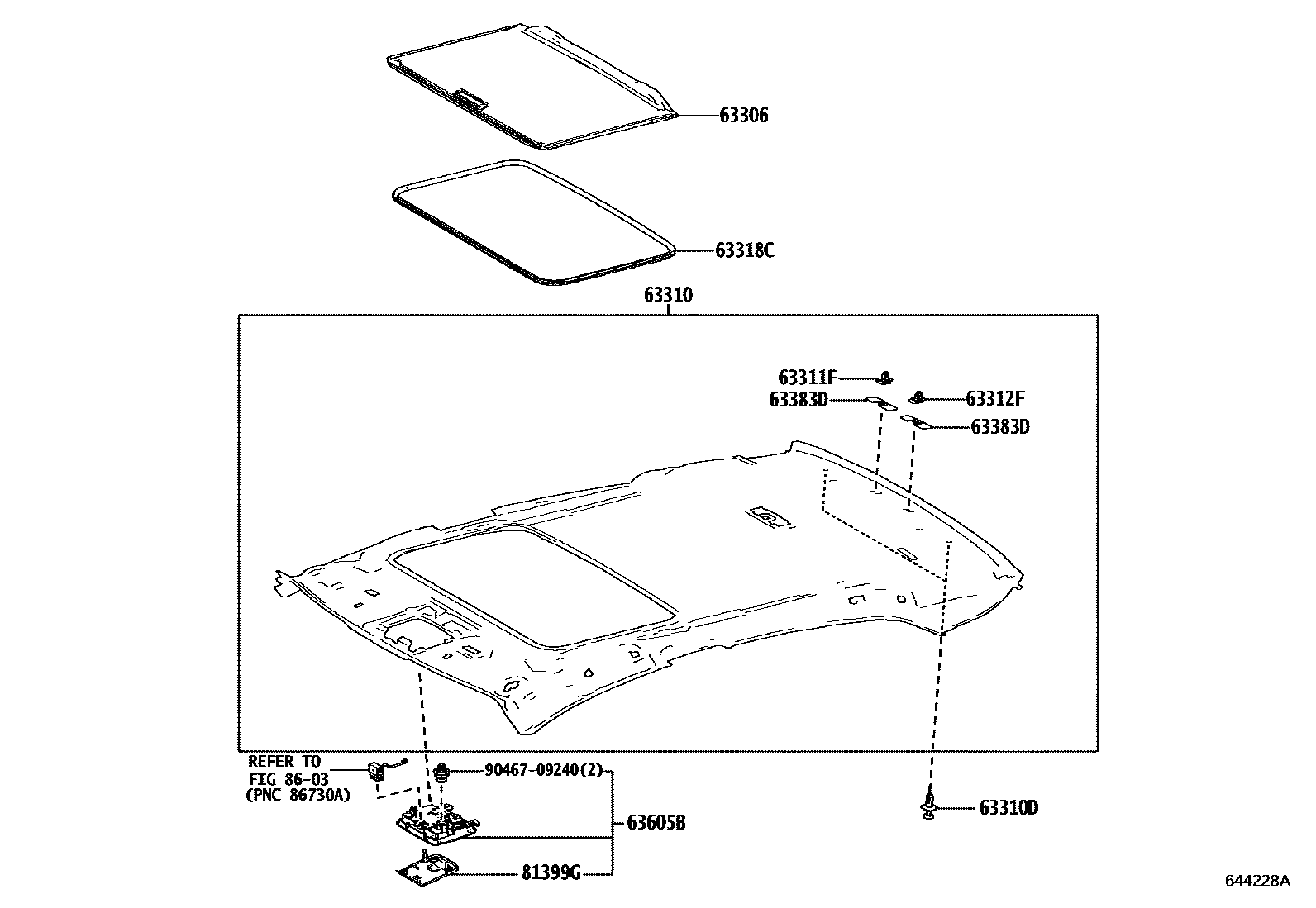

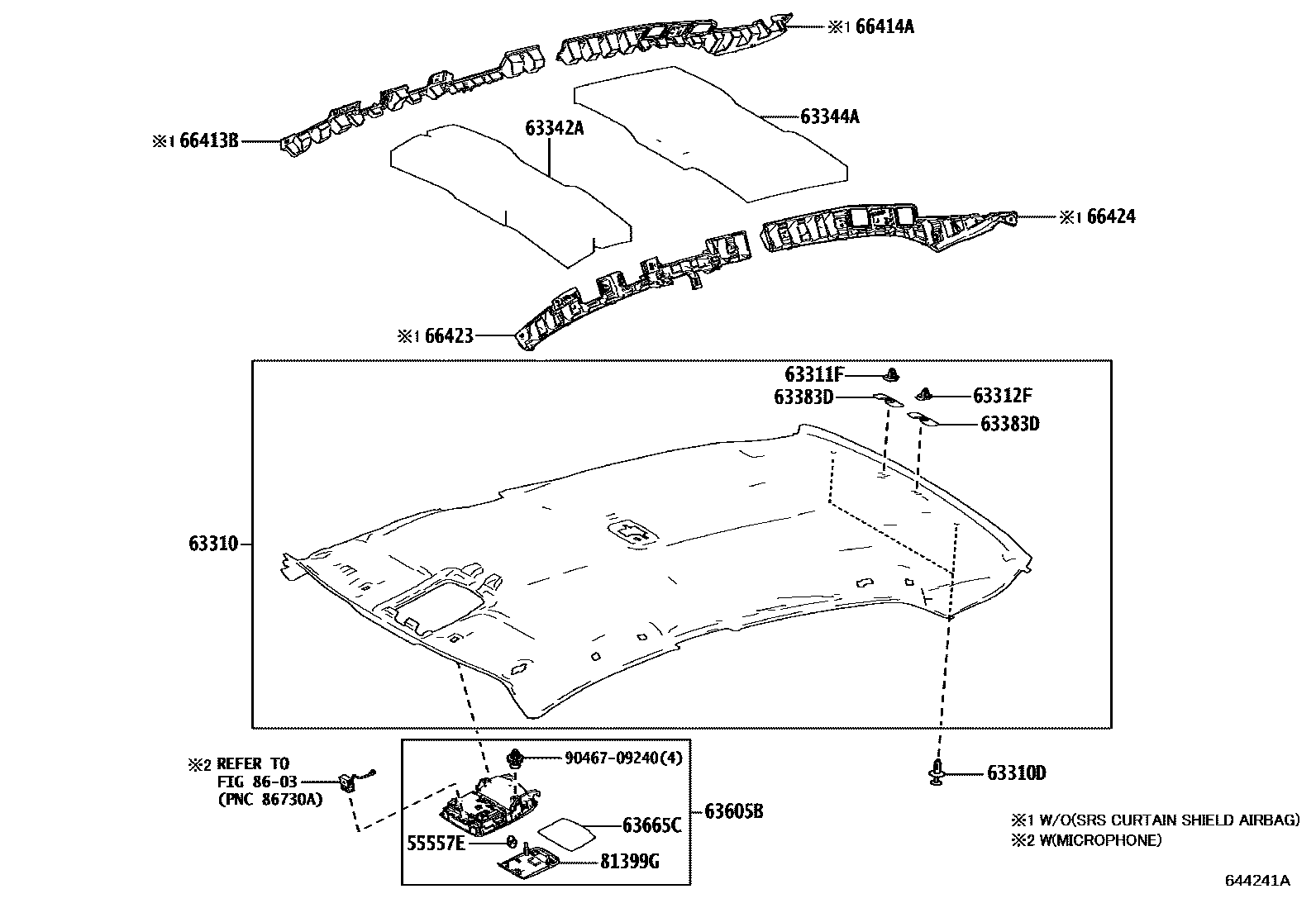

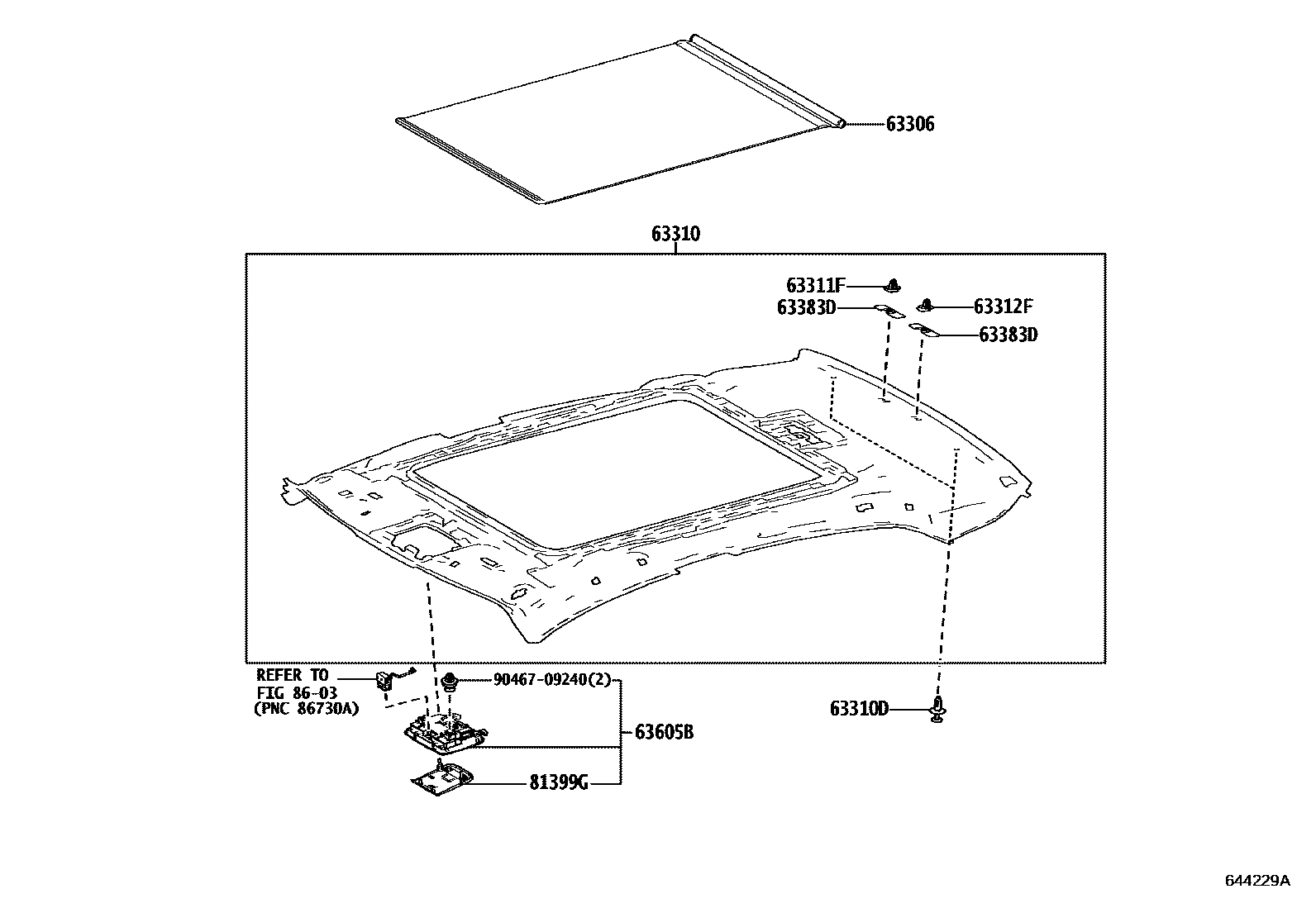

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55557E | roof console cushion | 55557-47050 |
| 63311F | No. 1 headliner clip | 90467-10181 |
| 63312F | No. 2 headliner clip | 90467-09126 |
| 63342A | No. 2 roof silencer | 63342-33070 |
| 63344A | No. 4 roof silencer | 63344-33060 |
| 63383D | Rear headliner fixings | 63383-24030 |
| 63665C | roof console mat | 63665-33020 |
| 66413B | Right front longitudinal member spacer | 66413-33020 |
| 66414A | Right rear longitudinal member spacer | 66414-33070 |
| 66423 | Left front longitudinal member spacer | 66423-33020 |
| 66424 | Left rear longitudinal member spacer | 66424-33070 |
| 81399G | Lampshade cover | 81399-33010 · 81399-33030 · 81399-33040 · 81399-33060 · 81399-33100 |
