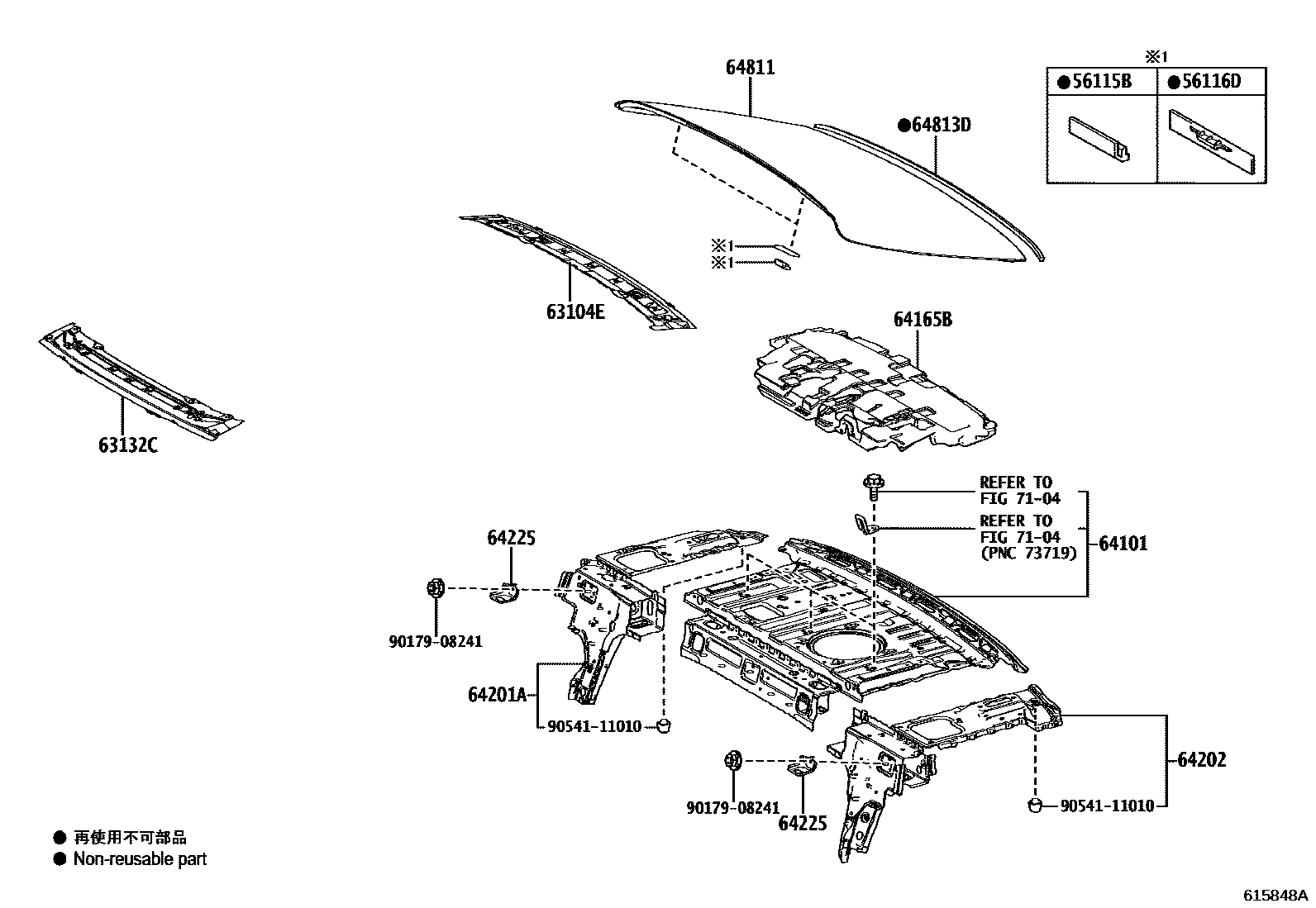

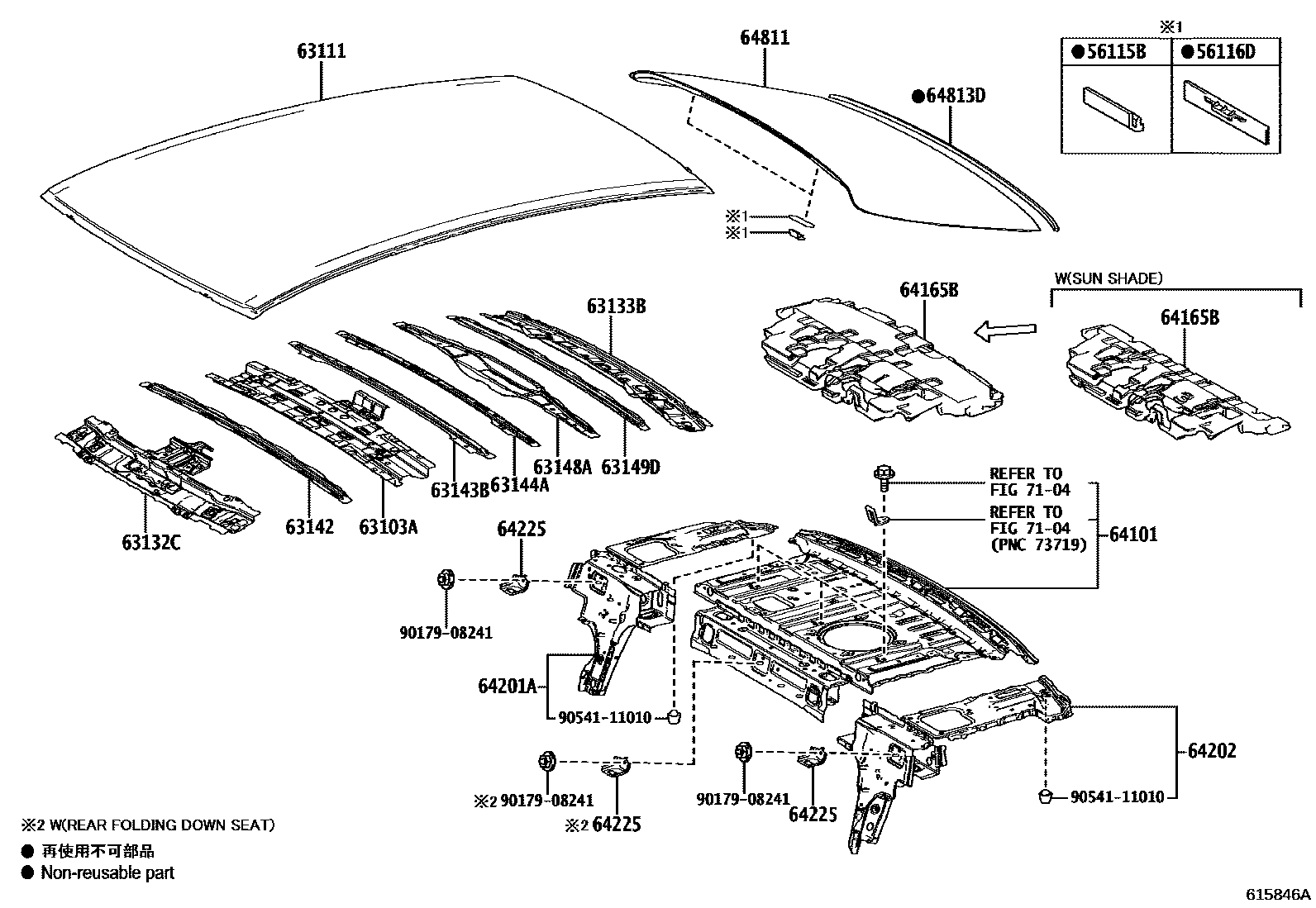

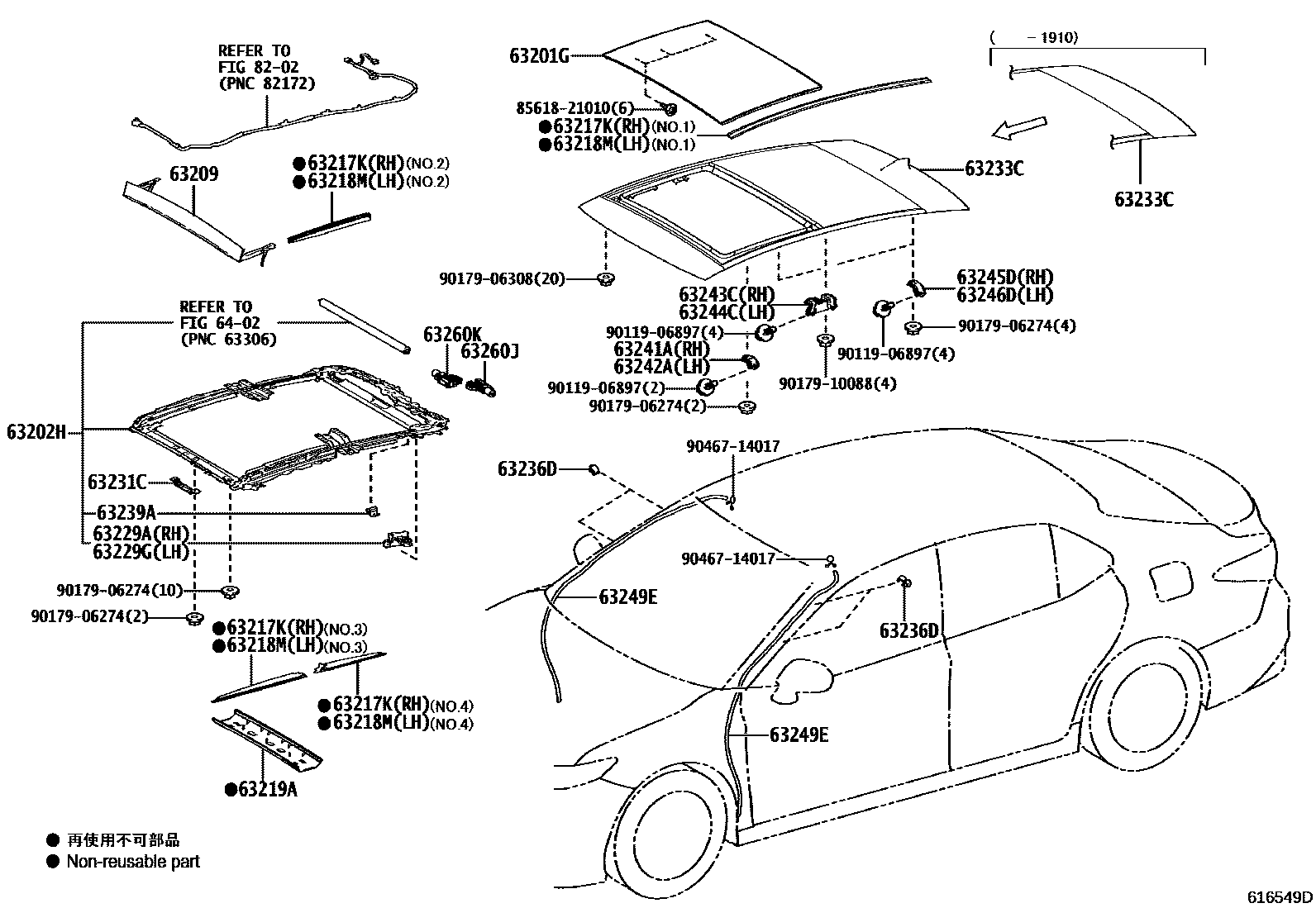

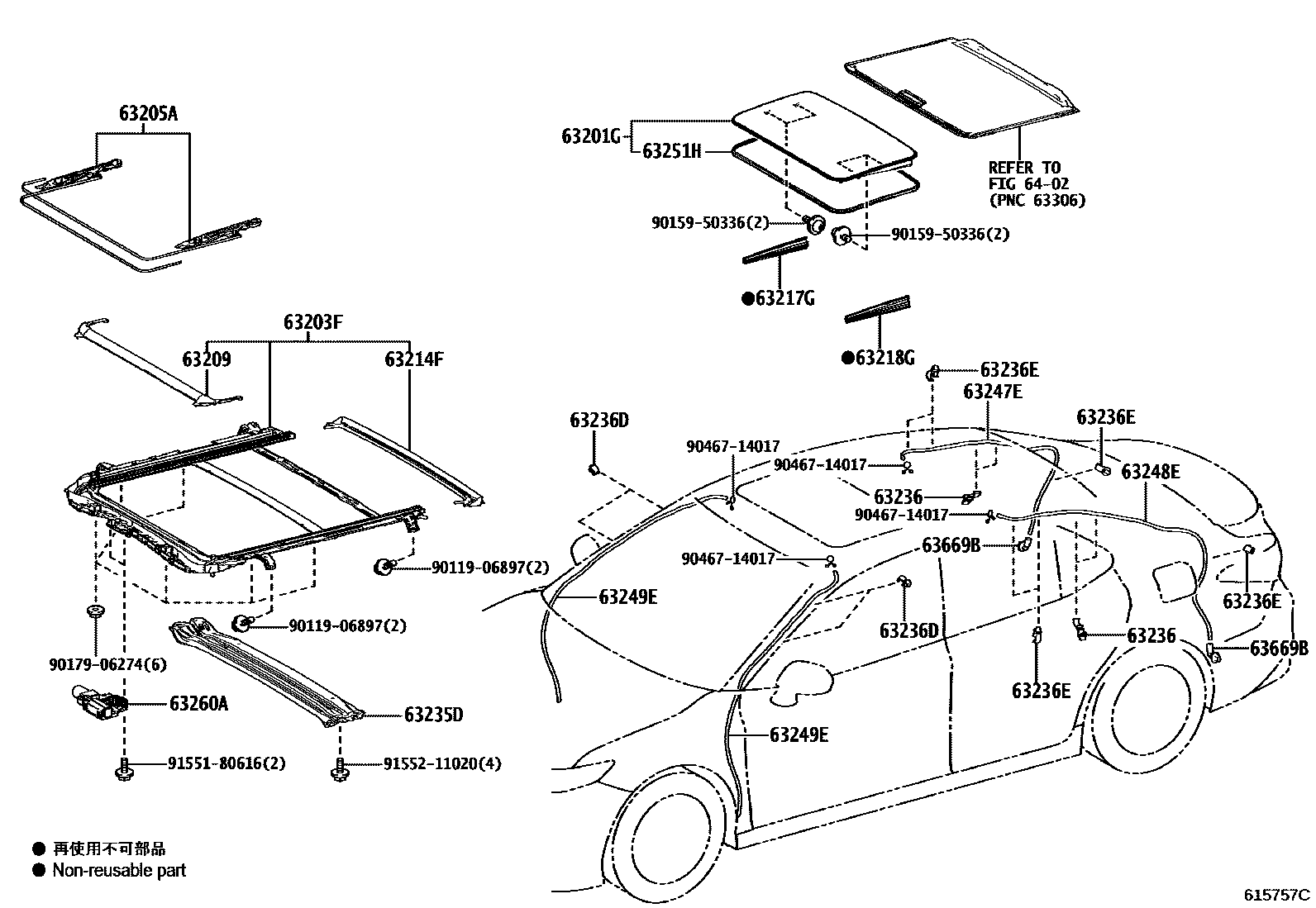

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 5 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-33030 · 63103-33080 · 63103-33100 · 63103-33110 |
| 63104 | Center roof panel reinforcement sub-assembly | 63107-33010 · 63107-33011 · 63107-33020 · 63107-33021 |
| 63104E | Rear roof panel reinforcement sub-assembly | 63104-33110 |
| 63111 | roof panel | 63111-33310 · 63111-33420 · 63111-33460 |
| 63132C | Windshield inner roof panel | 63102-33290 · 63102-33909 · 63132-33110 |
| 63133B | back window frame | 63133-33130 |
| 63142 | No. 2 roof panel reinforcement | 63143-33110 |
| 63142A | No. 2 roof panel reinforcement | 63142-33080 |
| 63143B | No. 3 roof panel reinforcement | 63128-33030 |
| 63144A | No. 4 roof panel reinforcement | 63144-33150 |
| 63148A | No. 7 roof panel reinforcement | 63148-33070 |
| 63149D | No. 8 roof panel reinforcement | 63149-33040 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-33300 · 63201-33320 · 63201-33321 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-33190 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-48020 |
| 63209 | Roof deflector sub-assembly | 63209-33170 · 63209-33180 · 63209-33181 |
| 63214F | Roof rear drain channel | 63214-48020 |
| 63217G | Right sliding sunroof trim | 63217-47020 |
| 63217K | Right sliding sunroof trim | 63217-33130 · 63217-33140 · 63217-33150 · 63217-33160 |
| 63218G | Sliding sunroof trim, left | 63217-47020 |
| 63218M | Sliding sunroof trim, left | 63218-33100 · 63218-33110 · 63218-33120 · 63218-33130 |
| 63219A | Rear sliding sunroof trim | 63219-33050 |
| 63229A | Sliding sunroof blind stop | 63229-33050 |
| 63229G | Sliding sunroof blind stop | 63229-33060 |
| 63231C | Interior light bracket | 63231-33110 |
| 63233C | Sliding skylight shelf | 63233-33110 · 63233-33150 |
| 63235D | central sliding skylight frame | 63235-33050 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-30010 |
| 63236D | Sliding skylight drain hose clamp | 63236-42010 |
| 63236E | Sliding skylight drain hose clamp | 63236-42010 |
| 63239A | Sliding skylight frame spacer | 63239-33060 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-33140 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-33140 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-33160 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-33130 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-33110 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-33110 |
| 63247E | Right rear sliding sunroof drain hose | 63247-33050 |
| 63248E | Left rear sliding sunroof drain hose | 63247-33050 |
| 63249E | Sliding skylight drain hose | 63249-33200 · 63249-33210 |
| 63251H | Sliding skylight seal | 63251-33070 · 63251-33110 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-33160 |
| 63260J | Sliding sunroof driving gear assembly | 63260-33171 |
| 63260K | Sliding sunroof driving gear assembly | 63260-33180 |
| 63669B | Sliding skylight drain seal | 63669-30040 · 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-33350 |
| 64165B | No. 1 upper back panel hole cover | 64165-33100 · 64165-33110 · 64165-33140 · 64165-33150 |
| 64201A | Glove box right extension sub-assembly | 64201-33090 |
| 64202 | Glove box left extension section sub-assembly | 64202-33090 |
| 64225 | Rear seat cushion bracket hanger | 64225-33050 |
| 64811 | back window glass | 64811-33913 · 64811-33914 |
| 64813D | Back window glass adhesive seal | 56117-64010 |
